Toyota COROLLA 底板和底板装饰罩 — Figure 6404

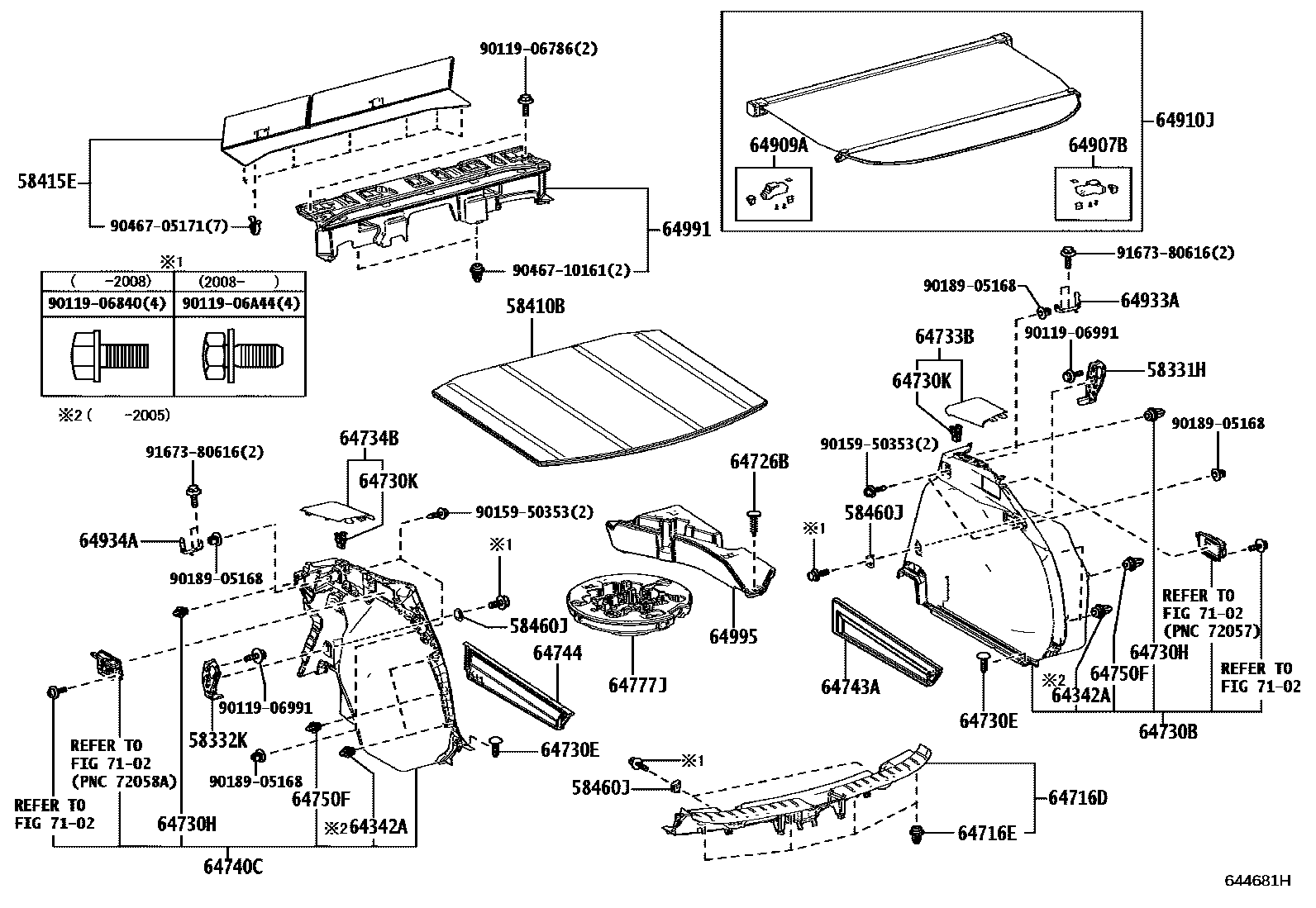

Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58331H | No. 1 suitcase decorative panel bracket | 58331-12120 |
| 58332K | No. 2 suitcase decorative panel bracket | 58332-12110 |
| 58460J | Luggage fixing belt lock assembly | 58460-33020 |
| 64342A | clip | 90467-10167 |
| 64716E | Clip (for rear floor decorative cover) | 90467-10167 |
| 64730H | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64730K | Clip (for bottom panel side decorative panel) | 90467-10203 |
| 64750F | Clip (for bottom panel side decorative panel) | 90467-10167 |
| 64777J | Spare tire cushion | 64777-12260 |
| 64907B | Trunk trim cover right block sub-assembly | 64907-12020 |
| 64909A | Trunk trim cover left block sub-assembly | 64909-12010 |
| 64910J | Trunk cover assembly | 64910-12020 |
| 64933A | Right trunk trim cover retainer | 64933-12040 |
| 64934A | Left trunk trim cover retainer | 64934-12020 |
| 64995 | Bottom right floor box | 64995-12140 |
