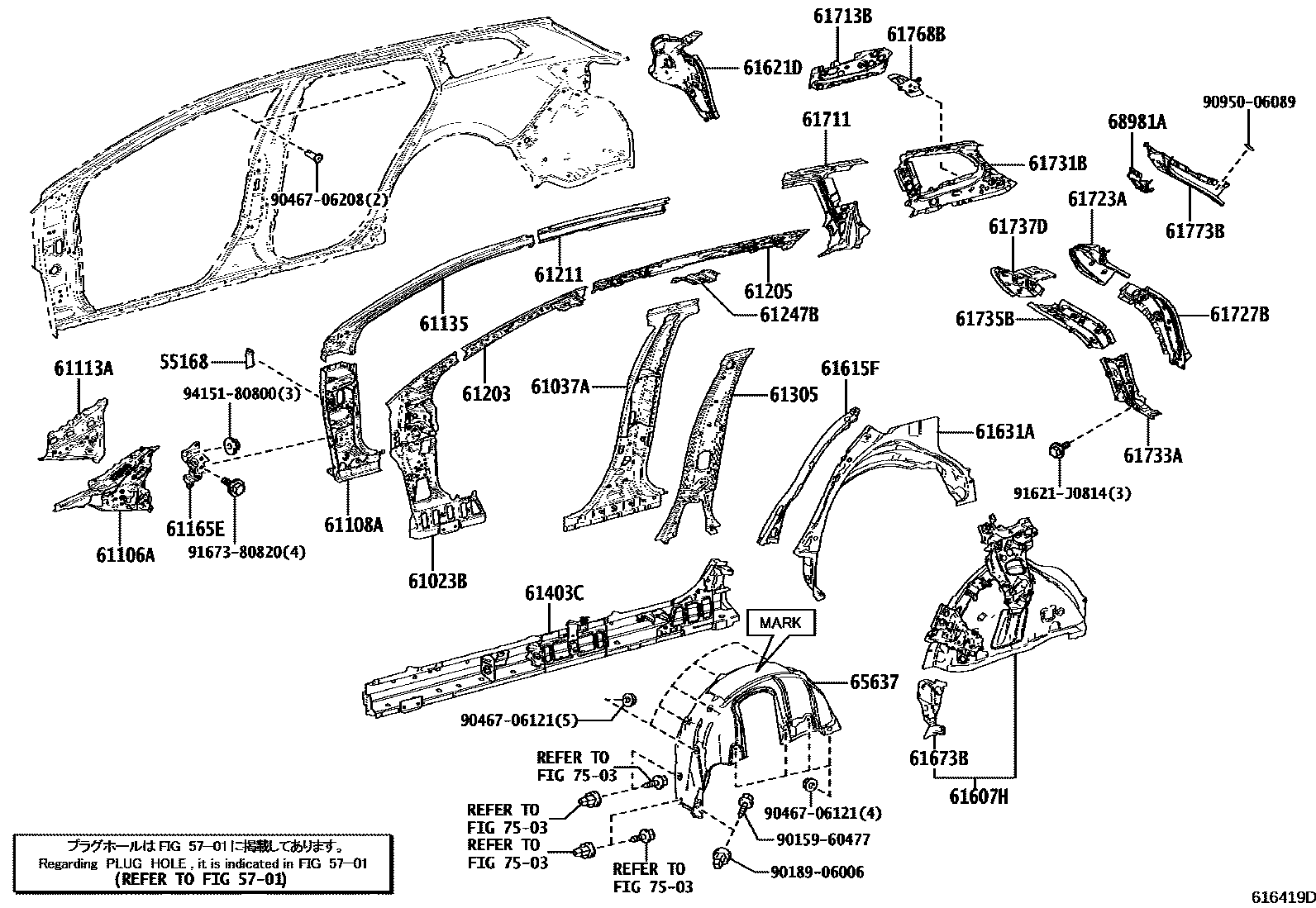

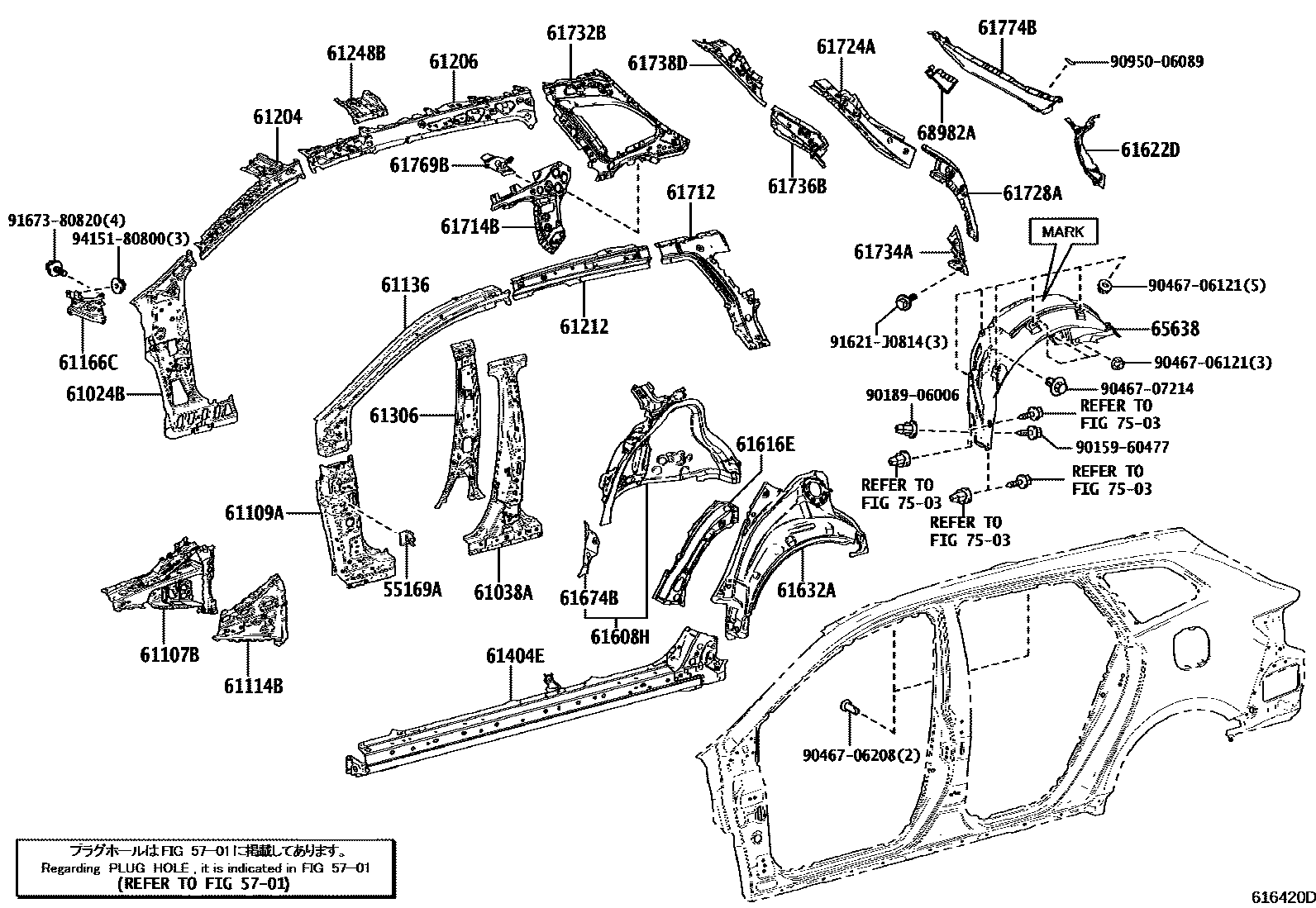

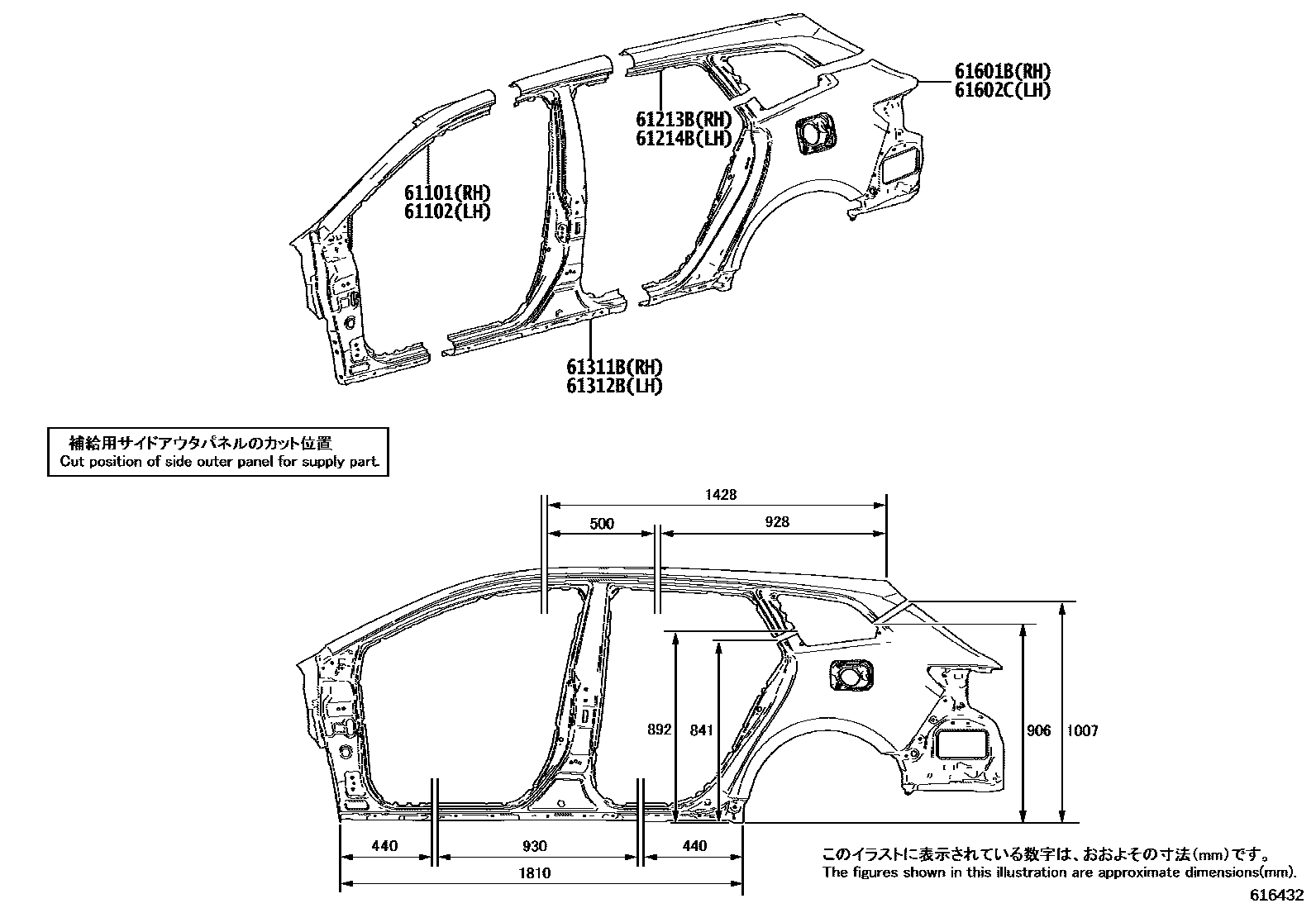

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55168 | Right front fender mounting bracket | 53879-68020 |
| 55169A | Left front fender mounting bracket | 53879-68020 |
| 61023B | Right body inner front pillar sub-assembly | 61023-12460 |
| 61024B | Left body inner front pillar sub-assembly | 61024-12450 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12370 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12370 |
| 61101 | Right front wall side panel sub-assembly | 61101-12240 |
| 61102 | Left front wall side panel sub-assembly | 61102-12210 |
| 61106A | Right body front pillar reinforcement sub-assembly | 61106-12180 |
| 61107B | Left side body front pillar reinforcement sub-assembly | 61107-12180 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12340 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12330 |
| 61113A | No. 2 right outer panel | 61113-12030 |
| 61114B | No. 2 left outer panel | 61114-12020 |
| 61135 | Reinforcement member on the right front body pillar | 61135-12360 |
| 61136 | Reinforcement member on left front body pillar | 61136-12350 |
| 61165E | Dashboard to right front wall side bracket | 61165-12110 · 61165-12120 |
| 61166C | Dashboard to left front wall side bracket | 61166-12120 · 61166-12130 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-12340 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-12320 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-12060 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-12060 |
| 61211 | Roof right outer longitudinal beam | 61211-12570 |
| 61212 | Roof left outer longitudinal beam | 61212-12570 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-12080 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-12080 |
| 61247B | Roof right inner longitudinal beam reinforcement | 61247-12110 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-12040 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-12210 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-12210 |
| 61311B | Right body outer center pillar | 61311-12550 |
| 61312B | Left body outer center pillar | 61312-12590 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-12906 · 61403-12908 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-12906 · 61404-12908 |
| 61601B | Right side enclosure sub-assembly | 61601-12C80 |
| 61602C | Left side enclosure sub-assembly | 61602-12C80 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-12C90 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-12C80 |
| 61615F | Right side enclosure outer panel reinforcement | 61615-12050 |
| 61616E | Left side enclosure outer panel reinforcement | 61616-12080 |
| 61621D | Back door right opening slot | 61621-12600 |
| 61622D | Rear door left opening slot | 61622-12600 |
| 61631A | Right wheel cover outer panel | 61631-12560 · 61631-12561 · 61631-12562 |
| 61632A | Left side wheel cover outer panel | 61606-12250 · 61606-12251 · 61606-12252 |
| 61673B | Right wheel housing lining panel reinforcement | 61673-12060 |
| 61674B | Left side wheel housing lining plate reinforcement | 61674-12090 |
| 61711 | Roof right side outer panel | 61711-12410 |
| 61712 | Roof left outer panel | 61712-12440 |
| 61713B | Roof right outer reinforcement | 61713-12160 |
| 61714B | Roof left outer reinforcement | 61714-12150 |
| 61723A | No. 1 right corner window opening fixing piece | 61723-12130 |
| 61724A | No. 1 left corner window opening fixing piece | 61724-12130 |
| 61727B | Right side panel reinforcement extension | 61727-12030 |
| 61728A | Left side bulkhead reinforcement extension | 61728-12050 |
| 61731B | Roof right inner panel | 61731-12860 · 61731-12861 · 61731-12862 |
| 61732B | Roof left inner panel | 61732-12820 |
| 61733A | Right front roof inner panel | 61733-12190 |
| 61734A | Left front roof inner panel | 61734-12190 |
| 61735B | Right side enclosure inner panel extension | 61735-12470 |
| 61736B | Left side enclosure inner panel extension | 61736-12480 |
| 61737D | Roof right inner reinforcement | 61737-12190 |
| 61738D | Roof left inner reinforcement | 61738-12200 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-12200 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61769-12150 |
| 61773B | Back door upper right opening frame | 61773-12030 |
| 61774B | Back door upper left opening frame | 61774-12030 |
| 65637 | Right rear wheel house lining | 65637-12090 · 65637-12130 |
| 65638 | Left rear wheel house lining | 65638-12100 · 65638-12140 |
| 68981A | Back door right side support rod fixing | 68981-12090 |
| 68982A | Back door left support rod fixing | 68982-12080 |
