Toyota COROLLA 地板垫和地毯 — Figure 5804

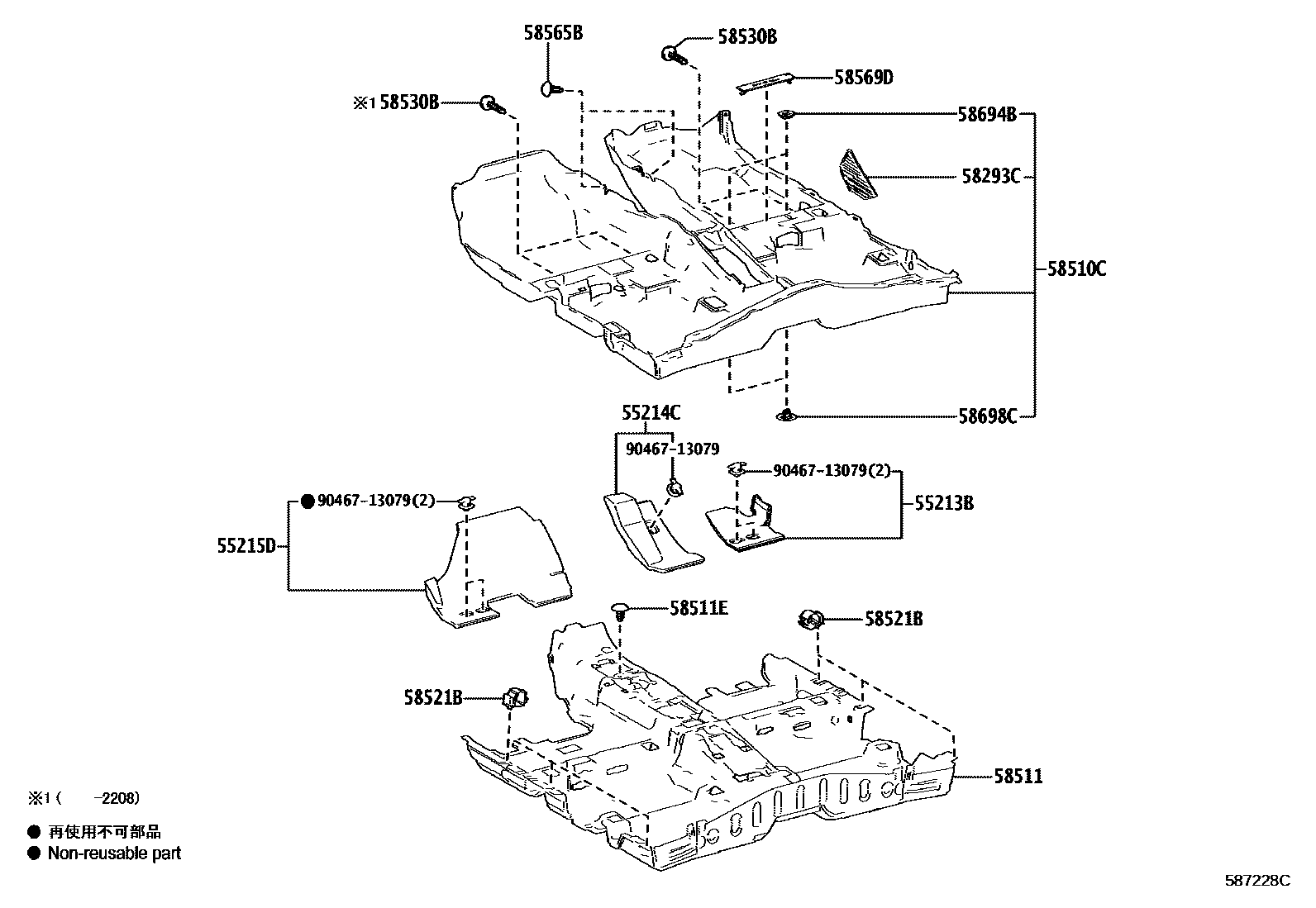

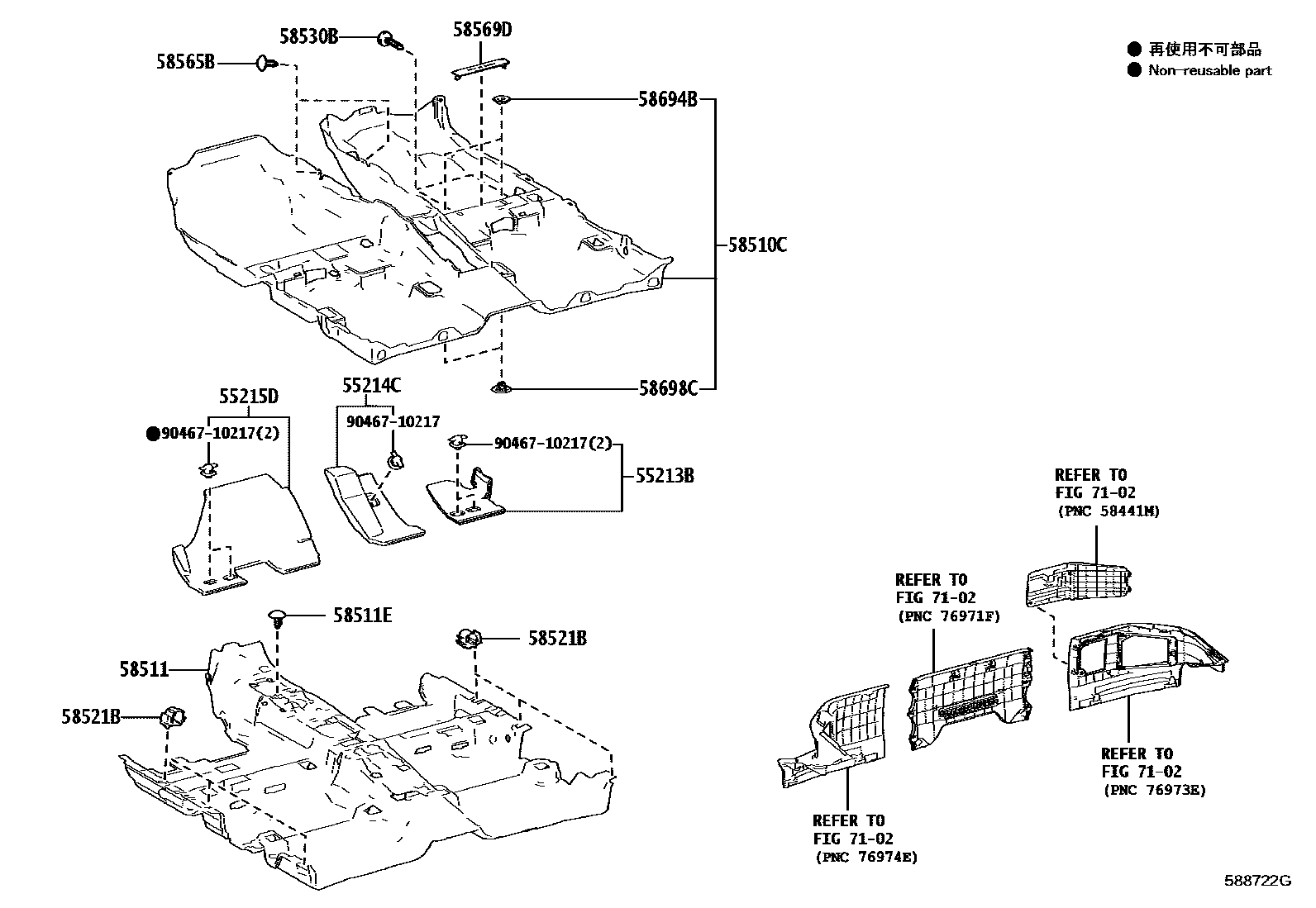

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55213B | No. 1 insulation pad for front wall panel | 55213-47150 |
| 55214C | No. 2 insulation pad for front wall panel | 55214-47070 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-47070 |
| 58511 | front floor mat | 58511-12780 · 58511-12820 |
| 58521B | carpet hook | 58521-33060 |
| 58694B | Pad the fixing plate | 58694-78010 |
| 58698C | Fixing plate under the pad | 58698-78010 |
