Toyota COROLLA 地板隔热垫 — Figure 5802

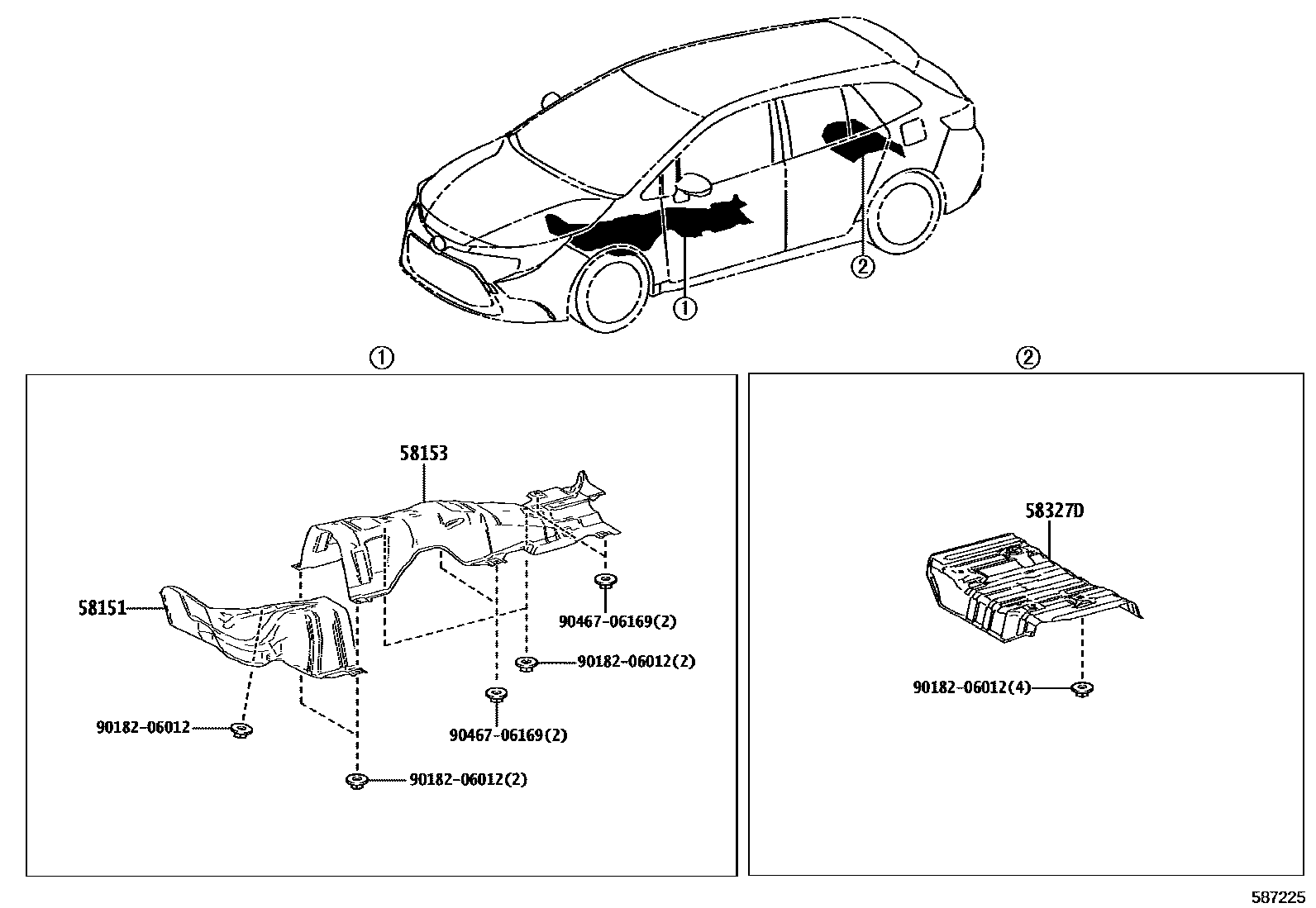

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-12380 · 58151-16060 |
| 58153 | Front floor insulation mat No. 2 | 58153-12230 · 58153-12231 |
| 58327D | Heat insulation pad on main muffler | 58327-12280 · 58327-12281 |
