Toyota COROLLA 前围板和挡风玻璃 — Figure 5503

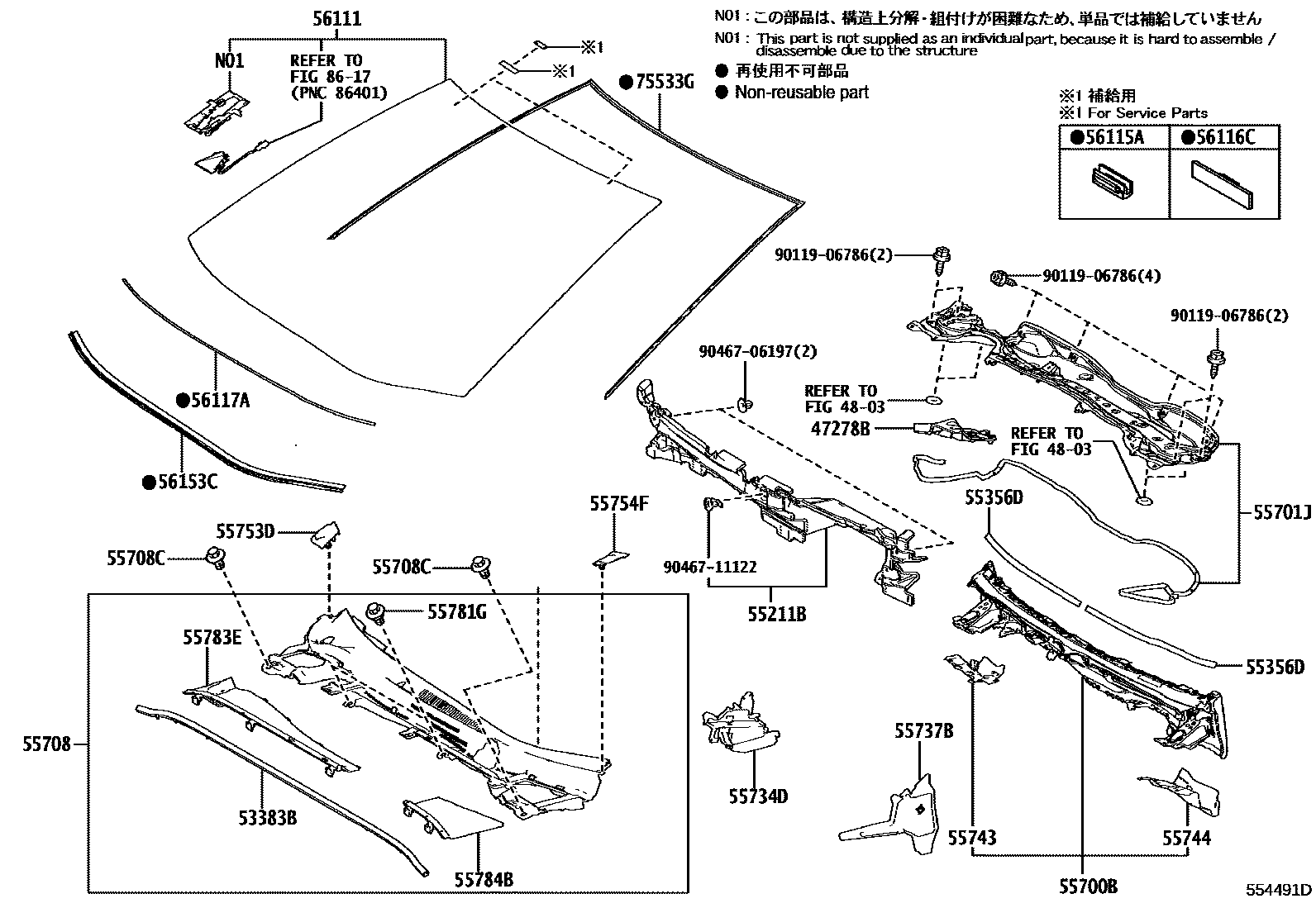

Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47278B | brake master cylinder cover | 47278-12030 |
| 53383B | Engine cover to cowl upper cover seal | 53383-12230 |
| 55211B | Front panel silencer | 55211-12800 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-12260 |
| 55700B | Front apron assembly | 55700-12C40 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-12C10 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-12550 |
| 55708C | Ventilation grille clips on front apron | 90467-09242 |
| 55734D | Waterproof cover panel | 55734-12250 · 55734-12270 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-12180 · 55737-12190 |
| 55743 | Right front upper outer corner panel | 55743-12090 |
| 55744 | Left front upper outer corner panel | 55744-12090 |
| 55753D | Right front water pumping device guard | 55753-12150 |
| 55754F | Left front water pumping device guard | 55754-12090 |
| 55781G | Ventilation grille clips on front apron | 90467-07224 |
| 55783E | Ventilation grille on center cowl | 55783-12350 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-12150 |
| 56111 | windshield | 56101-12932 · 56101-1A921 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56153C | Front center window inner protective strip | 56153-12020 · 56153-12040 |
| 75533G | Windshield outer protective strip | 75533-12710 |
