Toyota COROLLA 后保险杠及附件 — Figure 5202

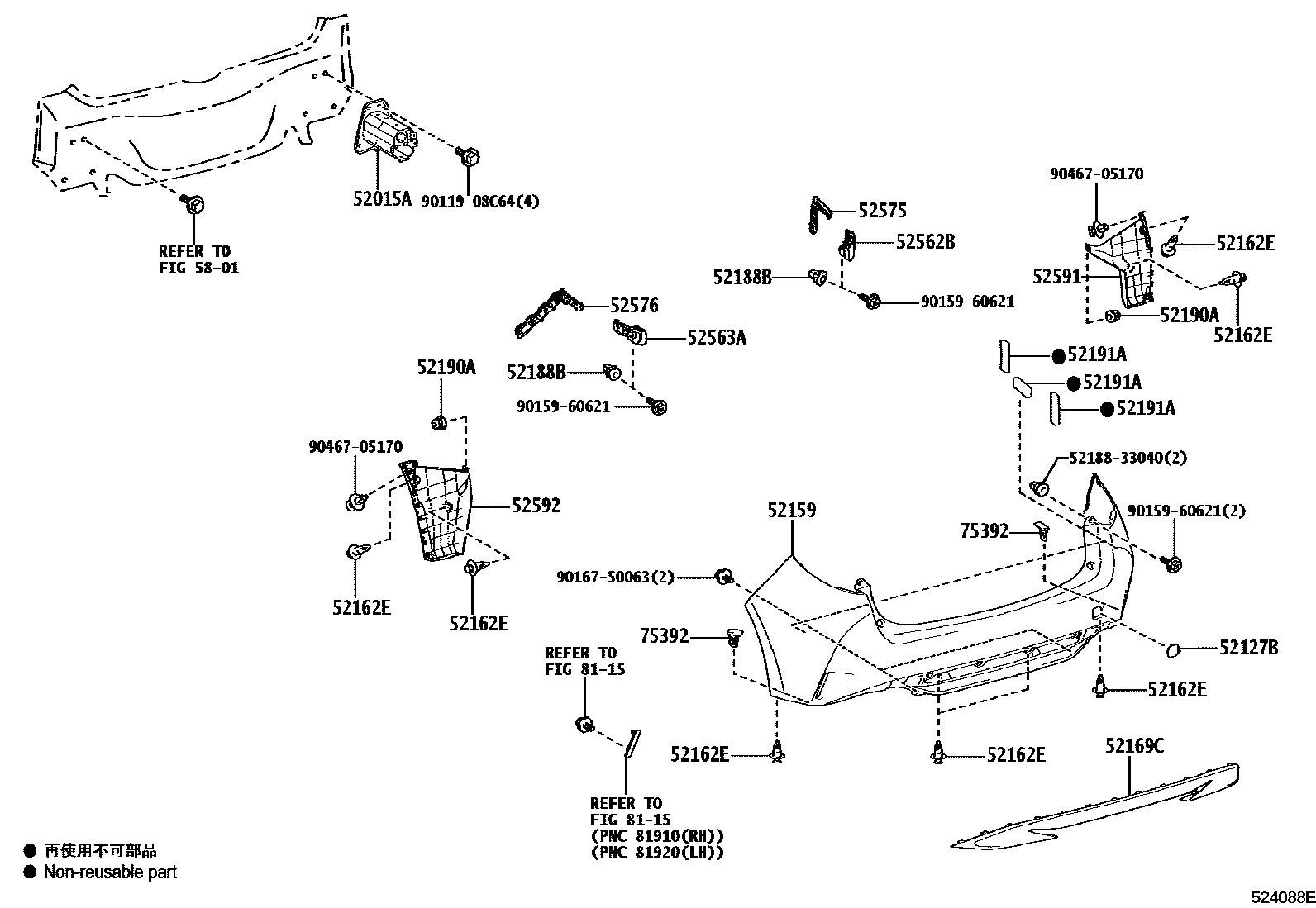

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12500 |
| 52127B | Rear bumper right hole cover | 52161-12901 |
| 52159 | rear bumper cover | 52159-12970 |
| 52162E | Rear bumper insert | 52161-16010 |
| 52169C | Rear bumper lower cover | 52169-12230 |
| 52188B | Rear bumper installation spacer | 52188-33040 · 90189-06228 |
| 52191A | Rear bumper arm seal | 52191-47030 |
| 52562B | Rear bumper upper right fixing bracket | 52562-12250 |
| 52563A | Rear bumper upper left fixing bracket | 52563-12250 |
| 52575 | Rear bumper right side fixing bracket | 52575-12260 |
| 52576 | Rear bumper left side fixing bracket | 52576-12250 |
| 52591 | Rear bumper right seal | 52591-12340 |
| 52592 | Rear bumper left seal | 52592-12320 |
| 75392 | External protective strip fixings | 75392-35220 |
