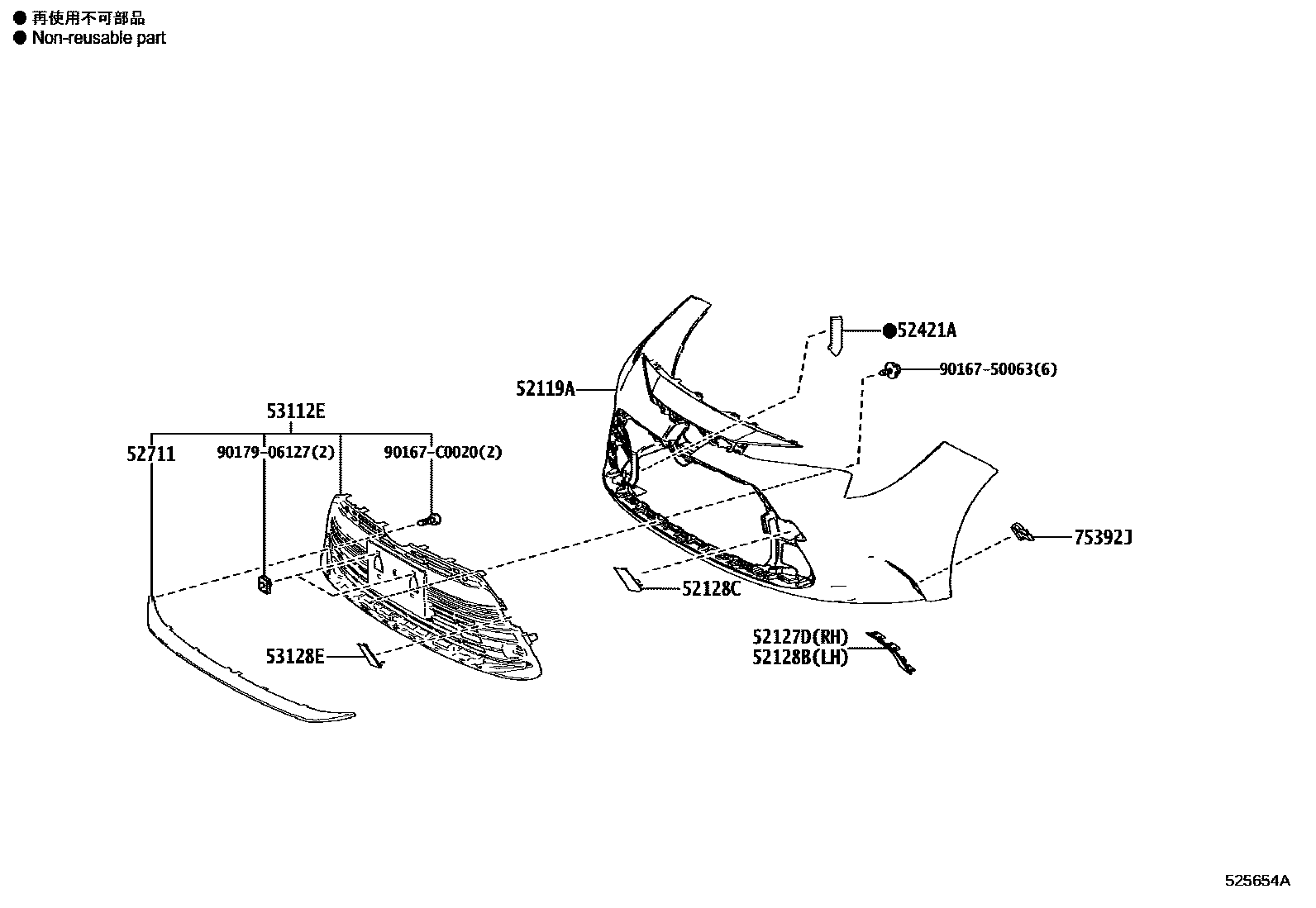

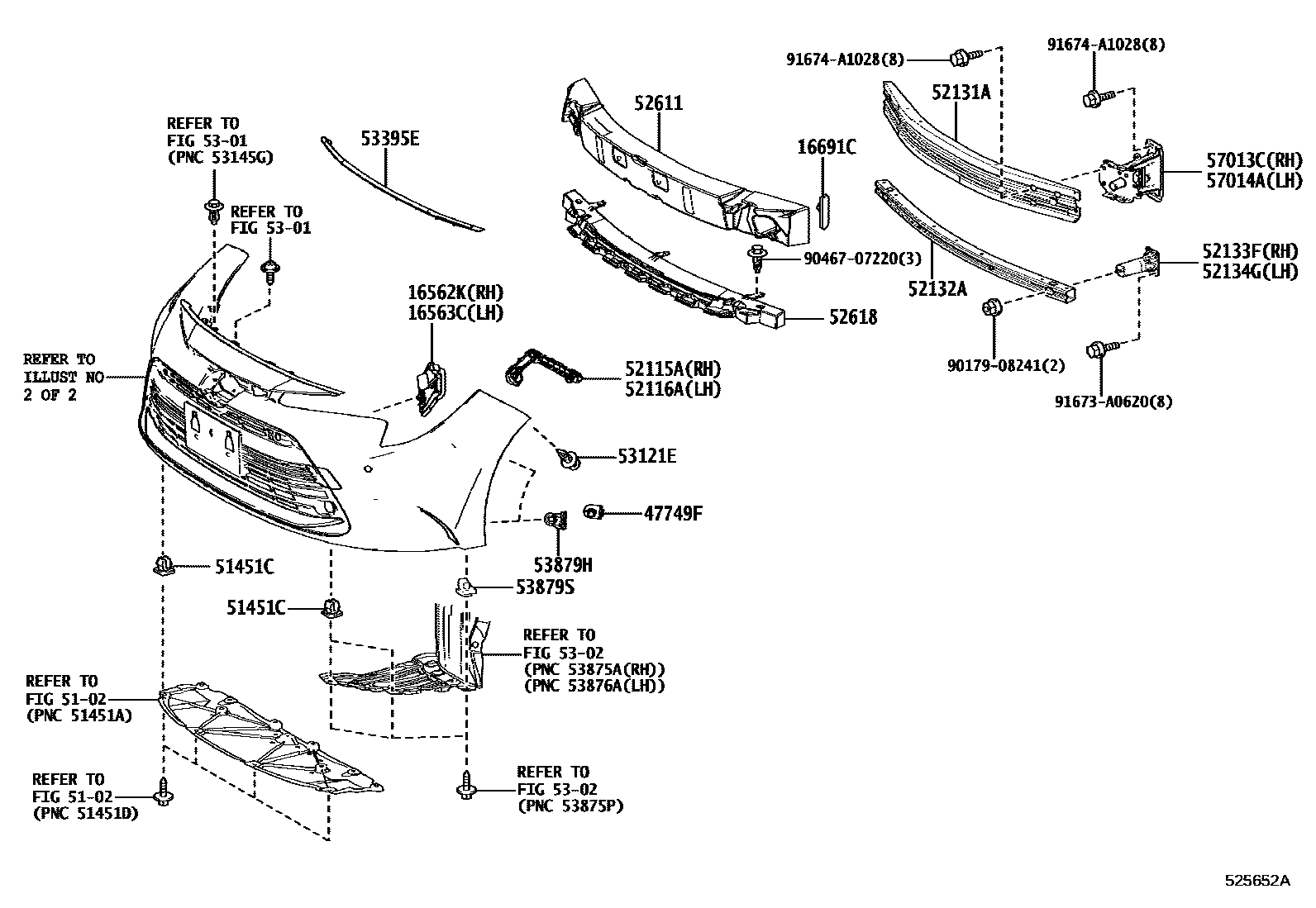

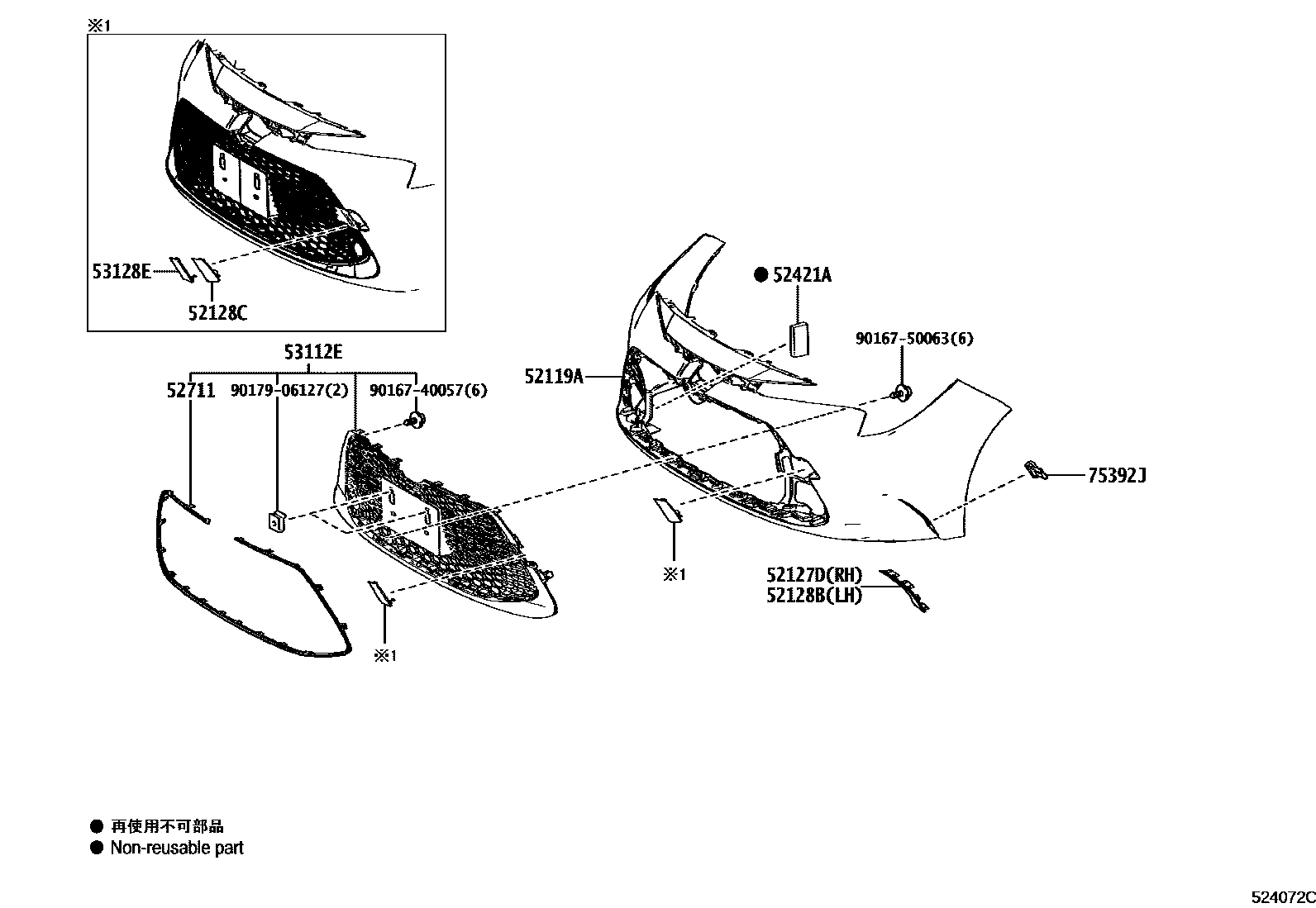

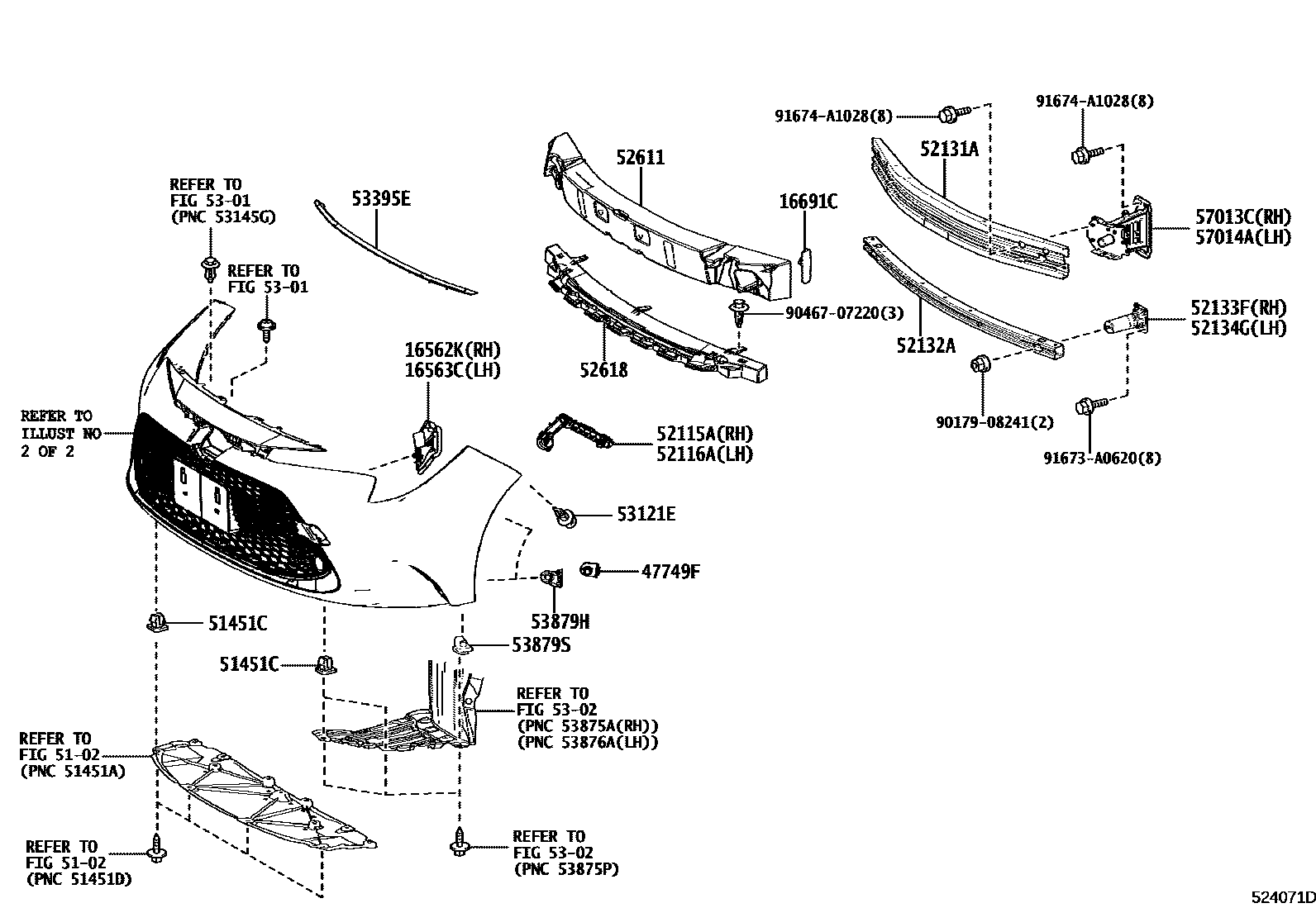

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16562K | Seal No. 2 (radiator to bracket) | 16562-37040 |
| 16563C | Seal No. 3 (radiator to bracket) | 16563-37040 |
| 16691C | Radiator front deflector | 16691-37020 |
| 47749F | pin fixing clip | 47749-33030 |
| 51451C | Gasket (for engine underhood) | 90189-06237 |
| 52115A | Front bumper right side bracket | 52115-12480 |
| 52116A | Front bumper left bracket | 52116-12440 |
| 52119A | front bumper cover | 52119-1A922 |
| 52127D | Front bumper right hole cover | 81481-12360 |
| 52128B | Front bumper left hole cover | 81482-12270 |
| 52128C | Front bumper left hole cover | 52128-12920 |
| 52131A | Front bumper reinforcement | 52131-12320 |
| 52132A | No. 2 front bumper reinforcement | 52132-12150 · 52132-12151 |
| 52133F | Front bumper right side bracket | 52133-12190 |
| 52134G | Front bumper left bracket | 52133-12190 |
| 52421A | front bumper lining | 52421-12090 |
| 52611 | front bumper energy absorber | 52611-12450 |
| 52618 | Front bumper lower shock absorber | 52618-12130 |
| 52711 | Front bumper protection strip | 52711-12420 · 52711-12450 |
| 53112E | No. 1 radiator lower grille | 53102-12250 · 53102-12320 |
| 53121E | Clamp No. 1 (for front bumper) | 90467-05170 |
| 53128E | Lower left radiator grille | 53128-12050 · 53128-12190 |
| 53395E | Engine cover to front end plate seal | 53395-12140 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 53879S | Front fender lining fixing parts | 53879-17020 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-12080 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-12080 |
| 75392J | External protective strip fixings | 75392-35220 |
