Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51107A | Right rear longitudinal beam reinforcement sub-assembly | 51107-47020 |
| 51108A | Left rear longitudinal beam reinforcement sub-assembly | 51108-47020 |

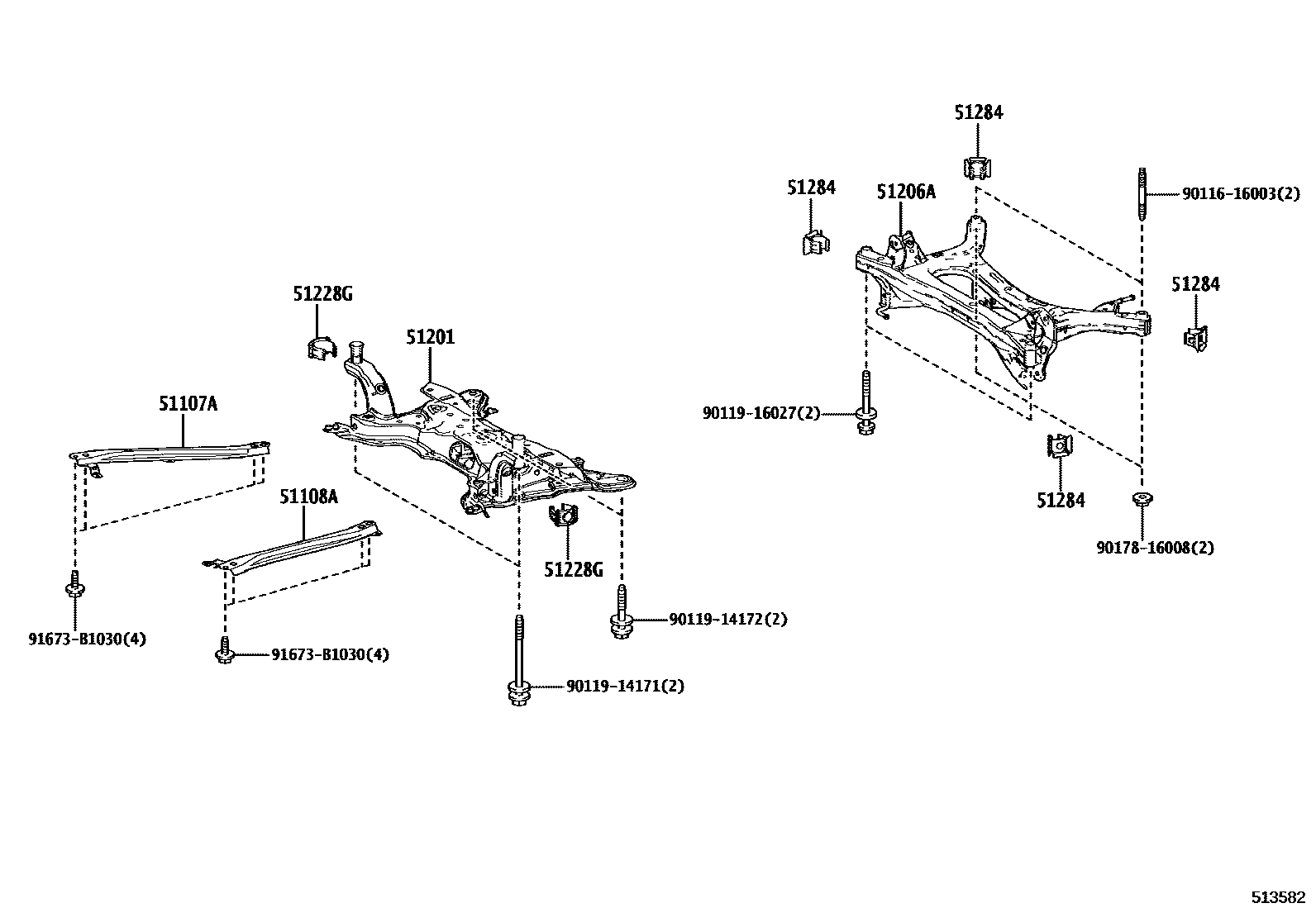

| 51201 | Front suspension cross member sub-assembly | 51201-47072 |
| 51206A | Rear suspension cross member sub-assembly | 51206-47012 · 51206-47013 |
| 51228G | front suspension cross member plate | 51228-47010 |
| 51284 | Rear suspension cross member hole cover | 51284-47010 |

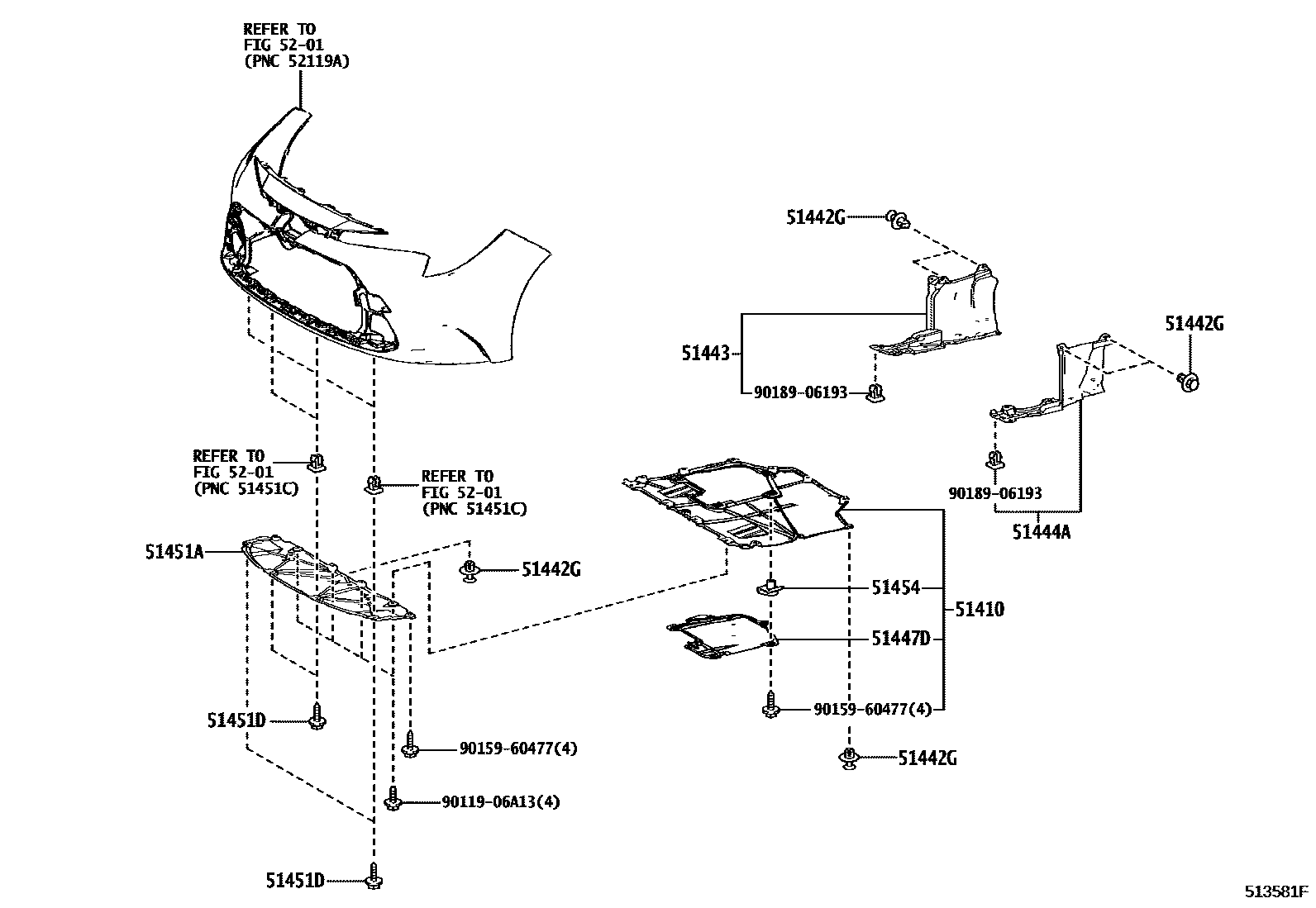

| 51410 | Engine No. 1 bottom cover assembly | 51410-12181 |
| 51442G | No. 1 engine bottom cover clip | 90467-07220 |
| 51443 | Engine right rear bottom cover | 51443-12110 |
| 51444A | Engine left rear bottom cover | 51444-12080 |
| 51447D | No. 4 engine center bottom cover | 51447-12121 |
| 51451A | Engine center cover | 51451-12120 |
| 51451D | Screw No. 1 | 90159-60477 |
| 51454 | clip | 90179-06104 · 90467-05176 |
