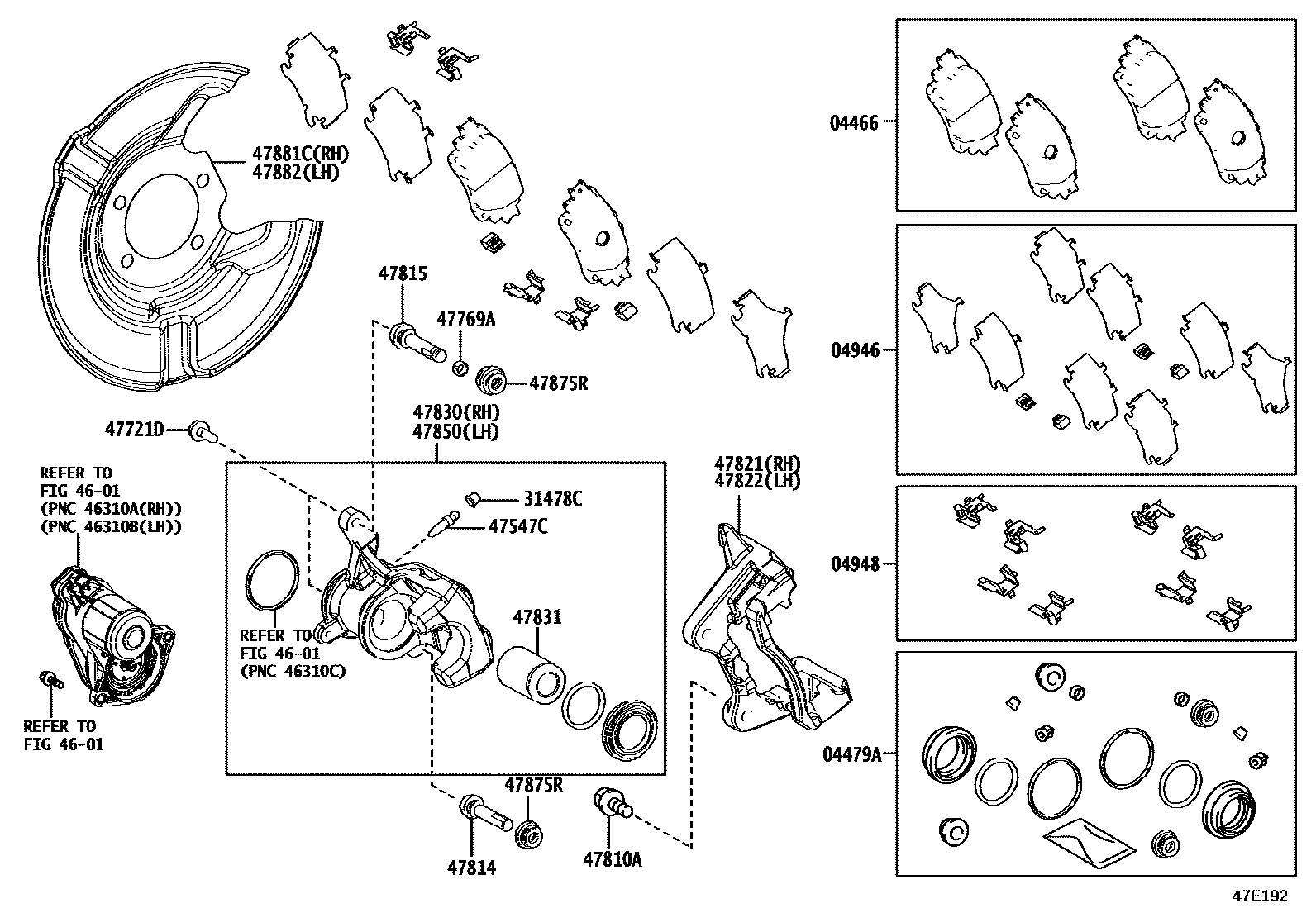

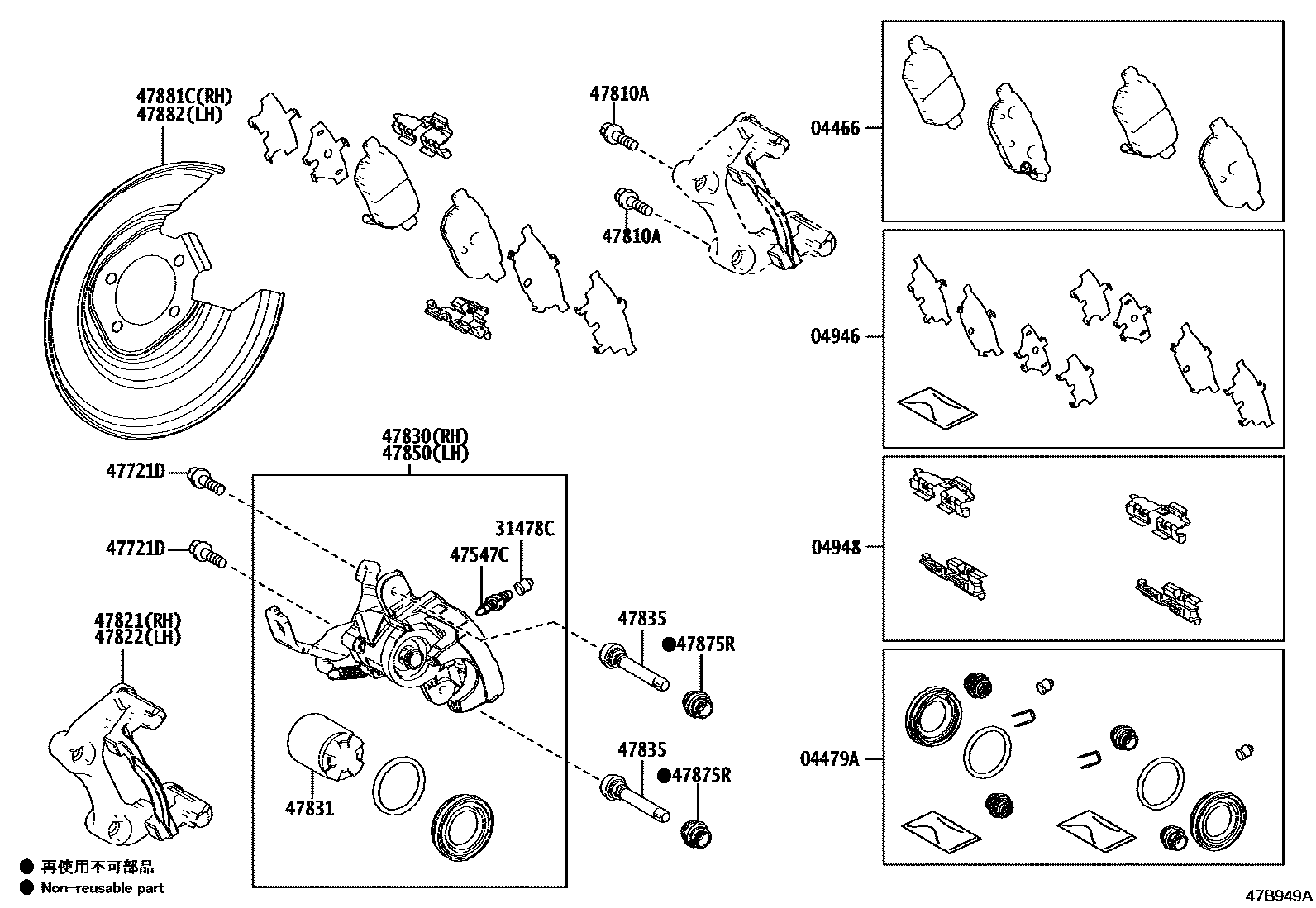

Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-12161 · 04466-47110 |
| 04479A | Rear disc brake cylinder assembly | 04479-10091 · 04479-12260 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-12130 · 04946-47070 |
| 04948 | Rear disc brake mounting assembly | 04948-12060 · 04948-12071 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-30010 · 31478-52010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 · 47847-52050 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90015-AA102 · 90015-AA603 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47769-50010 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-12174 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-78010 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47815-78010 |
| 47821 | Right rear disc brake cylinder retainer | 47821-12280 · 47821-47110 |
| 47822 | Left rear disc brake cylinder retainer | 47821-47110 · 47822-12280 |
| 47830 | Right rear disc brake cylinder assembly | 47830-12280 · 47830-47111 |
| 47831 | rear disc brake piston | 47831-10030 · 47831-52050 |
| 47835 | Rear disc brake pad guide pin | 47835-12150 |
| 47850 | Left rear disc brake cylinder assembly | 47850-12280 · 47850-47111 |
| 47875R | Bushing boot (for rear disc brake) | 47875-12150 · 47875-33270 |
| 47881C | Right rear disc brake dust cover | 47881-12130 · 47881-47010 |
| 47882 | Left rear disc brake dust cover | 47882-12130 · 47882-47010 |
