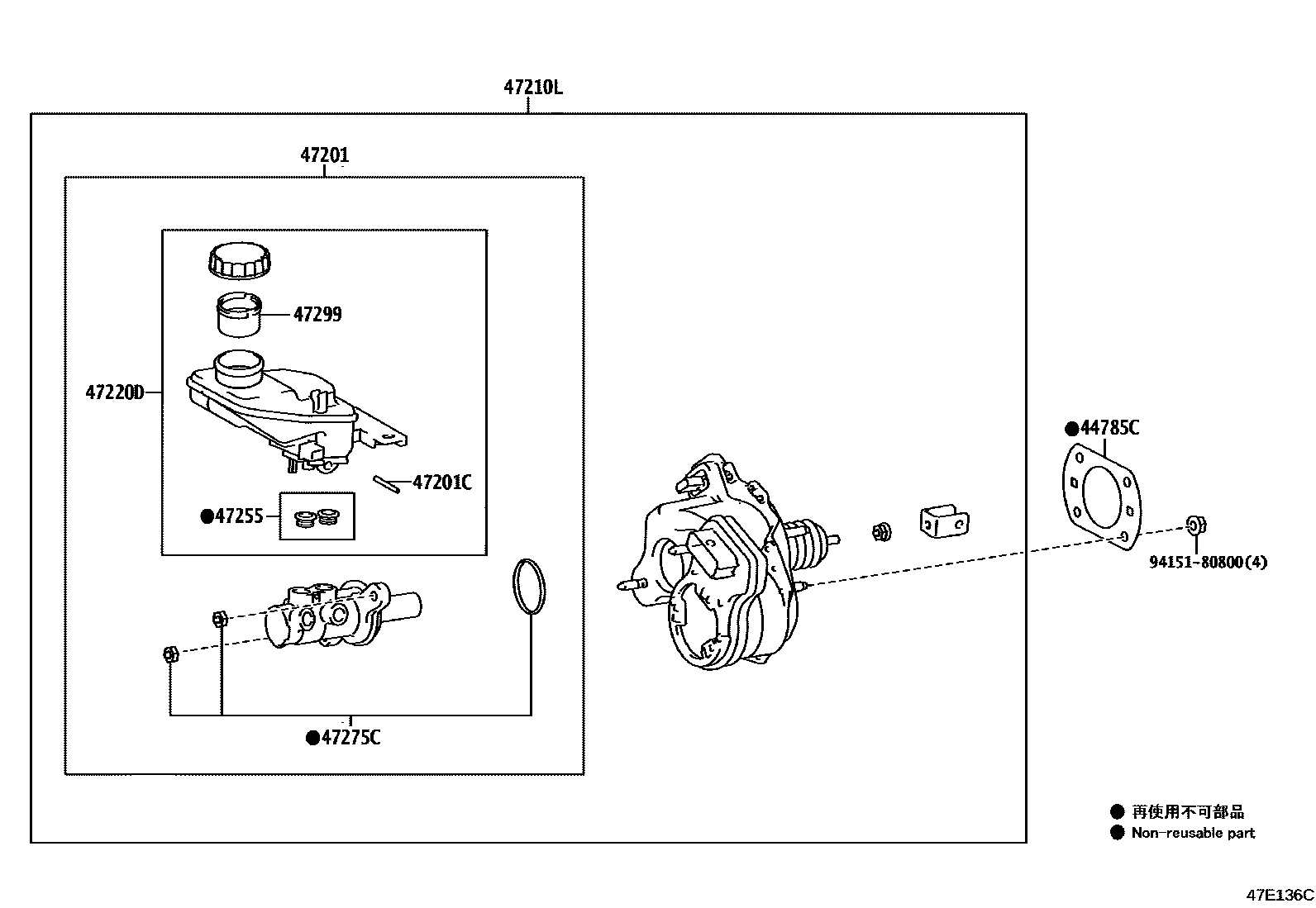

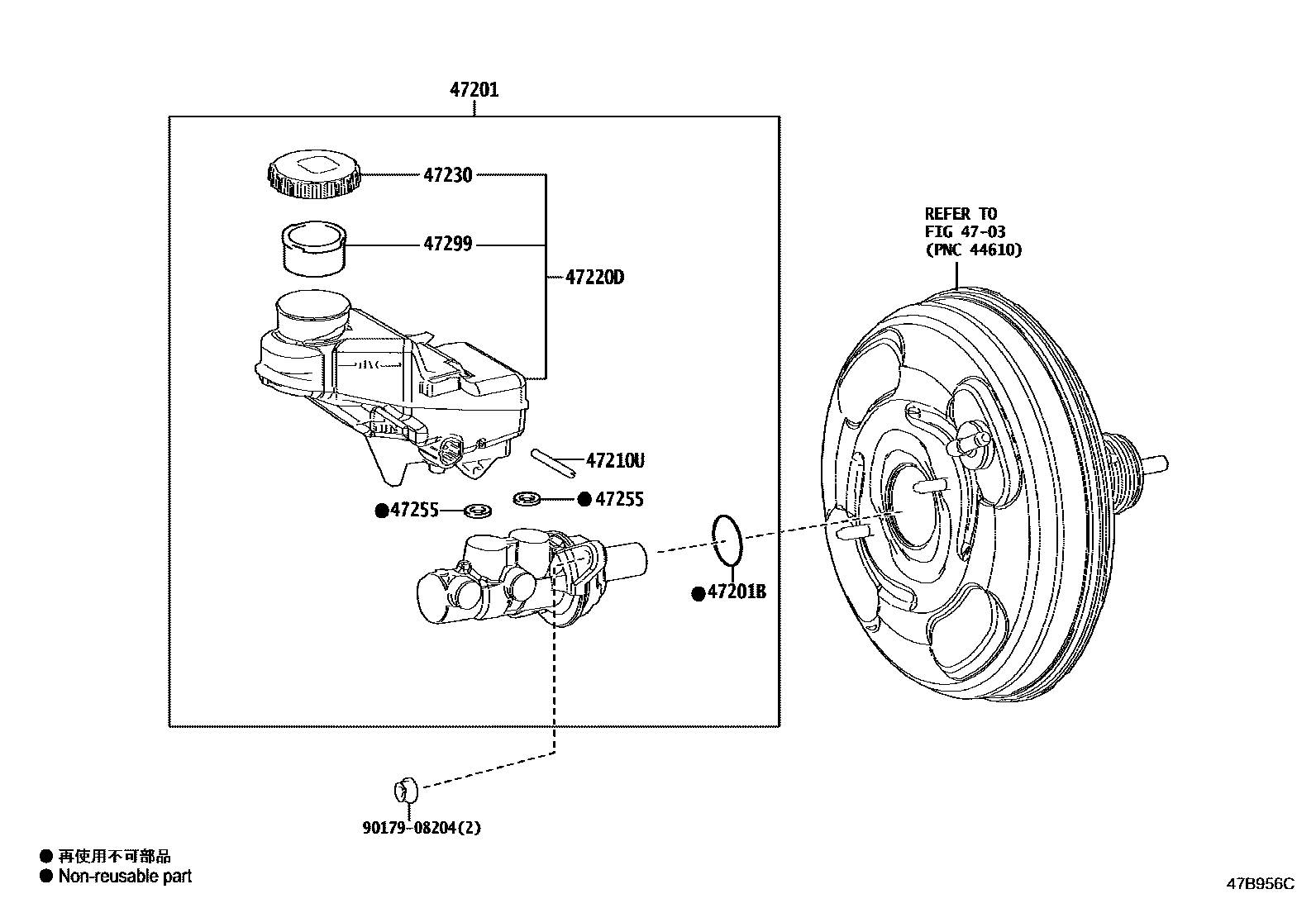

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44785C | brake booster pad | 44785-12050 |
| 47201 | Brake master cylinder sub-assembly | 47201-12C50 · 47201-19095 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90069-35007 |
| 47210L | Brake booster assembly with master cylinder | 47210-12610 |
| 47210U | Direct sales (for brake master cylinder) | 90029-15803 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-12350 · 47220-19015 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-47090 |
| 47255 | Master pump reservoir seal | 47255-09040 · 90029-48001 |
| 47275C | JEU REVISION, MAITRE CYLINDRE | 47275-09010 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 · 47299-52110 |
