Toyota COROLLA 变矩器、前油泵(CVT) — Figure 3402

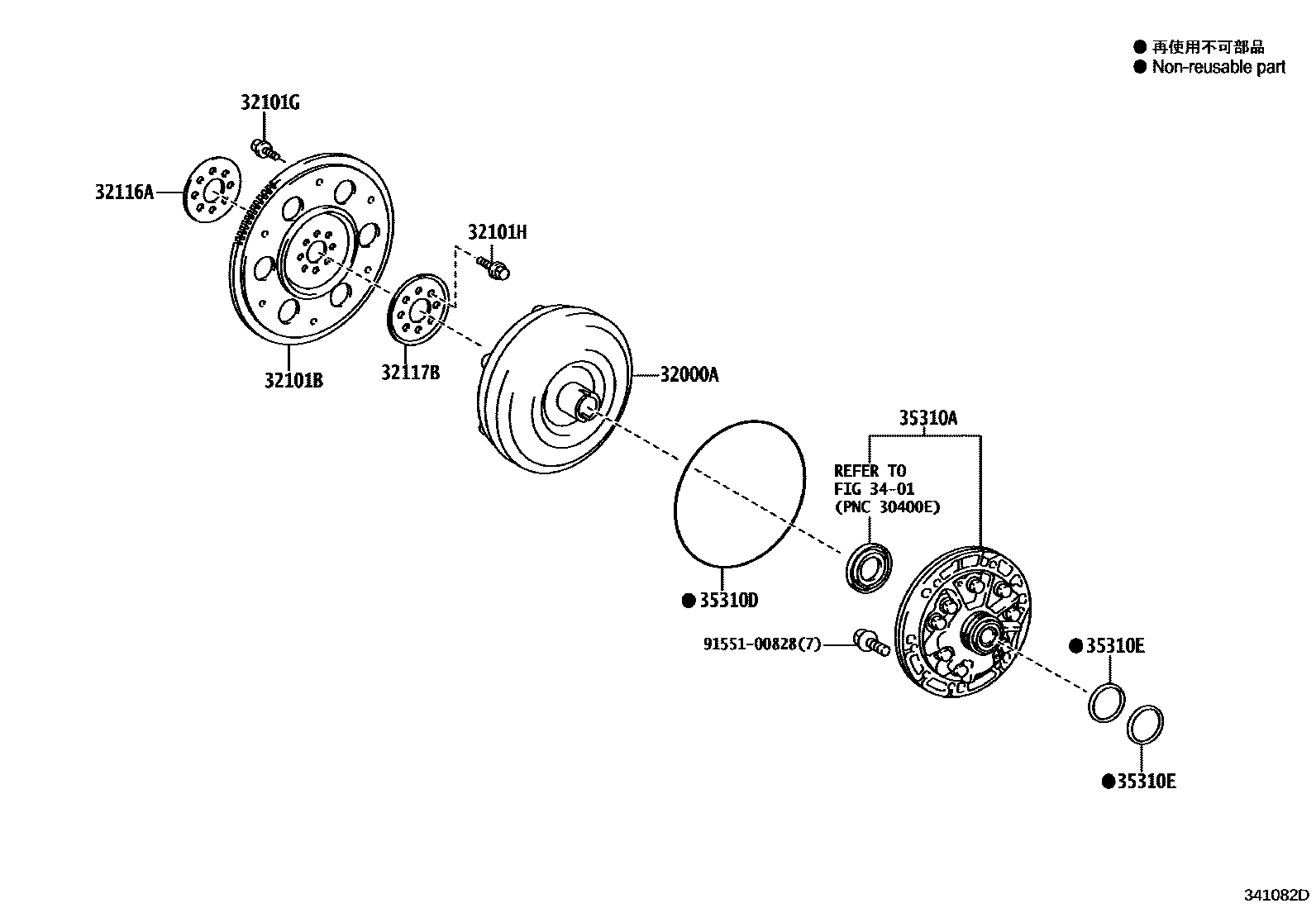

Toyota COROLLA EPC diagram 3402, 变矩器、前油泵(CVT), with 1 images and 9 PNC and OE references.

Toyota COROLLA 变矩器、前油泵(CVT) EPC diagram — 341082D
变矩器、前油泵(CVT) — 341082D (201909 – 999999)

PNC and OE references

PNCPart nameOE numbers
32000ATorque converter assembly32000-12490
32101BTransmission plate and ring gear sub-assembly32101-12100
32101GBolts (for securing transmission plate and torque converter)90109-08113 · 90119-08498
32101HHexagonal bolts (used to fix the transmission plate)90105-10048
32116AFront transmission plate spacer32116-12030
32117BRear transmission plate spacer32117-12040
35310AFront oil pump assembly35310-12160
35310DO-ring (for front oil pump)90301-99202
35310ET-type oil seal (for front oil pump)35617-52060
