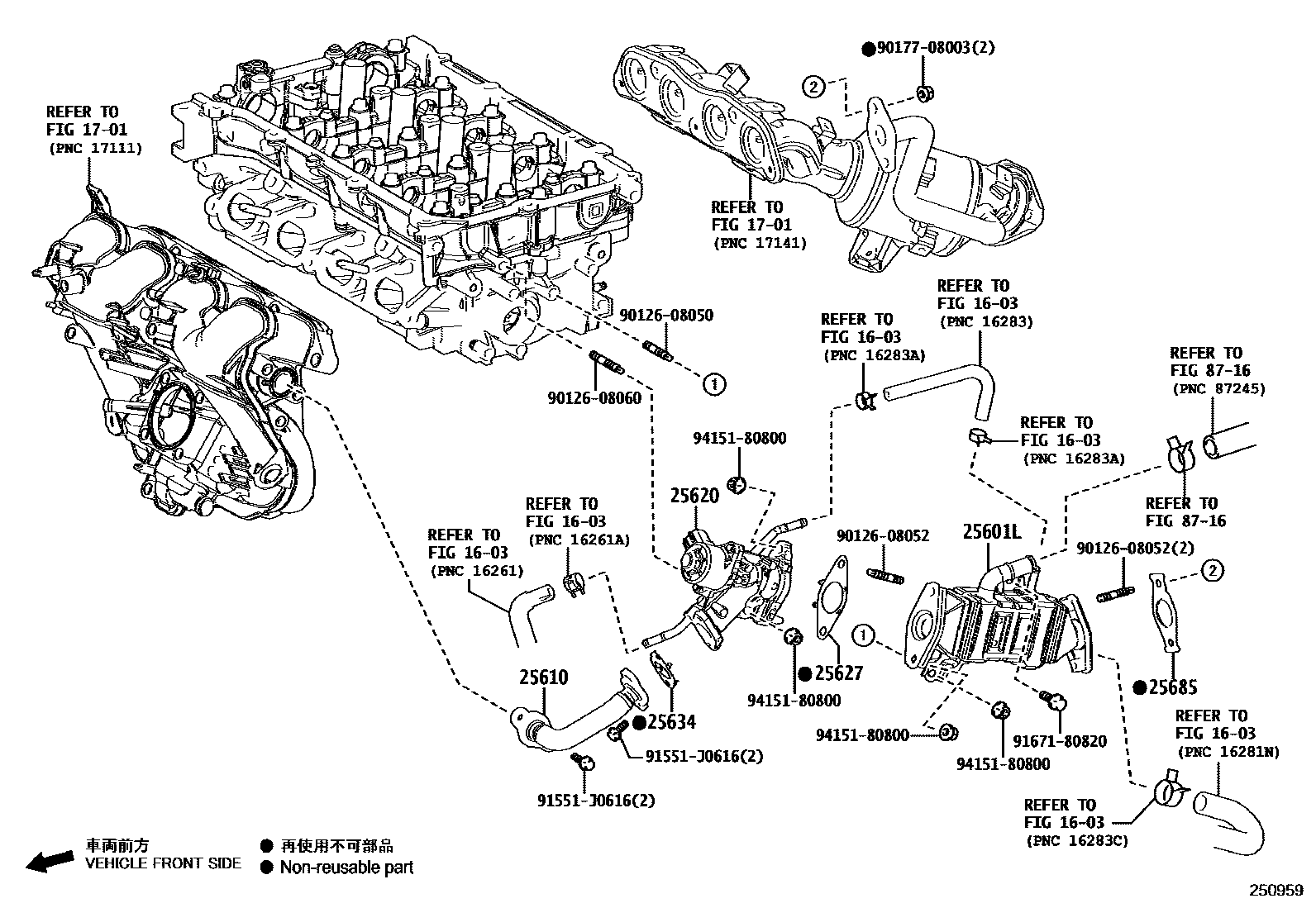

Toyota COROLLA 废气再循环系统 — Figure 2501
Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601L | EGR pipe assembly with cooler | 25601-37050 |
| 25610 | EGR tube assembly | 25610-37020 |
| 25620 | EGR valve assembly | 25620-37140 |
| 25627 | EGR valve gasket | 25627-37020 |
| 25634 | EGR tube gasket | 25634-37020 |
| 25685 | No. 1 EGR Cooler Gasket | 25685-37020 |
