Toyota COROLLA Alternator — Figure 1903

Toyota COROLLA EPC diagram 1903, Alternator, with 1 images and 13 PNC and OE references.

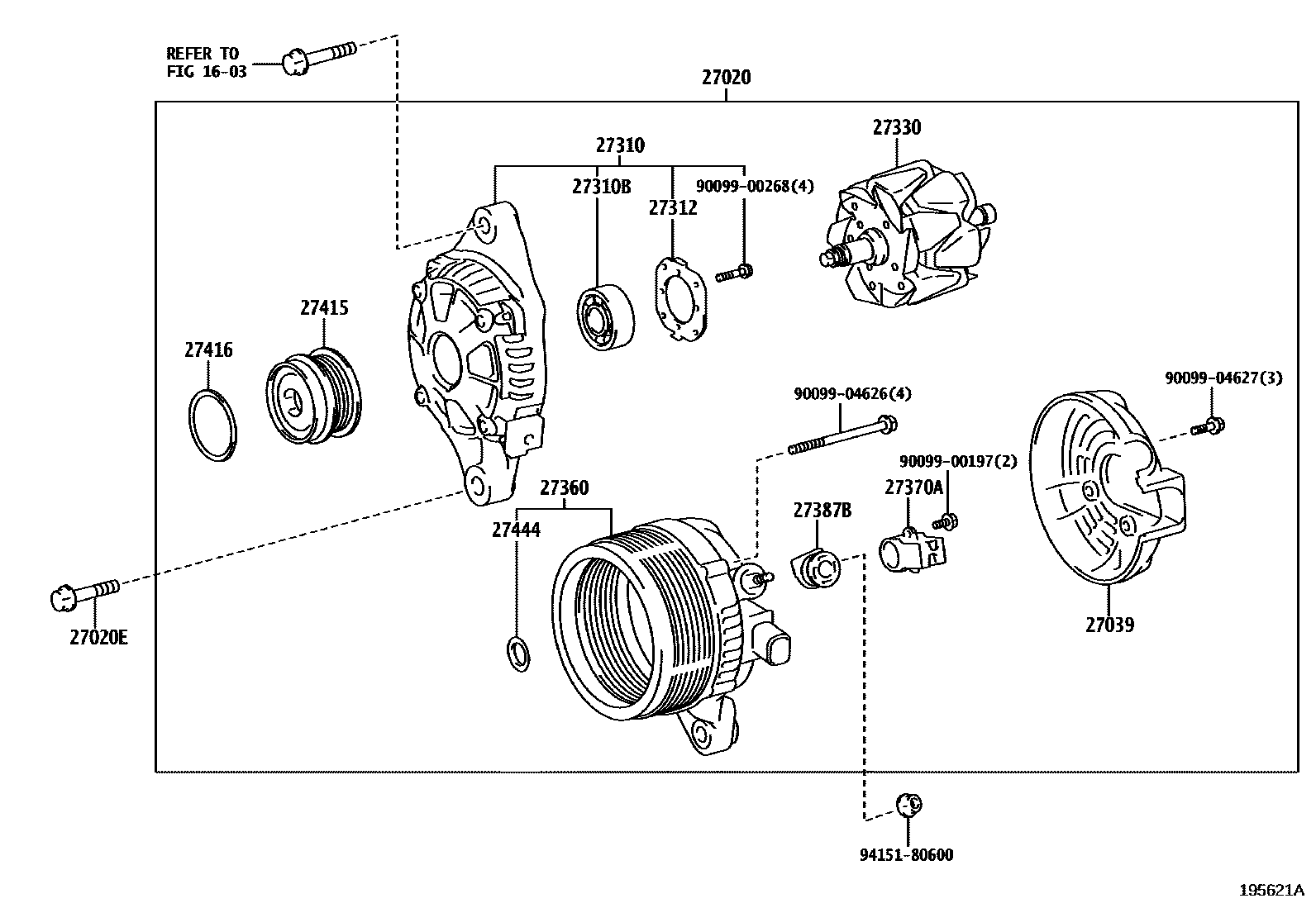

Toyota COROLLA Alternator EPC diagram — 195621A
Alternator — 195621A (201909 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-37240
27020EBolts (for generator)90105-10307
27039Alternator Rear End Cover27039-37220
27310Alternator Drive End Frame Assembly27310-37130
27310BBearing (for Alternator Drive End Frame)90099-10223
27312Retainer Plate27312-72100
27330Alternator Rotor Assembly27330-47330
27360Alternator Stator Coil Assembly27360-37270
27370AAlternator Brush Holder Assembly27370-31220
27387BGenerator terminal insulation pad27387-20130
27415PULLEY, ALTERNATOR W/CLUTCH27415-0T060
27416Generator pulley cover27416-0W050
27444Generator bearing cap seals27444-21190
