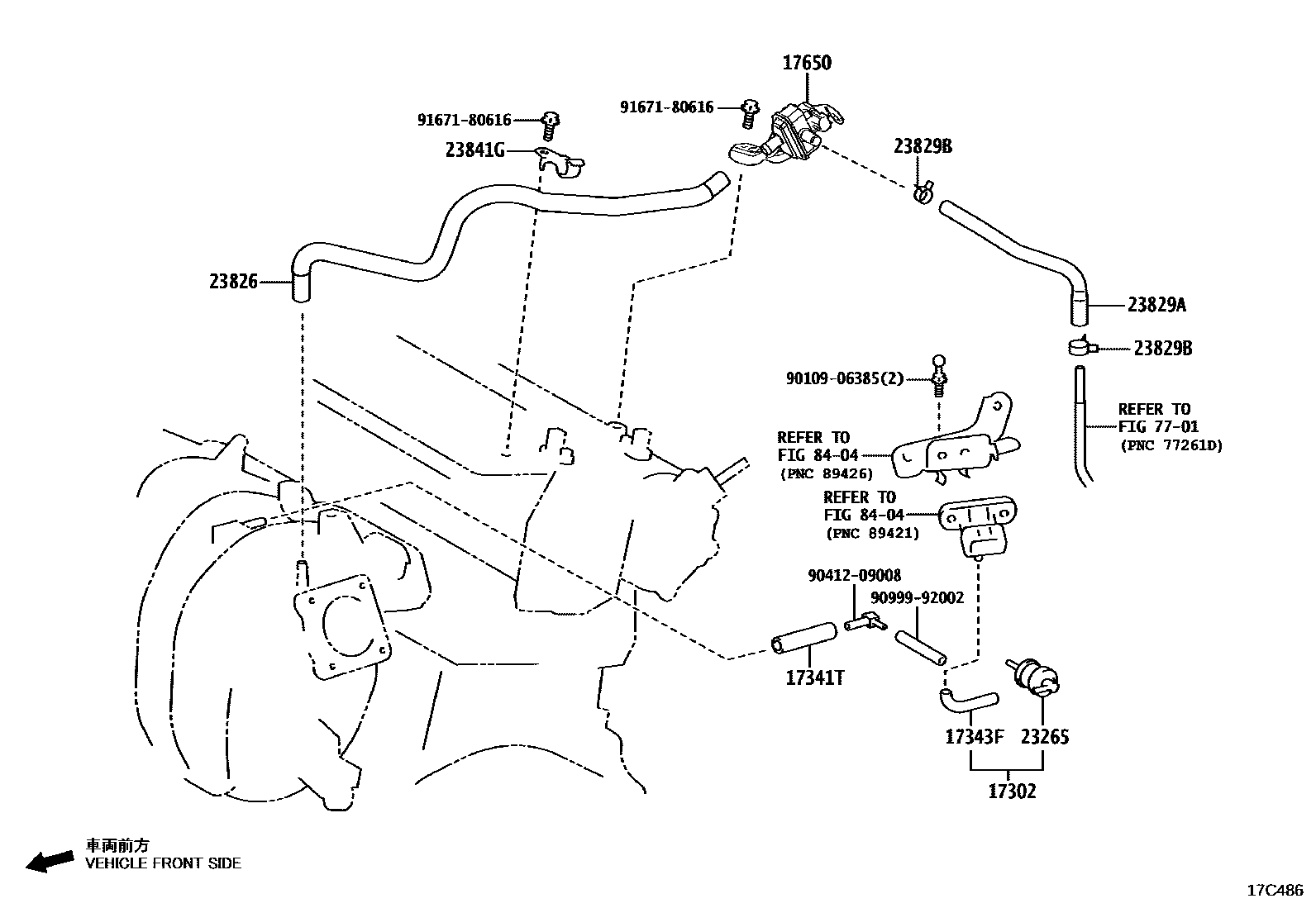

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302 | Air hose sub-assembly | 17302-37010 |
| 17341T | Air hose No. 1 | 17341-37070 |
| 17343F | No. 3 air hose | 17343-37050 |
| 17650 | Vacuum switch valve assembly | 25860-37130 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 |
| 23265 | No. 1 gas filter | 90917-11038 |
| 23818 | Fuel vapor supply pipe | 23818-37040 |
| 23826 | No. 1 fuel vapor supply hose | 23826-37220 · 23826-37250 · 23826-37340 · 23826-37360 |
| 23827A | No. 2 fuel vapor supply hose | 23827-37070 |
| 23829A | Fuel vapor supply hose | 23826-37300 · 23826-37420 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-51300 · 96136-41901 |
| 23841G | fuel hose clamp | 23841-0T060 · 23841-37180 |
