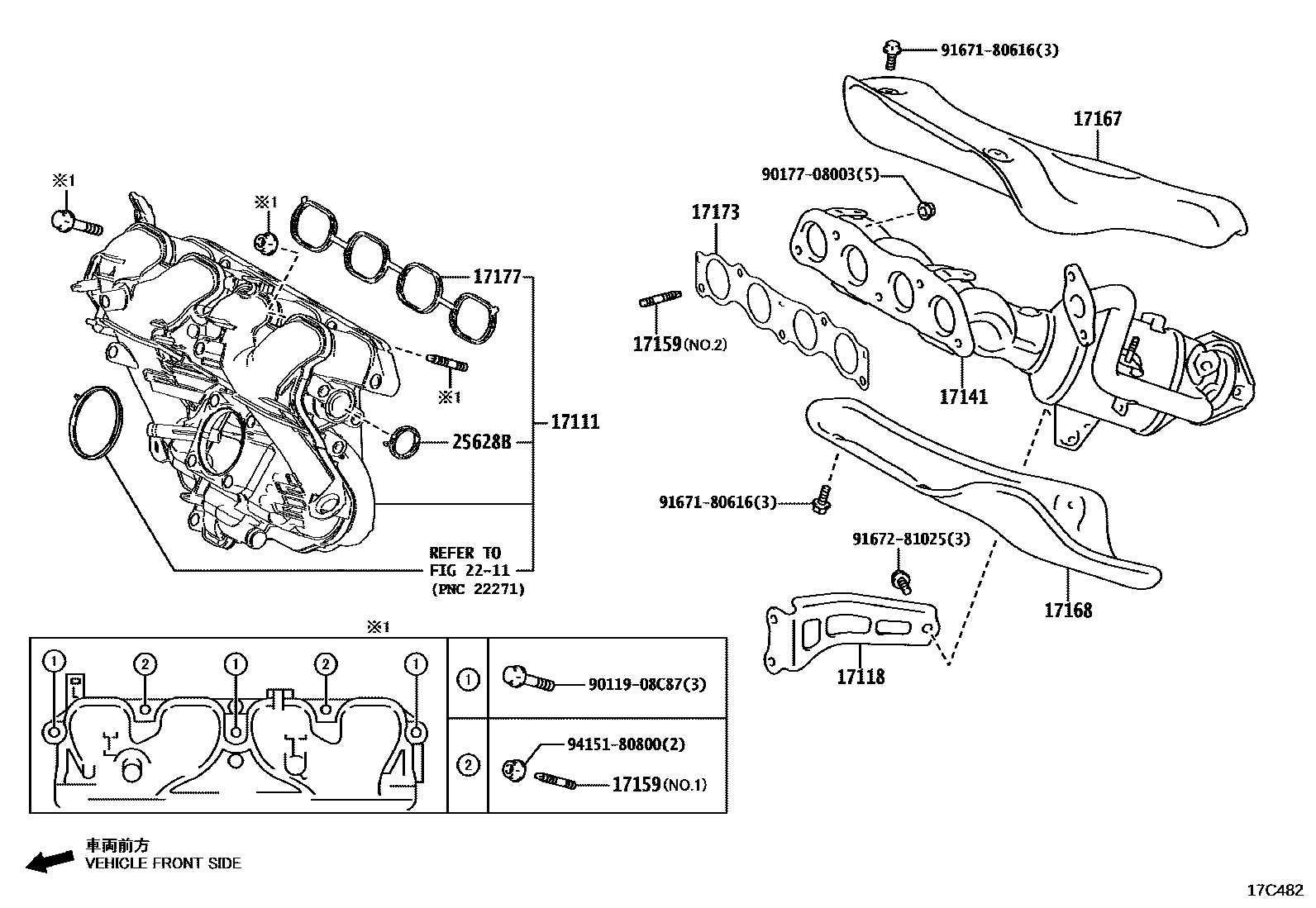

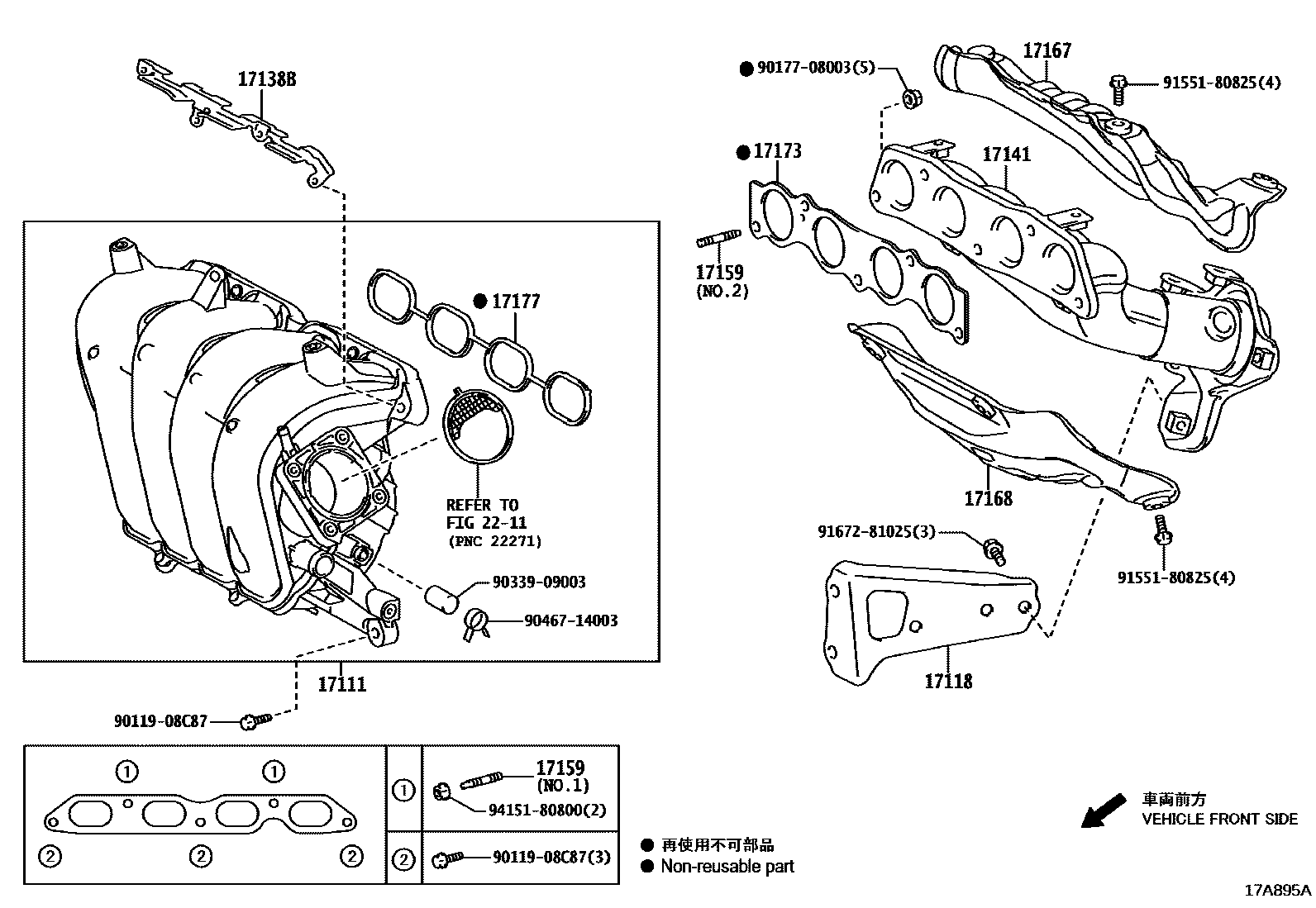

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17120-37031 · 17120-37110 |
| 17118 | Manifold stays | 17118-37010 · 17118-37100 |
| 17138B | Intake manifold stay | 17138-37011 |
| 17141 | exhaust manifold | 17141-37230 · 17141-37280 · 17141-37350 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08026 · 90126-08052 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-37110 · 17167-37120 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-37130 · 17168-37150 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-37010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-37030 |
| 25628B | EGR air intake gasket | 25628-36020 |
