Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603

Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 75 PNC and OE references.

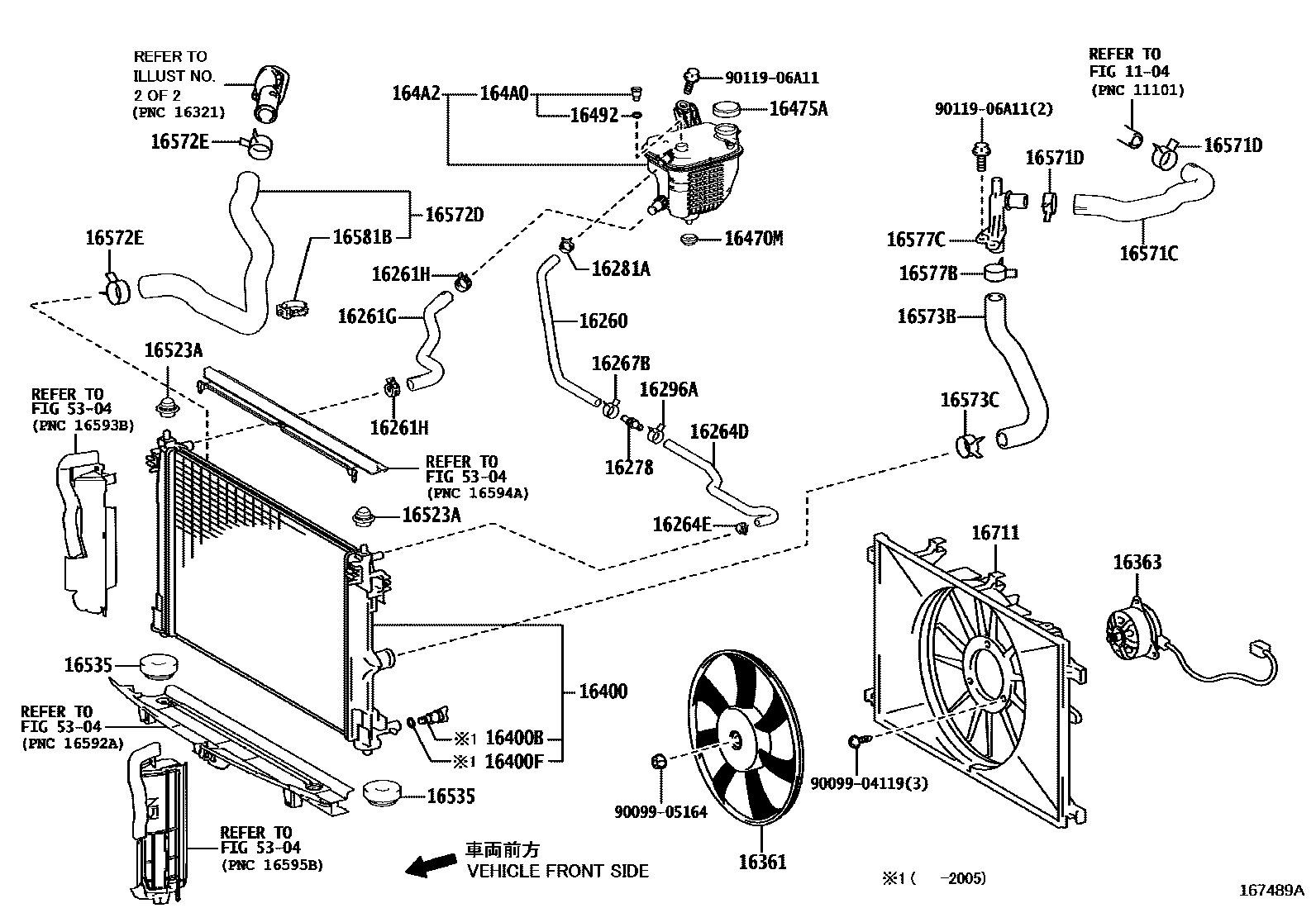

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 167489A
RADIATOR & WATER OUTLET — 167489A (201909 – 999999)

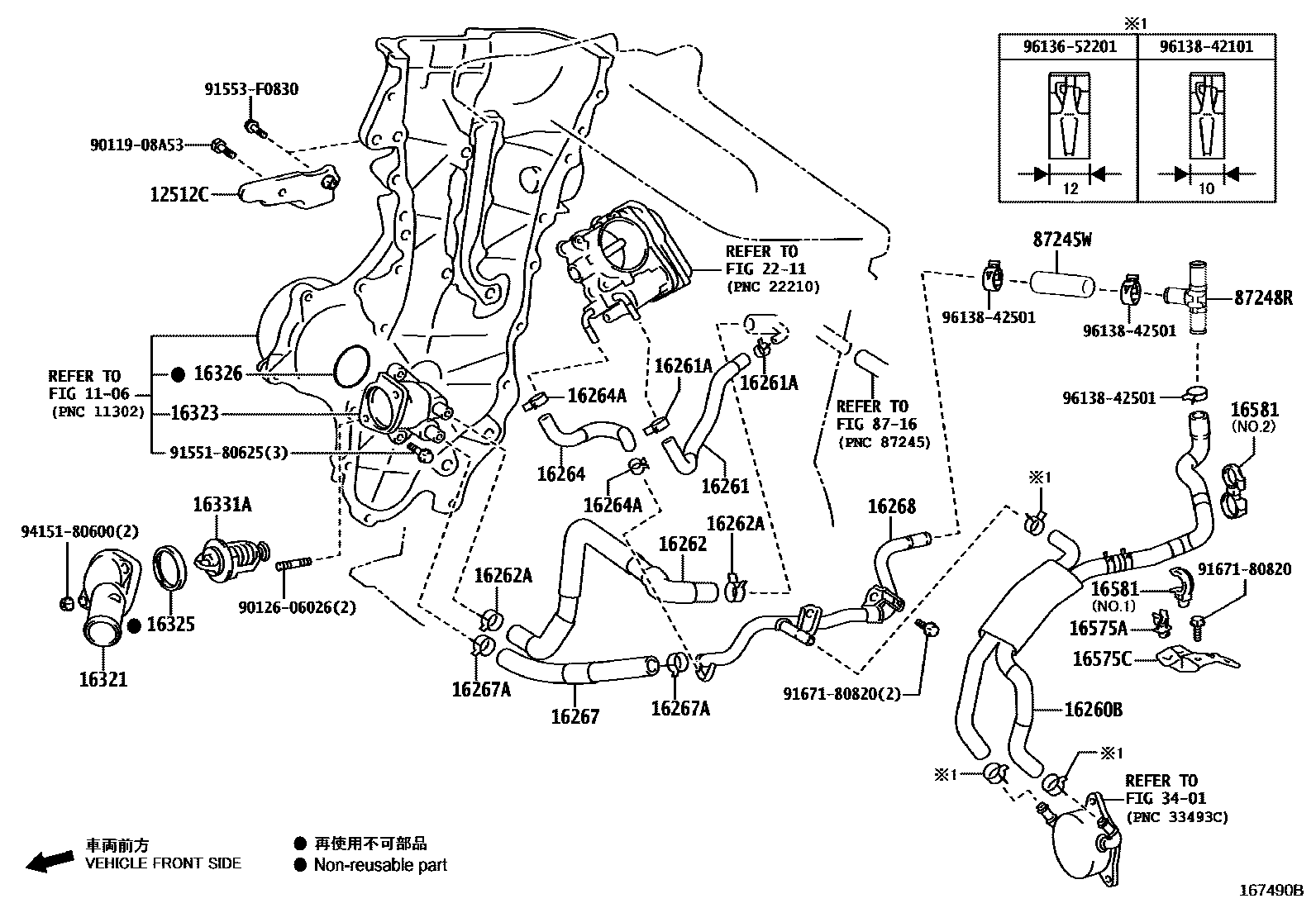

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 167490B
RADIATOR & WATER OUTLET — 167490B (201909 – 999999)

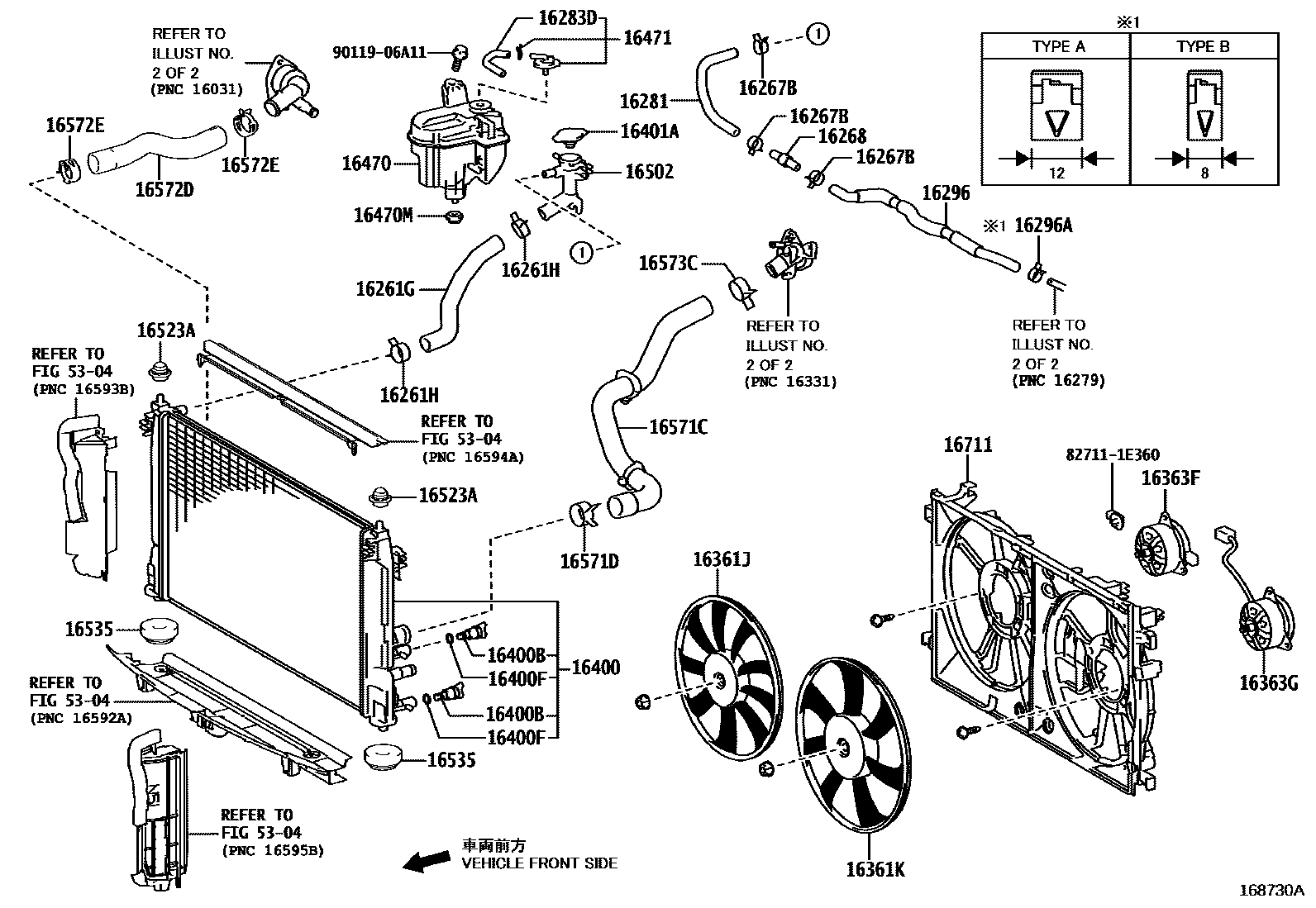

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 168730A
RADIATOR & WATER OUTLET — 168730A (202210 – 999999)

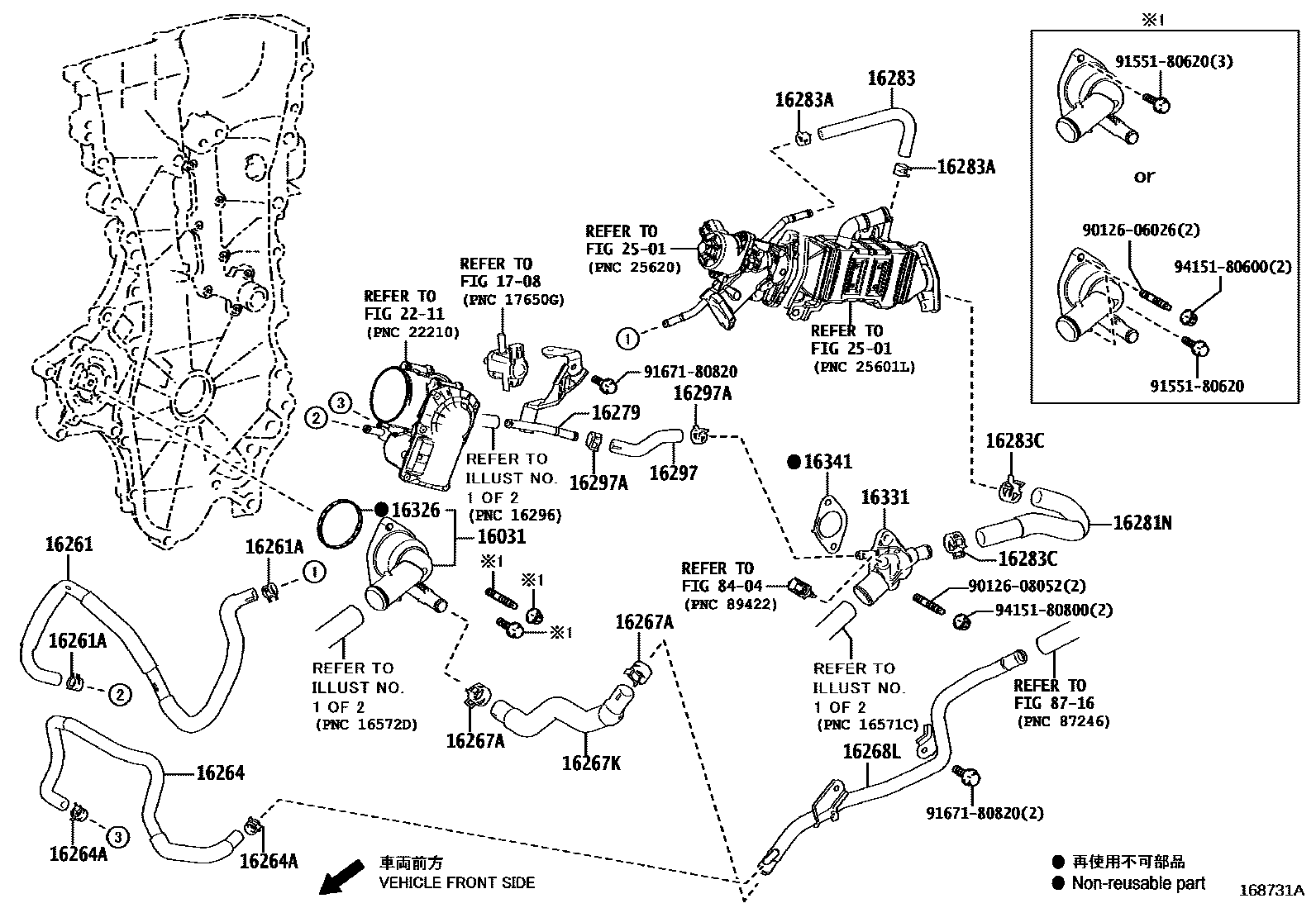

Toyota COROLLA RADIATOR & WATER OUTLET EPC diagram — 168731B
RADIATOR & WATER OUTLET — 168731B (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
12512CNo. 2 generator bracket12512-37010
16031INLET SUB-ASSY, WATER W/THERMOSTAT16031-37010
16260Water bypass hose assembly16267-37140
16260BWater bypass pipe assembly16260-37160
16261HOSE, WATER BY-PASS16261-37031 · 16261-37160
16261ACLAMP OR CLIP, WATER BY-PASS HOSE96137-41501
16261GHOSE, WATER BY-PASS, NO.116261-37180 · 16261-37190
16261HCLIP, WATER BY-PASS HOSE NO.190466-28001 · 96138-42501
16262water inlet hose16262-37010
16262AClamp (for water inlet hose)96136-42501
16264HOSE, WATER BY-PASS, NO.216264-37031 · 16264-37130
16264ACLAMP OR CLIP, WATER BY-PASS HOSE NO.296137-41501
16264DHOSE, WATER BY-PASS, NO.216264-37190
16264ECLIP, WATER BY-PASS HOSE NO.296136-41901
16267HOSE, WATER BY-PASS, NO.316267-37010
16267ACLAMP OR CLIP, WATER BY-PASS HOSE NO.396136-42501
16267BClip (for water bypass hose)96136-41901
16267KHOSE, WATER BY-PASS, NO.316267-37100
16268PIPE, WATER BY-PASS, NO.116268-37021 · 16268-37060 · 16268-37120
16268LPIPE, WATER BY-PASS16268-37150
16278PIPE, WATER BY-PASS, NO.216268-37120
16279No. 3 water bypass pipe16279-37020
16281HOSE, WATER BY-PASS, NO.416281-37180
16281ACLAMP OR CLIP, WATER BY-PASS HOSE NO.496138-42101
16281NHOSE, WATER BY-PASS, NO.416281-37191
16283HOSE, WATER BY-PASS, NO.616283-37021
16283ACLAMP OR CLIP, WATER BY-PASS HOSE NO.696137-41501
16283CClip or clip (for water bypass hose)96136-42501
16283DHOSE, WATER BY-PASS, NO.616283-37030
16296HOSE, WATER BY-PASS, NO.816296-37010
16296ACLIP, WATER BY-PASS HOSE NO.890466-16004 · 96136-41901 · 96138-51701
16297No. 9 water bypass hose16297-37010
16297AClamp (for No. 9 water bypass hose)96137-51701
16321water inlet16321-37010
16323HOUSING, WATER INLET16323-37040
16325GASKET, WATER INLET HOUSING, NO.116325-28010
16326GASKET, WATER INLET HOUSING, NO.216326-37020 · 16326-37030
16331Water outlet16331-37100
16331Athermostat90916-03148
16341GASKET, WATER OUTLET16341-37010
16361Fan16361-37130
16361JRight fan16361-37070
16361Kleft fan16361-37060
16363cooling fan motor16363-37220
16363FRight cooling fan motor16363-24160
16363GLeft cooling fan motor16363-24170
16400Radiator assembly16400-24390 · 16400-37340 · 16400-37400
16400BRadiator drain switch screw plug16417-21280
16400FSeal (for radiator drain switch)16492-21050
16401ARadiator reservoir cap sub-assembly16401-36030
16470Radiator reservoir assembly16470-37040
16470Mgasket90480-18010
16471Liquid storage tank cover sub-assembly16405-37020
16475AReservoir tank cover16475-28140
16492O-ring (for radiator reservoir switch)16492-21050
164A0Liquid storage tank switch assembly164A0-37010
164A2Closed reservoir water tank without lid164A2-37012
16502Water injection port sub-assembly16502-37040
16523ARadiator bracket cushion16523-37010
16535Radiator lower support90480-40021
16571CRadiator hose No. 116571-37240 · 16571-37290
16571DNo. 1 radiator hose clip90466-40001
16572DRadiator hose No. 216572-37190 · 16572-37250
16572ENo. 2 radiator hose clip90466-43002
16573BRadiator hose No. 316573-37070
16573CNo. 3 radiator hose clamp or clip90466-43002
16575ANo. 5 radiator hose clip90949-01C99
16575CNo. 1 water hose clamp bracket16575-37030
16577BHose clamps or clips (for radiator pipes)90466-40001
16577Cradiator pipe16577-37070
16581Hose clamp (for water hose)16581-21060 · 16581-37130
16581BHose clamp (for radiator hose)16581-36030
16711fan cover16711-37150 · 16711-37190
87245Wwater hose87245-12G50
87248Rwater pipe87248-12330
