Toyota COROLLA Engine Oil Pump — Figure 1501

Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 2 images and 6 PNC and OE references.

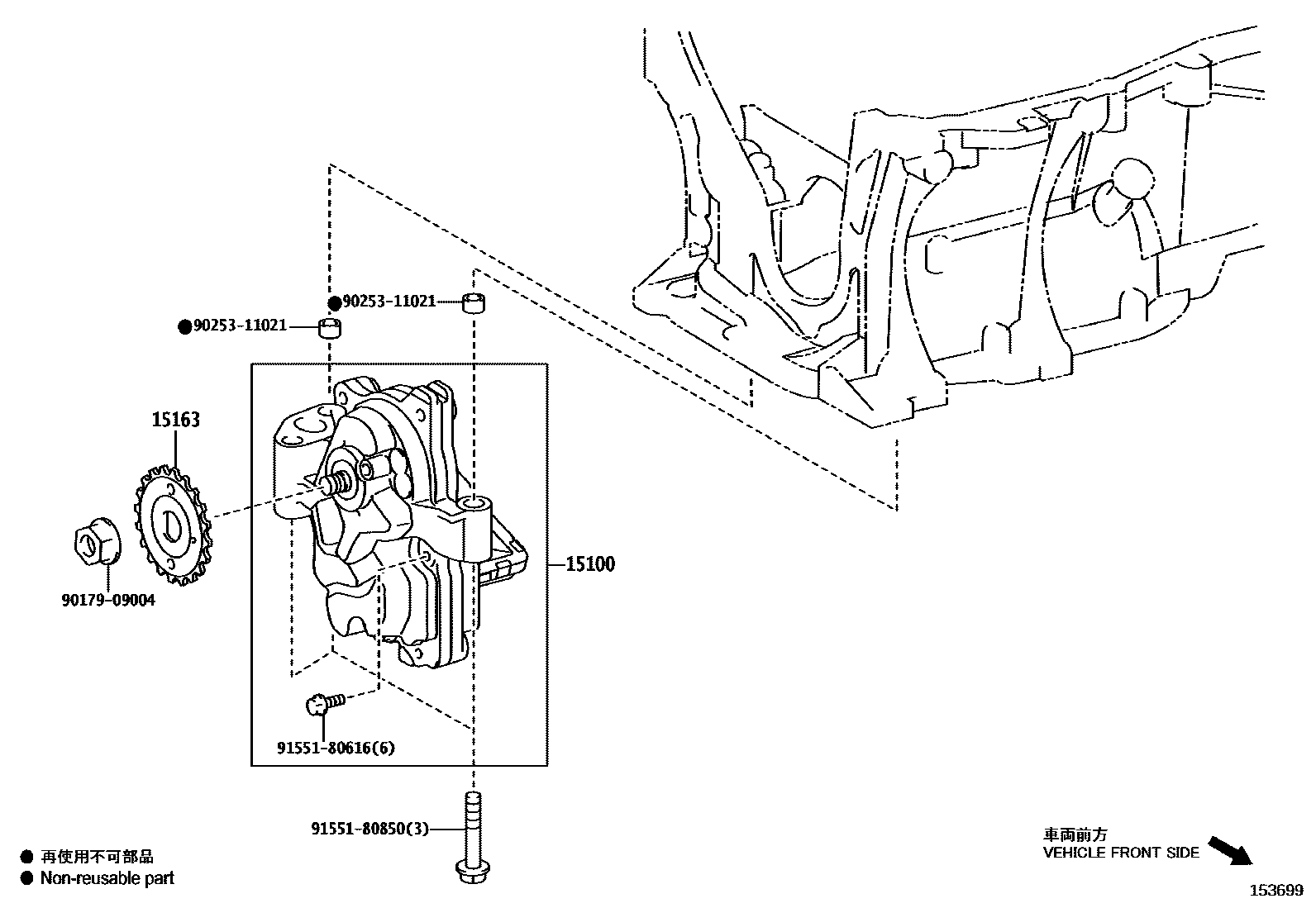

Toyota COROLLA Engine Oil Pump EPC diagram — 153699
Engine Oil Pump — 153699 (201909 – 999999)

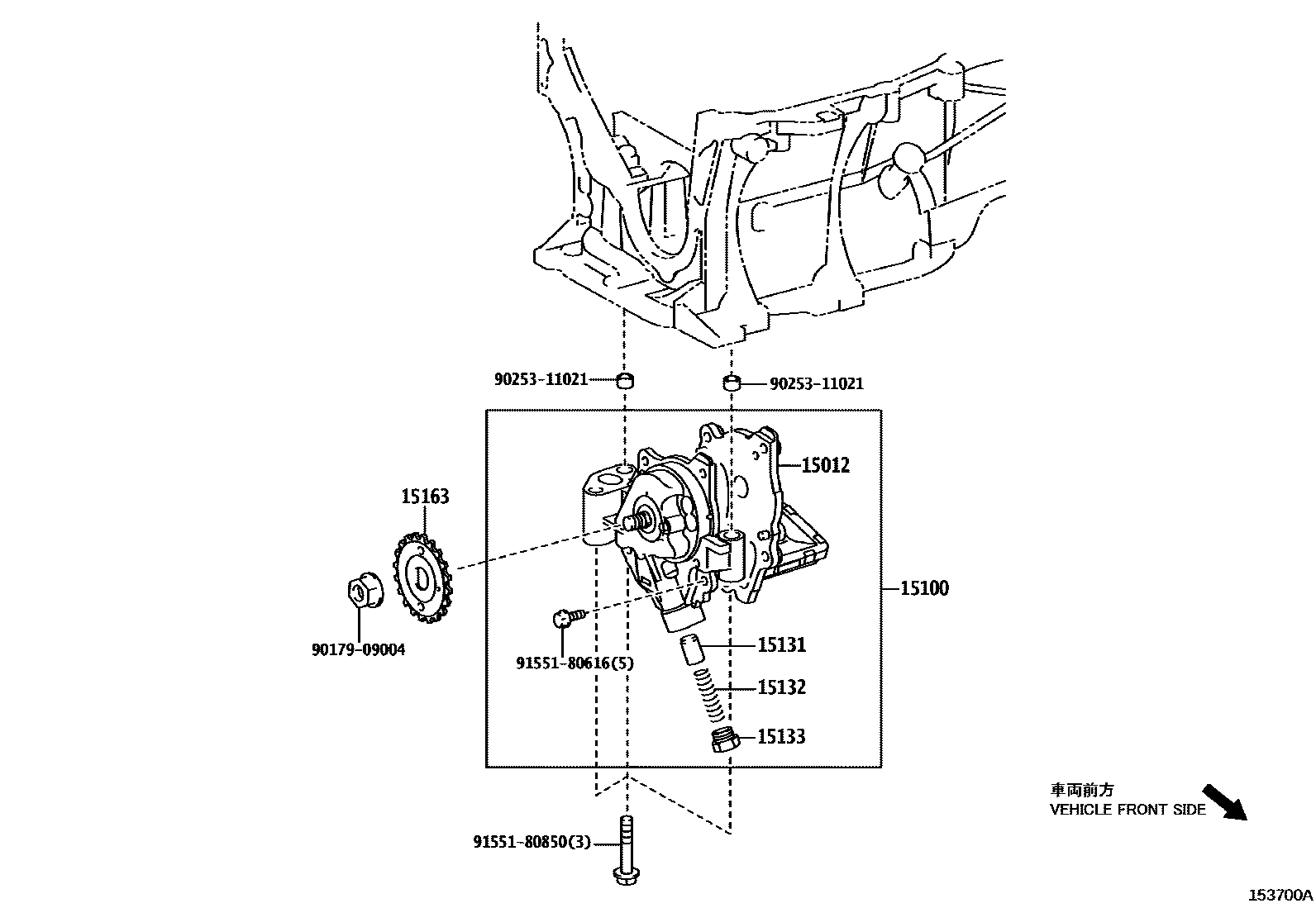

Toyota COROLLA Engine Oil Pump EPC diagram — 153700A
Engine Oil Pump — 153700A (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
15012Oil pump cover sub-assembly15012-37070
15100Oil pump assembly15100-37021 · 15100-37070
15131Oil pump pressure reducing valve15131-0A040
15132Oil pump pressure reducing valve spring15132-46060
15133PLUG, OIL PUMP RELIEF VALVE15133-28020
15163Oil pump drive shaft gear15163-28010
