Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 2 PNC and OE references.

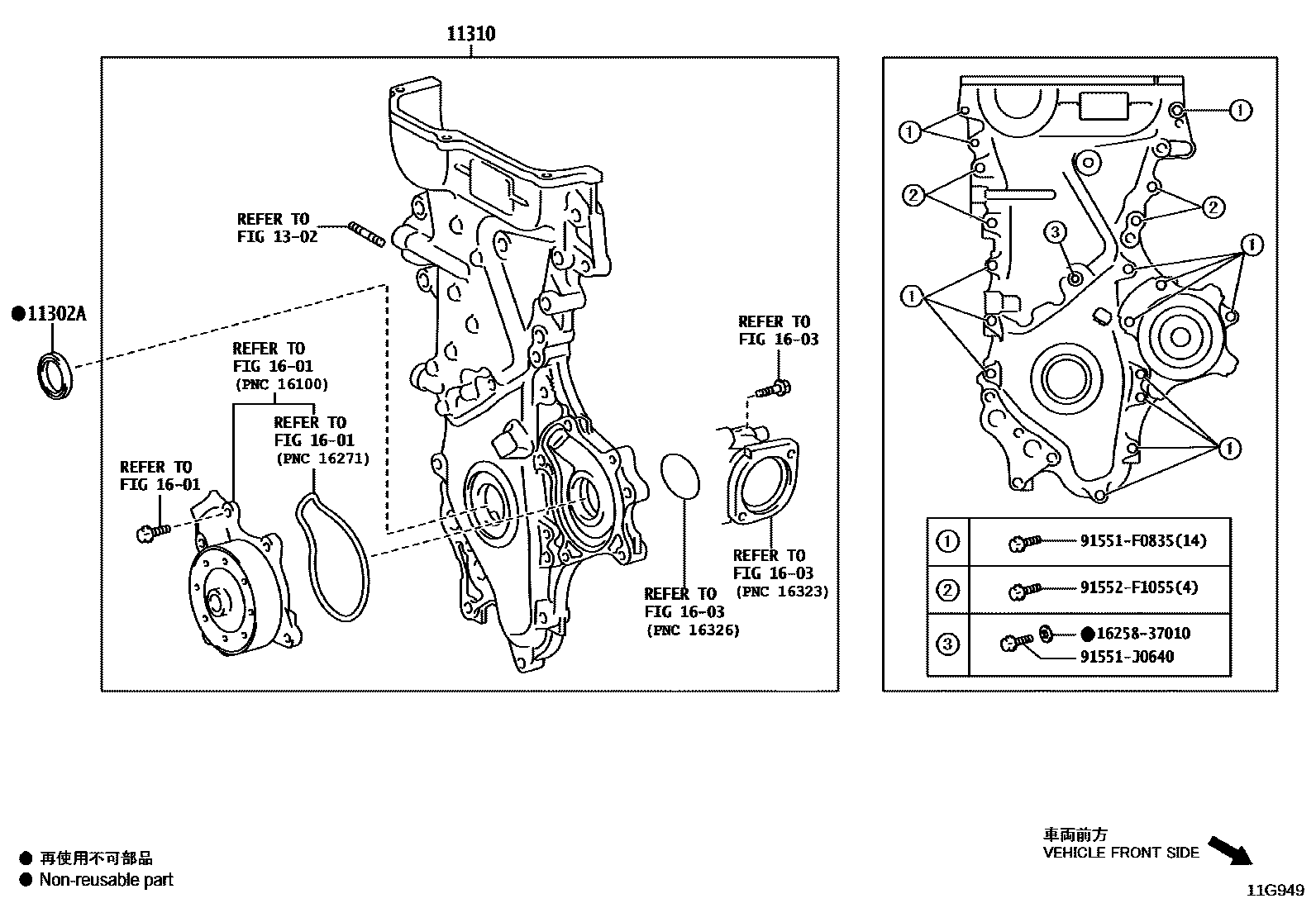

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11G949
Timing Gear Cover & Rear End Plate — 11G949 (201909 – 999999)

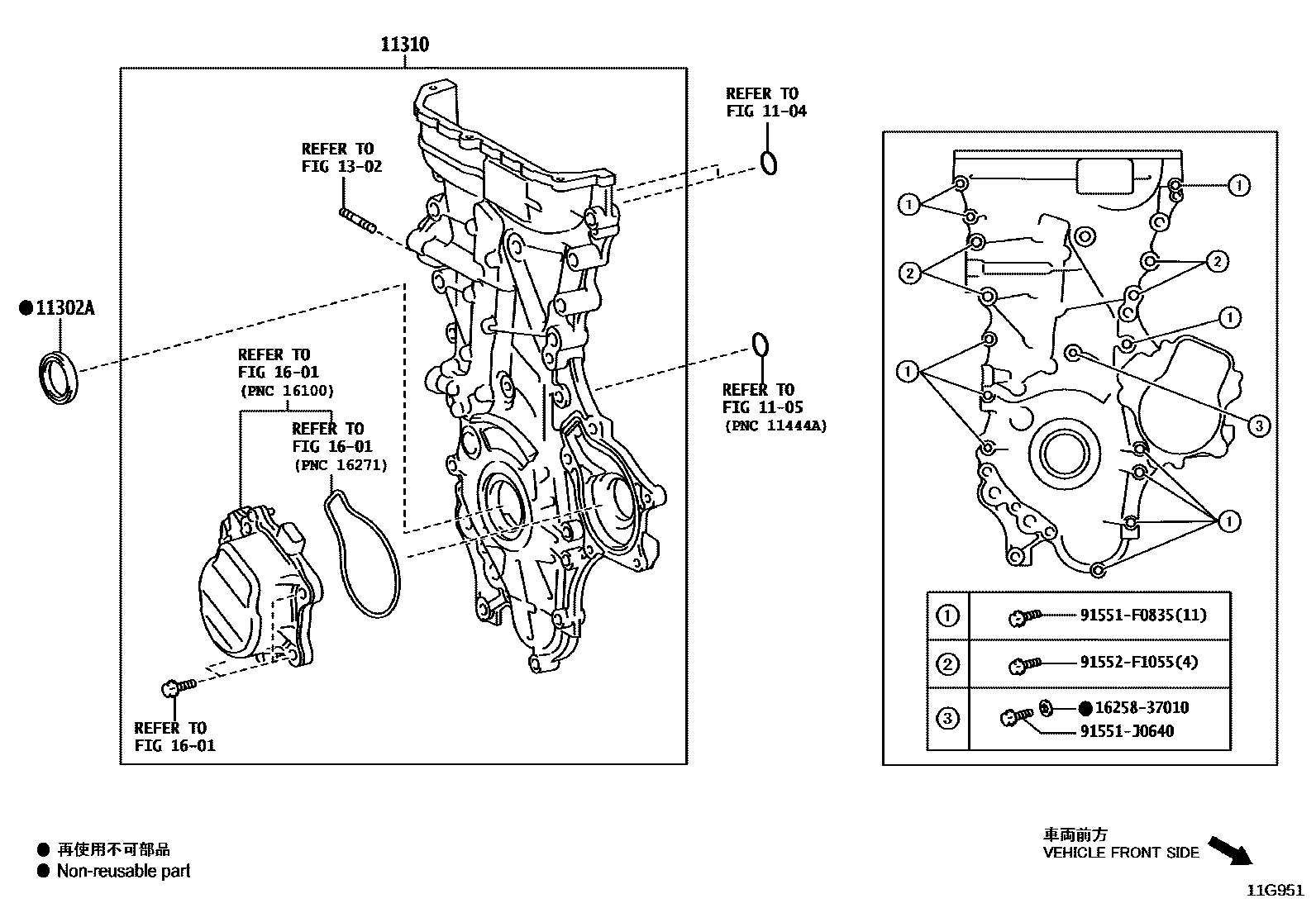

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11G951
Timing Gear Cover & Rear End Plate — 11G951 (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302AOil seal (for timing chain or timing belt cover)90311-38096
11310Timing chain cover assembly11310-37100 · 11310-37110
