Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

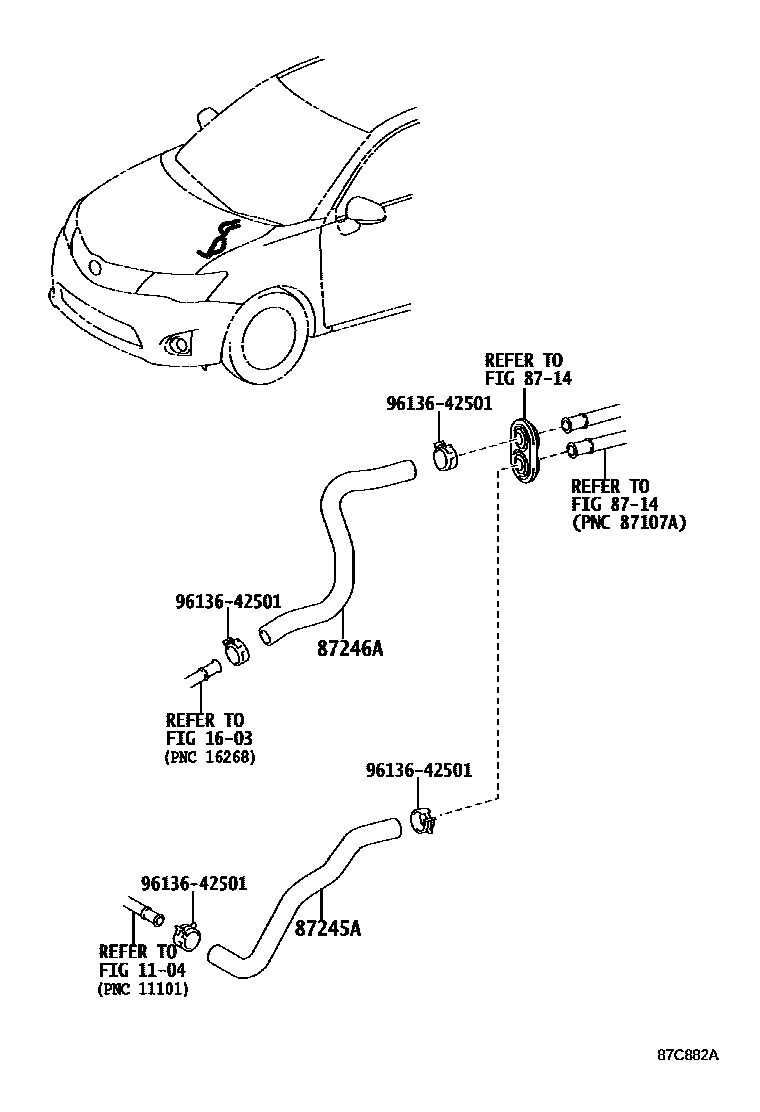

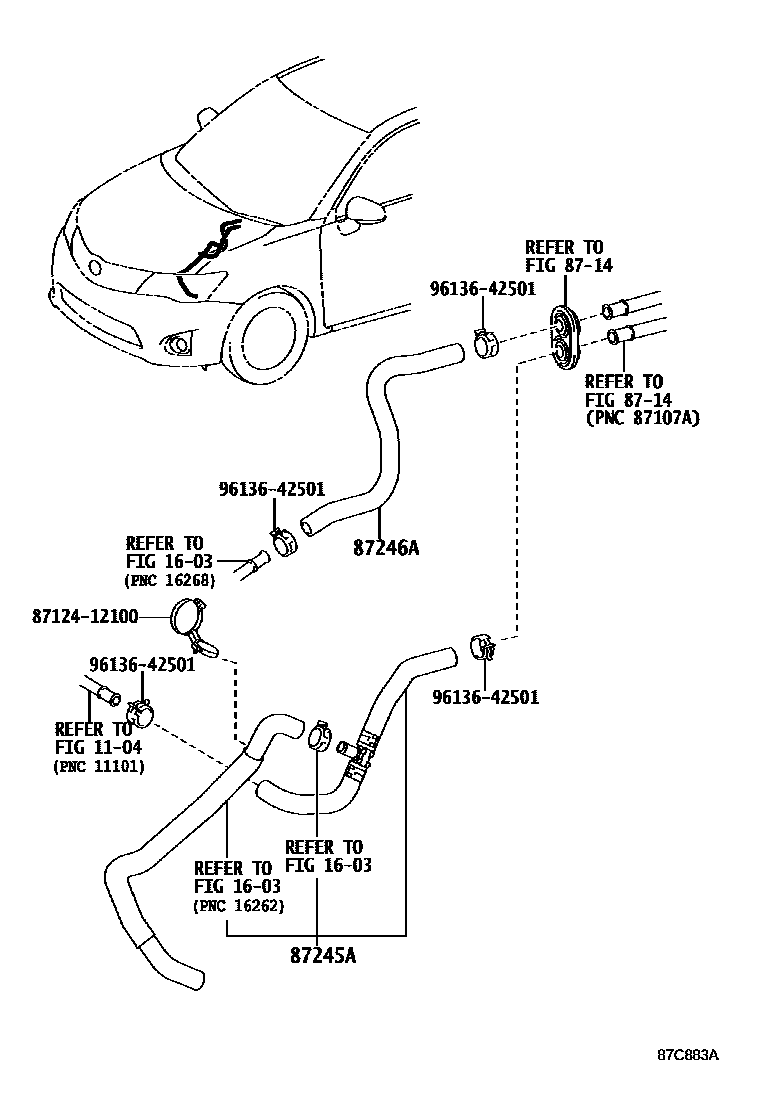

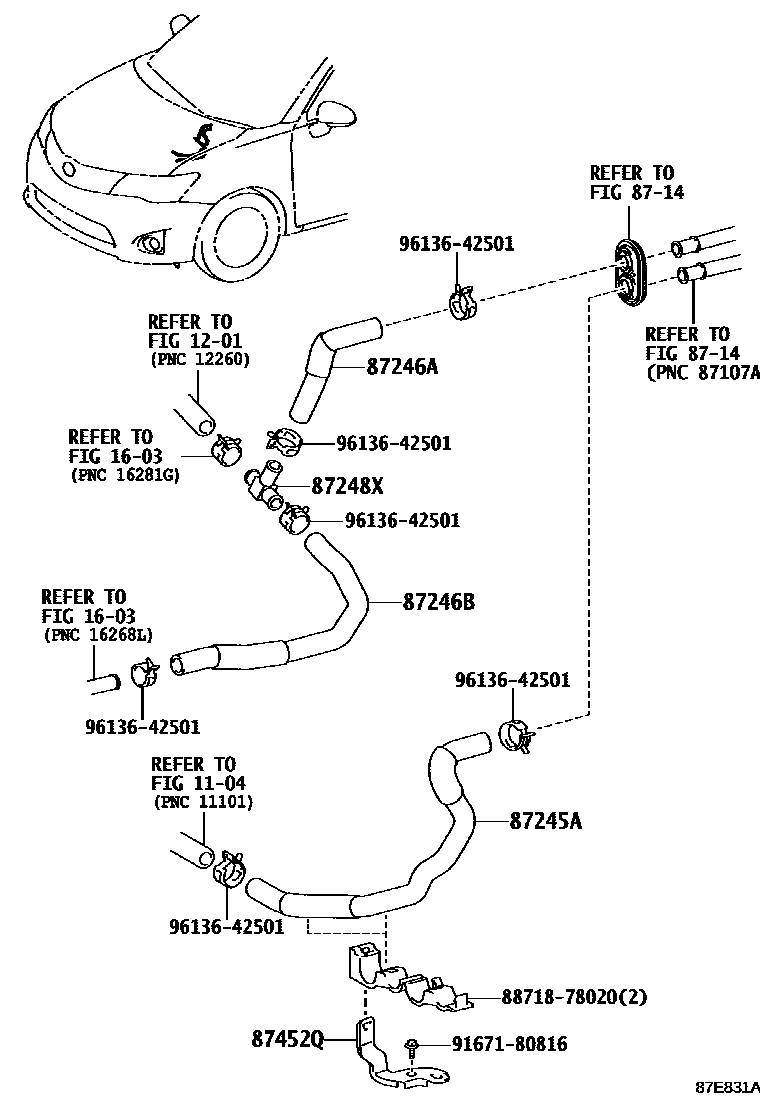

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245A | Heater water inlet hose A | 87209-52191 · 87209-52192 · 87245-52120 · 87245-52300 |
| 87246A | Heater outlet hose A | 87245-52110 · 87245-52330 |
| 87246B | Heater outlet hose B | 87245-52360 |
| 87248X | heater water pipe | 87248-26880 |
| 87452Q | Heater Bracket No. 1 | 87121-52070 |
