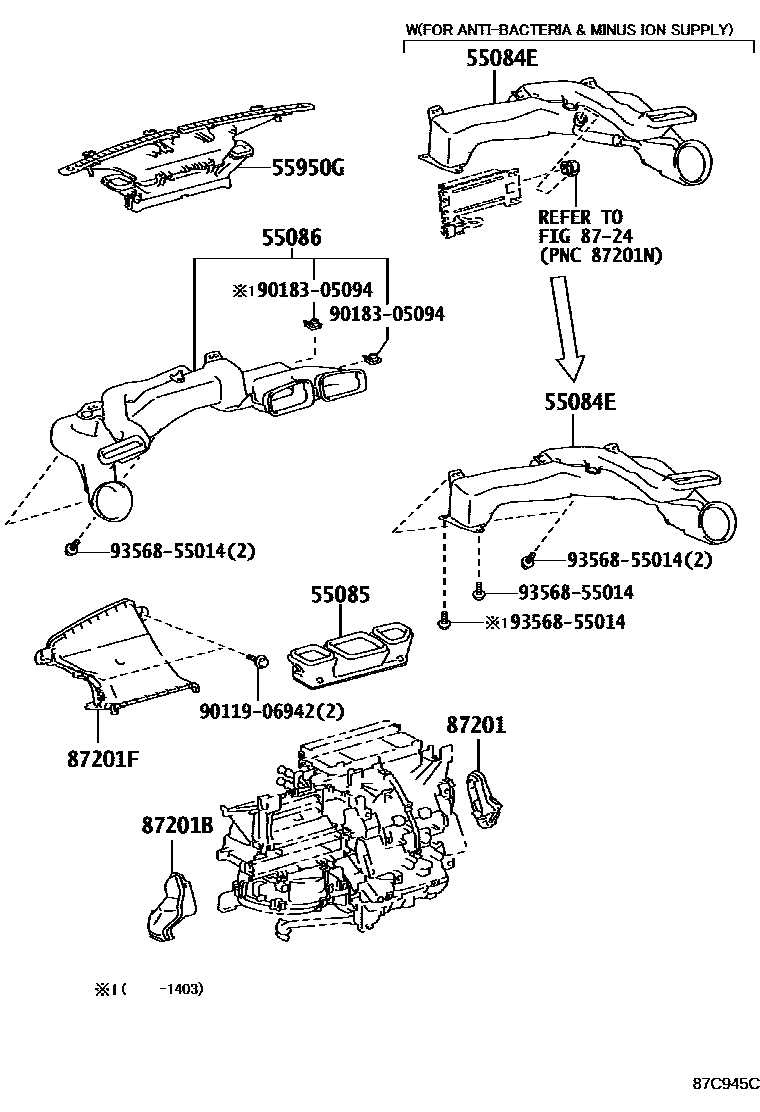

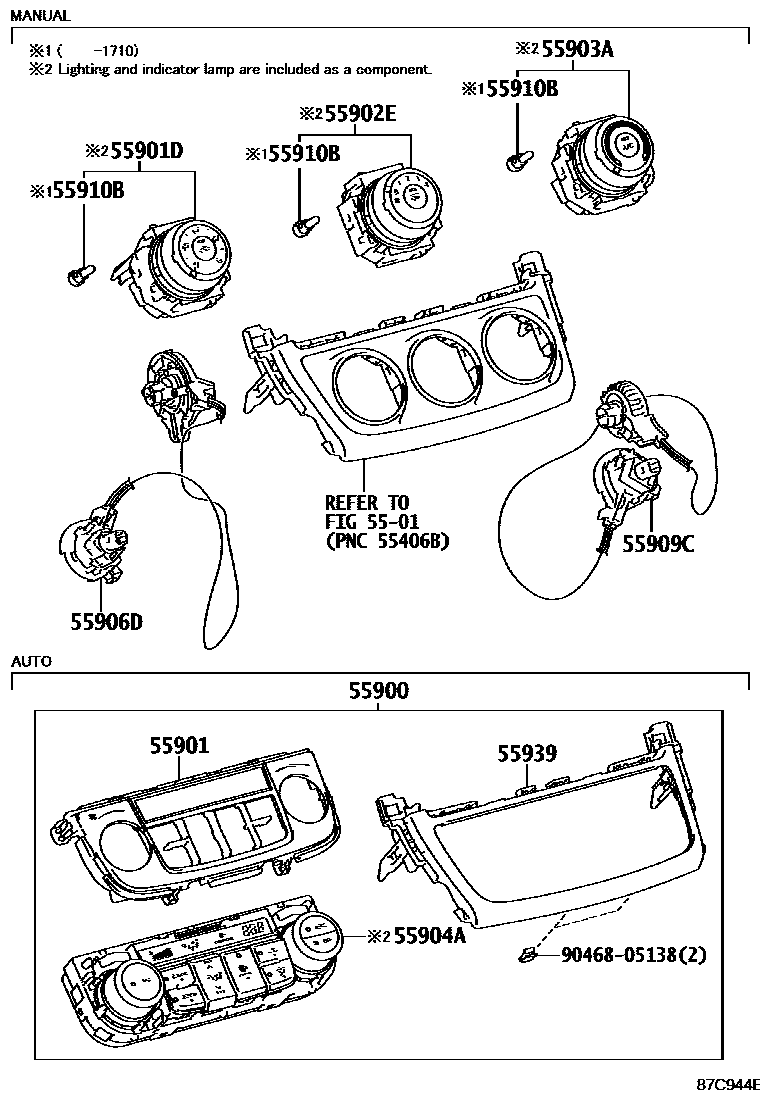

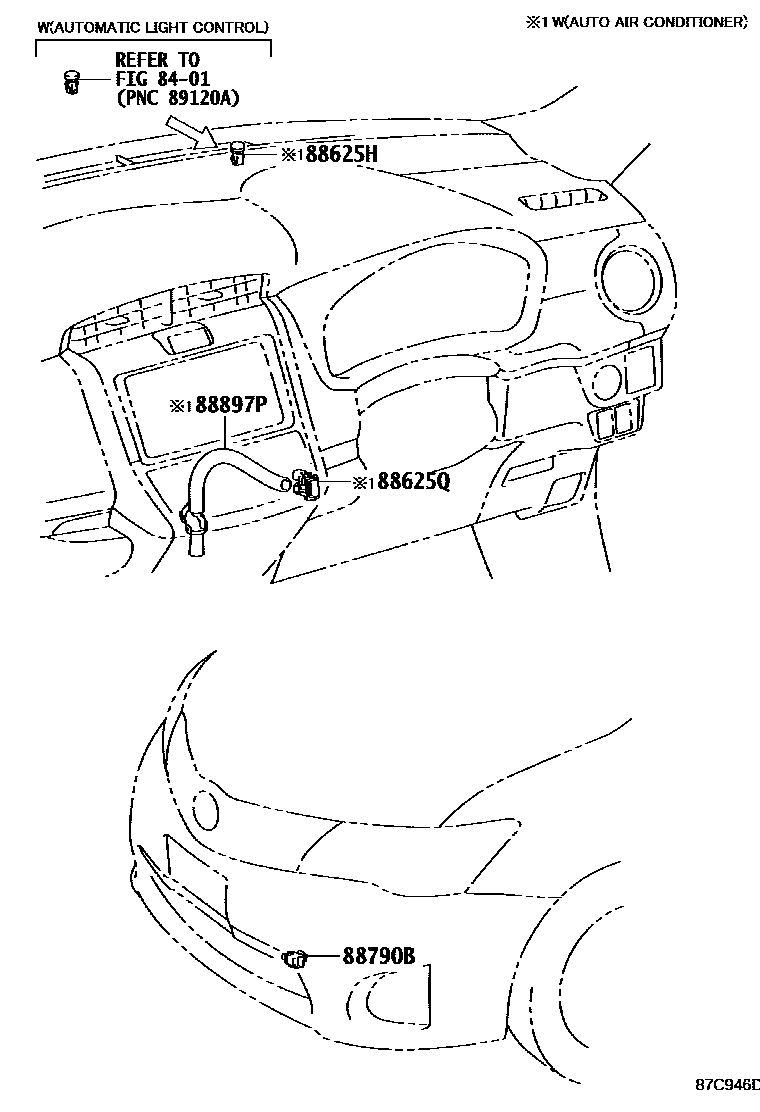

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-12180 · 55084-12181 · 55084-12190 · 55084-12191 · 55084-12192 · 55084-12220 · 55084-12230 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55840-12070 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55086-12240 · 55086-12241 · 55086-12280 |
| 55900 | Air conditioning control assembly | 55900-12D90 · 55900-12E50 |
| 55901 | Heater controller base sub-assembly | 55901-12260 |
| 55901D | No. 1 heater control sub-assembly | 55901-12230 · 55901-12250 |
| 55902E | No. 2 heater control sub-assembly | 55902-12150 · 55902-12350 |
| 55903A | No. 3 heater control sub-assembly | 55903-12190 · 55903-12280 |
| 55904A | Heater control housing sub-assembly | 55904-12020 |
| 55906D | No. 2 heater control cable sub-assembly | 55906-52132 |
| 55909C | Air mix damper control cable sub-assembly | 55909-26080 |
| 55910B | heater control light bulb | 90010-01113 |
| 55939 | heater control trim | 55939-12040 · 55939-12060 |
| 55950G | Defroster nozzle assembly | 55950-12310 |
| 87201 | No. 1 air duct sub-assembly | 87211-52110 |
| 87201B | No. 2 air duct sub-assembly | 87211-52120 |
| 87201F | No. 3 air duct sub-assembly | 87220-12090 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-52130 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-22131 · 88790-28100 |
| 88897P | aspirator | 88505-52010 |
