Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.

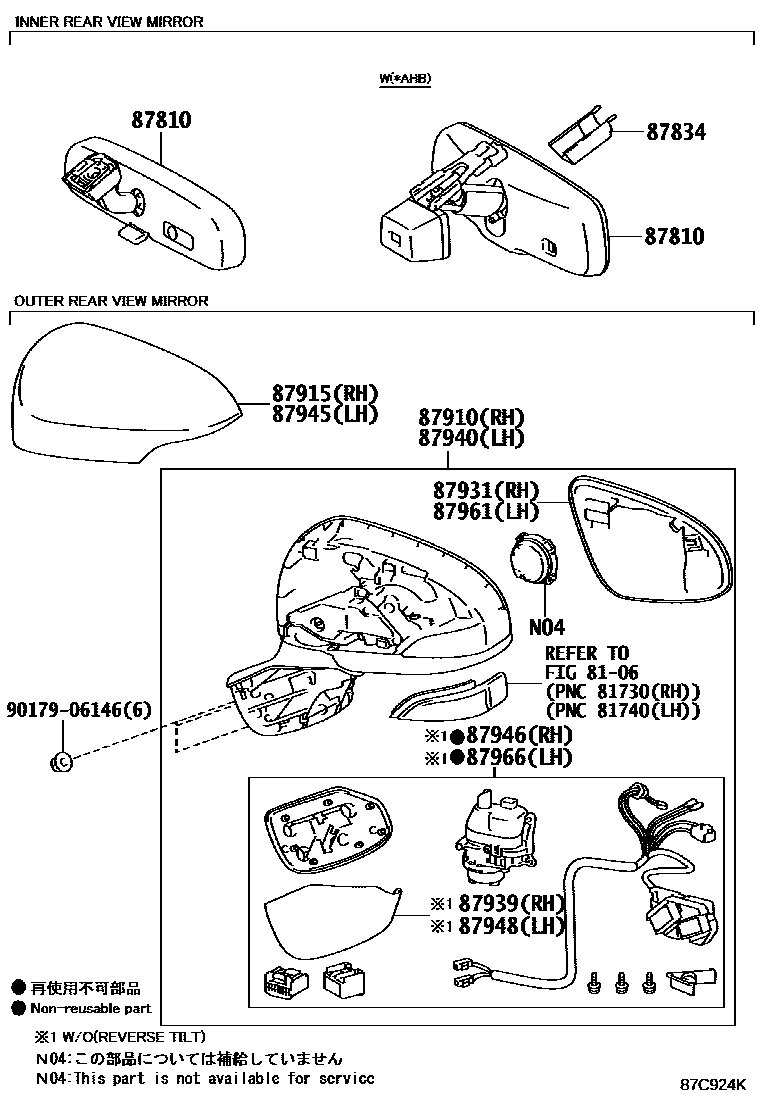

Toyota COROLLA 后视镜 EPC diagram — 87C924K
后视镜 — 87C924K (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0W850 · 87810-0WQ40 · 87810-52041
87834Interior rearview mirror stay fixing cover87818-04010
87910Right exterior rearview mirror assembly87910-12J80 · 87910-12J90 · 87910-12K00
87931Right exterior rearview mirror87931-12J90 · 87931-52D70
87939Right exterior rearview mirror hole cover87939-12J80
87940Left exterior rearview mirror assembly87940-12J80 · 87940-12J90 · 87940-12K00
87946Right exterior rearview mirror retractor87946-12J80 · 87946-12J90 · 87946-12K00
87948Left exterior rearview mirror hole cover87948-12J80
87961Left exterior rearview mirror87961-12J90 · 87961-52D50
87966Left exterior rearview mirror retractor87966-12J80 · 87966-12J90 · 87966-12K00
