Toyota COROLLA 预碰撞安全系统 — Figure 8617

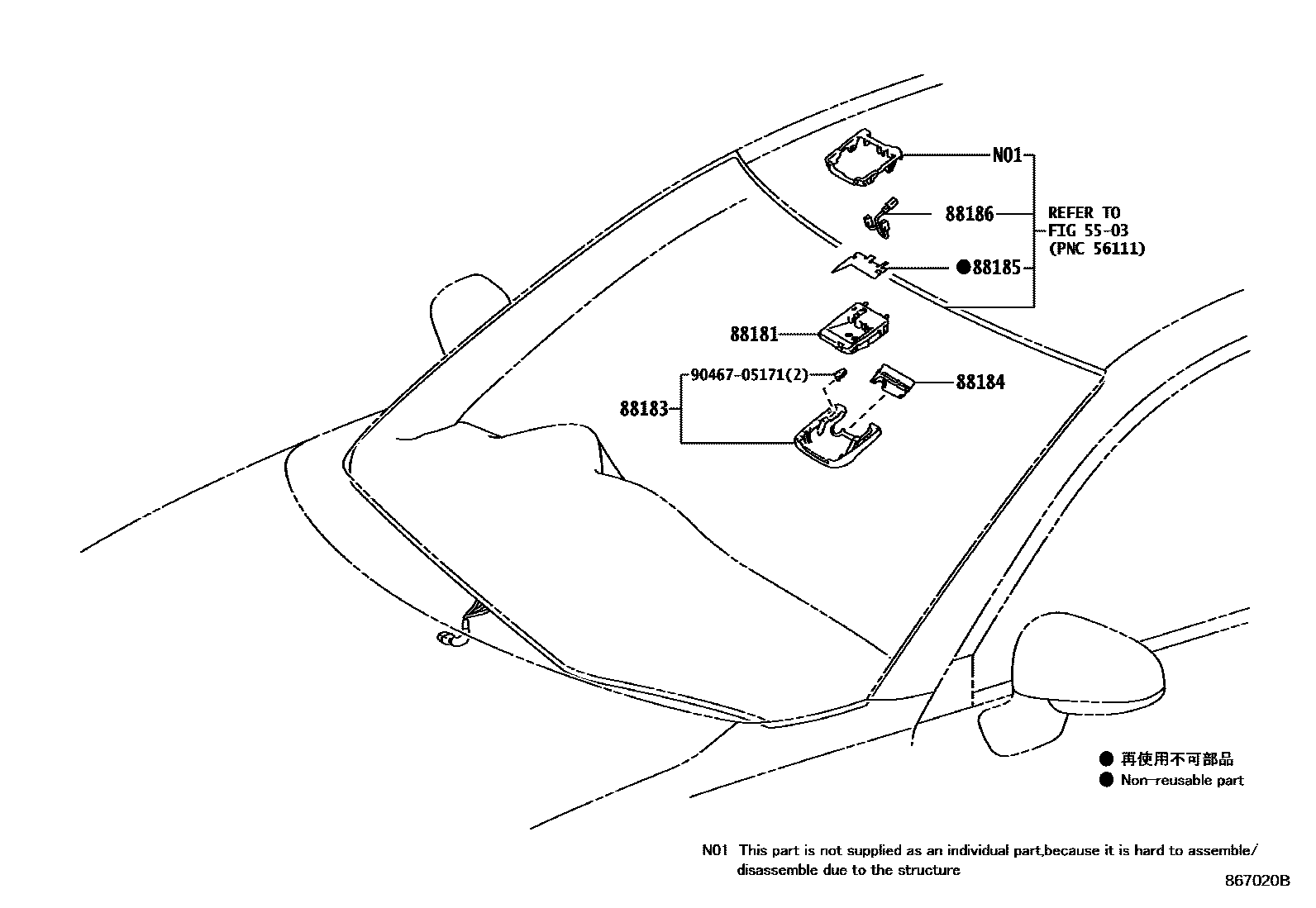

Toyota COROLLA EPC diagram 8617, 预碰撞安全系统, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88181 | Pre-collision safety system sensor | 88181-12040 |
| 88183 | Pre-crash safety system cover | 88183-12030 |
| 88184 | Pre-collision safety system cover 2 | 88184-12010 |
| 88185 | Pre-collision safety system heater | 88185-28010 |
| 88186 | Pre-collision safety system heater wiring harness | 88186-12020 |
