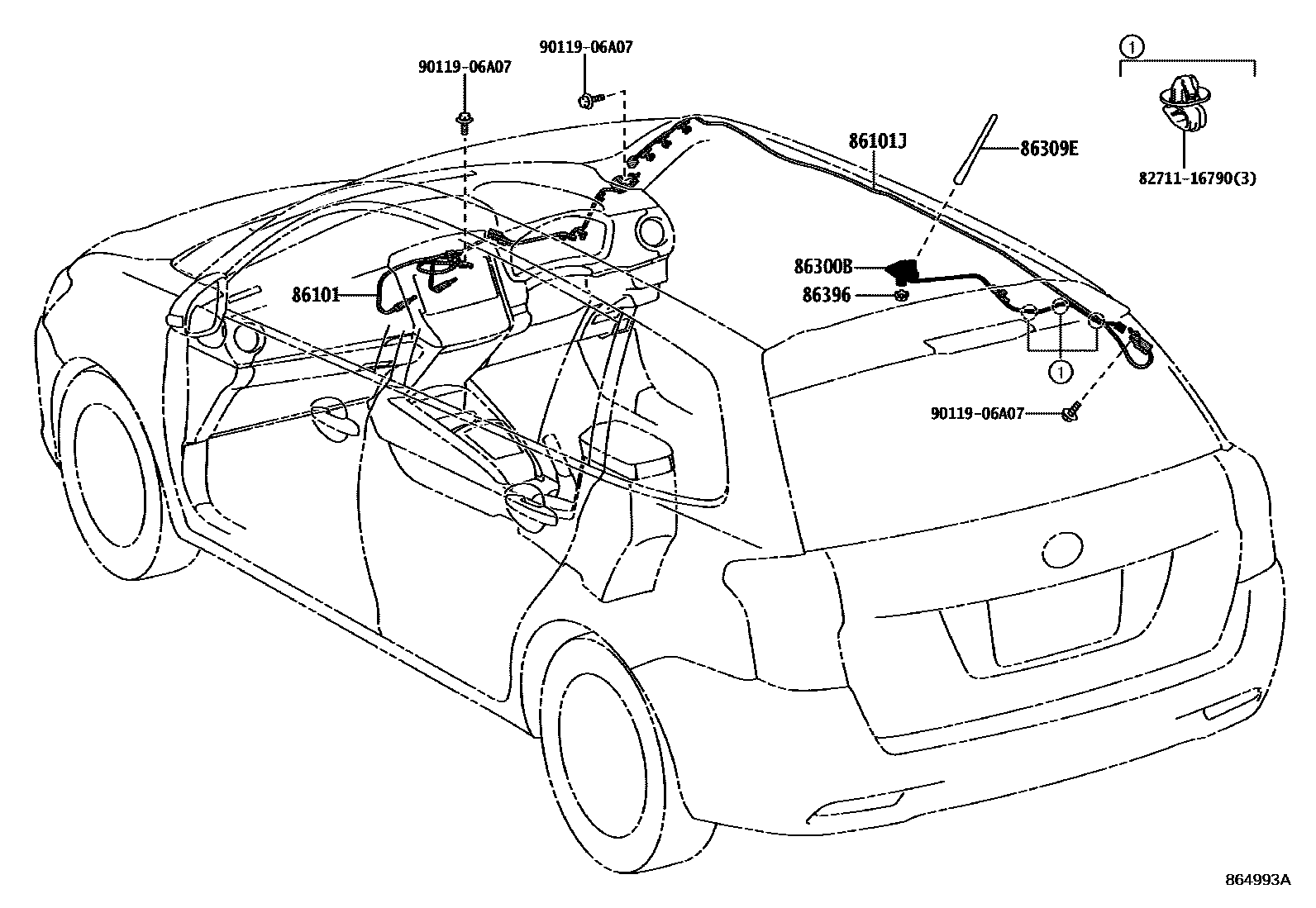

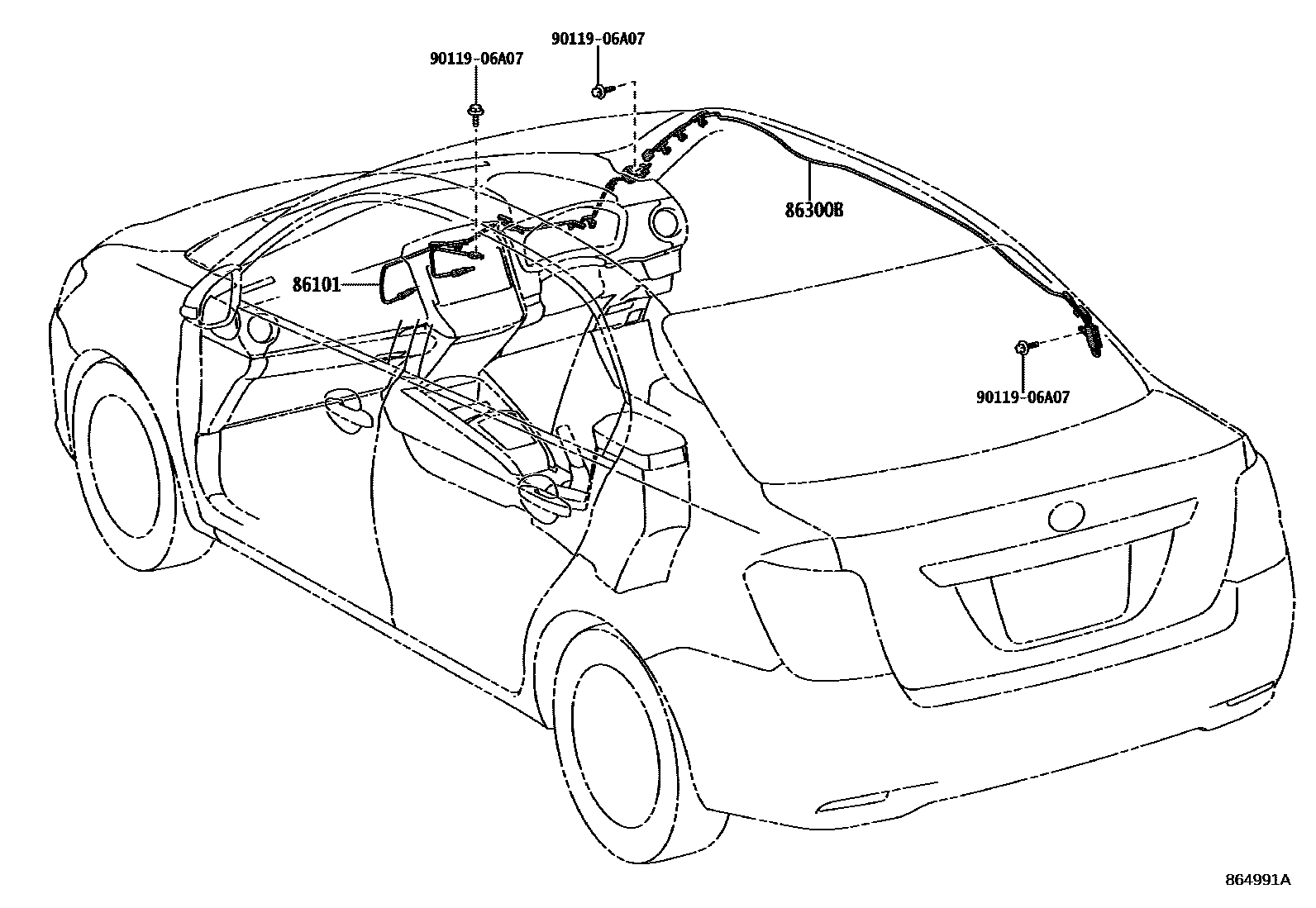

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-12880 · 86101-12A00 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-13160 |
| 86300B | No. 1 amplifier antenna assembly | 86300-12B20 · 86300-13070 |
| 86309E | Roof antenna sub-assembly | 86309-13030 |
| 86396 | Antenna nut | 86396-47010 |
