Toyota COROLLA 防盗装置 — Figure 8424

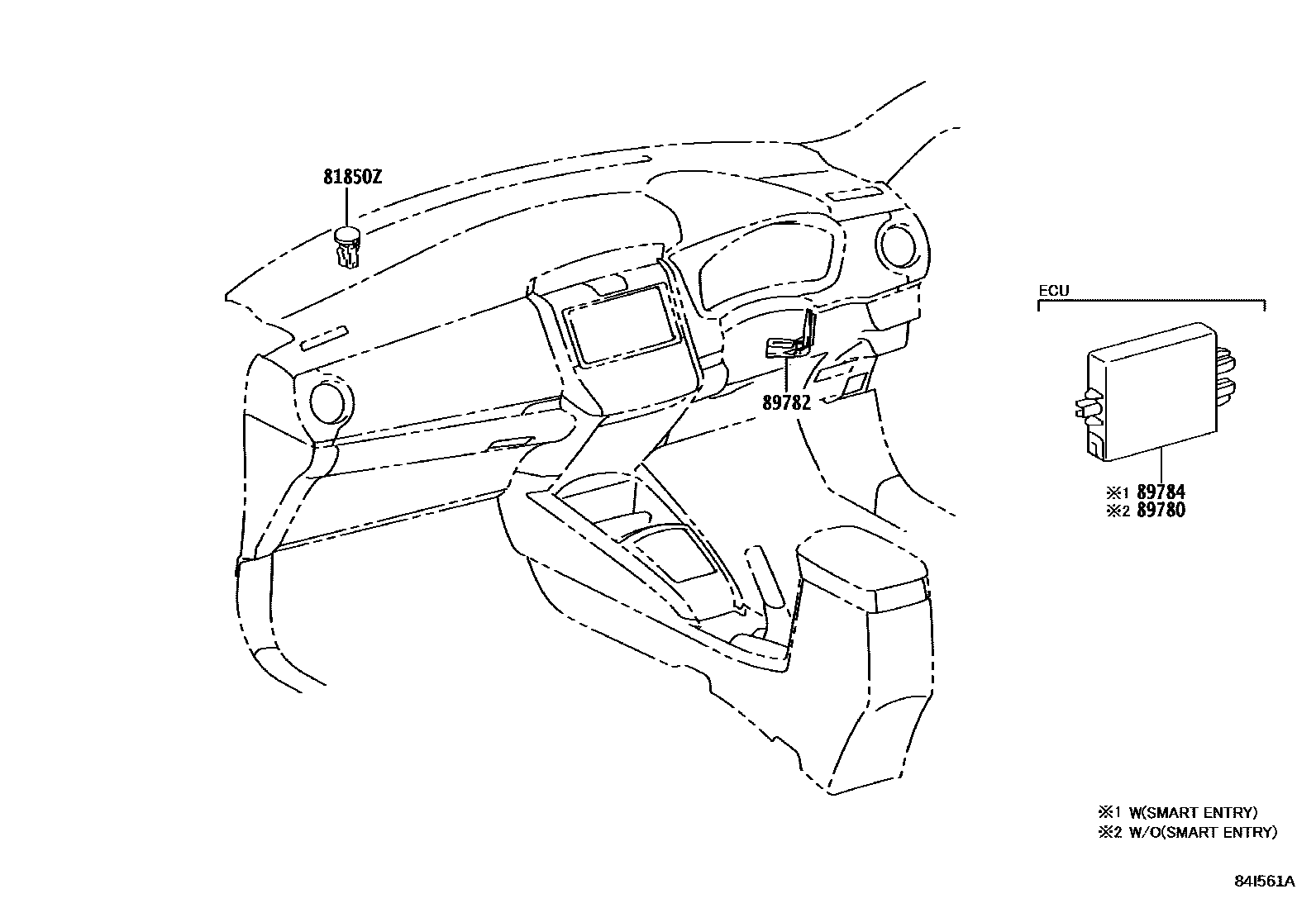

Toyota COROLLA EPC diagram 8424, 防盗装置, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81850Z | Anti-theft warning indicator light assembly | 81850-52010 |
| 89780 | Transceiver key ECU assembly | 89780-52171 |
| 89782 | transceiver key coil | 89782-42020 |
| 89784 | Shutdown code system ECU | 89784-52030 |
