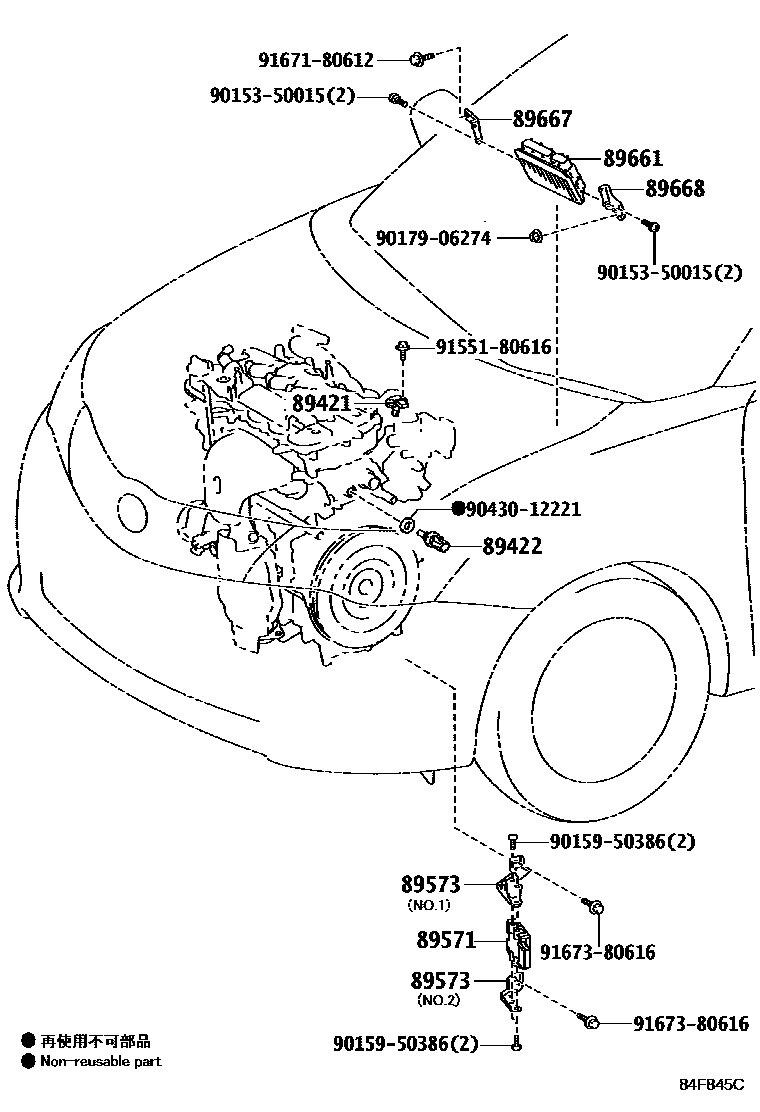

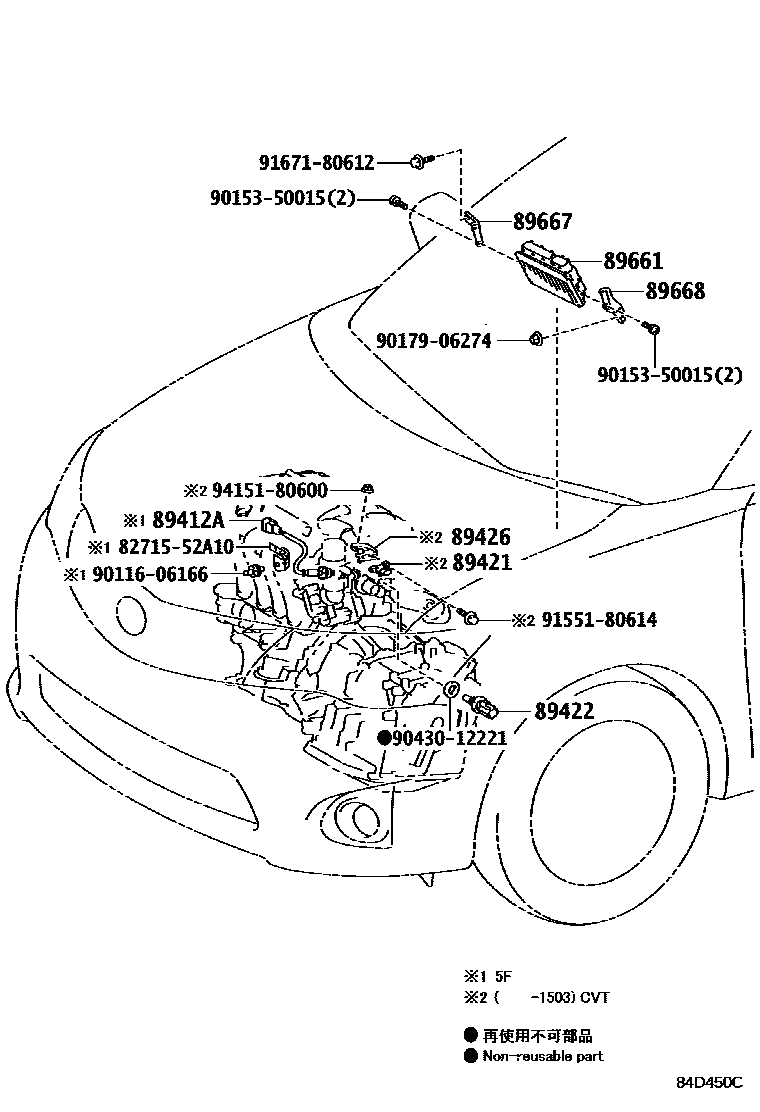

Toyota COROLLA 电子燃油喷射系统 — Figure 8404
Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89412A | E.G.R exhaust gas temperature sensor | 89412-35020 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-26030 · 89421-47010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89426 | Vacuum sensor holder | 89426-12260 |
| 89571 | Fuel pump control ECU | 89571-34070 |
| 89573 | Fuel pump control ECU bracket | 89573-52030 · 89573-52040 |
| 89661 | Engine control ECU | 89661-12S50 · 89661-12S60 · 89661-12S90 · 89661-12S91 · 89661-12T10 · 89661-1AA30 |
| 89667 | Engine control ECU bracket | 89667-52340 |
| 89668 | No. 2 engine control ECU bracket | 89668-52350 |
