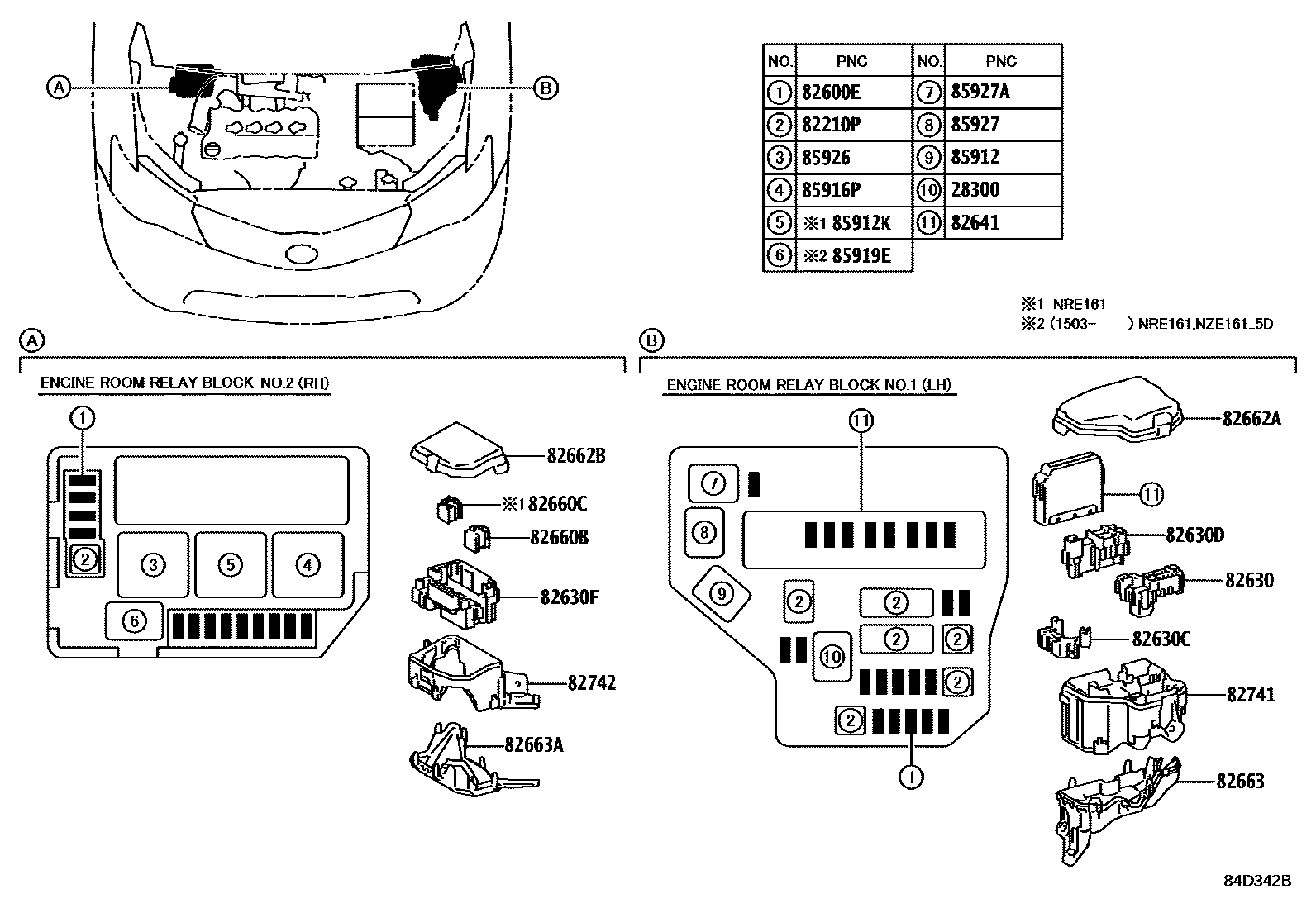

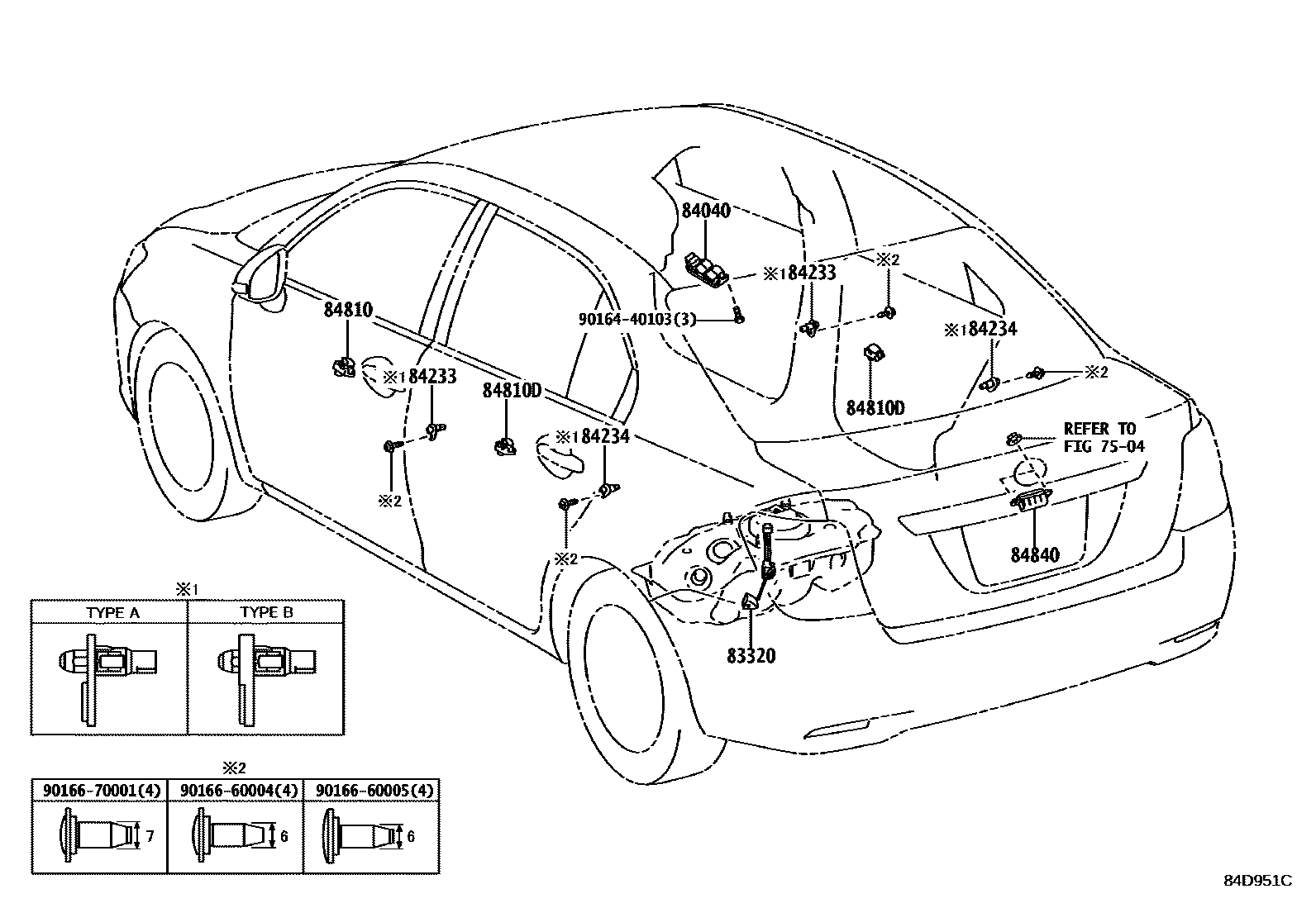

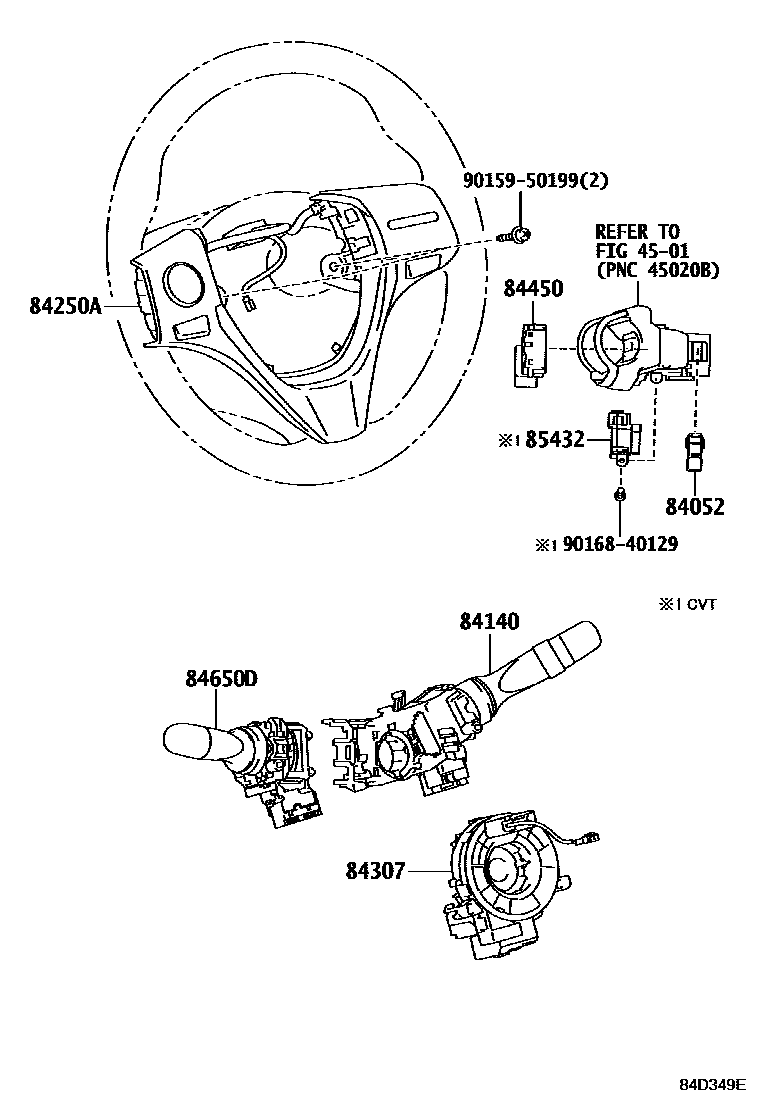

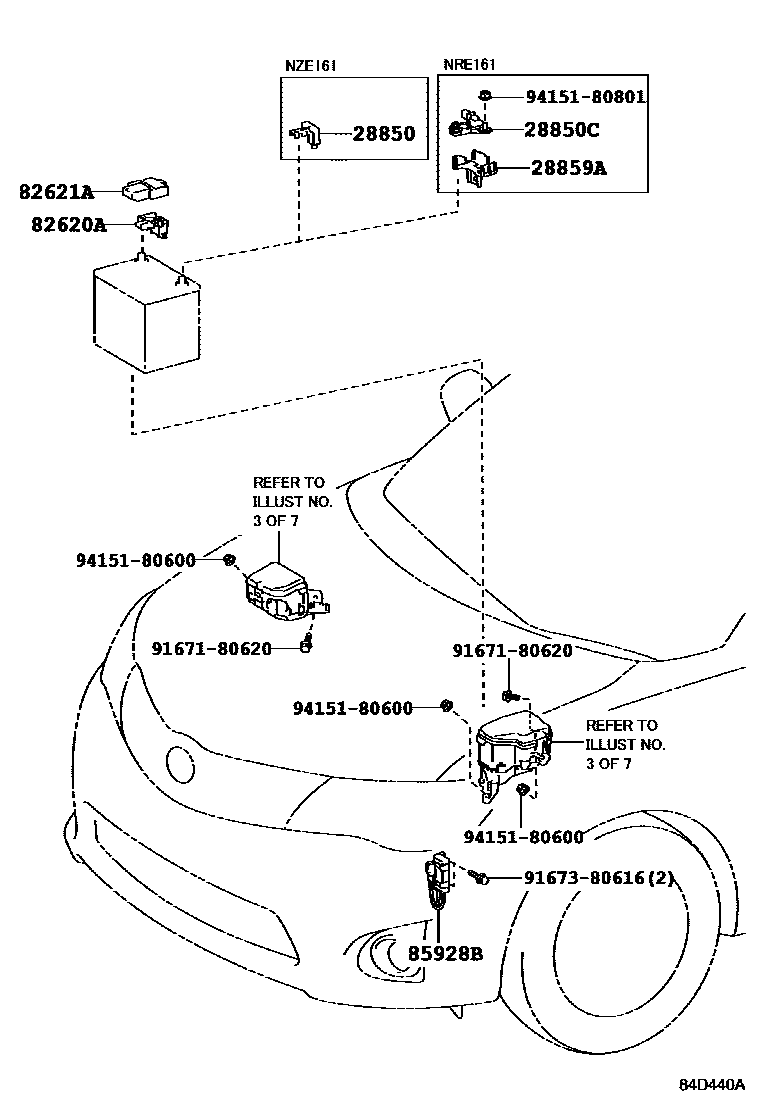

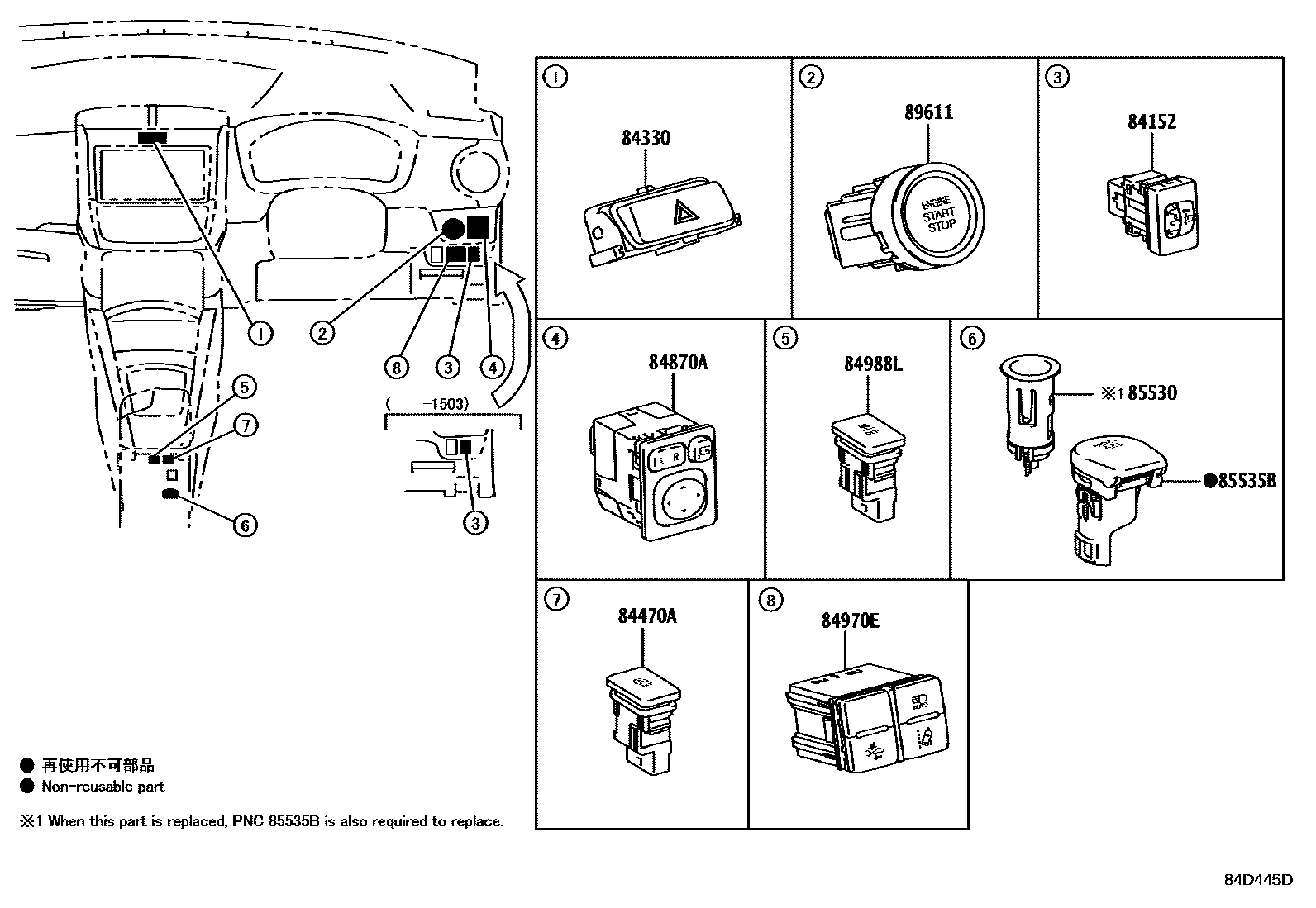

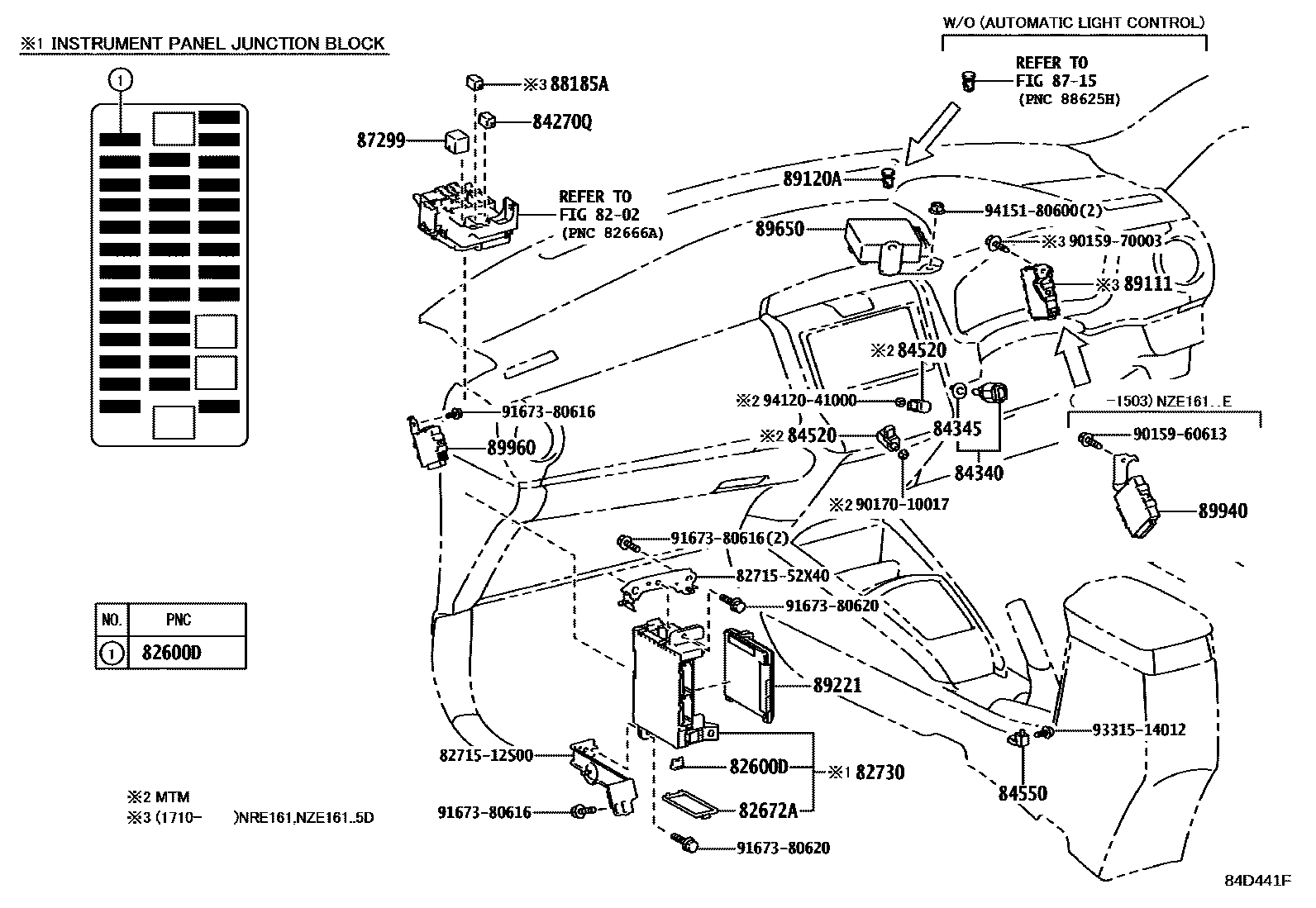

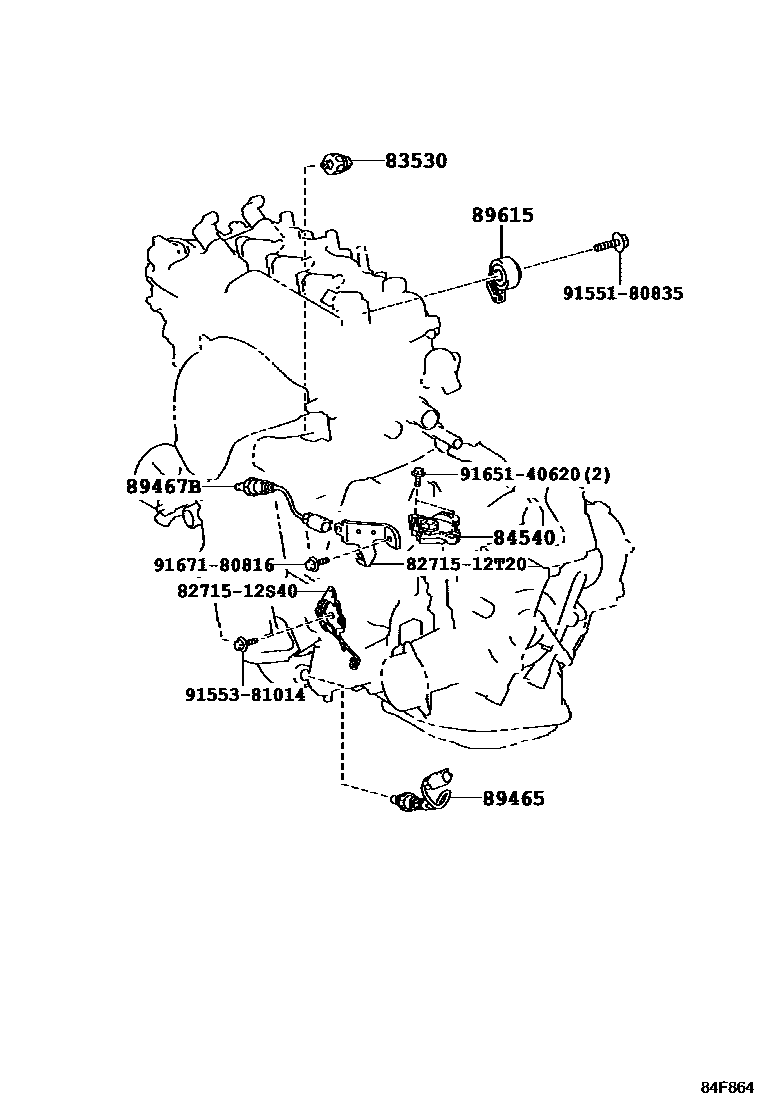

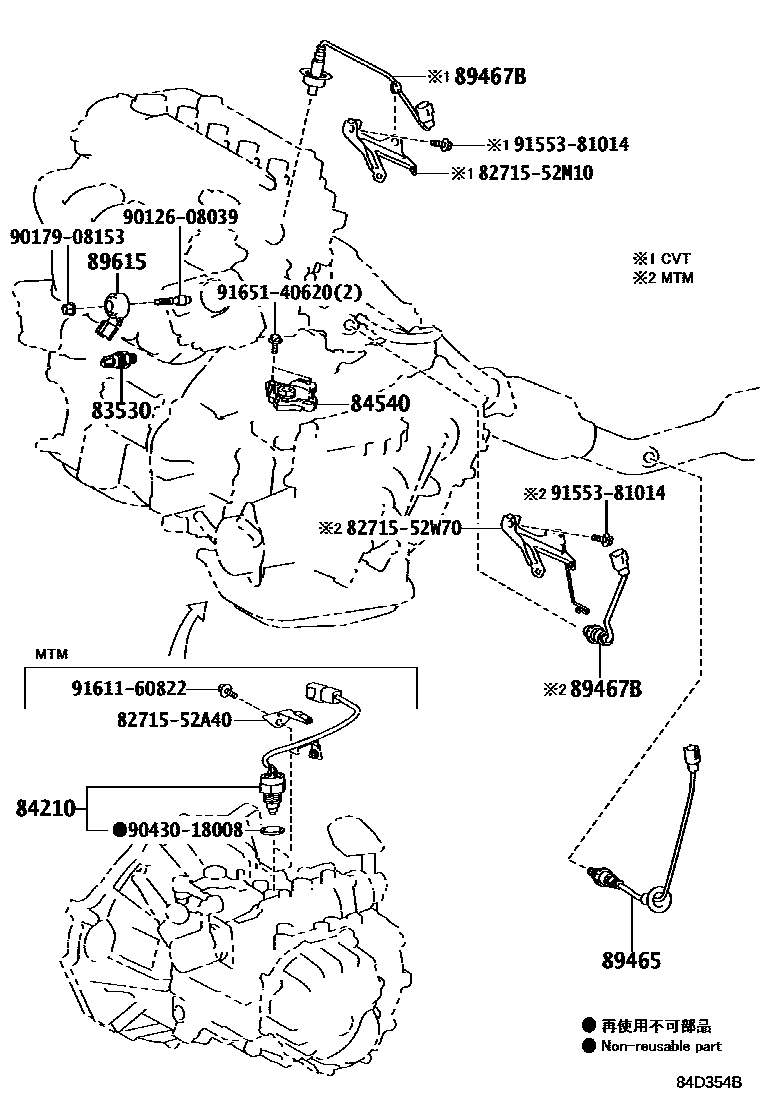

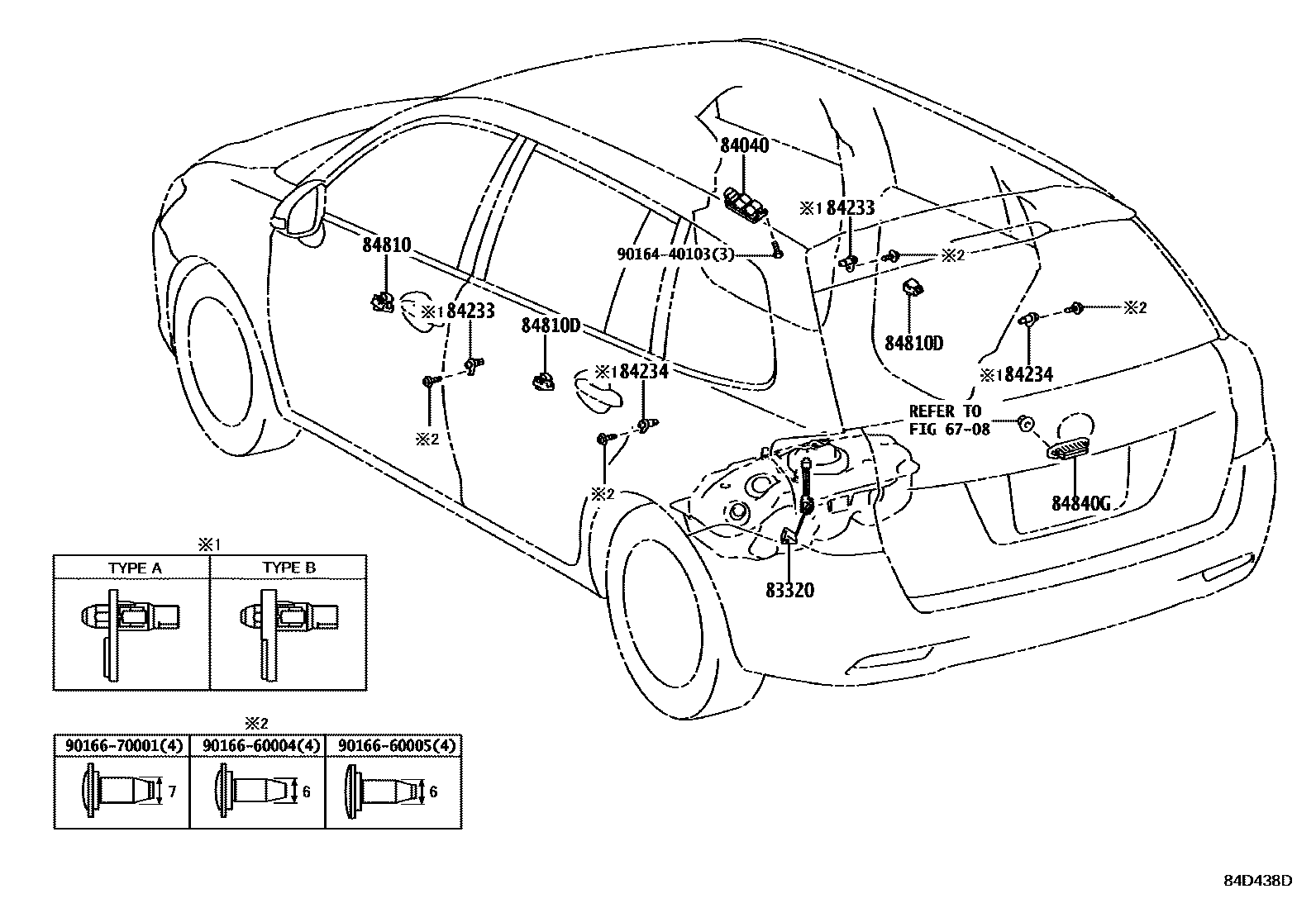

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 9 images and 74 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 28850 | Battery current sensor assembly | 28850-40010 |
| 28850C | Battery status sensor assembly | 28850-36030 |
| 28859A | Battery current sensor mount | 28859-47020 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08296 · 90982-08301 · 90982-08305 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 |
| 82620A | Fuse box assembly | 82620-52070 |
| 82621A | Fuse cover | 82621-52140 |
| 82630 | Fuse holder assembly | 82631-52010 |
| 82630C | Fuse holder assembly | 82631-52020 |
| 82630D | fuse holder | 82631-52030 |
| 82630F | fuse holder | 82631-12120 · 82631-52040 |
| 82641 | Integrated relay No. 1 | 82641-52020 · 82641-52030 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660C | Relay assembly | 82660-0H070 |
| 82662A | No. 1 relay box upper cover | 82662-12B50 · 82662-12D80 |
| 82662B | No. 2 relay box upper cover | 82662-12B80 · 82662-12B90 · 82662-12D90 |
| 82663 | Relay box lower cover | 82663-52080 |
| 82663A | No. 2 relay box lower cover | 82663-52090 |
| 82672A | Junction box cover | 82672-12470 · 82672-12471 · 82672-12490 |
| 82730 | Instrument panel junction box assembly | 82730-12L30 · 82730-12L31 · 82730-12X50 |
| 82741 | Engine room relay box | 82741-12130 |
| 82742 | Engine room No. 2 relay box | 82741-52080 |
| 83320 | Fuel gauge sensor assembly | 83320-52230 · 83320-52270 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84040 | Multi-channel network main switch assembly | 84040-12180 · 84040-33080 · 84040-60240 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-12570 · 84140-42030 · 84140-42040 · 84140-42070 |
| 84152 | Headlight beam height adjustment switch | 84152-12111 · 84152-52070 · 84152-52071 · 84152-52131 |
| 84210 | Reversing light switch assembly | 84210-52010 |
| 84233 | Door control light switch assembly (for front door) | 84231-52010 · 84231-52230 |
| 84234 | Door control light switch assembly (for rear door) | 84231-52010 · 84231-52230 |
| 84270Q | headlight relay | 90987-02027 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-12120 · 84307-12130 |
| 84330 | Hazard warning signal switch assembly | 84332-12560 · 84332-12561 · 84332-12562 |
| 84340 | brake light switch assembly | 84340-19065 · 84340-49045 · 84340-49085 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-52020 |
| 84470A | Economic operation cancel switch assembly | 84470-12031 · 84470-12070 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-52070 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-52260 · 84652-52261 · 84652-52270 · 84652-52271 · 84652-52280 · 84652-52281 |
| 84810 | Electric window lift switch assembly | 84810-30220 · 84810-33120 |
| 84810D | Rear electric window lift switch assembly | 84810-30220 · 84810-33120 |
| 84840 | Trunk door opening switch assembly | 84840-28030 |
| 84840G | Back door opener switch assembly | 84840-12010 · 84840-72010 |
| 84870A | Exterior rearview mirror switch assembly | 84870-12211 · 84870-12250 · 84870-28040 |
| 84970E | No. 2 combination switch assembly | 84970-12120 |
| 84988L | VSC off switch | 84988-22080 · 84988-48070 · 84988-48071 |
| 85432 | Key interlock solenoid valve | 85432-52010 |
| 85530 | No. 1 power socket assembly | 85530-0D020 · 85530-0D021 |
| 85535B | No. 1 power outlet cover | 85535-02040 |
| 85912 | defogger relay | 90987-02027 |
| 85912K | VVT relay | 90987-02025 |
| 85916P | headlight relay | 90987-02025 |
| 85919E | brake light relay | 90987-04004 |
| 85926 | Headlight dimmer relay | 90987-02025 · 90987-04010 |
| 85927 | cooling fan relay | 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85928B | Cooling fan resistor | 85928-52030 · 85928-52032 |
| 87299 | heater relay | 90987-02025 |
| 88185A | Pre-collision safety system heater relay | 90987-02027 |
| 89111 | Network gateway ECU | 89100-52040 |
| 89120A | Automatic light control sensor | 89121-52010 |
| 89221 | Multi-channel network body ECU | 89220-12080 · 89220-12130 · 89220-12140 · 89220-12400 · 89220-12410 |
| 89465 | oxygen sensor | 89465-12A90 · 89465-52740 · 89465-52750 |
| 89467B | air fuel ratio sensor | 89467-12160 · 89467-52130 · 89467-52240 |
| 89611 | One-button start switch | 89611-33031 · 89611-33032 · 89611-33033 · 89611-33034 · 89611-42012 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-12C40 · 89650-12C60 · 89650-12E60 · 89650-12F80 · 89650-12G00 · 89650-13040 · 89650-13050 |
| 89940 | Headlight rotating ECU assembly | 89940-12030 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-12530 · 89960-12630 |
