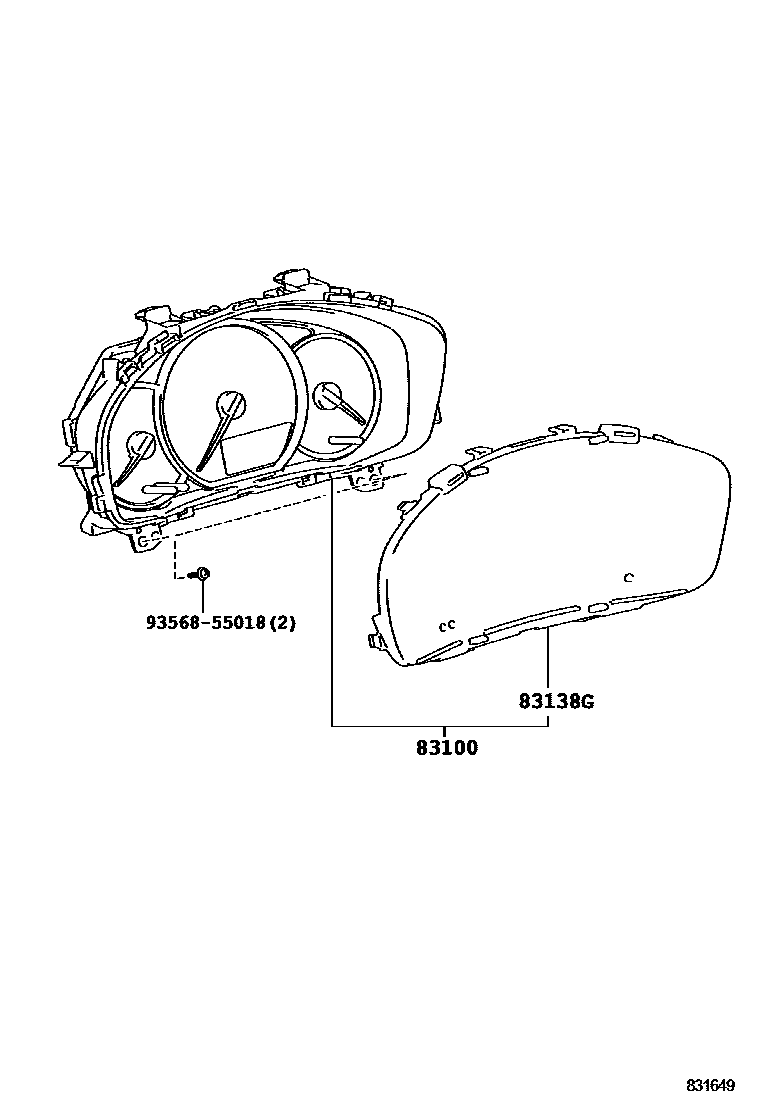

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-12W50 · 83800-12W70 · 83800-12W71 · 83800-12W80 · 83800-12W81 · 83800-12Z30 · 83800-1AL50 |
| 83138G | Instrument cluster glass | 83852-12W50 |
