Toyota COROLLA 线束和卡夹 — Figure 8202

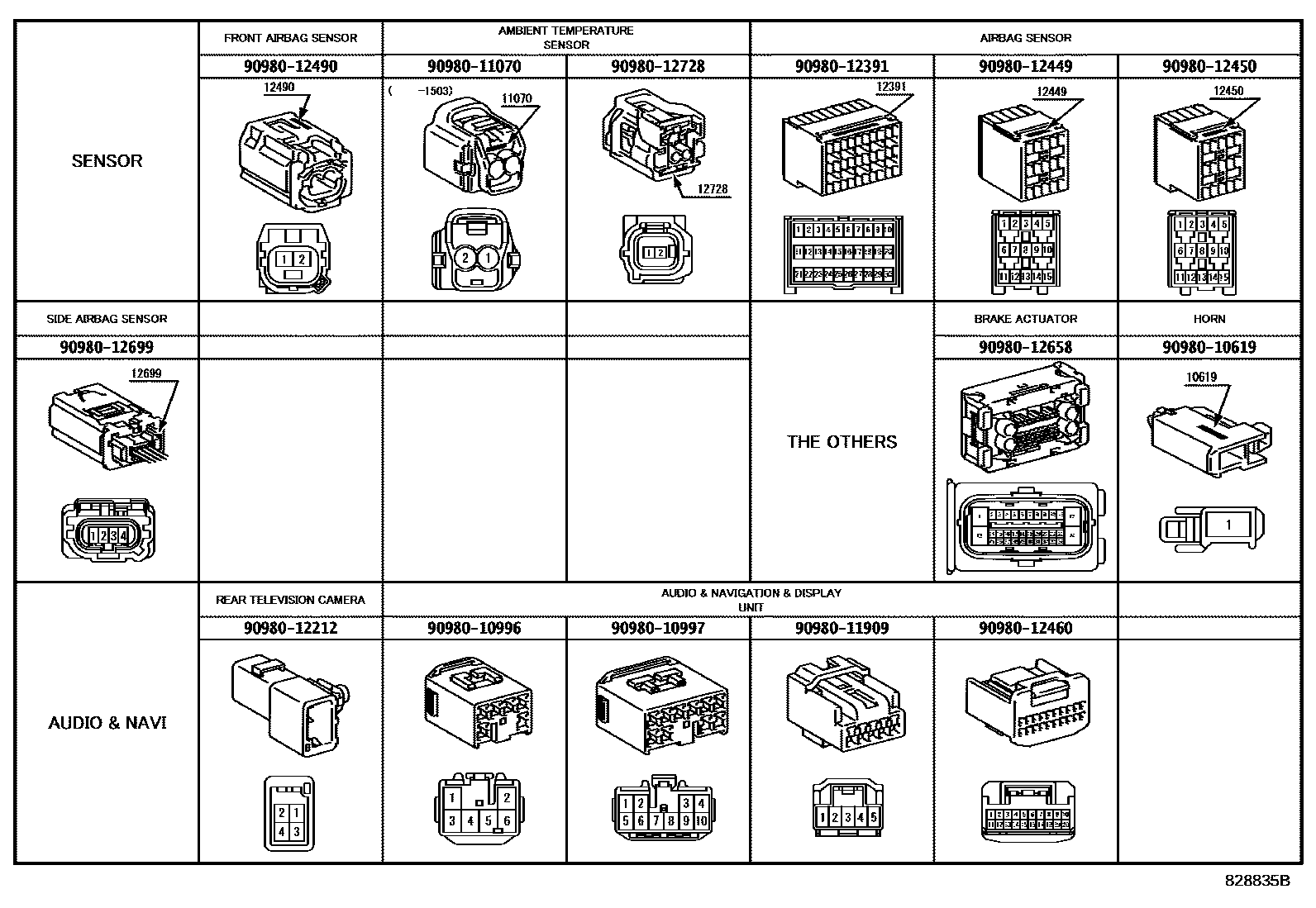

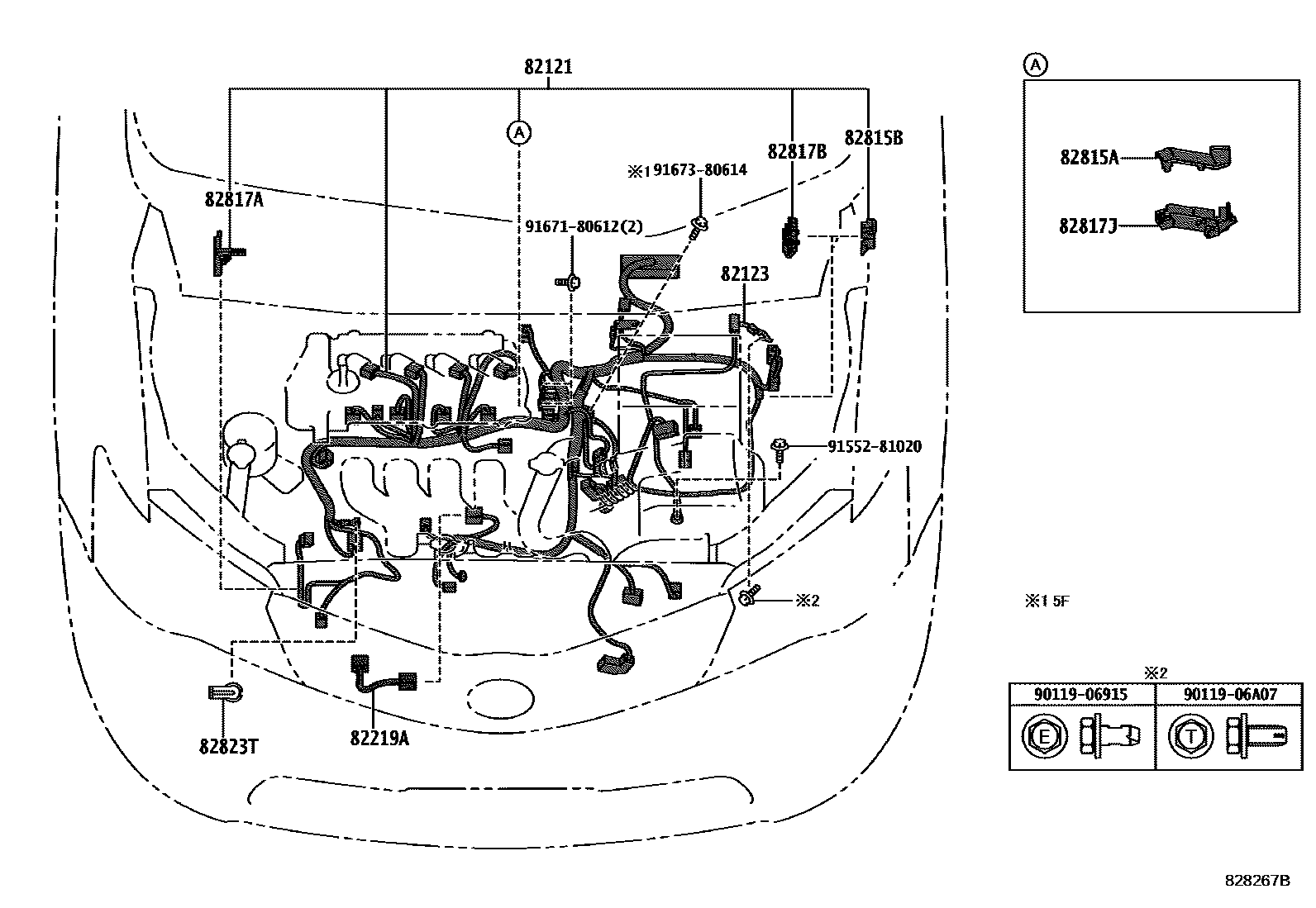

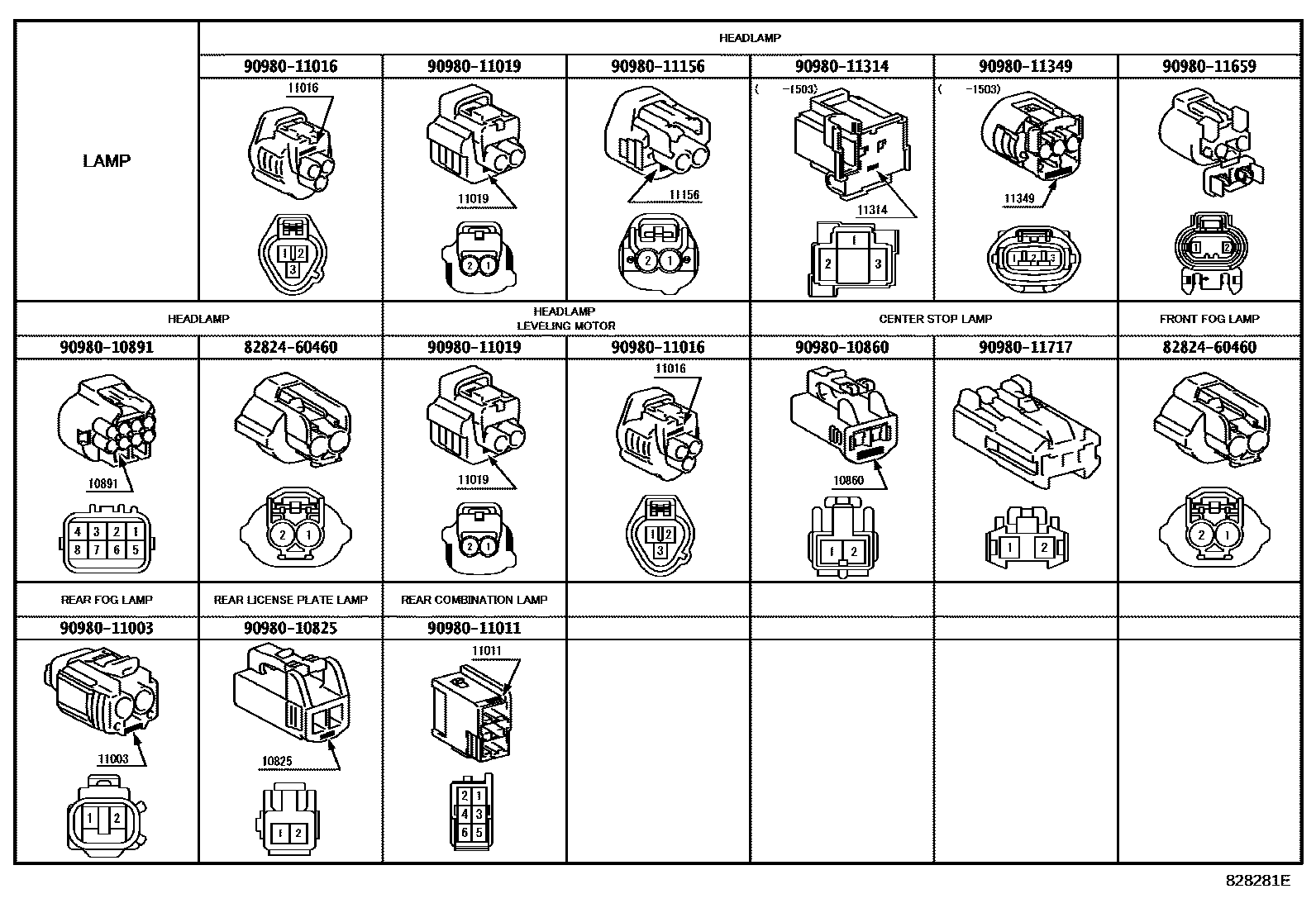

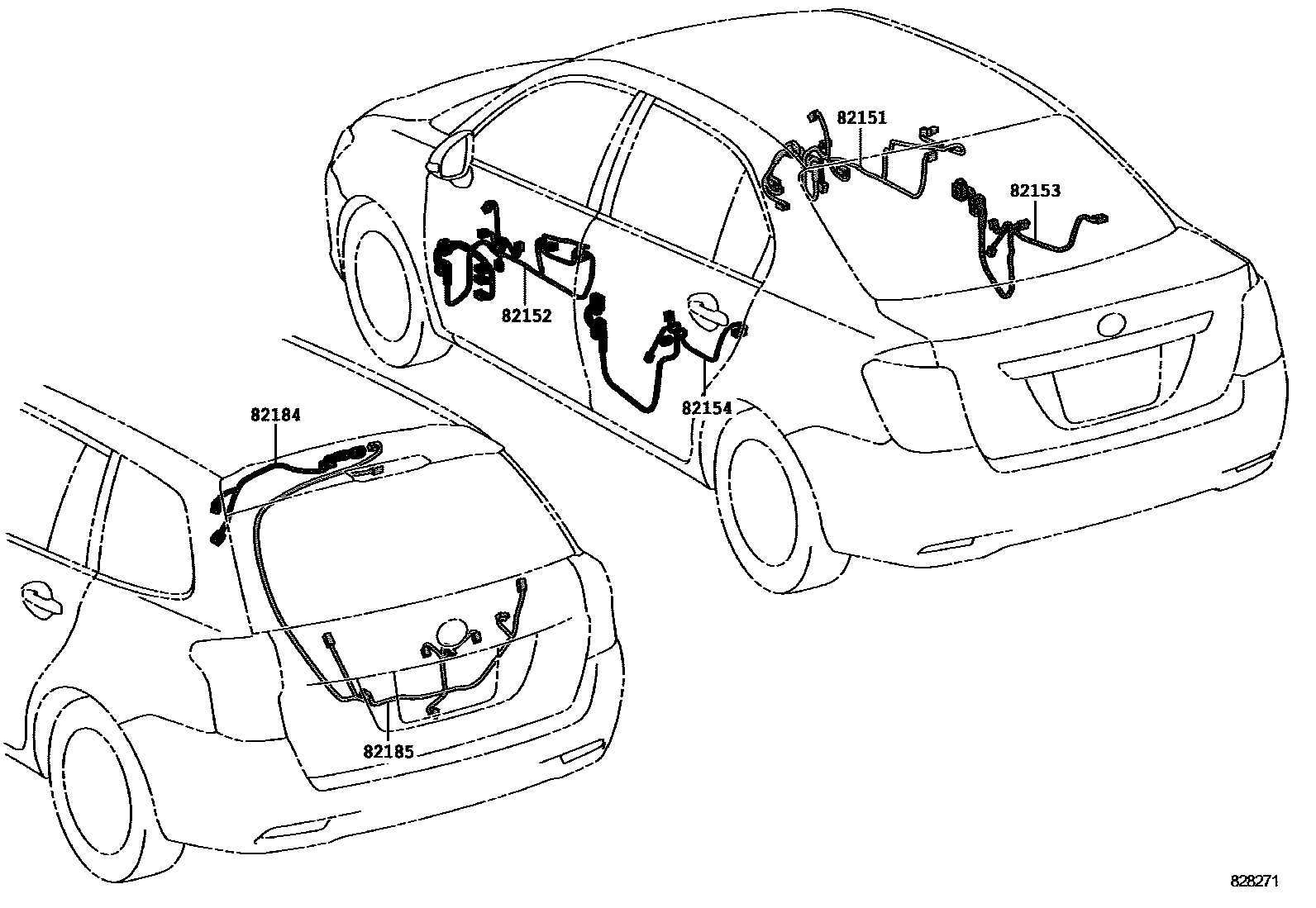

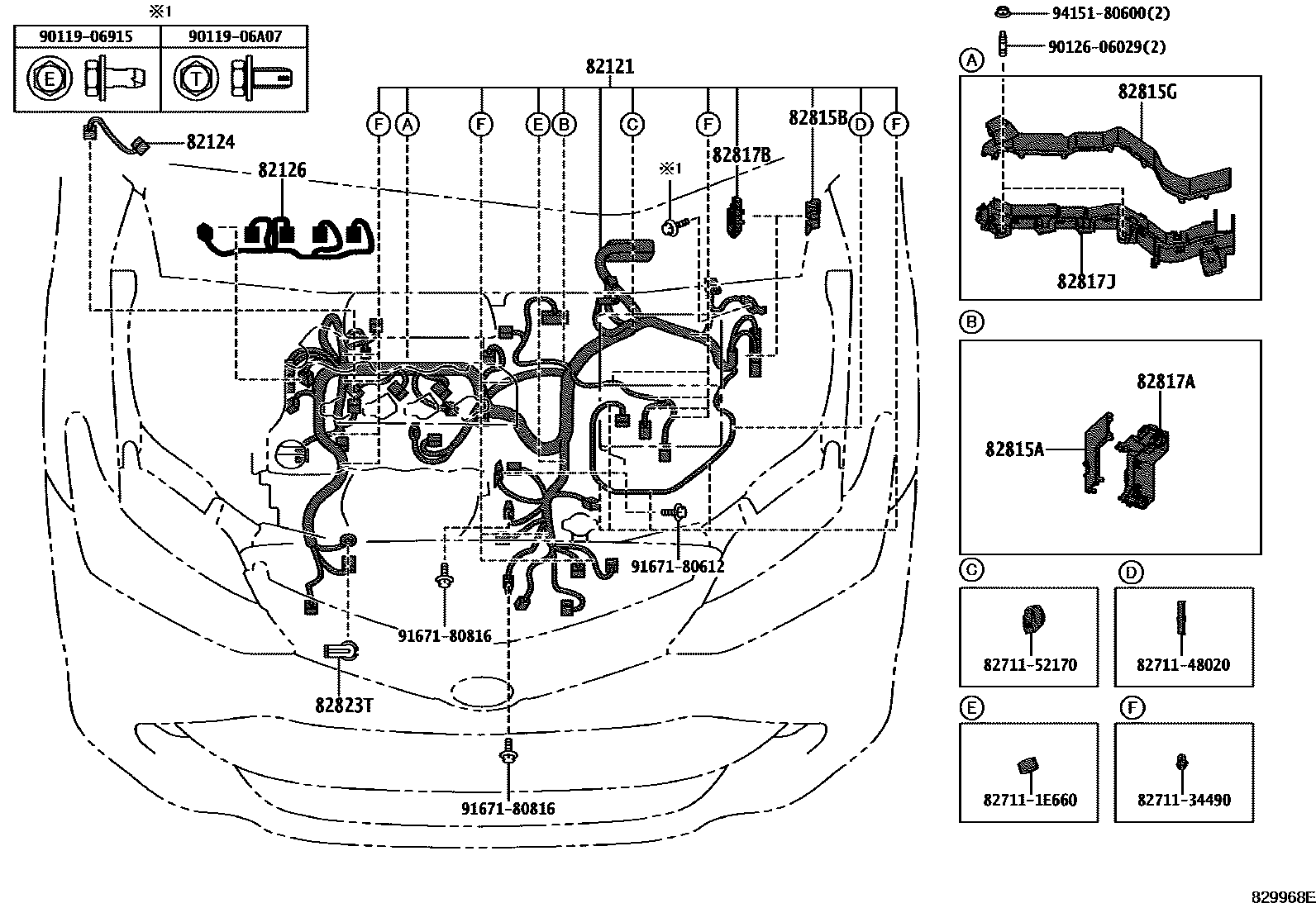

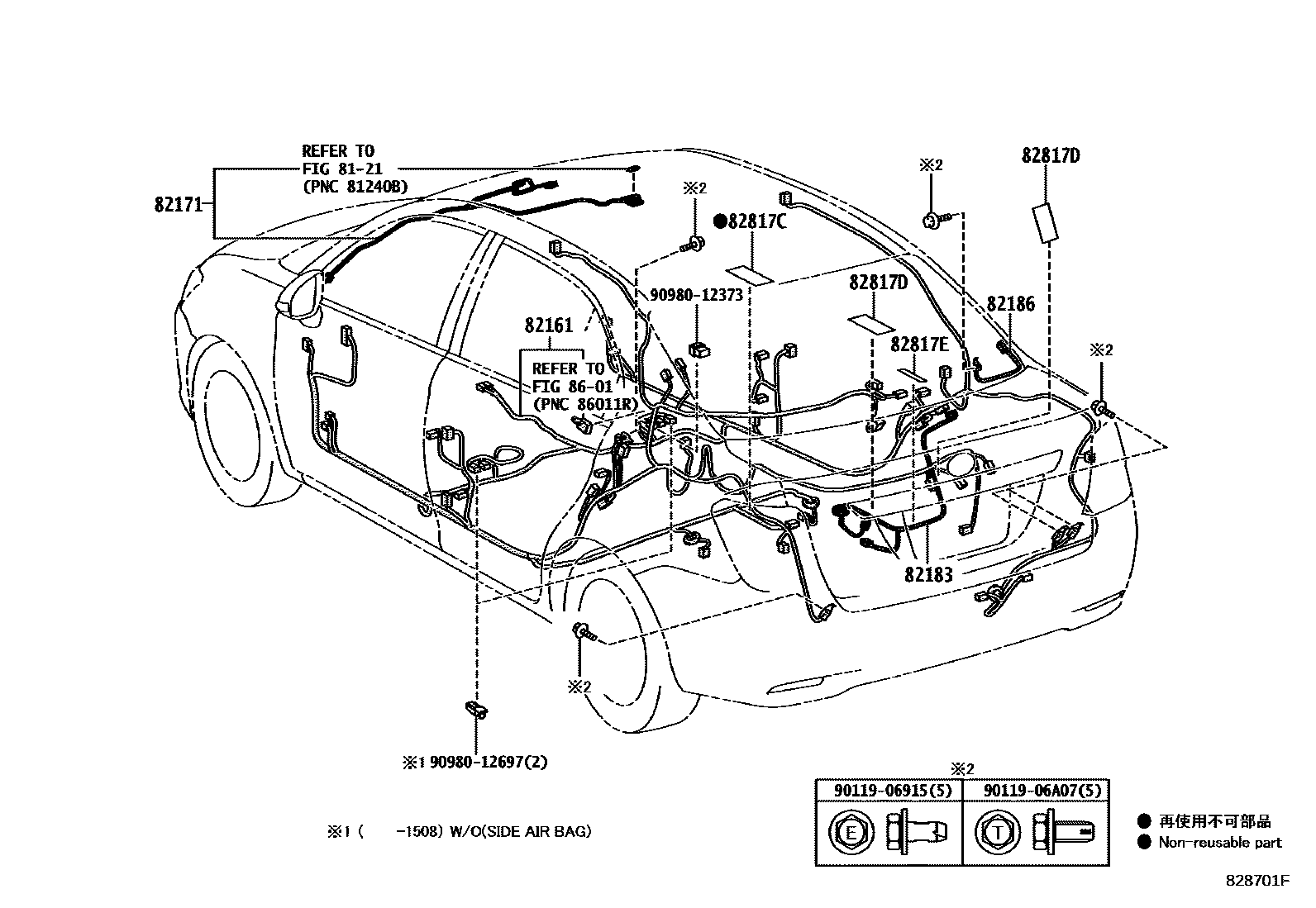

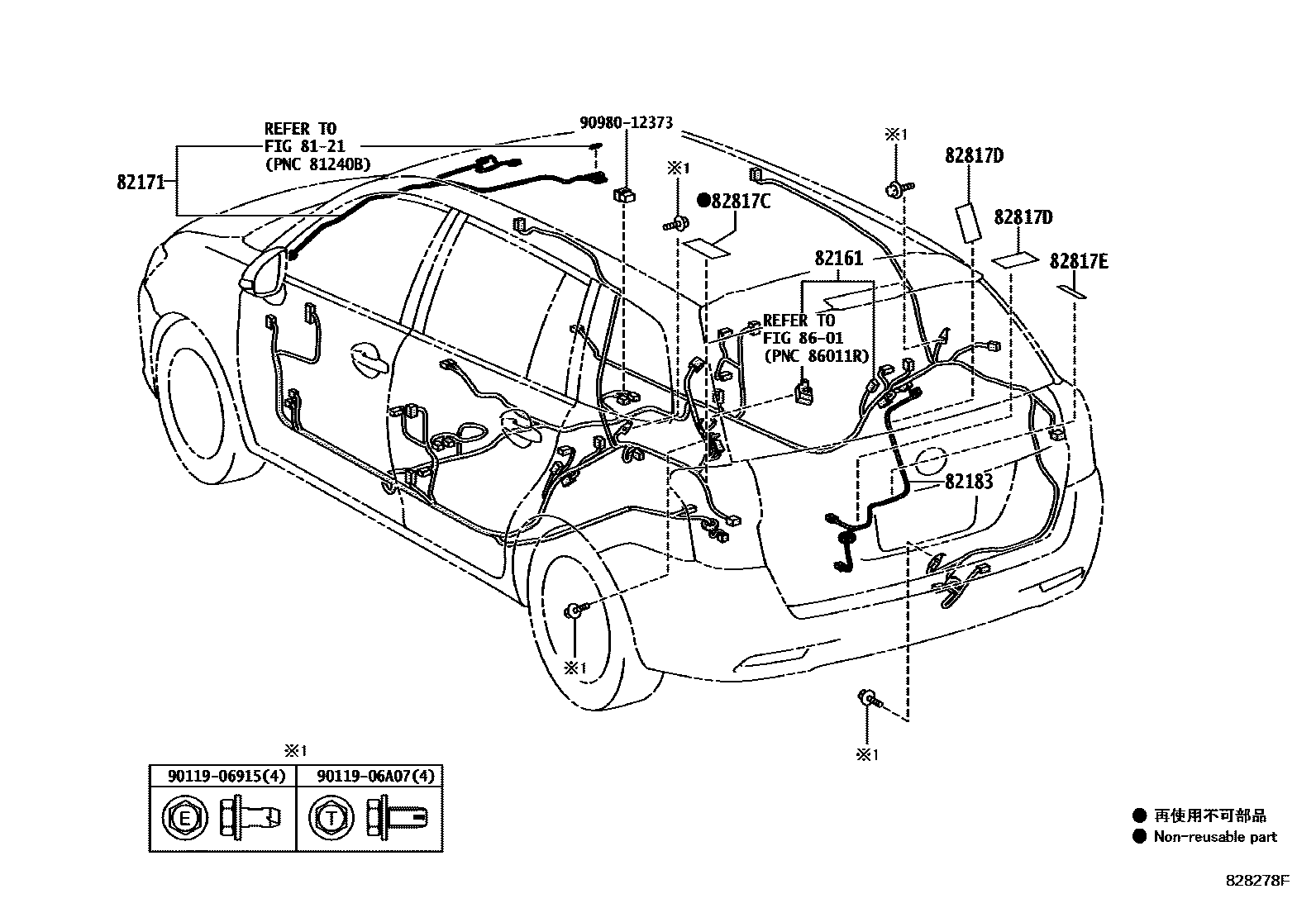

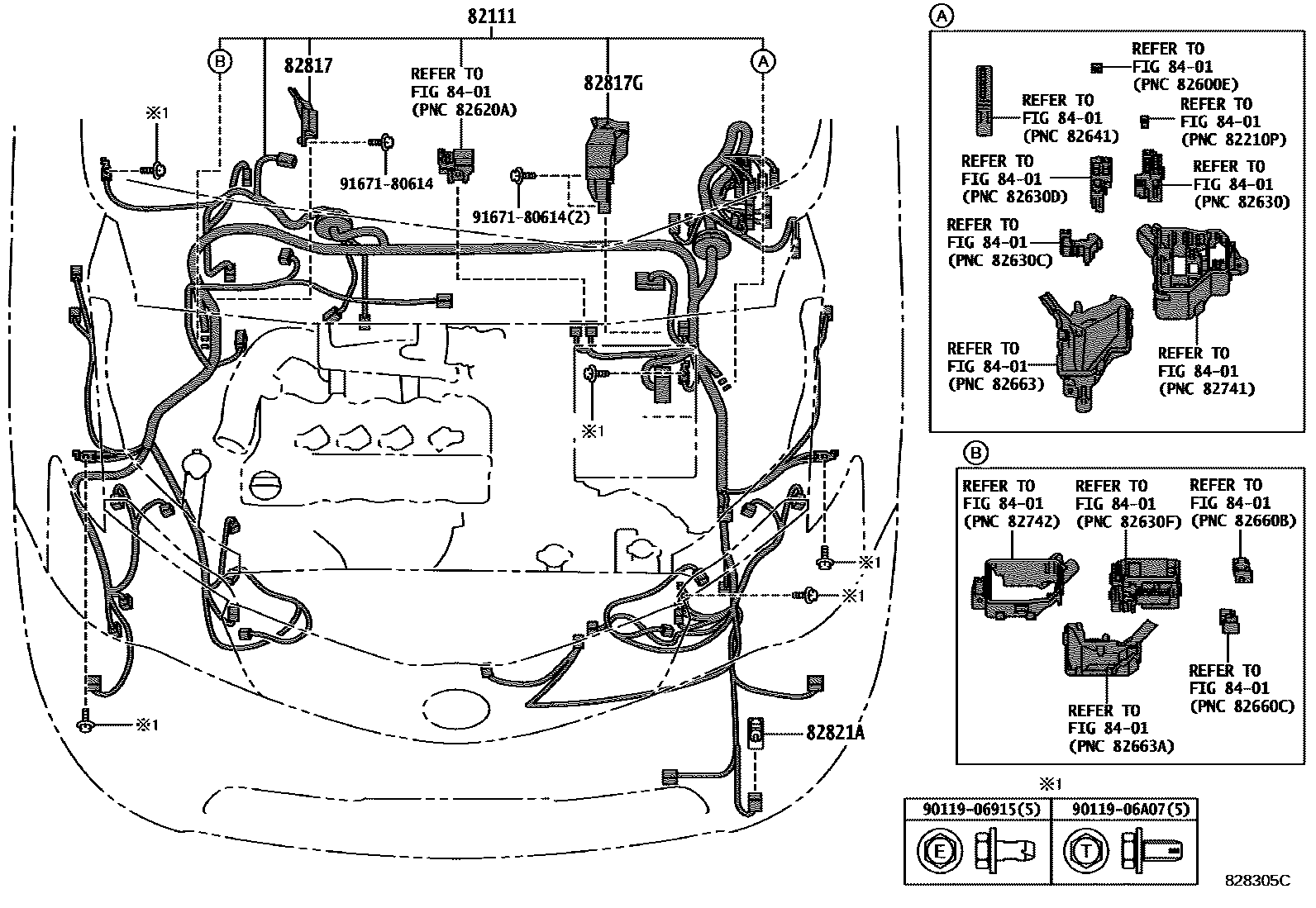

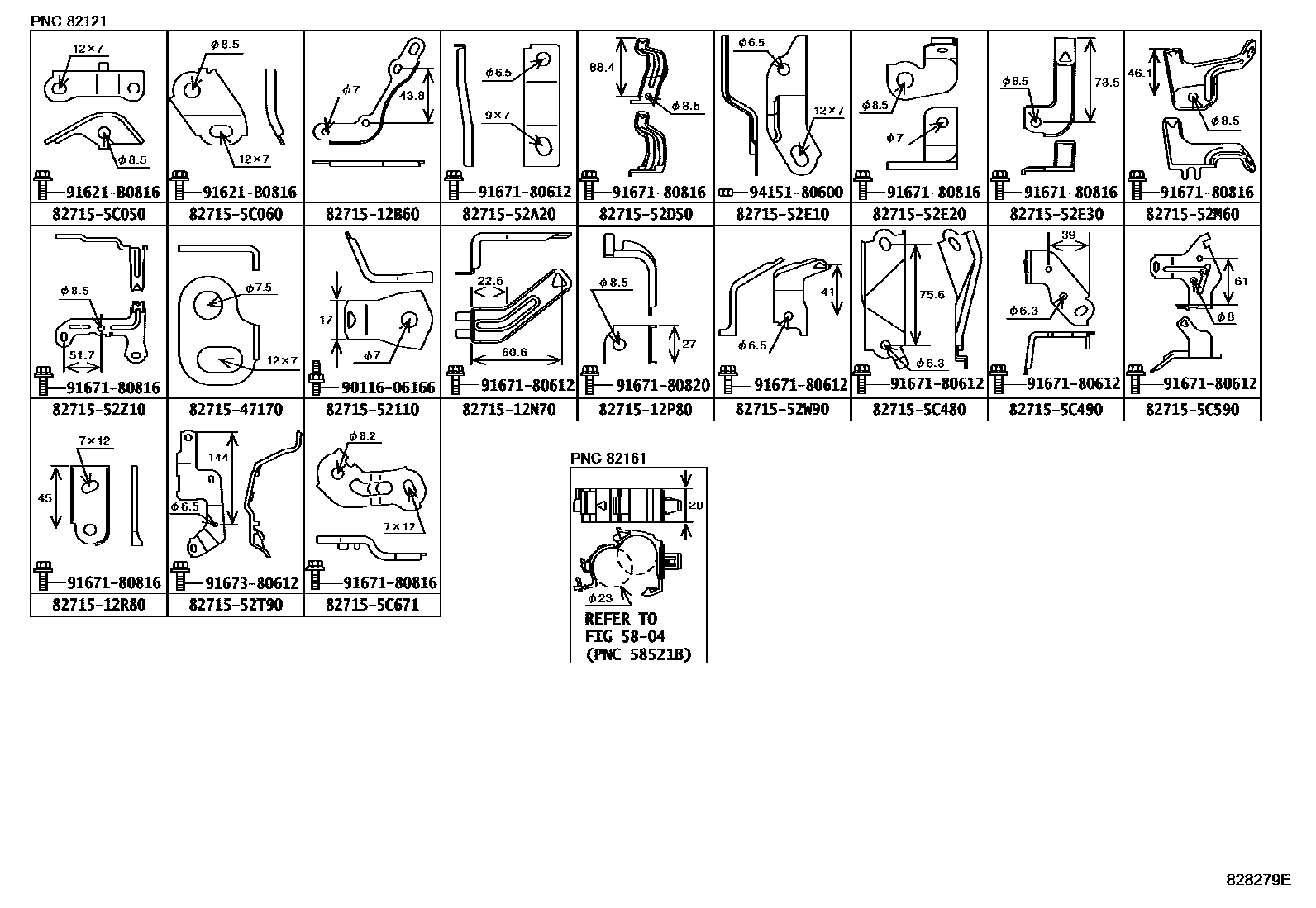

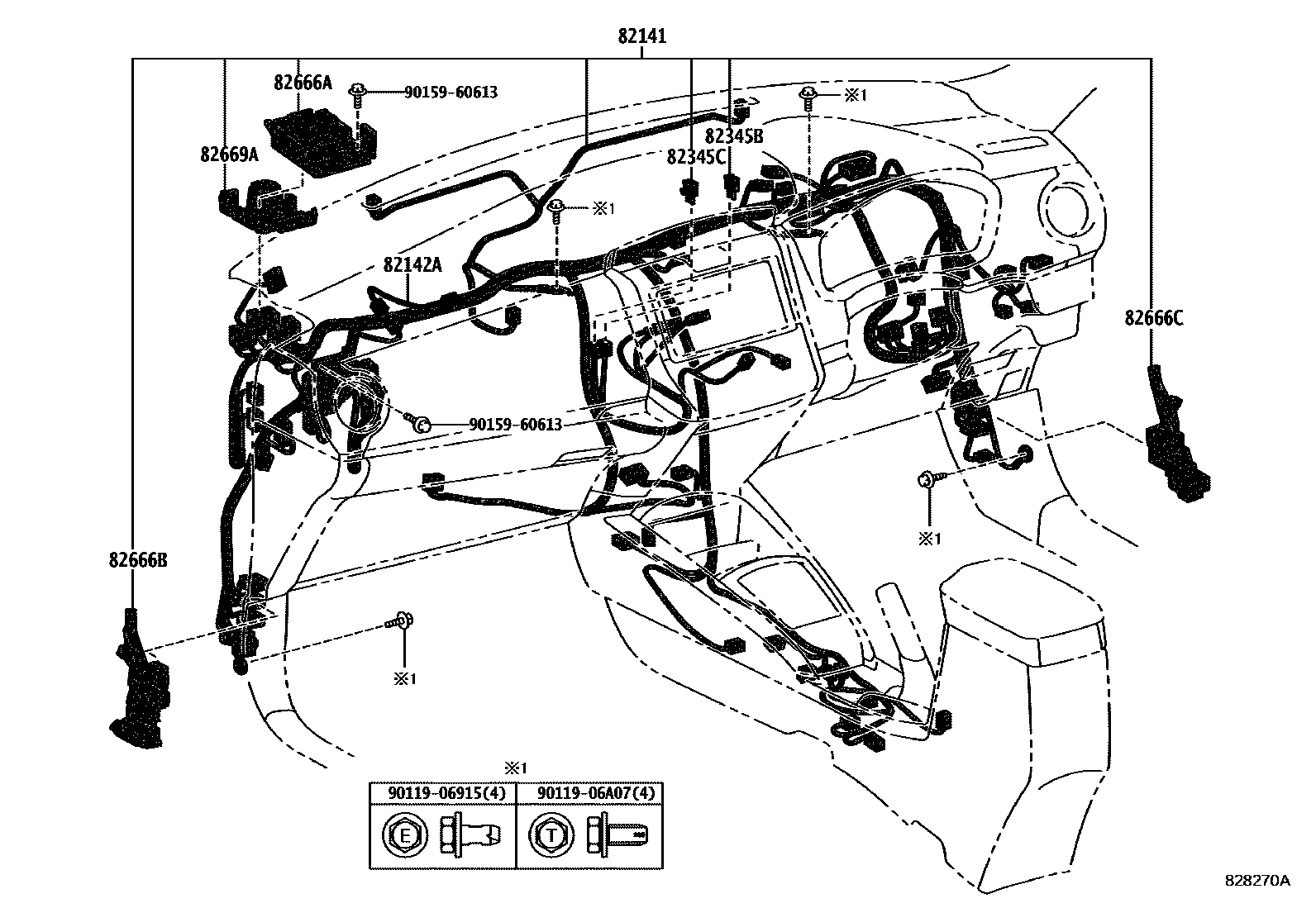

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 10 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82111 | Engine room main wiring harness | 82111-1HK92 · 82111-1HL32 · 82111-1HL62 · 82111-1HM72 · 82111-1HS40 · 82111-1HS41 · 82111-1HT71 · 82111-1HX40 · 82111-1HX41 · 82111-1HX50 |
| 82121 | Engine wiring harness | 82121-12Q20 · 82121-12Q60 · 82121-52P20 · 82121-52T80 |
| 82123 | Engine No. 3 wiring harness | 82123-52350 · 82123-52380 |
| 82124 | Engine No. 4 wiring harness | 82124-12150 |
| 82126 | Engine wiring harness | 82126-52010 |
| 82141 | Dashboard wiring harness | 82141-1TF10 · 82141-1TG80 · 82141-1TJ90 · 82141-1TK70 · 82141-1TL11 · 82141-1TL30 · 82141-1TV10 · 82141-1TW30 · 82141-1TW31 · 82141-1TZ70 · 82141-1TZ71 · 82141-1TZ80 · 82141-1TZ90 · 82141-1XE90 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-12A60 · 82140-52030 |
| 82151 | Right front door wiring harness | 82151-12V80 · 82151-12Y80 · 82151-12Z10 · 82151-12Z40 · 82151-12Z50 · 82151-12Z60 |
| 82152 | Left front door wiring harness | 82152-12U60 · 82152-12X00 · 82152-12X30 · 82152-12X60 · 82152-12X70 · 82152-12X80 |
| 82153 | Rear door wiring harness No. 1 | 82153-12B00 · 82153-12B30 · 82153-12B60 |
| 82154 | Rear door wiring harness No. 2 | 82154-12A50 · 82154-12A80 · 82154-12B10 |
| 82161 | floor wiring harness | 82161-13D90 · 82161-13E30 · 82161-13G10 · 82161-13G11 · 82161-13G20 · 82161-13G21 · 82161-1AA90 · 82161-1AB10 · 82161-1AB70 · 82161-1AF10 · 82161-1AF11 · 82161-1AG10 · 82161-1AG20 |
| 82171 | Roof No. 1 wiring harness | 82171-12R10 · 82171-12R11 · 82171-12R40 · 82171-12S81 |
| 82183 | Luggage No. 3 wiring harness | 82183-12030 · 82183-12040 · 82183-12050 |
| 82184 | Rear door No. 1 wiring harness | 82184-13570 · 82184-13650 · 82184-13660 · 82184-13670 |
| 82185 | Rear door wiring harness No. 2 | 82185-13580 · 82185-13630 |
| 82186 | Rear window wiring harness No. 1 | 82186-12160 |
| 82219A | sensor harness | 82219-52040 |
| 82345B | diode | 82345-20060 |
| 82345C | diode | 82345-32010 |
| 82666A | Connector holder No. 2 | 82666-52150 |
| 82666B | No. 3 connector holder | 82666-52160 |
| 82666C | No. 4 connector holder | 82666-52170 |
| 82669A | Connector box lower cover | 82669-52010 |
| 82815A | Wiring harness protector cover | 82815-52050 · 82815-52400 |
| 82815B | Wiring harness protector cover | 82815-52120 |
| 82815G | No. 5 wire harness protector cover | 82815-52380 |
| 82817 | No. 1 wire harness protection device | 82817-52C00 |
| 82817A | No. 2 wire harness protection device | 82817-12N00 · 82817-52G30 |
| 82817B | No. 3 wire harness protection device | 82817-52850 |
| 82817C | No. 4 wire harness protection device | 82817-52710 |
| 82817D | No. 5 wire harness protection device | 82817-52710 |
| 82817E | No. 6 wire harness protection device | 82817-52A60 |
| 82817G | No. 8 wire harness protection device | 82817-52A20 |
| 82817J | No. 9 wire harness protection device | 82817-52610 · 82817-52A90 |
| 82821A | Connector cover | 82119-12050 |
| 82823T | Generator terminal cover | 82823-22050 |
