Toyota COROLLA 高位刹车灯 — Figure 8117

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 2 images and 4 PNC and OE references.

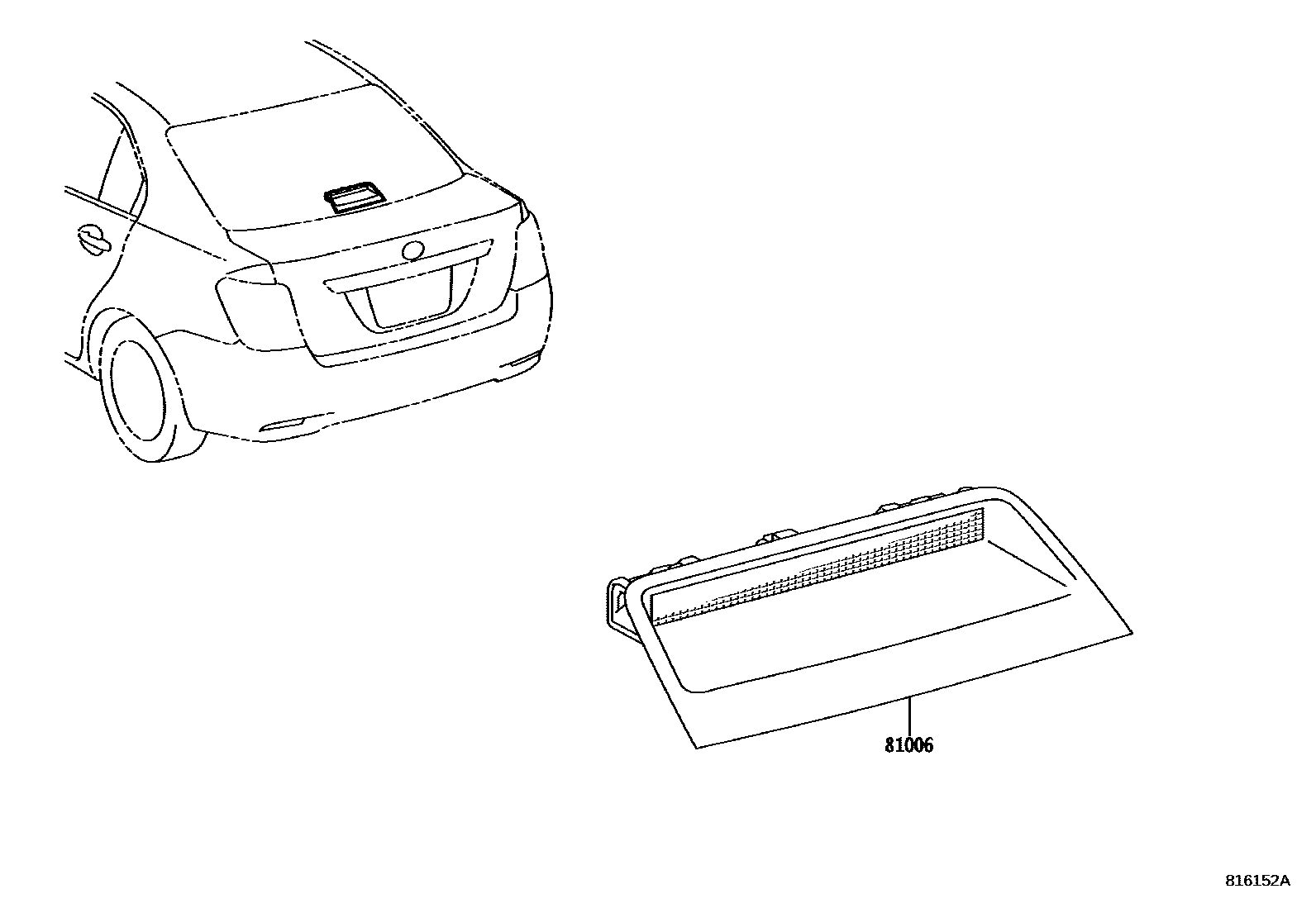

Toyota COROLLA 高位刹车灯 EPC diagram — 816152A
高位刹车灯 — 816152A (201212 – 999999)

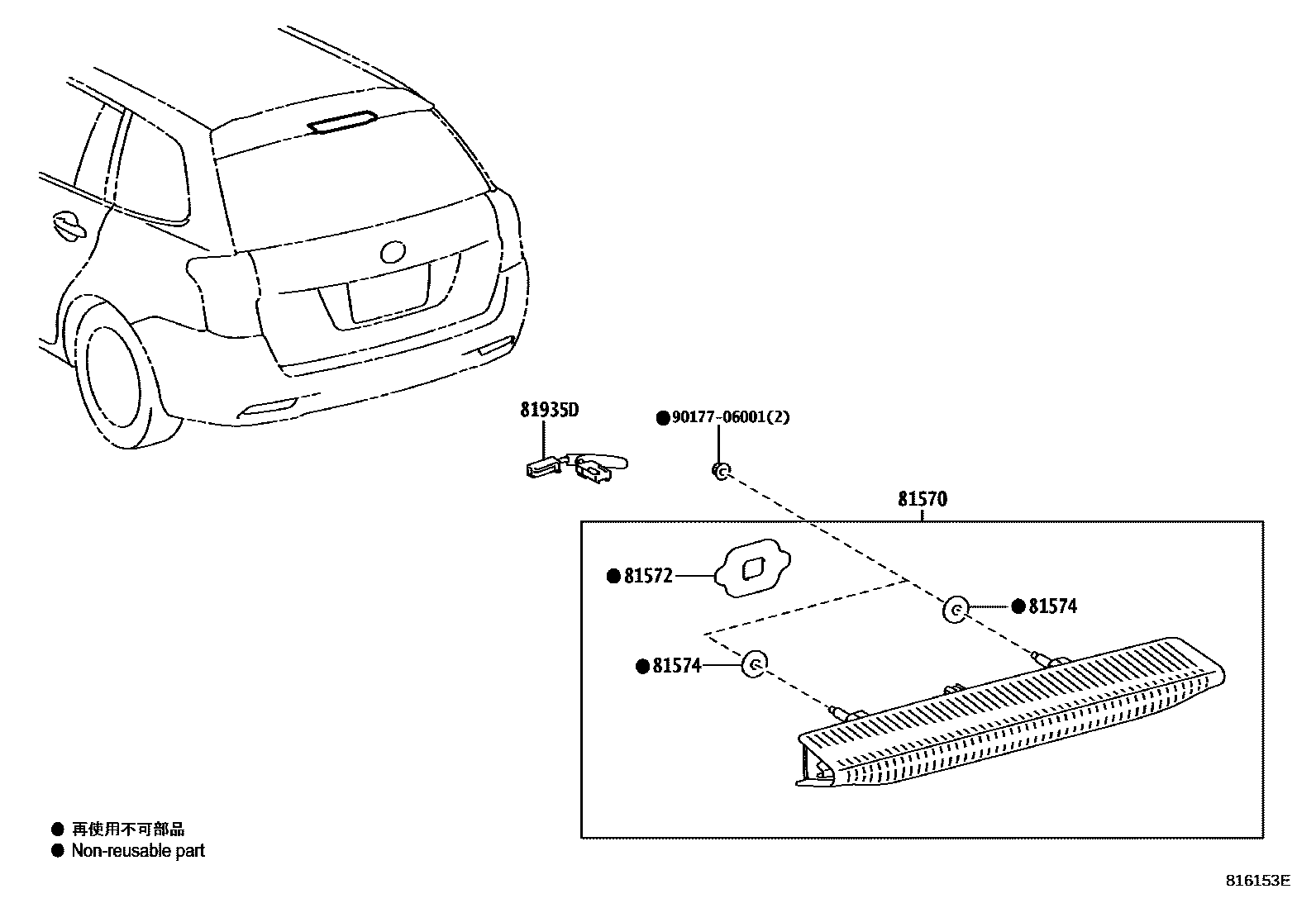

Toyota COROLLA 高位刹车灯 EPC diagram — 816153E
高位刹车灯 — 816153E (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
81570Central brake light assembly81570-13210
81572Center brake light gasket81575-13210
81574Central brake light cover81574-13210
81935DCentral brake light wire assembly81935-13010
