Toyota COROLLA 后组合灯 — Figure 8111

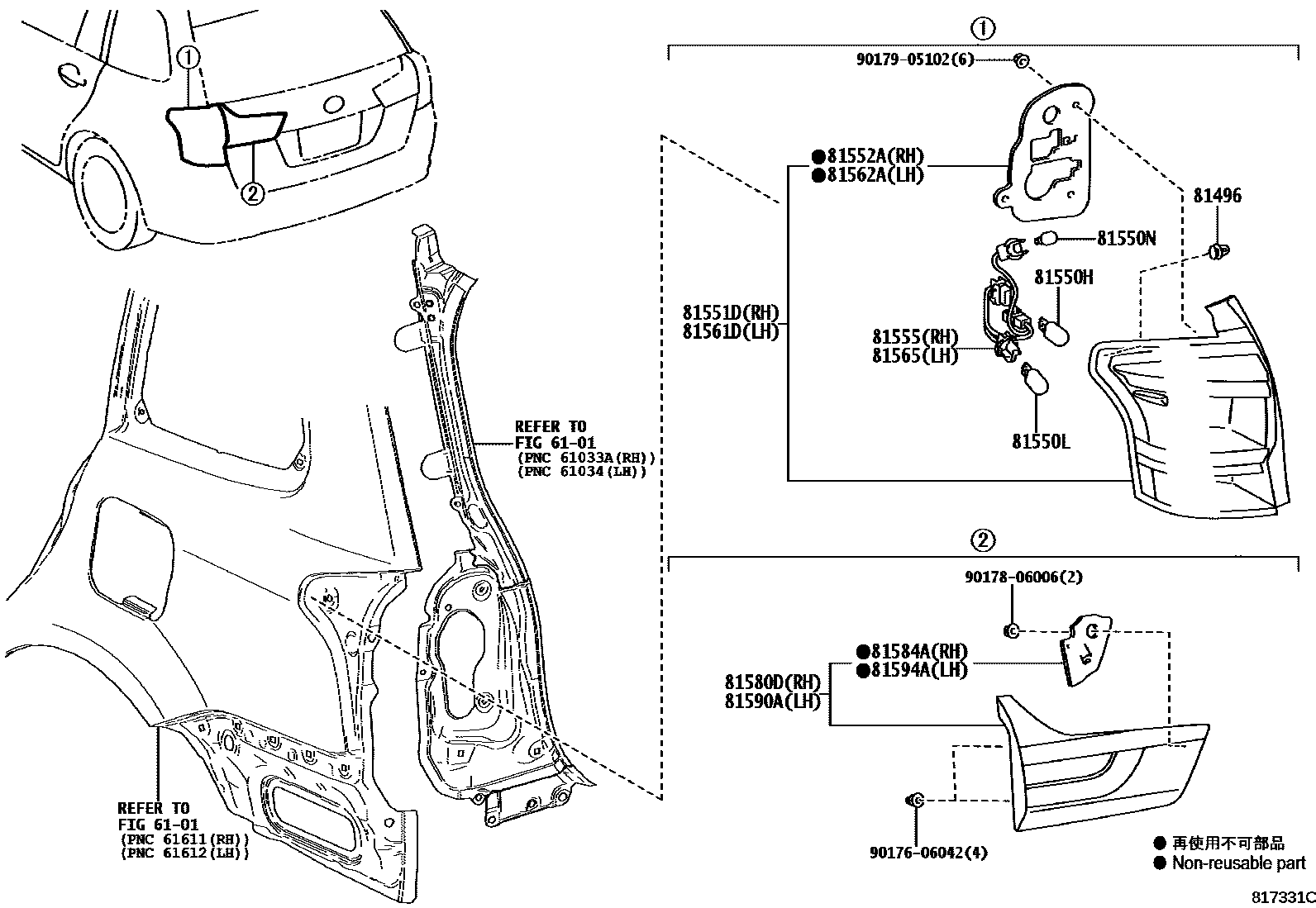

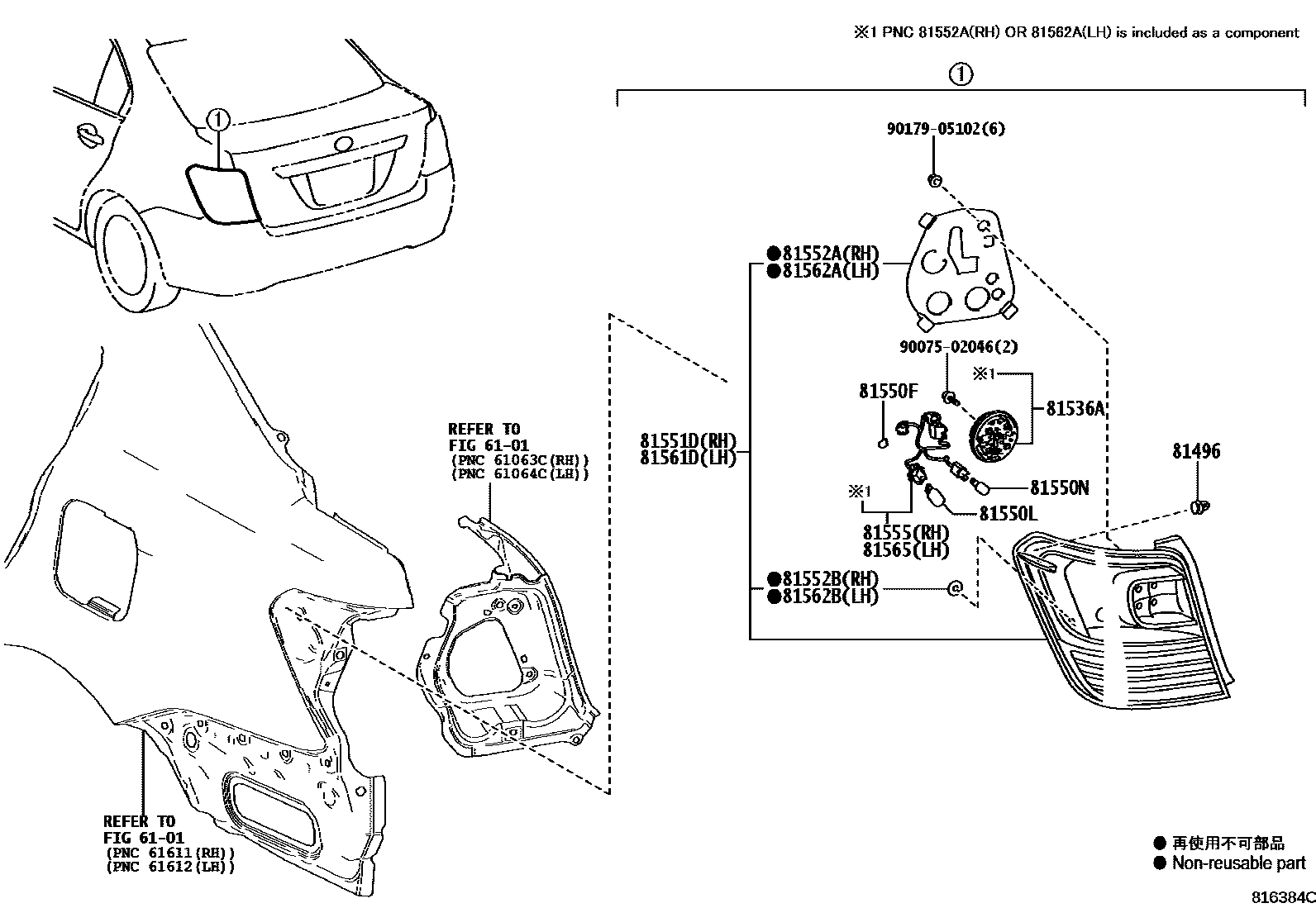

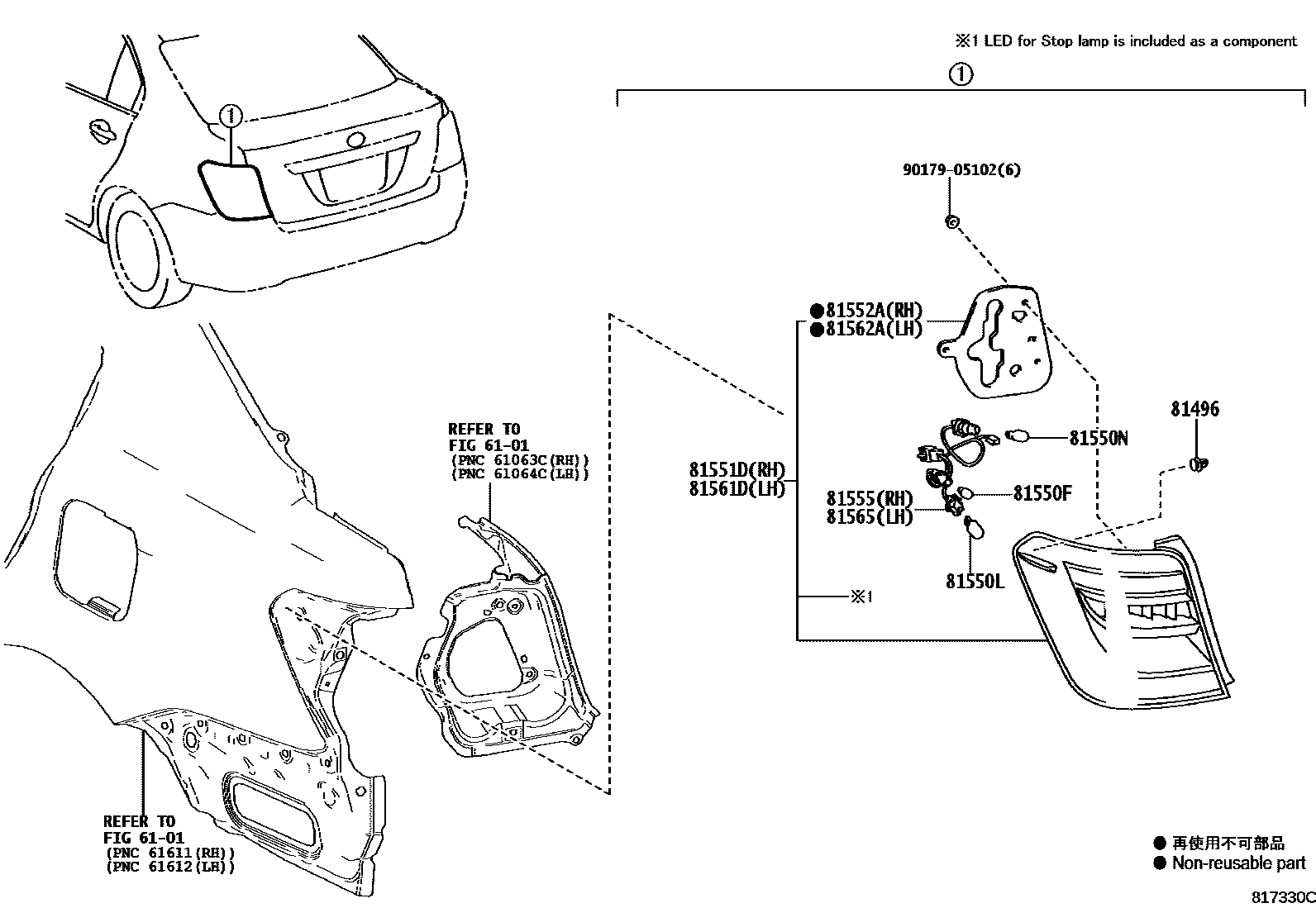

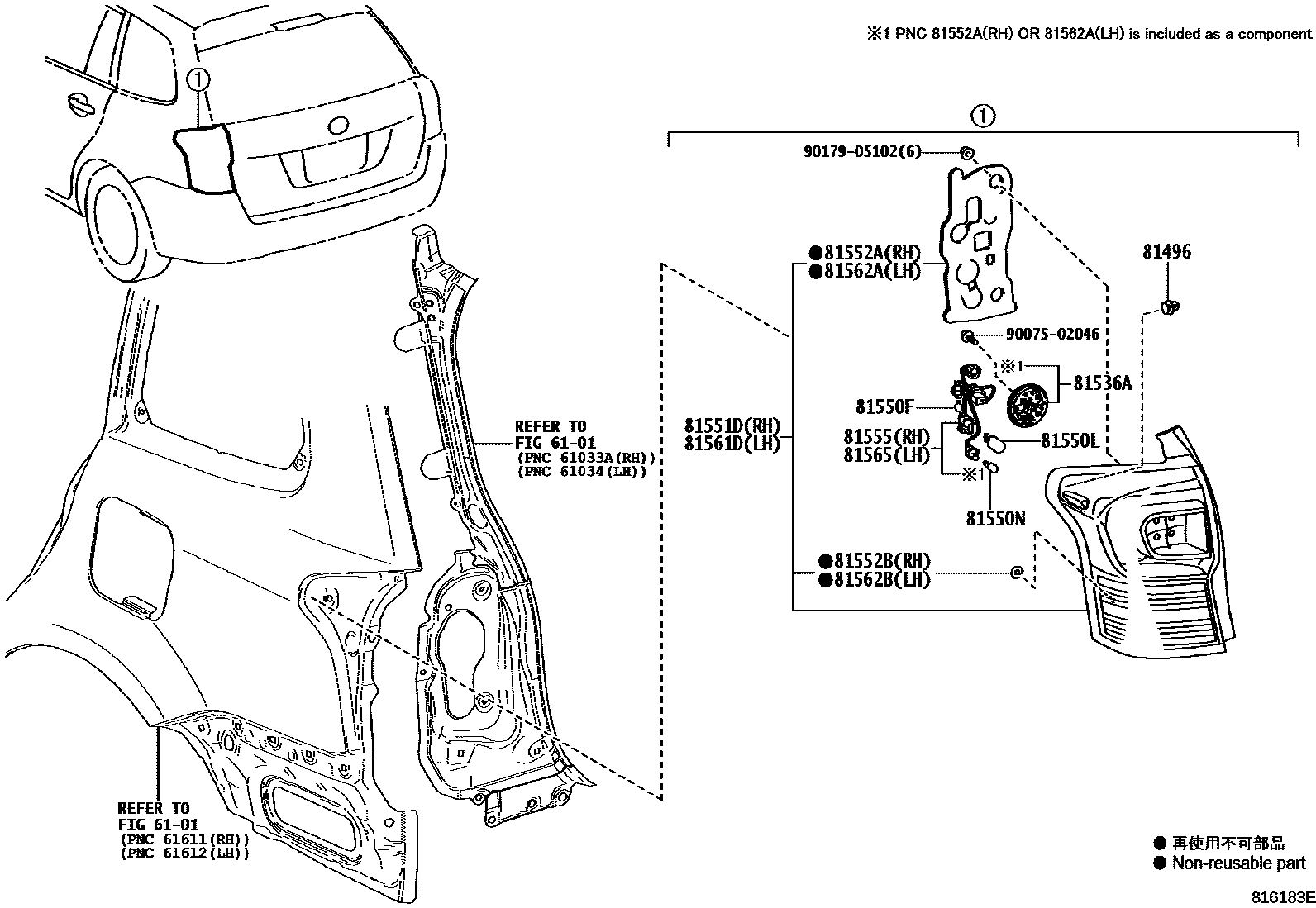

Toyota COROLLA EPC diagram 8111, 后组合灯, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81536A | Rear LED combination light | 81536-12C60 · 81536-13730 |
| 81550F | tail light bulb | 90981-11069 · 99132-12050 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-12C60 · 81551-12D00 · 81551-13730 · 81551-13760 |
| 81552A | Right rear combination light gasket | 81552-12C60 · 81552-12D00 · 81552-13730 · 81552-13760 |
| 81552B | Right rear combination lamp lamp body seal | 81554-12A00 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-12C60 · 81555-12D00 · 81555-13730 · 81555-13760 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-12C60 · 81561-12D00 · 81561-13730 · 81561-13760 |
| 81562A | Left rear combination light gasket | 81552-12C60 · 81552-12D00 · 81552-13730 · 81552-13760 |
| 81562B | Left rear combination lamp body seal | 81554-12A00 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-12C60 · 81555-12D00 · 81555-13730 · 81555-13760 |
| 81580D | Right rear light assembly | 81580-13080 |
| 81584A | Right rear light gasket | 81584-13090 |
| 81590A | Left rear light assembly | 81590-13080 |
| 81594A | Left rear light gasket | 81594-13090 |
