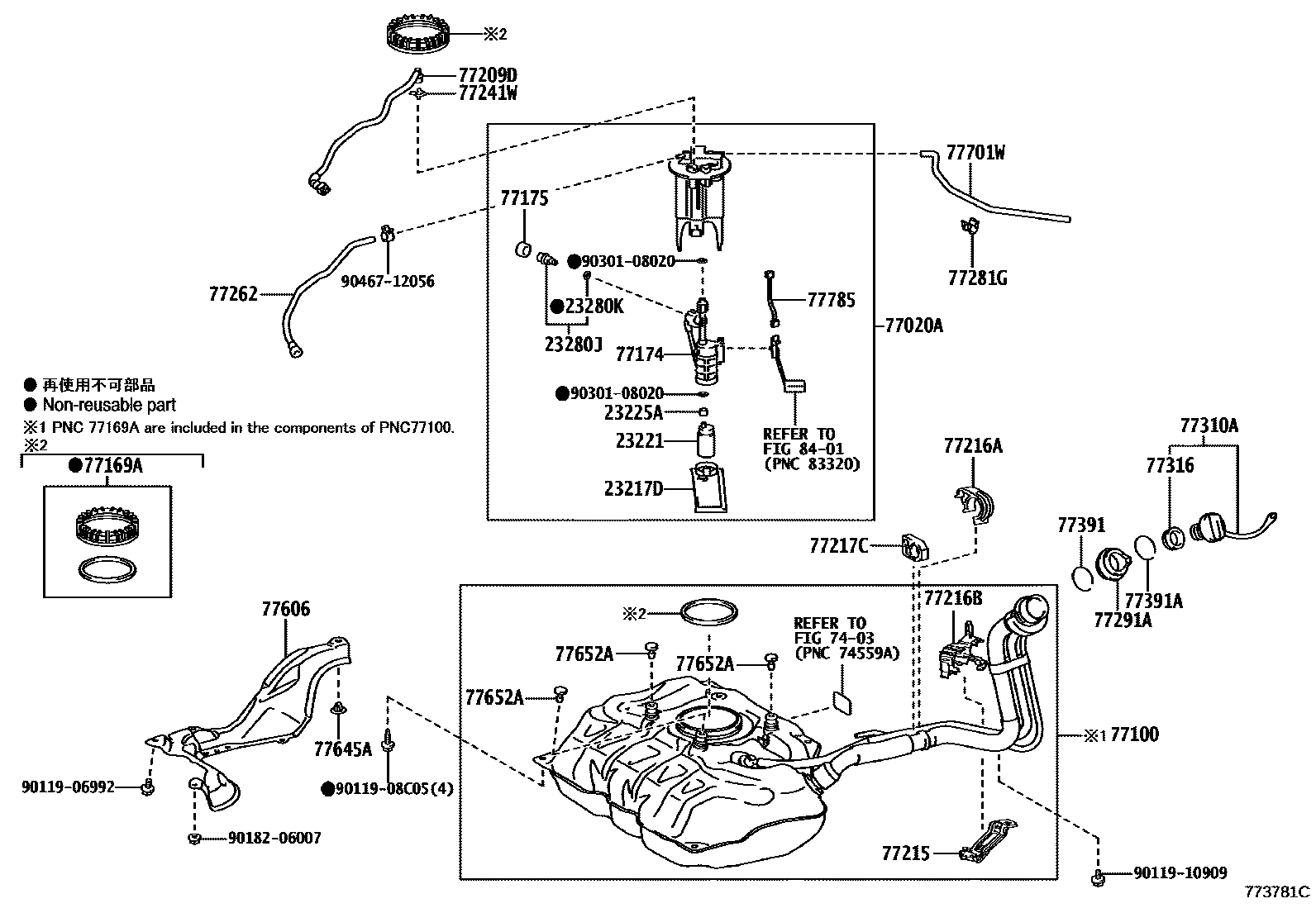

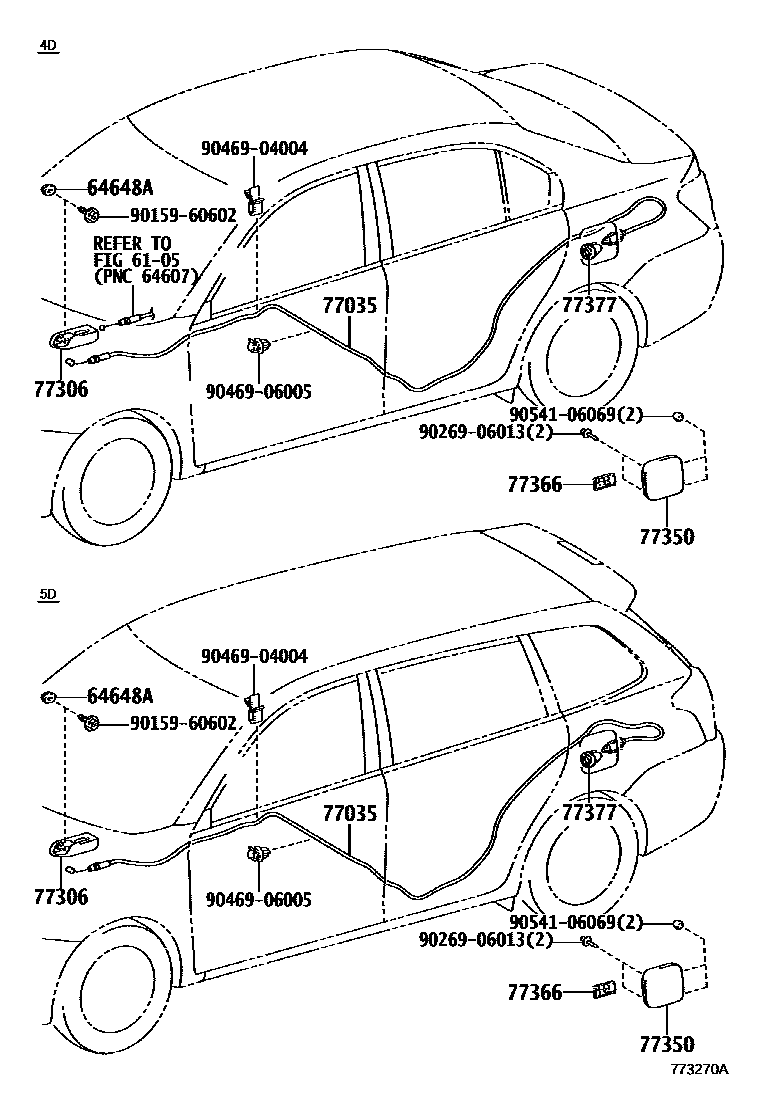

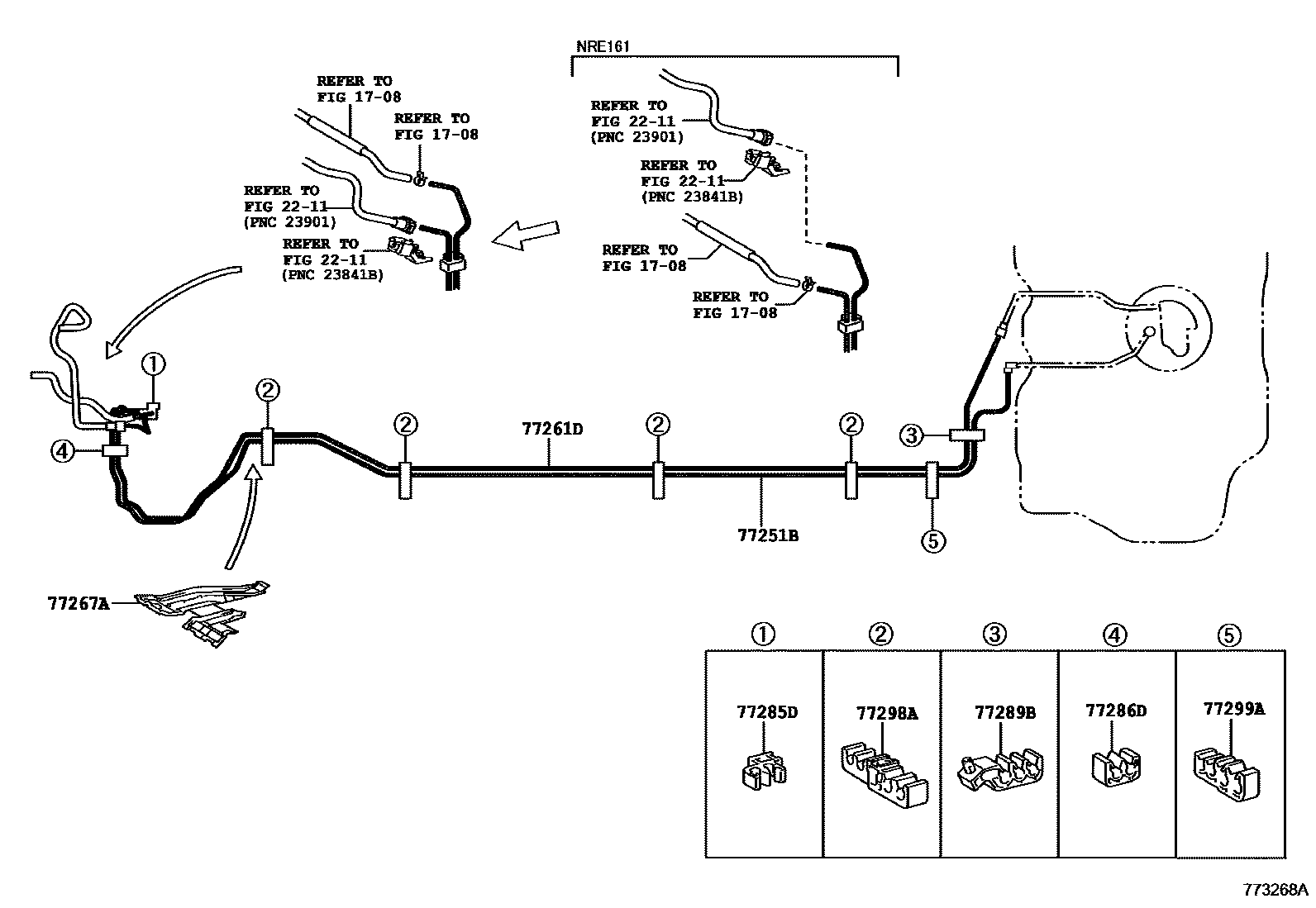

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 3 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-21010 |
| 23221 | fuel pump | 23221-47031 |
| 23225A | fuel pump septum | 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-22010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-07020 |
| 64648A | Trunk door lock opener seal | 64648-32020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-52420 · 77020-52421 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12600 · 77035-13140 |
| 77100 | fuel tank assembly | 77001-12E40 |
| 77169A | Fuel suction pipe fixed gasket | 77169-52040 |
| 77174 | No. 1 oil suction pipe bracket | 77174-52040 |
| 77175 | No. 2 oil suction pipe bracket | 77175-52040 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-52170 |
| 77215 | Fuel tank filler pipe flange piece | 77219-52060 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-12180 |
| 77216B | No. 2 fuel tank filler pipe bracket | 77216-52160 |
| 77217C | No. 2 fuel tank filler pipe bracket | 77217-12150 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77251B | main fuel pipe | 77251-12820 · 77251-12830 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12590 · 77261-12600 |
| 77262 | No. 2 fuel evaporation exhaust pipe | 77028-52020 |
| 77267A | No. 2 fuel pipe protection device | 77267-52050 |
| 77281G | fuel hose clamp | 77281-52040 |
| 77285D | No. 1 fuel pipe clamp | 77285-52060 |
| 77286D | No. 2 fuel pipe clamp | 77286-52100 |
| 77289B | No. 3 fuel pipe clamp | 77289-52060 |
| 77291A | Fuel tank filler pipe cover | 77291-76011 |
| 77298A | No. 4 fuel pipe clamp | 77298-52070 |
| 77299A | No. 5 fuel pipe clamp | 77299-52070 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-33020 · 77306-52050 |
| 77310A | Fuel tank cap assembly | 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-12540 |
| 77366 | Fuel filler cap hinge spring | 77360-30070 |
| 77377 | Fuel filler cap lock retainer | 77377-75010 |
| 77391 | fuel inlet ring | 77391-75010 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-52090 |
| 77645A | Fuel tank protective shell fixings | 77645-52020 |
| 77652A | No. 2 fuel tank liner | 77652-52070 |
| 77701W | No. 1 carbon canister outlet hose sub-assembly | 77701-12020 |
| 77785 | fuel pump wiring harness | 77785-52091 |
