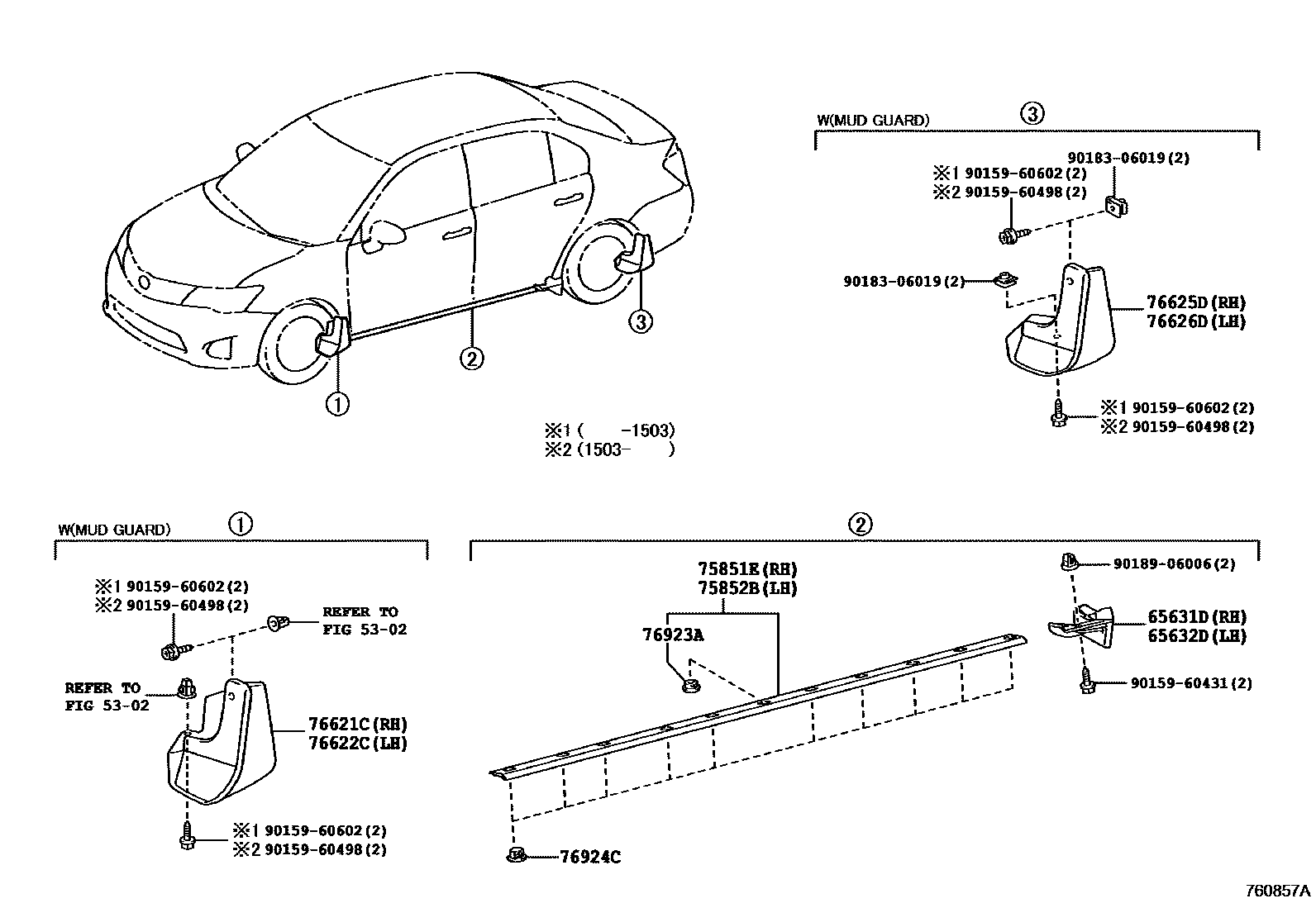

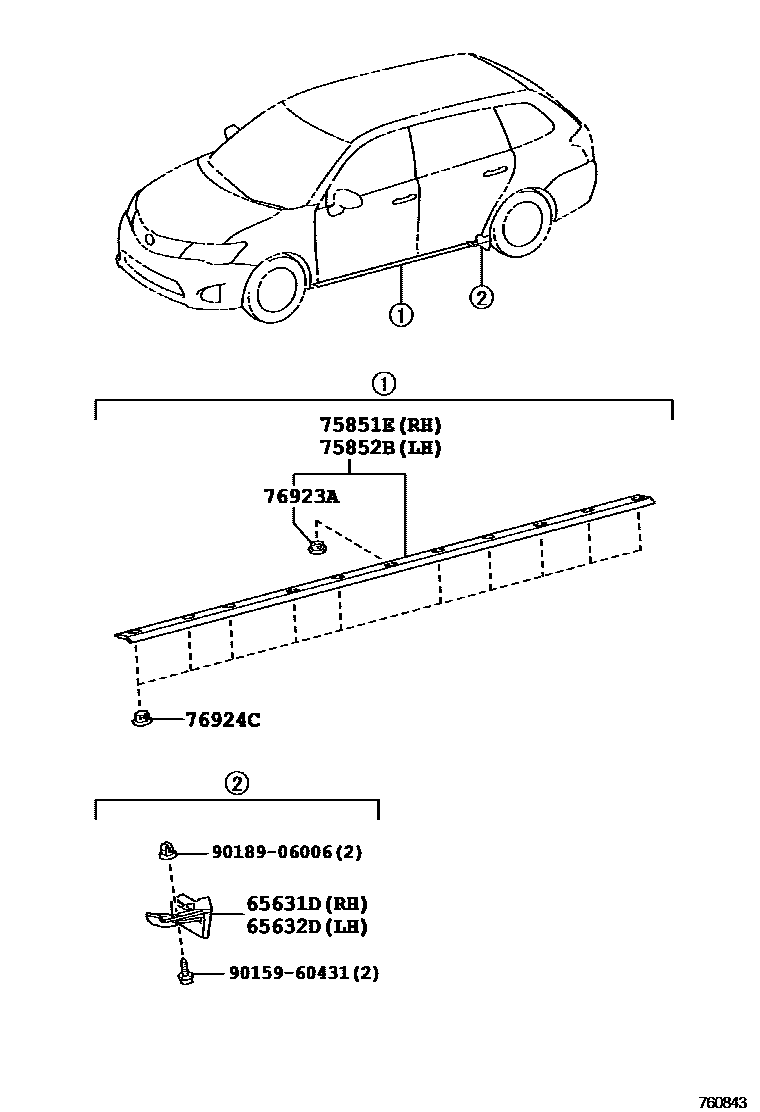

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-12100 · 65631-12130 |
| 65632D | Left rear wheel house front panel | 65632-12100 · 65632-12130 |
| 75851E | Right body door sill panel protection strip | 75851-12160 |
| 75852B | Left body door sill panel protection strip | 75852-12130 |
| 76923A | Side fender fixings | 76924-12040 |
| 76924C | No. 2 side fender fixings | 76924-12040 |
