Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

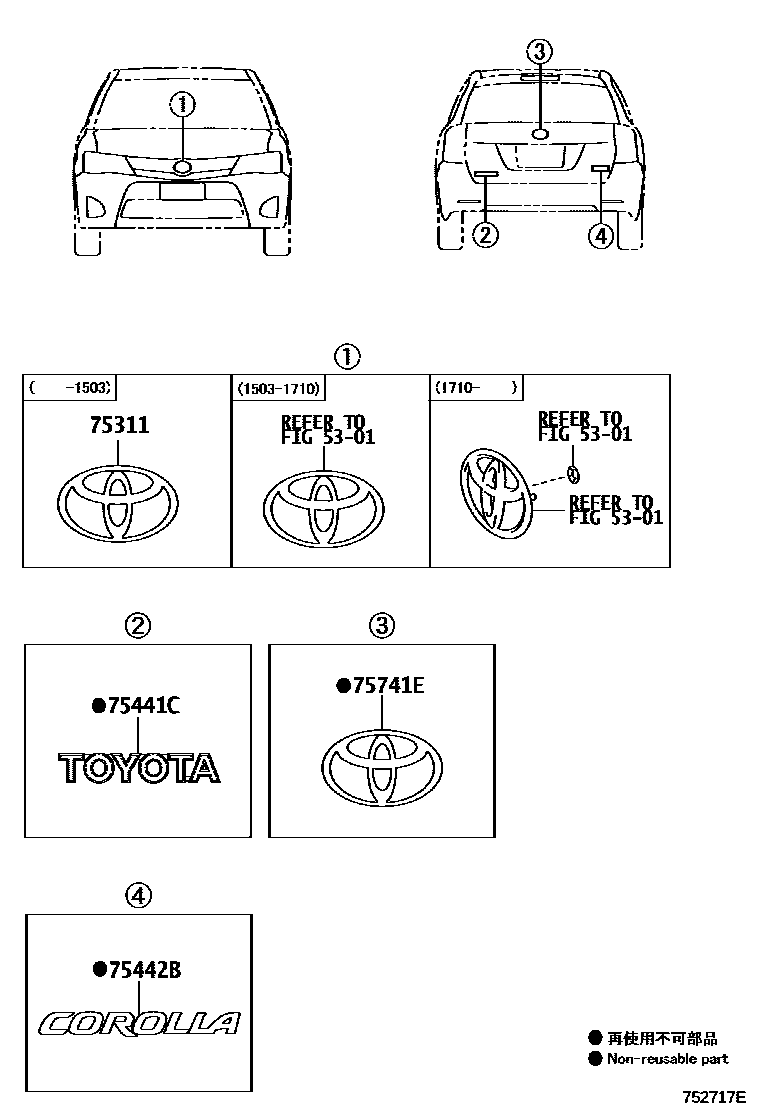

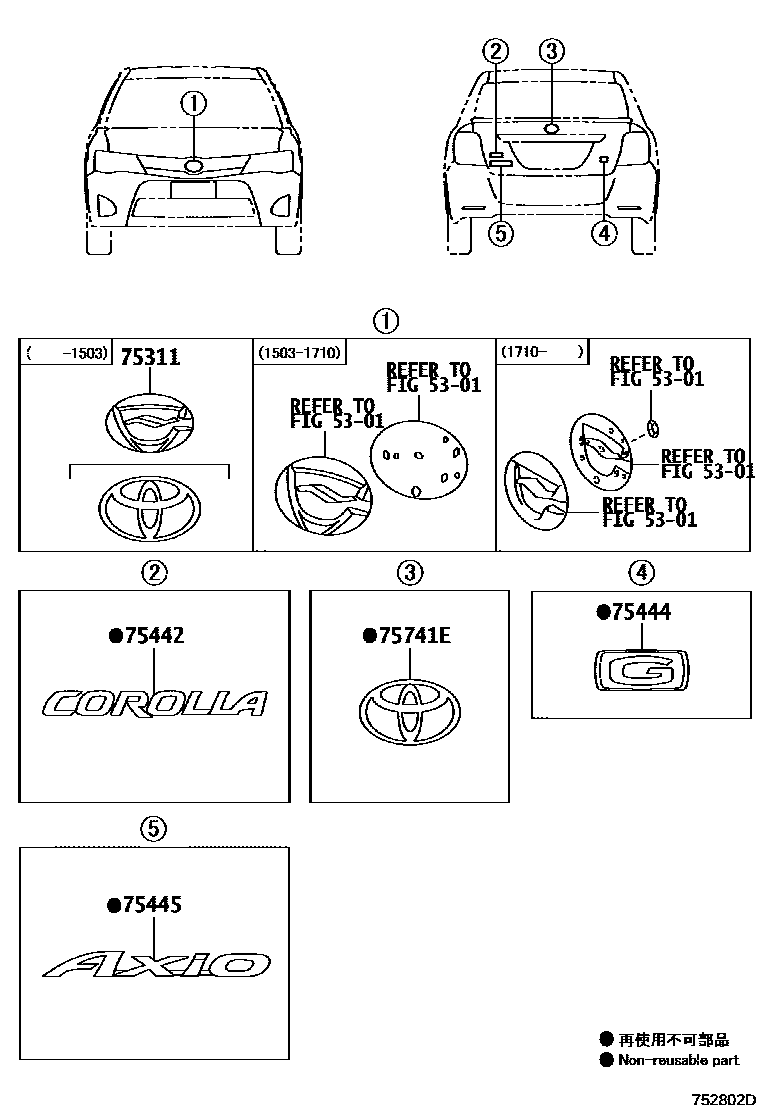

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-12B70 · 75311-12C30 |
| 75441C | Back door nameplate | 75441-13250 |
| 75442 | Trunk door number plate No. 2 | 75442-12A70 |
| 75442B | No. 2 nameplate on back door | 75442-13380 |
| 75444 | Trunk door No. 4 nameplate | 75444-12C70 |
| 75445 | Trunk door No. 5 name plate | 75445-12310 |
| 75741E | logo | 90975-02061 · 90975-02063 |
