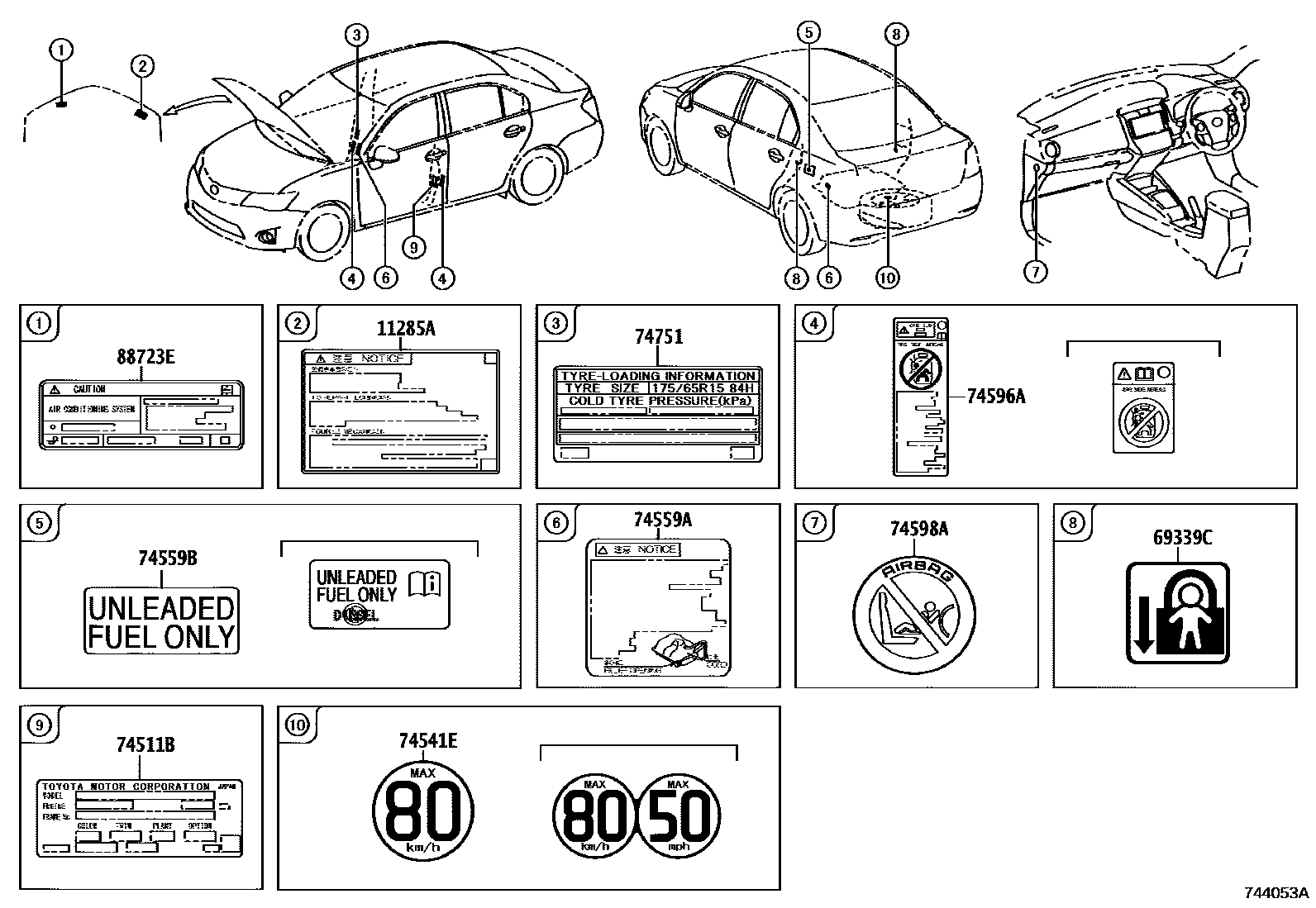

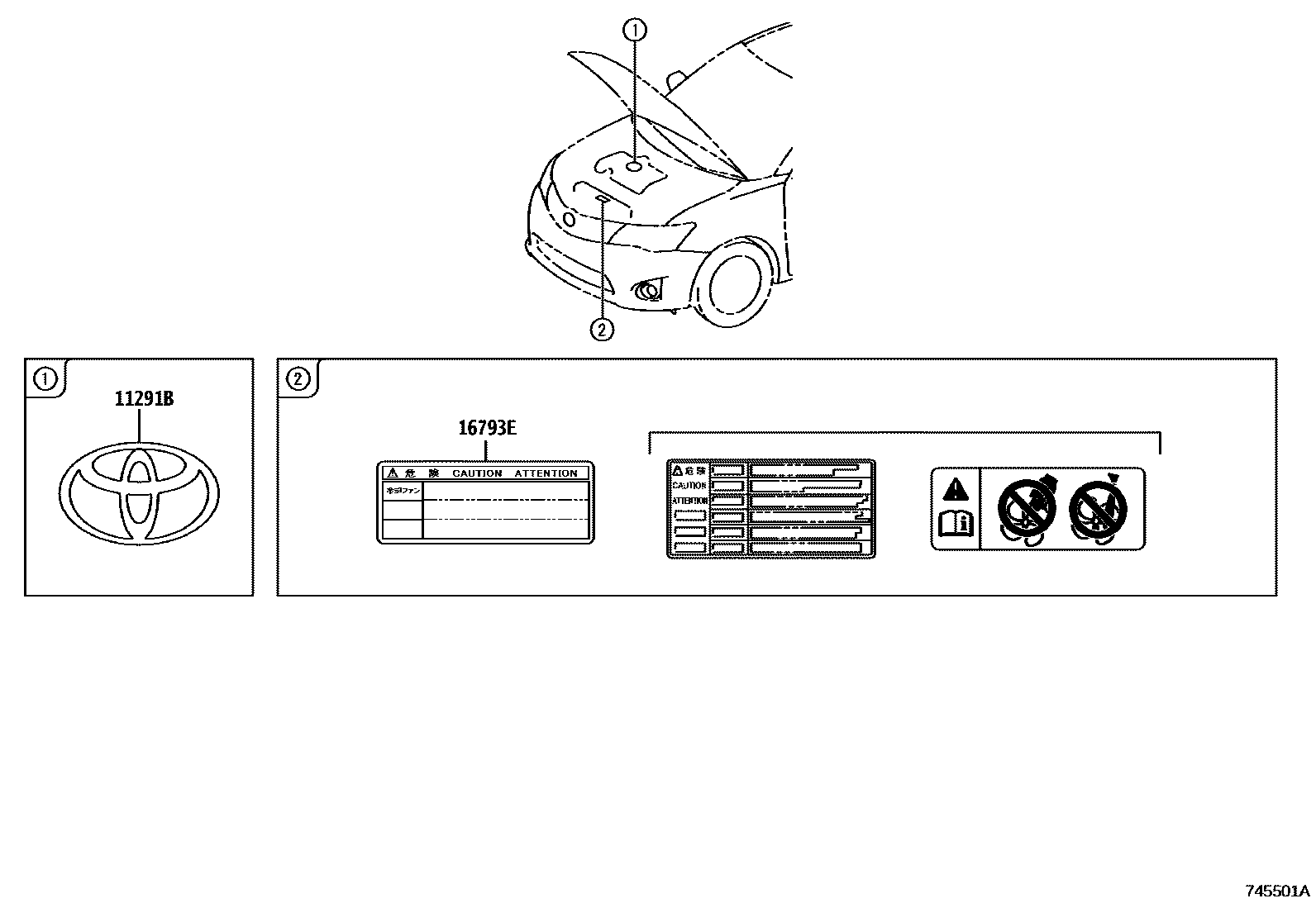

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-33030 |
| 11291B | Engine name plate | 11291-50051 |
| 16793E | Cooling fan warning label | 16793-31070 · 16793-38010 · 88723-20081 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511B | Nameplate | 74511-2B300 |
| 74541E | Small spare tire warning plate | 42668-20020 · 42668-42010 |
| 74559A | Fuel warning plate | 74559-52020 |
| 74559B | fuel information label | 74559-14050 · 74559-20140 |
| 74596A | Side air bag warning label | 74596-53011 · 74596-53012 |
| 74598A | Passenger air bag warning label | 74598-20010 |
| 74751 | tire pressure information label | 42661-12F80 · 42661-13260 |
| 88723E | Cooler maintenance warning label | 88723-12250 |
