Toyota COROLLA 扶手和遮阳板 — Figure 7401

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 3 PNC and OE references.

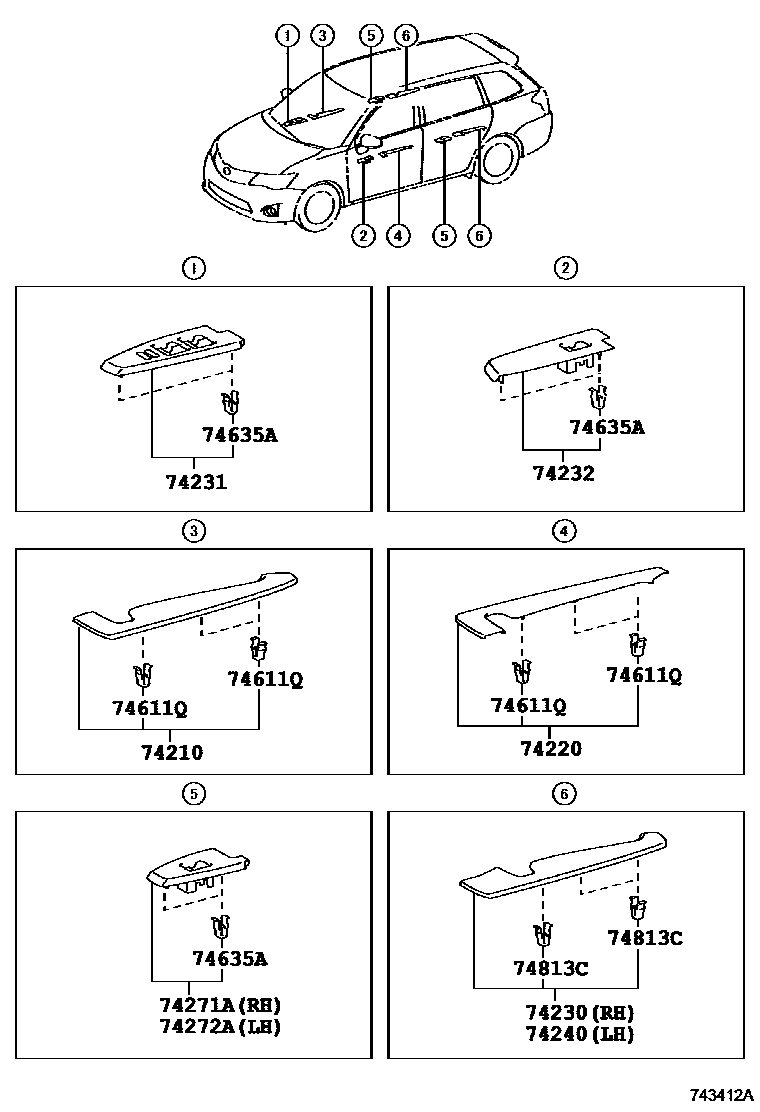

Toyota COROLLA 扶手和遮阳板 EPC diagram — 743412A
扶手和遮阳板 — 743412A (201204 – 999999)

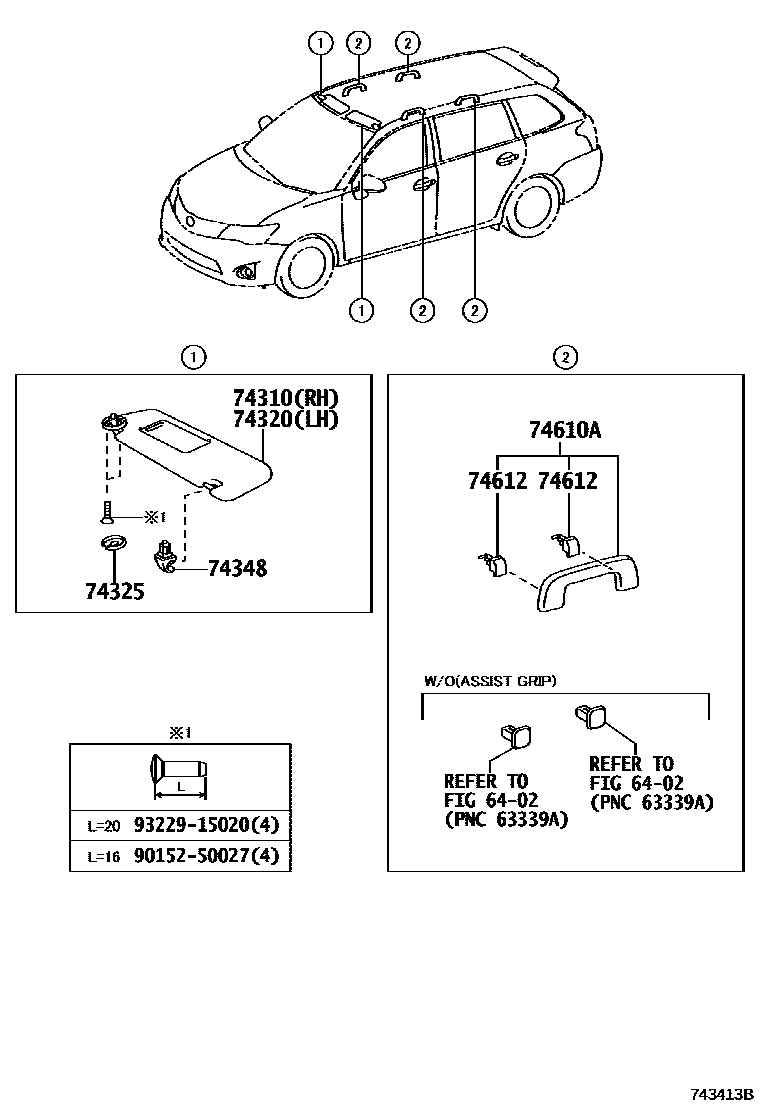

Toyota COROLLA 扶手和遮阳板 EPC diagram — 743413B
扶手和遮阳板 — 743413B (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
74611Qclip90467-10203 · 90467-12080
74635Aclip90467-10203
74813Cclip90467-12080
