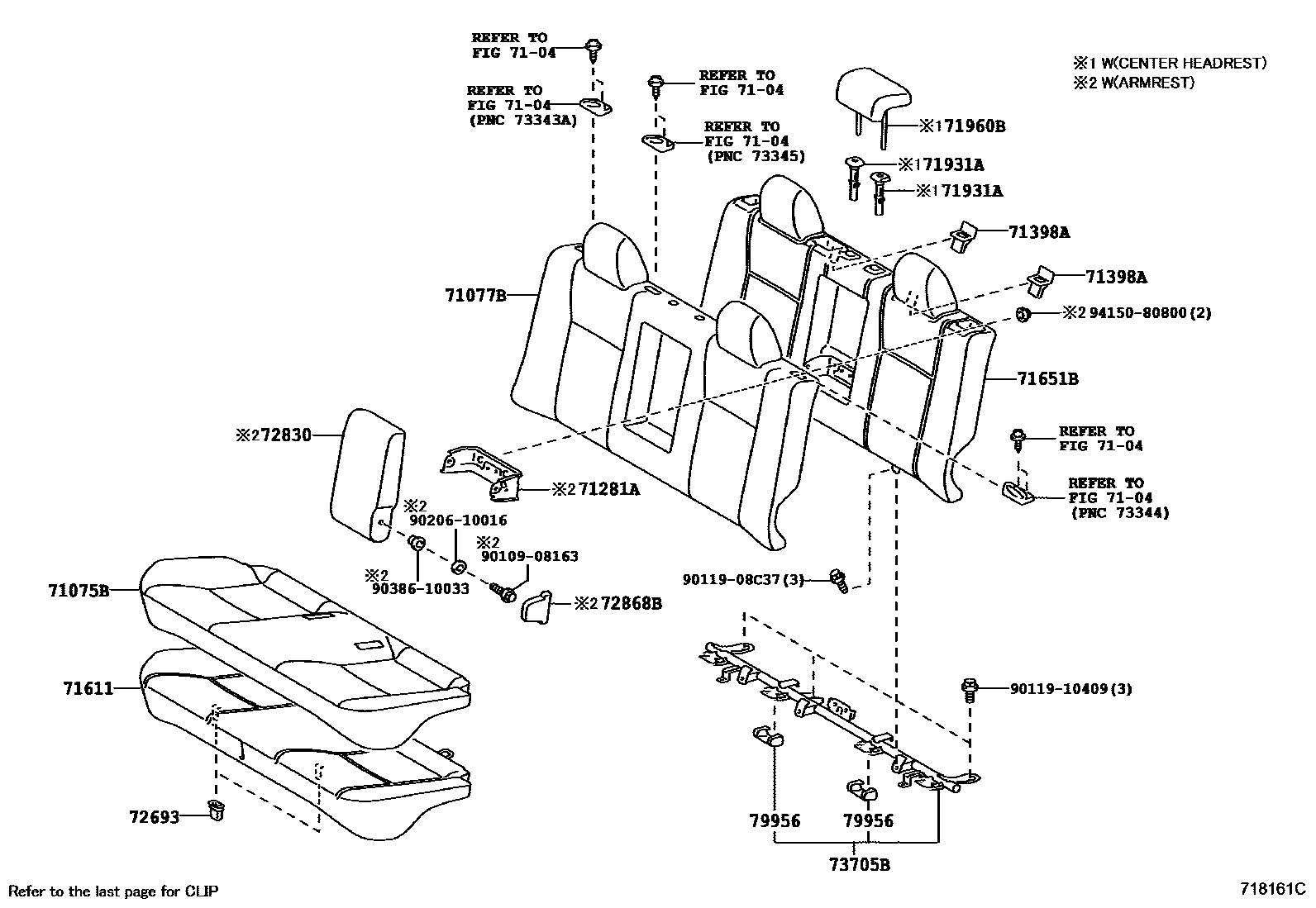

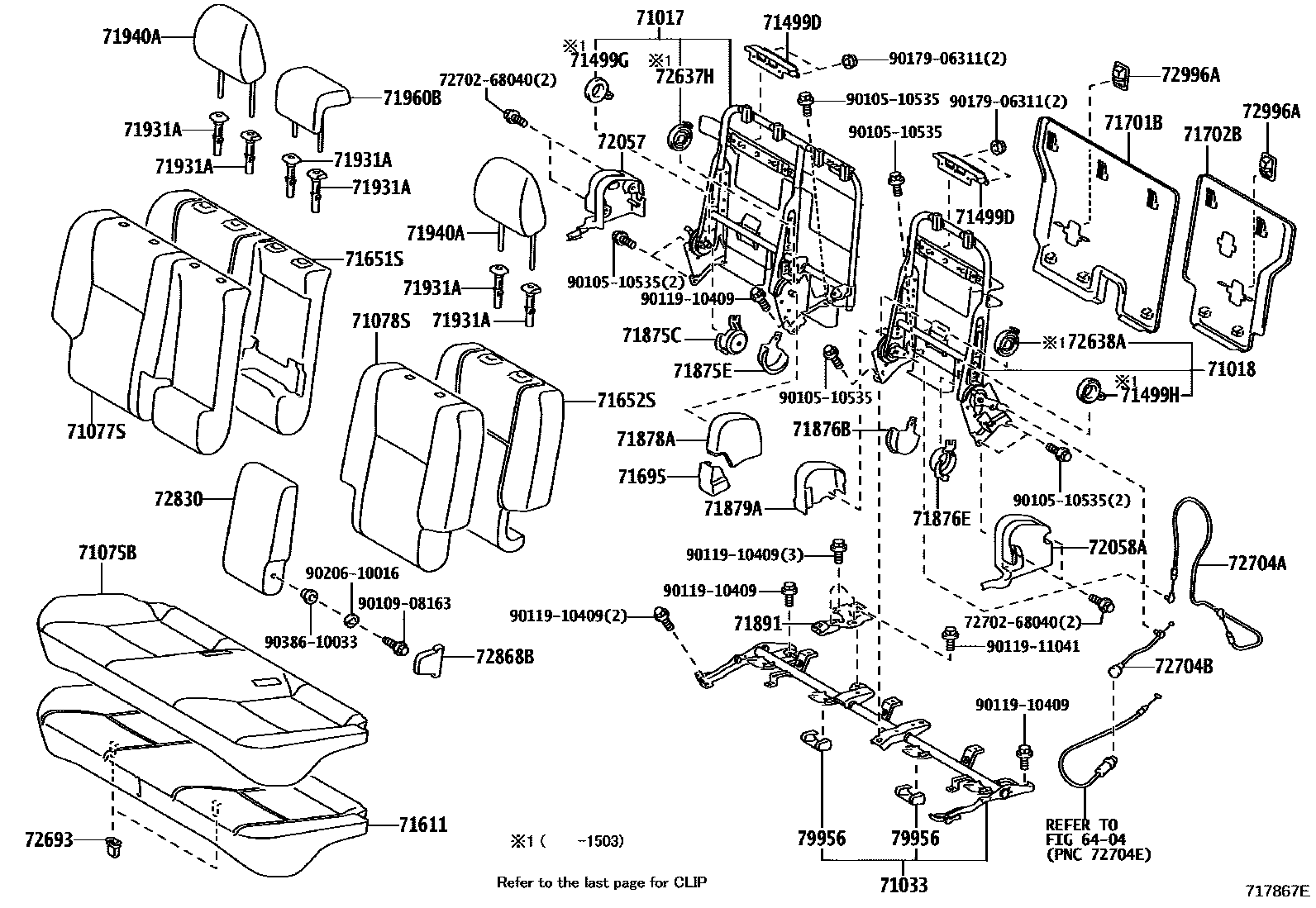

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 21 PNC and OE references.

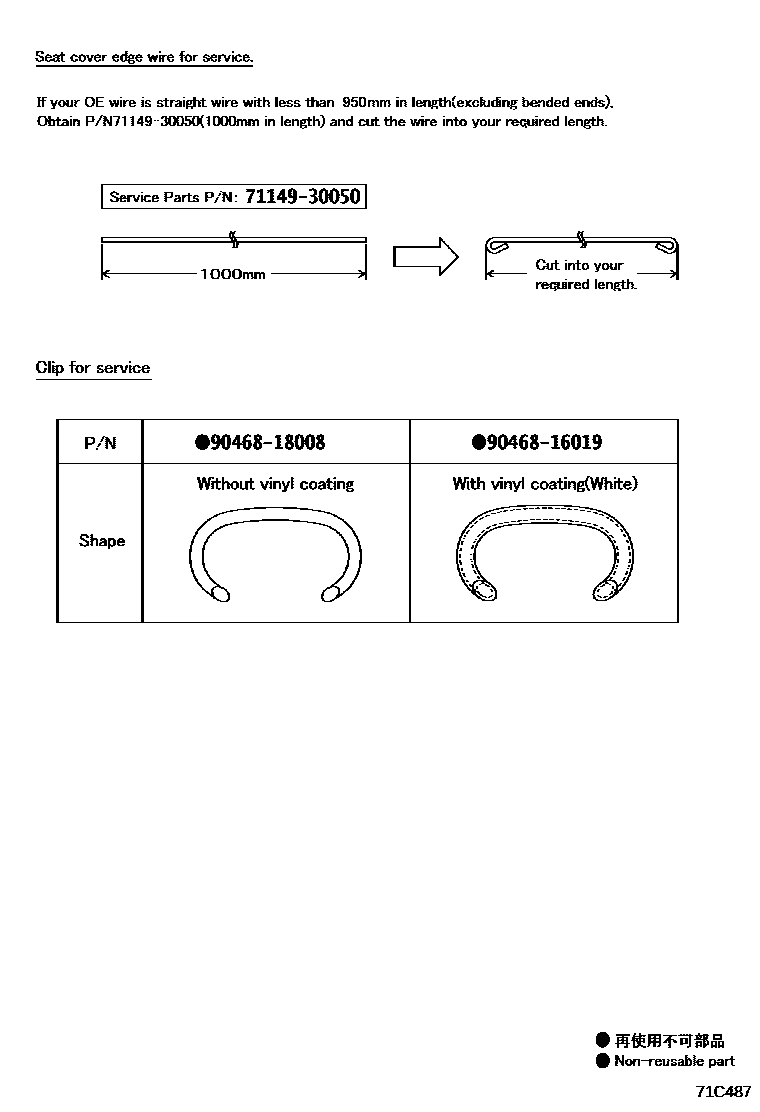

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-13340 |
| 71018 | Rear left seat back frame sub-assembly | 71018-13160 |
| 71033 | Rear seat cushion and leg sub-assembly | 79232-13010 |
| 71281A | Rear seat center armrest hinge | 71281-12070 |
| 71499D | Rear seat back shock absorber | 71499-30010 · 71499-30020 |
| 71499G | Rear right seat back shock absorber | 71499-13070 |
| 71499H | Rear left seat back shock absorber | 71499-13100 |
| 71611 | Rear seat cushion cushion | 71503-12240 · 71503-13040 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-12341 · 71507-12351 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-13361 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-13221 |
| 71701B | Rear right seat back panel sub-assembly | 71701-13020 |
| 71702B | Rear left seat back panel sub-assembly | 71702-13020 |
| 71891 | Rear seat No. 1 backrest fixing bracket | 71891-13010 |
| 72637H | Right rear seat back lock spring | 72637-13070 |
| 72638A | Rear left seat back lock spring | 72638-13040 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72704A | Rear seat backrest tilt control cable | 72704-13070 |
| 72704B | Rear No. 2 seat backrest inclination control cable | 72704-13080 |
| 73705B | Cross anchor bracket sub-assembly | 73705-13020 |
| 79956 | Rear seat leg bracket cover | 79957-12010 |
