Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

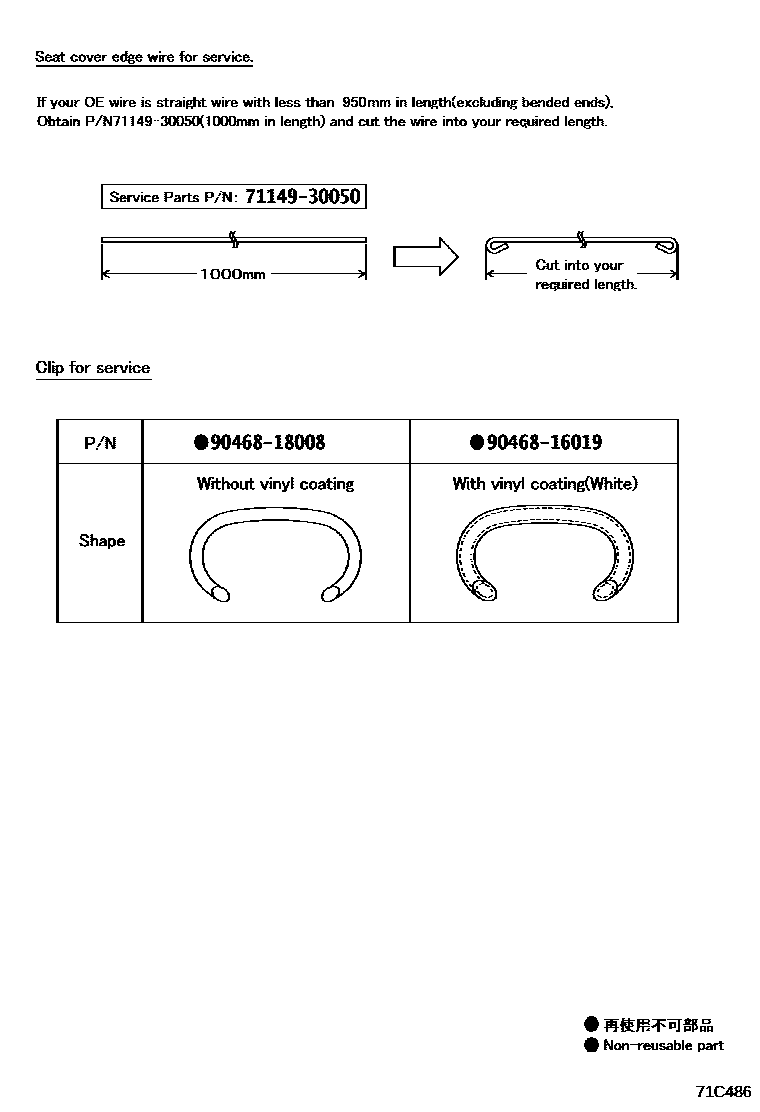

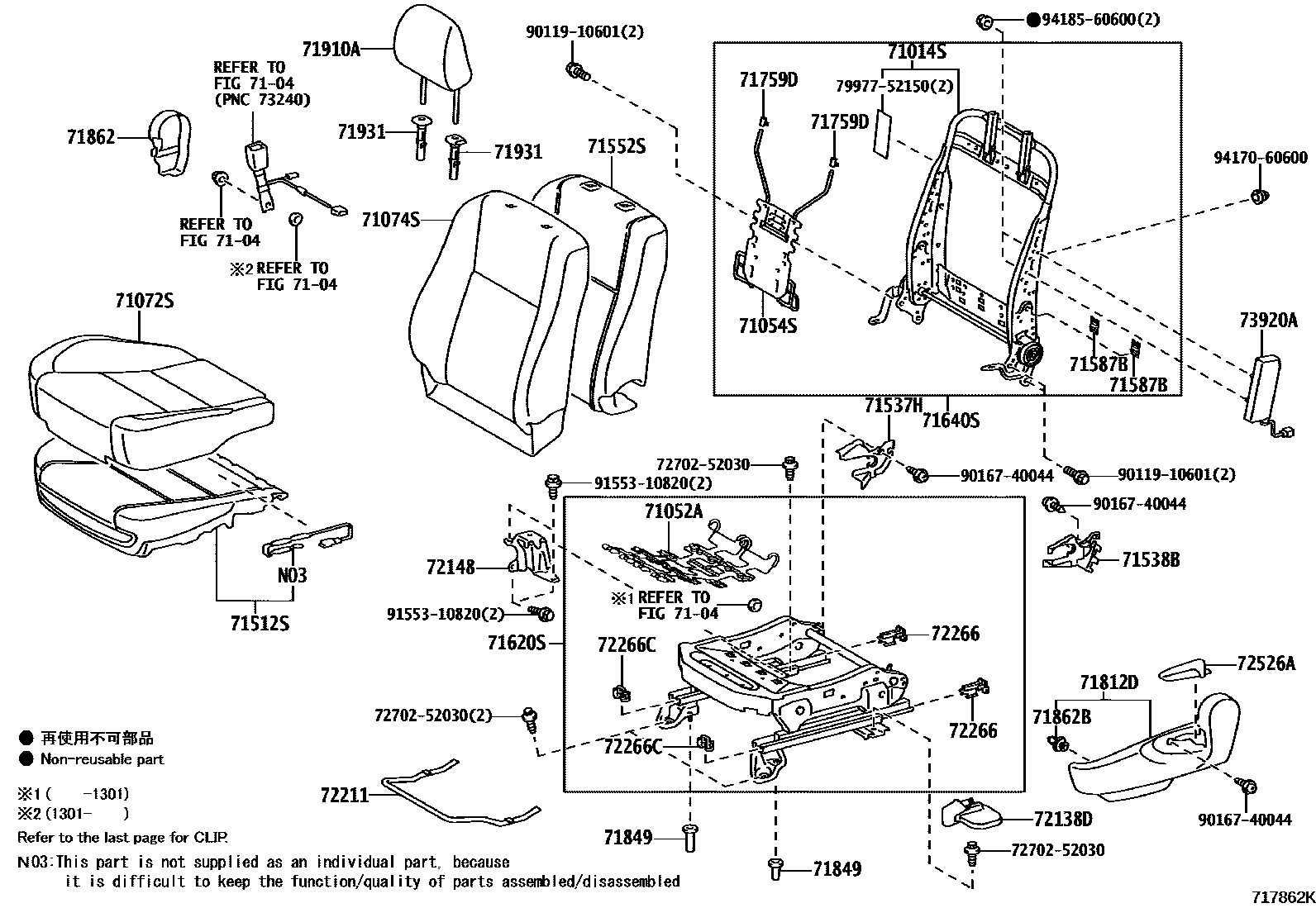

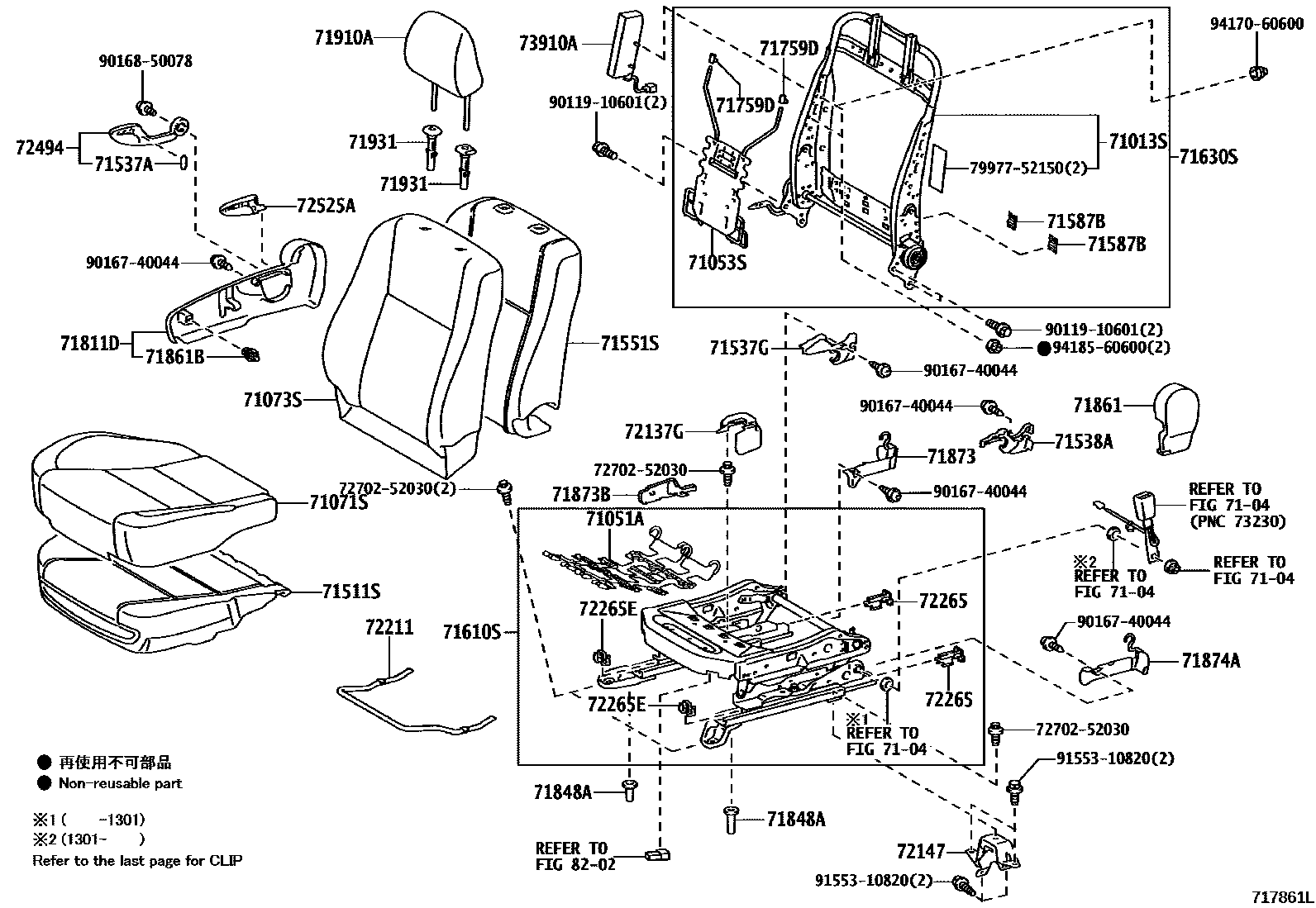

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-13090 · 71013-13091 · 71013-13100 · 71013-13101 |
| 71014S | Front left seat back frame sub-assembly | 71014-13060 · 71014-13061 · 71014-13070 · 71014-13071 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47060 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47060 |
| 71053S | Front right seat back spring sub-assembly | 71053-52050 |
| 71054S | Front left seat back spring sub-assembly | 71053-52050 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-13170 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-13020 |
| 71537A | Front seat cushion protective cover | 71537-47040 |
| 71551S | Front right seat back cushion (for split seats) | 71551-13290 · 71551-13300 |
| 71552S | Front left seat back cushion (for split seats) | 71551-13290 · 71552-13190 |
| 71587B | Front seat back edge protective cover | 71587-52030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-13010 · 71610-13011 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-13010 · 71620-13011 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-13090 · 71630-13091 · 71630-13100 · 71630-13101 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-13090 · 71640-13091 · 71640-13100 · 71640-13101 |
| 71759D | Front seat back hook 2 | 71759-47010 · 71759-47011 |
| 71848A | Right seat adjuster cover | 71848-26010 · 71848-52100 |
| 71849 | left seat adjuster cover | 71848-26010 · 71848-52100 |
| 71861B | Clip (for front right seat guard) | 71769-47020 |
| 71862B | Clip (for front left seat guard) | 71769-47020 |
| 71874A | Front left seat cushion lower guard | 71874-47040 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-13010 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-13010 |
| 72211 | Seat slide adjustment handle | 72211-12350 · 72211-47020 · 72211-52180 · 72211-52220 |
| 72265 | Right seat rail upper rail cover | 72265-52040 |
| 72265E | Right seat rail upper rail cover | 72265-60110 |
| 72266 | Left seat rail upper rail cover | 72265-52040 |
| 72266C | Left seat rail upper rail cover | 72265-60110 |
| 73910A | Front right seat airbag assembly | 73910-13030 |
| 73920A | Front left seat airbag assembly | 73920-13040 |
