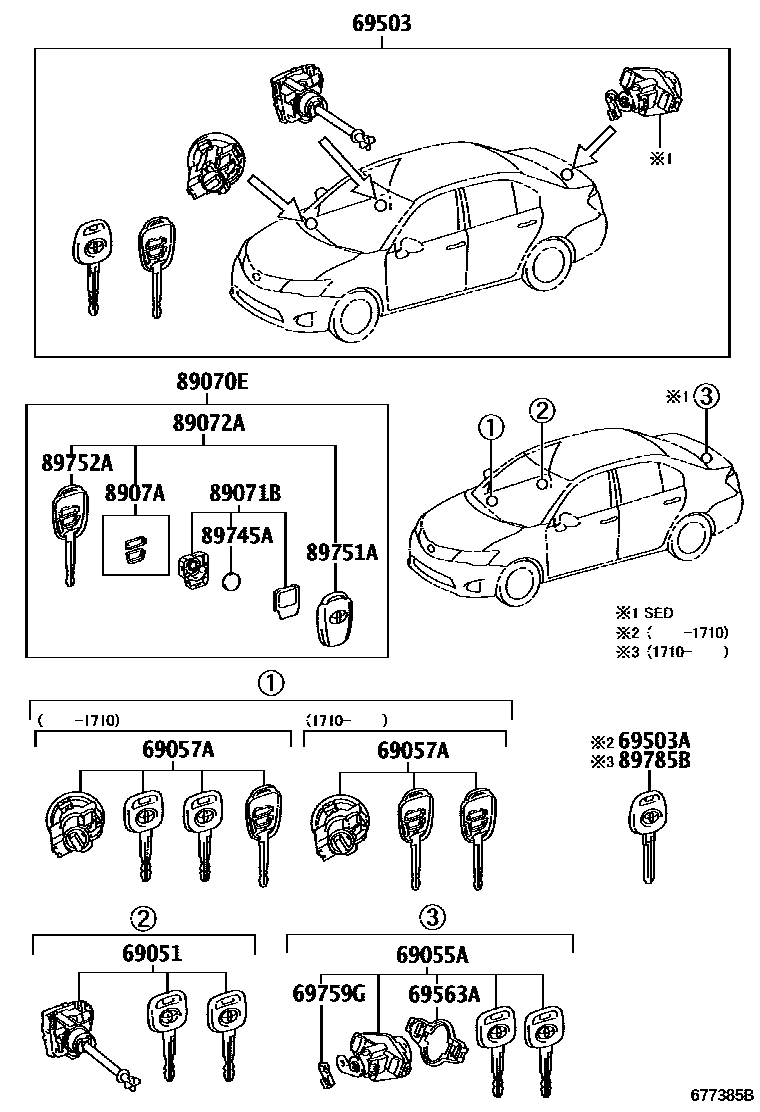

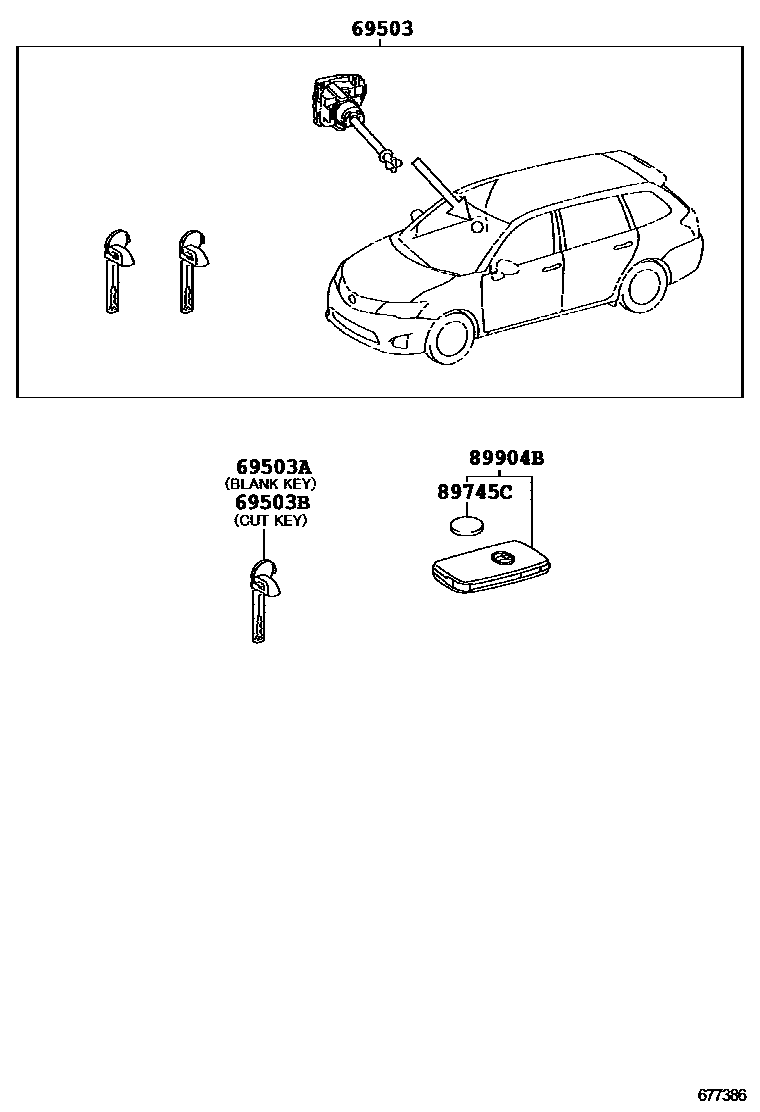

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12780 |
| 69055A | Luggage lock cylinder and key assembly | 69055-12A60 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12A10 · 69057-42330 |
| 69503 | Door lock cylinder components | 69005-12G20 · 69005-12G60 · 69005-12G70 · 69005-12K30 · 69005-12K40 |
| 69503A | external tooth key | 69515-52120 · 90999-00199 |
| 69503B | internal tooth key | 69515-52110 |
| 69563A | Trunk door lock cylinder lining | 69563-52030 |
| 69759G | Trunk door lock core buckle | 69759-24080 |
| 89070E | Remote key assembly | 89070-12650 · 89070-13070 · 89070-26790 · 89070-42B10 |
| 89071B | Remote key sub-assembly module assembly | 89071-13010 · 89071-42220 |
| 89072A | Remote key shell assembly | 89072-42400 · 89072-52540 |
| 8907A | Transmitter switch assembly | 8907A-52010 |
| 89745A | Transmitter battery | 89745-48030 |
| 89745C | Transmitter battery | 89745-52020 |
| 89751A | Transmitter housing cover | 89751-42090 · 89751-52130 |
| 89752A | transmitter housing | 89752-42050 · 89752-52070 |
| 89785B | transceiver key master transmitter | 89785-52030 |
| 89904B | Electronic key transmitter sub-assembly | 89904-22090 · 89904-52230 · 89904-52231 |
