Toyota COROLLA 背门板和背门玻璃 — Figure 6708

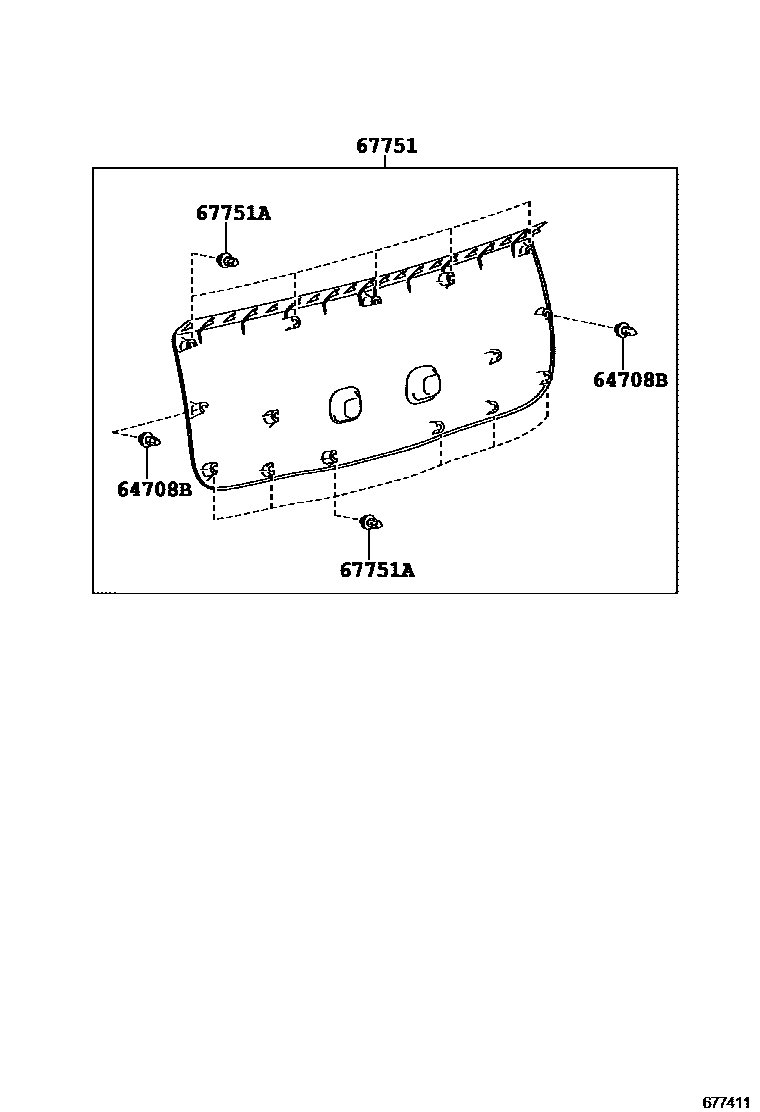

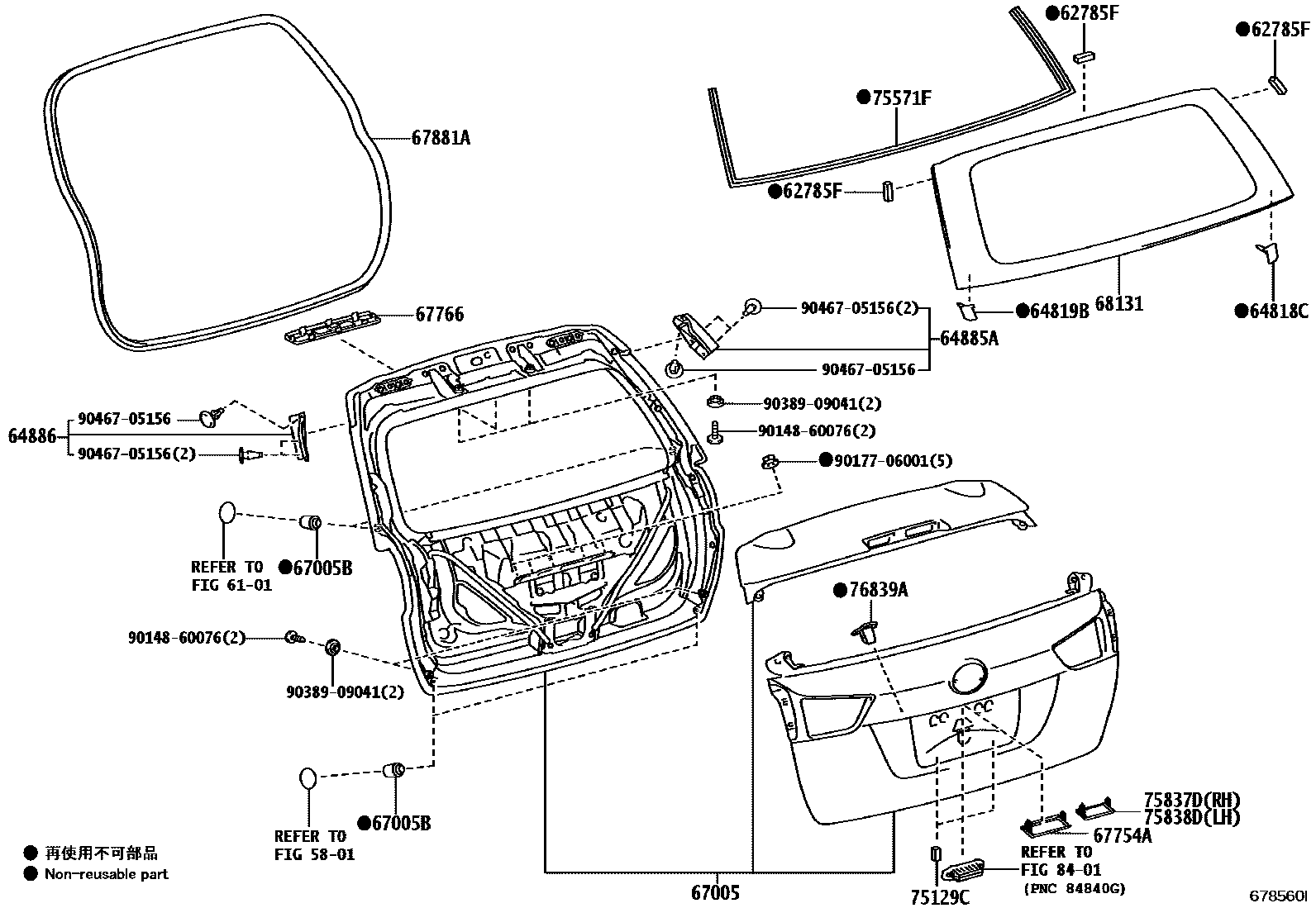

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-60030 |
| 64708B | Rear door decorative panel clip | 90467-10161 |
| 64818C | No. 1 back window glass spacer | 64818-13080 |
| 64819B | No. 2 back window glass spacer | 64819-13060 |
| 64885A | Rear window right glass slot | 64885-13020 |
| 64886 | Rear window left glass slot | 64886-13020 |
| 67005 | Rear door panel sub-assembly | 67005-13D22 |
| 67005B | Cushion pad (for back door panel) | 90541-09147 · 90541-10043 |
| 67751A | Clip (for rear door trim panel) | 90467-09232 |
| 67754A | Rear door hole cover | 76835-13010 · 76835-13011 |
| 67881A | Back door seal | 67881-13270 |
| 68131 | back door glass | 68131-13710 · 68131-13720 · 68131-13740 · 68131-13750 |
| 75129C | rear license plate cushion | 75129-13020 · 75129-30010 |
| 75571F | Back door and window protection strip | 75573-13100 · 75573-13110 |
| 75837D | Decorative cover on the right side of the rear door | 76831-13010 |
| 75838D | Decorative cover on the left side of the rear door | 76831-13010 |
| 76839A | Rear door trim cover | 76827-13010 |
