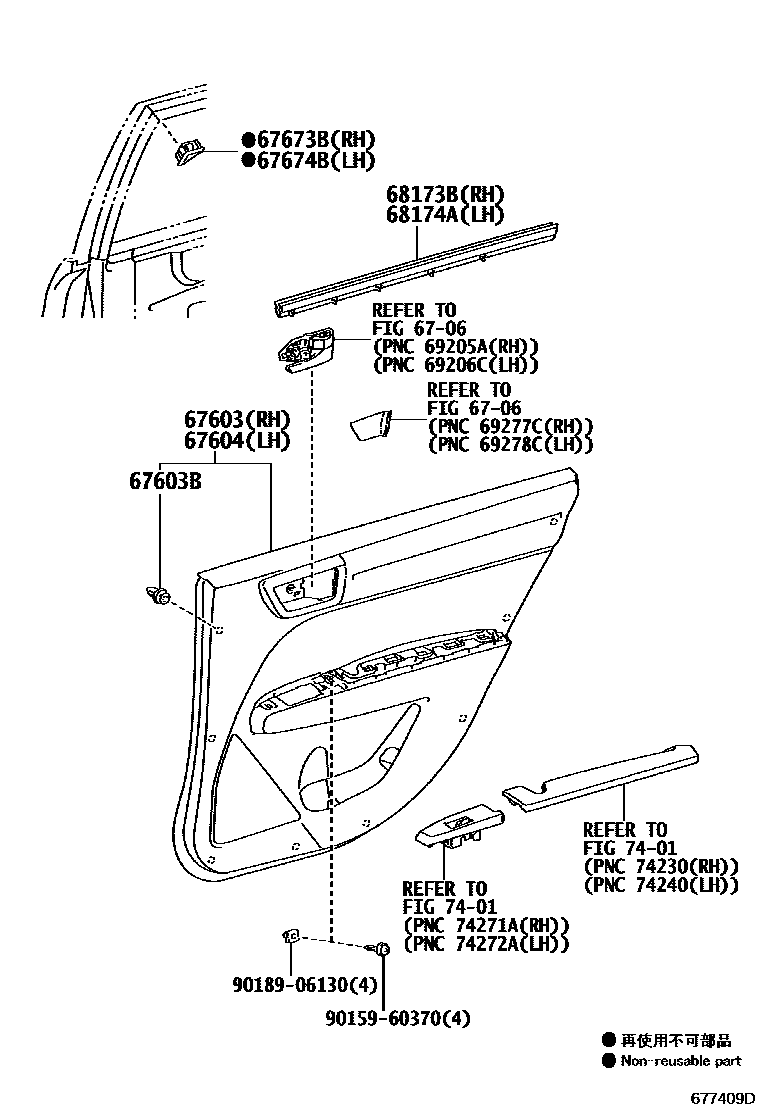

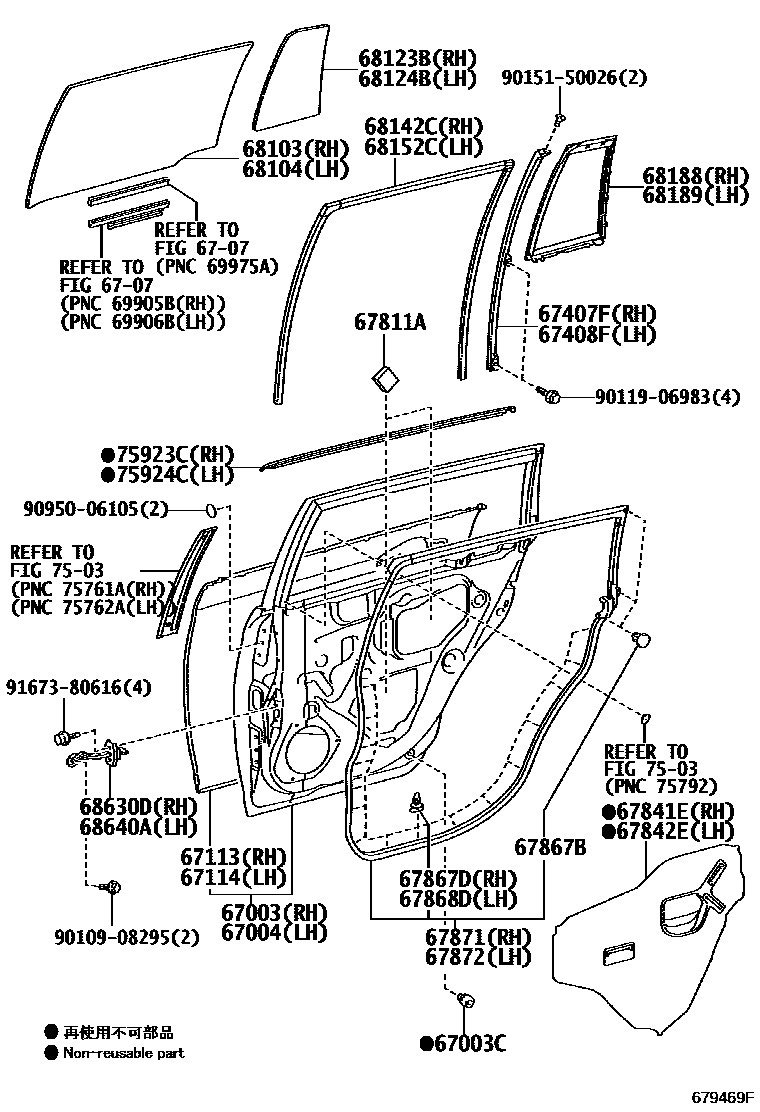

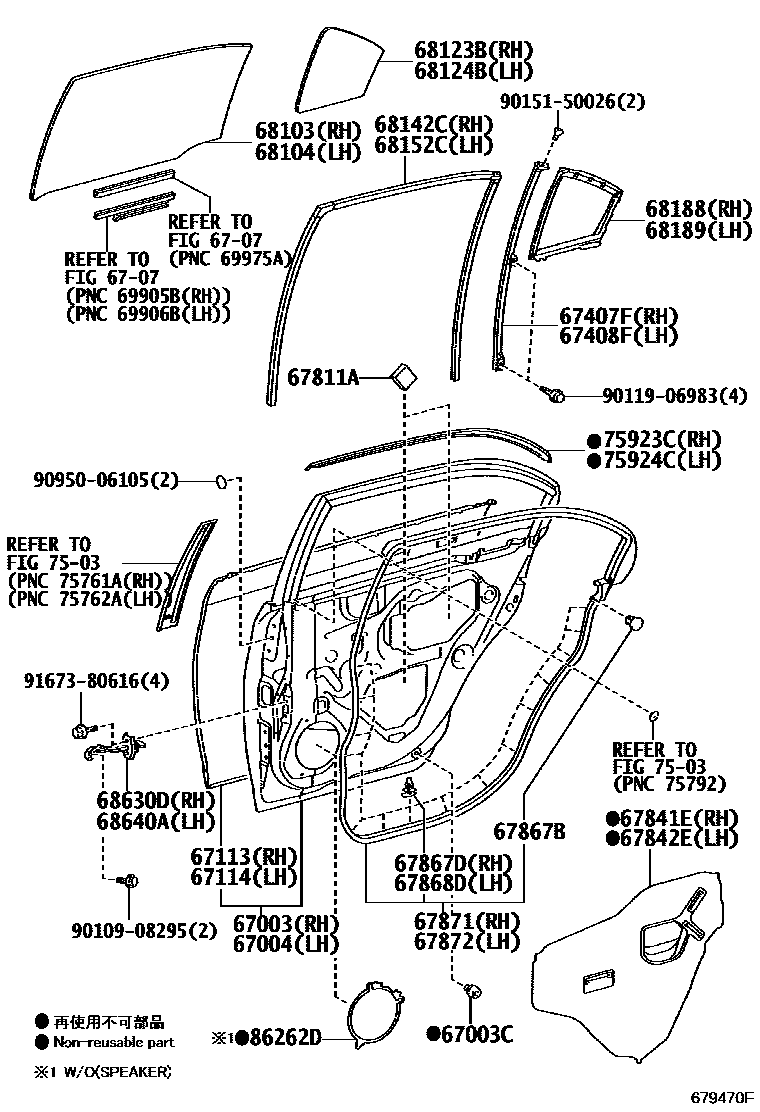

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12B30 · 67003-13340 |
| 67003C | Rear door panel cushion | 90541-09124 |
| 67004 | Left rear door panel sub-assembly | 67004-12B30 · 67004-13340 |
| 67113 | Right rear door outer panel | 67113-12350 |
| 67114 | Left rear door outer panel | 67114-12340 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-12330 · 67407-13100 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-12330 · 67408-13100 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67673B | Right rear door frame decorative strip | 67673-48010 |
| 67674B | Left rear door frame decorative strip | 67674-48010 |
| 67811A | Rear door silencer pad | 67811-30100 |
| 67841E | Right rear door access hole cover | 67841-12430 |
| 67842E | Left rear door access hole cover | 67842-12240 |
| 67867B | Door seal strip clip (for rear door) | 90467-06084 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-12570 · 67871-13180 |
| 67872 | Left rear door sealing strip | 67872-12570 · 67872-13170 |
| 68103 | Right rear door glass sub-assembly | 68113-12840 · 68113-12A00 · 68113-13340 · 68113-13350 · 68113-13360 · 68113-13370 |
| 68104 | Left rear door glass sub-assembly | 68114-12840 · 68114-12A00 · 68114-13340 · 68114-13350 · 68114-13360 · 68114-13370 |
| 68123B | Right rear door corner window glass | 68123-12870 · 68123-12A40 · 68123-13320 · 68123-13330 · 68123-13350 · 68123-13360 |
| 68124B | Left rear door corner window glass | 68124-12870 · 68124-12A40 · 68124-13310 · 68124-13320 · 68124-13340 · 68124-13350 |
| 68142C | Right rear door glass lift slot | 68142-12330 · 68142-12331 · 68142-13190 · 68142-13191 |
| 68152C | Left rear door glass lift slot | 68152-12240 · 68152-12241 · 68152-13150 · 68152-13151 |
| 68173B | Right rear door glass inner sealing strip | 68173-12350 |
| 68174A | Left rear door glass inner sealing strip | 68174-12210 |
| 68188 | Right rear door corner window seal | 68188-12361 · 68188-13131 |
| 68189 | Left rear door corner window seal | 68189-12361 · 68189-13131 |
| 68630D | Right rear door opening limiter assembly | 68630-12170 |
| 68640A | Left rear door opening limiter assembly | 68630-12170 |
| 75923C | No. 2 right side light-shielding film | 75923-12110 · 75923-13060 |
| 75924C | No. 2 left shading film | 75924-12110 · 75924-13060 |
| 86262D | Rear door speaker cover | 86262-12020 |
