Toyota COROLLA 前门板和前门玻璃 — Figure 6701

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 30 PNC and OE references.

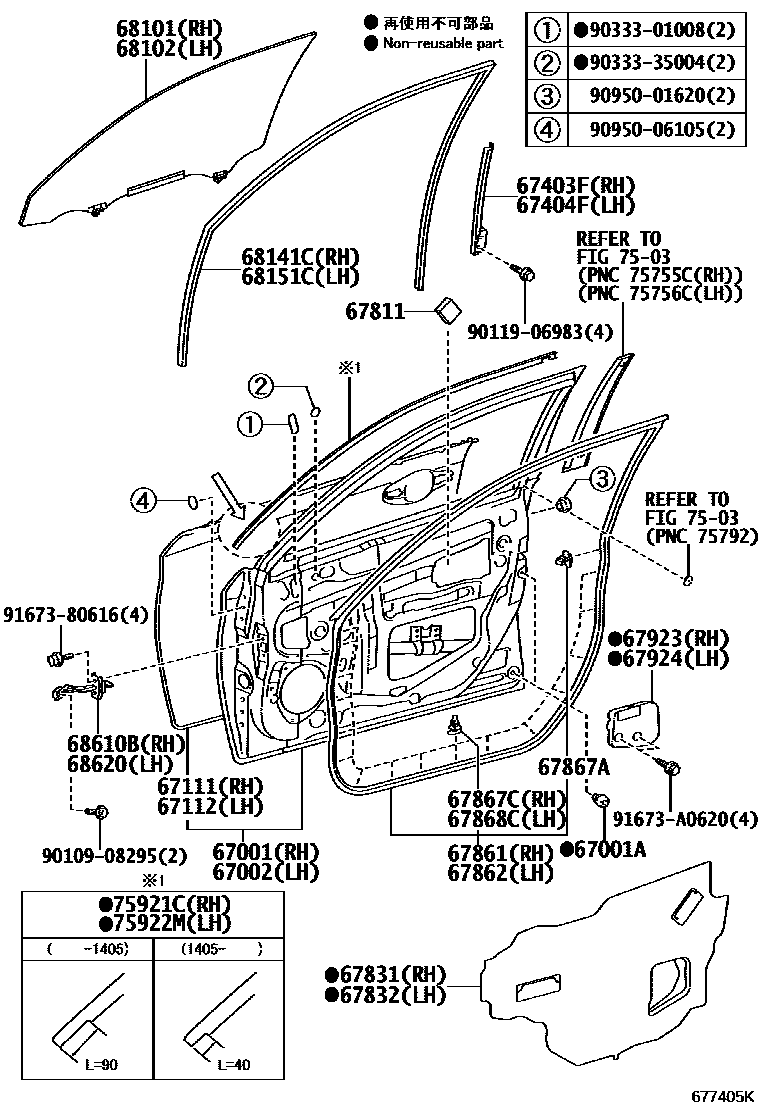

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 677405K
前门板和前门玻璃 — 677405K (201204 – 999999)

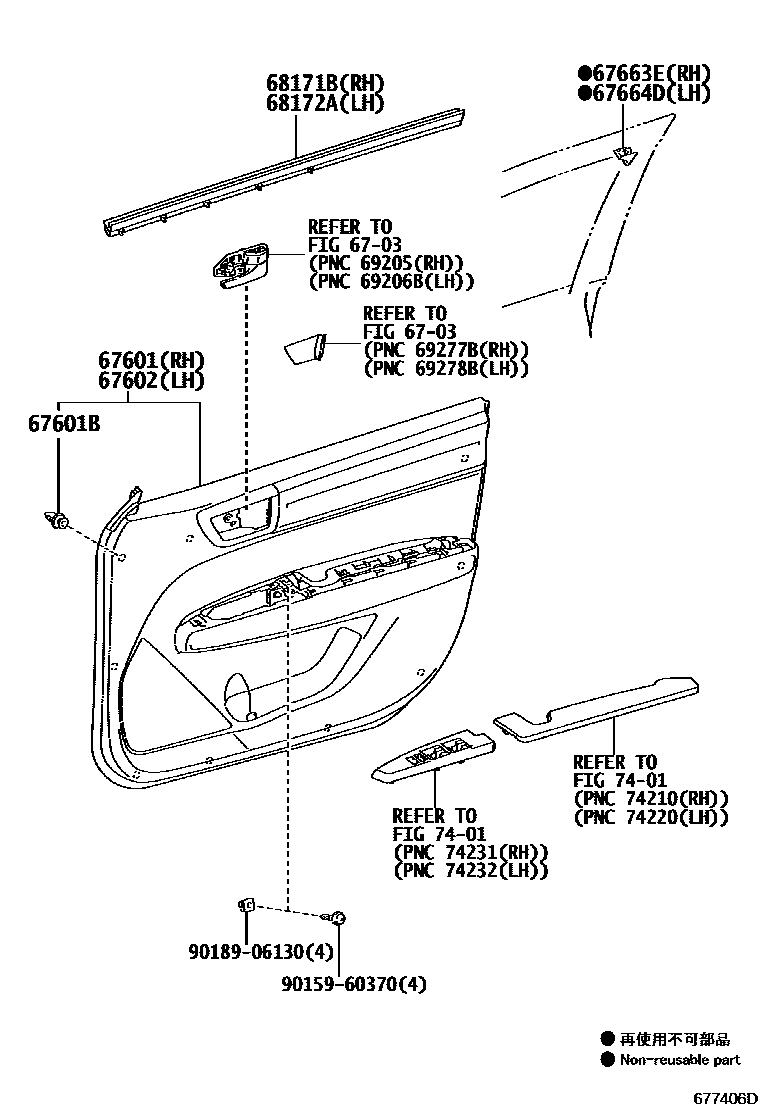

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 677406D
前门板和前门玻璃 — 677406D (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-12B00
67001AFront door panel cushion90541-09124
67002Left front door panel sub-assembly67002-12B00
67111Outer right front door panel67111-12740
67112Outer left front door panel67112-12730
67403FRight front door rear lower door frame sub-assembly67403-12300
67404FLeft front door rear lower door frame sub-assembly67404-12290
67601BCatch (for front door trim panel)90467-09206
67663ERight door frame decorative strip67663-48010
67664DLeft door frame decorative strip67664-48010
67811Front door silencer pad67811-30100
67831Right front door access hole cover67831-12730
67832Left front door access hole cover67832-12510
67861Right front door seal67861-12B00
67862Left front door seal67862-12B00
67867ADoor seal strip clip (for front door)90467-04034
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
67923Front door No. 1 reinforcement cushion pad67923-12081
67924Front door No. 2 reinforcement cushion pad67924-12081
68101Right front door glass sub-assembly68101-12C40 · 68101-12C50 · 68101-12C51 · 68101-12E10
68102Left front door glass sub-assembly68102-12C40 · 68102-12C50 · 68102-12C51 · 68102-12D90
68141CRight front door glass lift channel68141-12600
68151CLeft front door glass lift channel68151-12300
68171BRight front door glass inner sealing strip68171-12380
68172ALeft front door glass inner sealing strip68172-12300
68610BRight front door opening limiter assembly68610-12250
68620Left front door opening limiter assembly68610-12250
75921CNo. 1 right side light-shielding film75921-12120 · 75921-12121
75922MNo. 1 left shading film75922-12120 · 75922-12121
