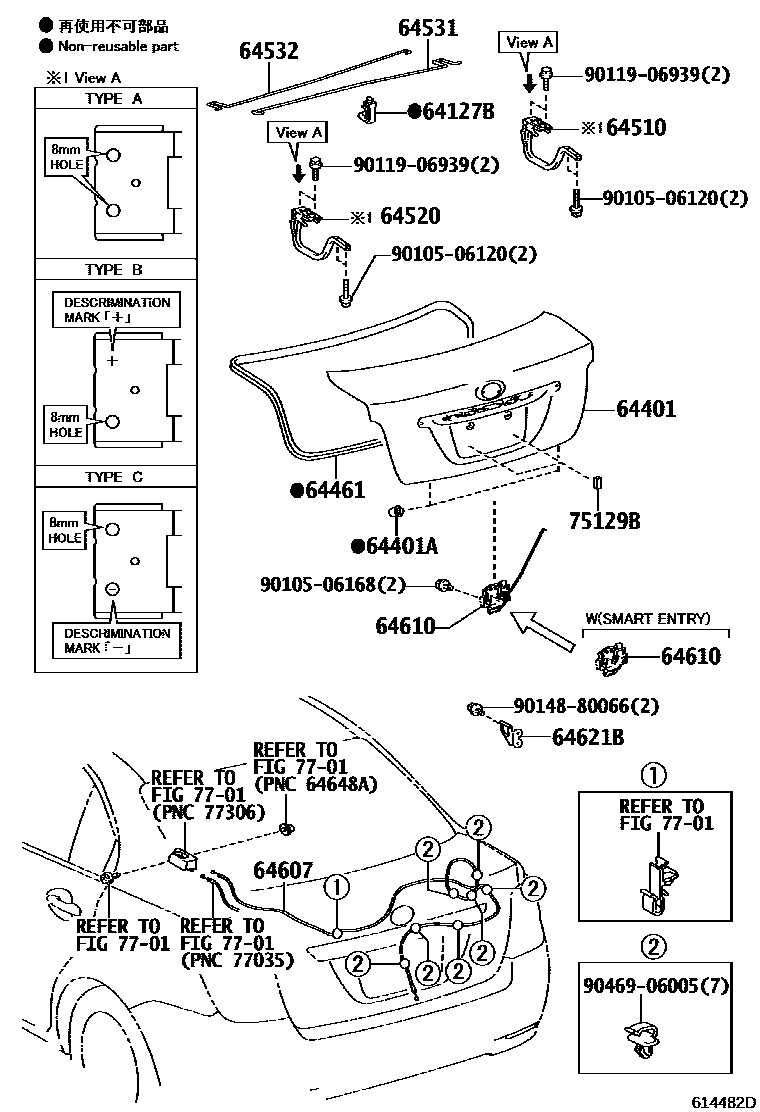

Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105
Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-16070 |
| 64401 | Trunk door panel sub-assembly | 64401-12D40 · 64401-12D41 · 64401-12D50 · 64401-12D51 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-09116 |
| 64461 | Trunk door seal | 64461-12590 |
| 64510 | Trunk door right hinge assembly | 64510-12270 · 64510-12271 · 64510-12280 · 64510-12281 · 64510-12290 · 64510-12291 |
| 64520 | Trunk door left hinge assembly | 64510-12270 · 64510-12271 · 64510-12280 · 64510-12281 · 64510-12290 · 64510-12291 |
| 64531 | Trunk door right hinge torsion bar | 64531-12780 · 64531-12870 |
| 64532 | Trunk door left hinge torsion bar | 64532-12850 · 64532-12870 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-12A10 |
| 64610 | Trunk door lock assembly | 64600-12080 · 64600-33160 · 64610-12451 · 64610-12452 |
| 64621B | Trunk door latch | 64621-33030 |
| 75129B | rear license plate cushion | 75129-13020 · 75129-30010 |
