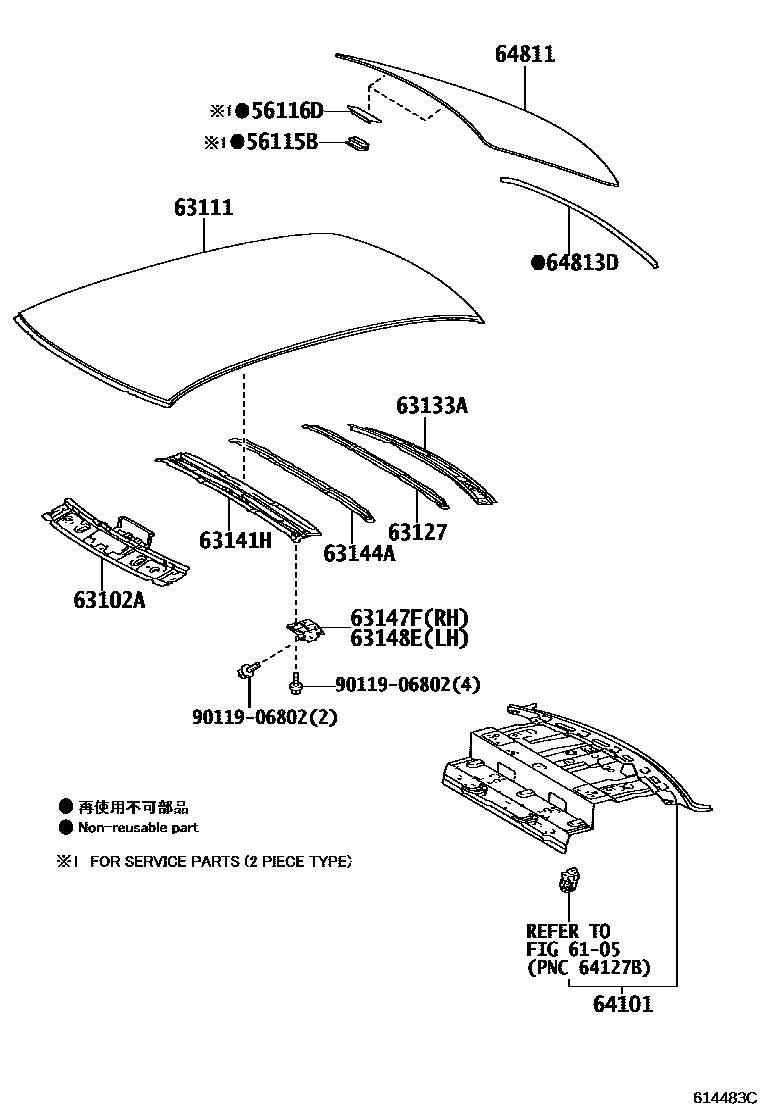

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30100 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63102A | Windshield roof sub-assembly | 63102-12290 |
| 63105A | Back door opening frame sub-assembly | 63105-13230 |
| 63111 | roof panel | 63111-12A10 · 63111-13500 |
| 63127 | No. 5 roof panel reinforcement | 63127-12030 |
| 63133A | upper frame of back window | 63133-12340 |
| 63141H | Center roof panel reinforcement | 63141-12320 |
| 63144A | No. 4 roof panel reinforcement | 63144-12130 · 63144-13060 |
| 63147F | Right roof panel reinforcement bracket | 63147-12050 |
| 63148A | No. 7 roof panel reinforcement | 63148-13070 |
| 63148E | Left roof panel reinforcement bracket | 63147-12050 |
| 63149D | No. 8 roof panel reinforcement | 63149-13050 |
| 63169B | Right roof panel reinforcement panel | 63169-13010 |
| 63179 | Left roof panel reinforcement panel | 63169-13010 |
| 64101 | Upper back panel sub-assembly | 64101-12880 |
| 64811 | back window glass | 64811-12B60 · 64811-12C30 |
| 64813D | Back window glass adhesive seal | 56117-50140 |
