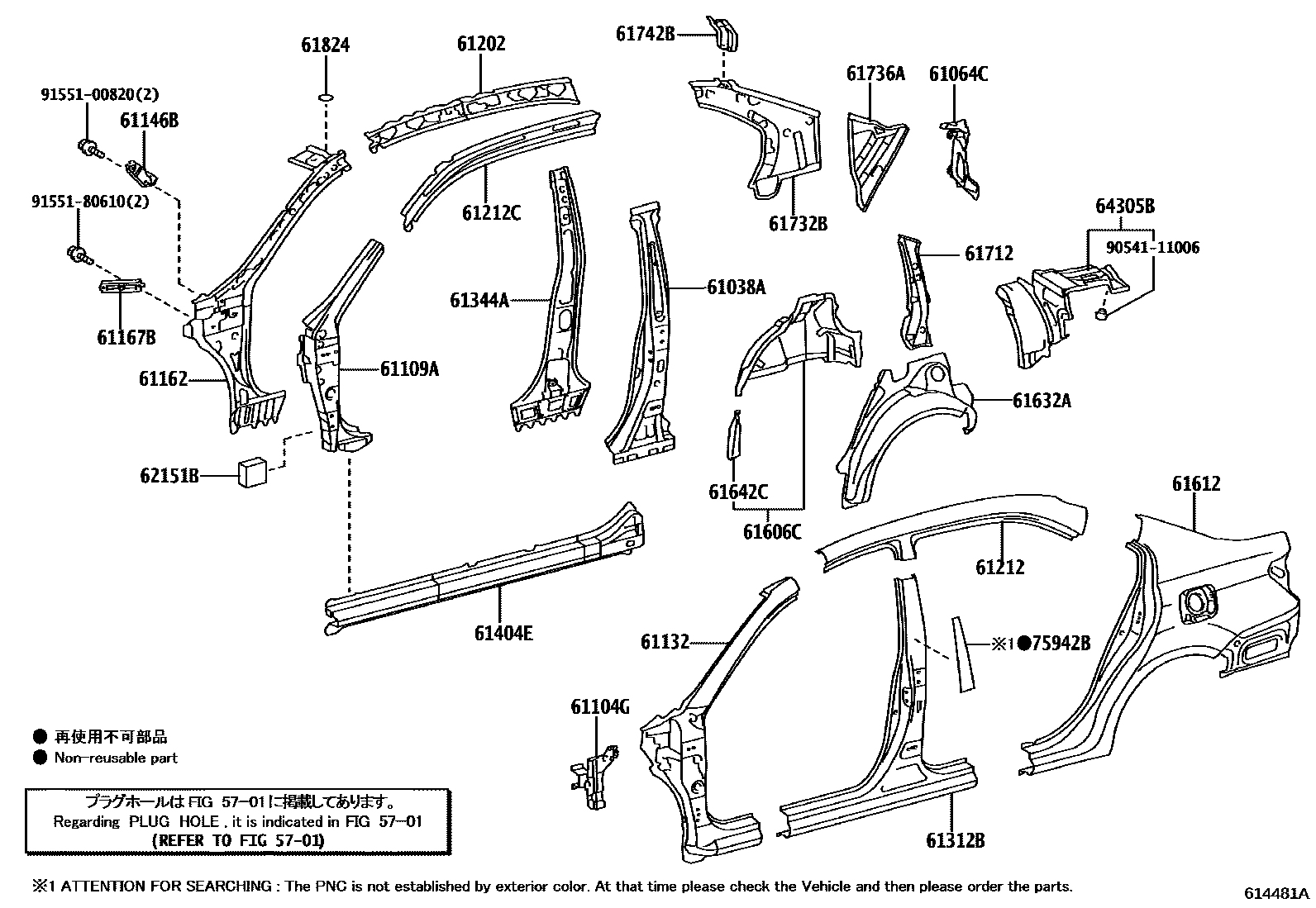

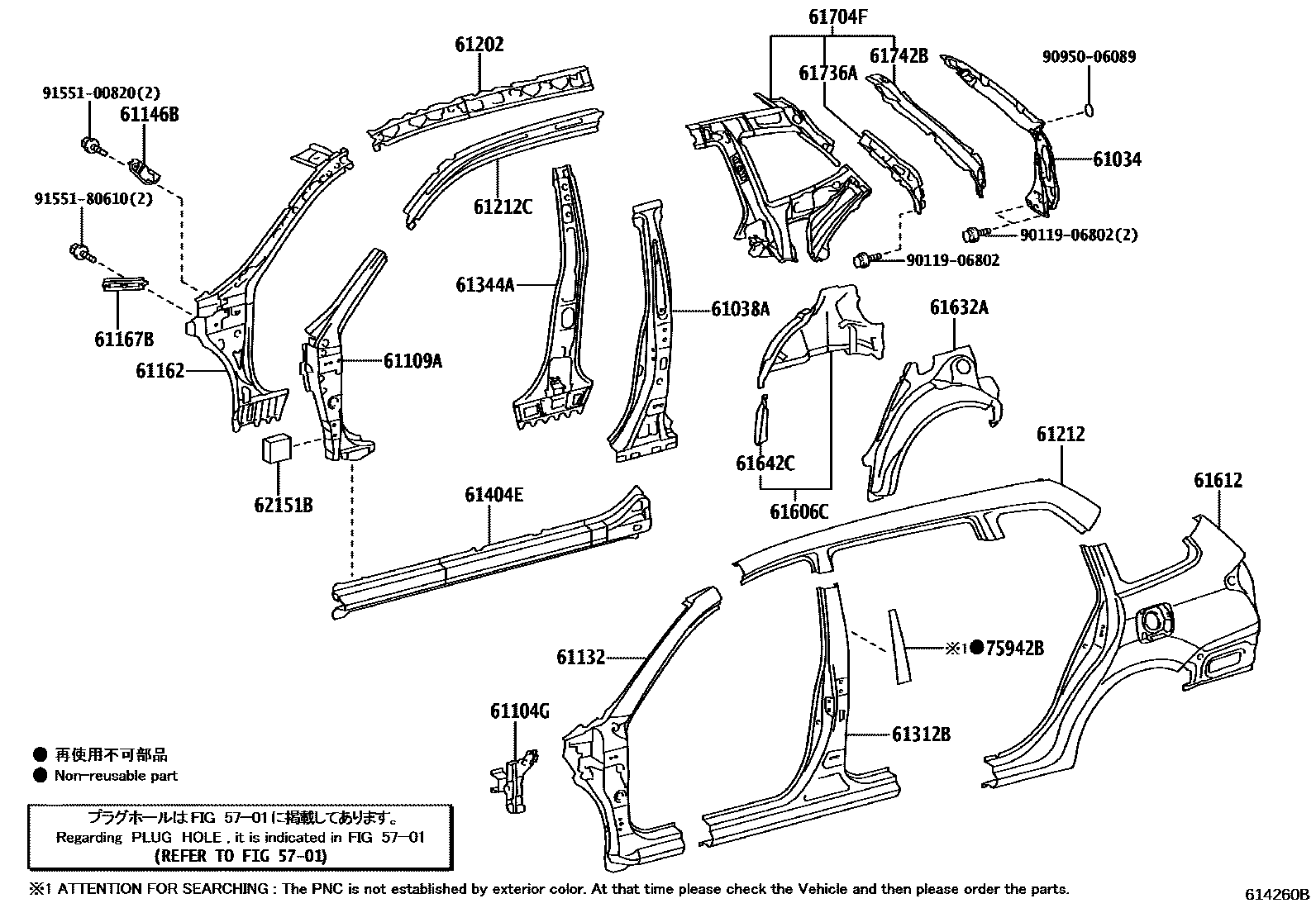

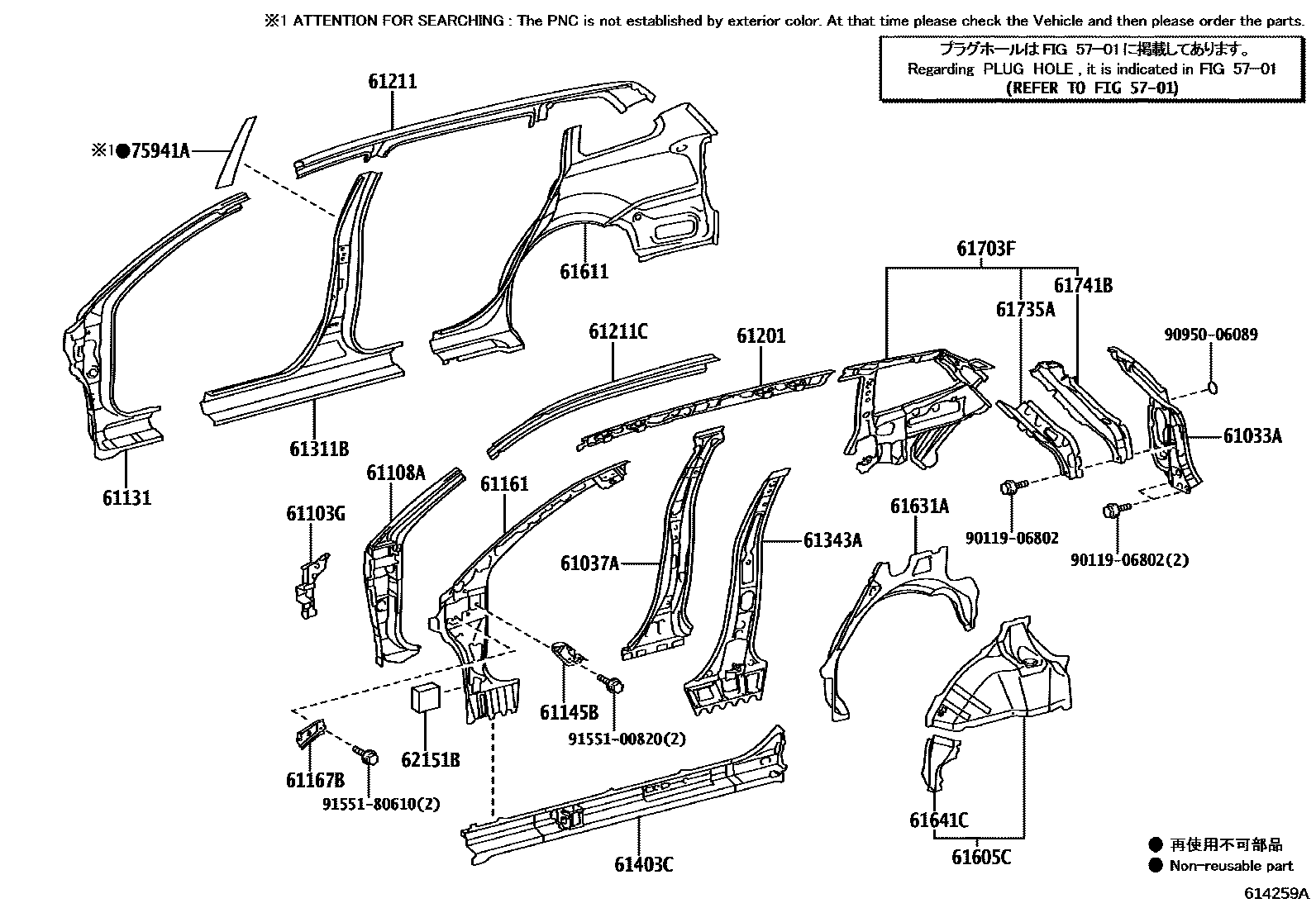

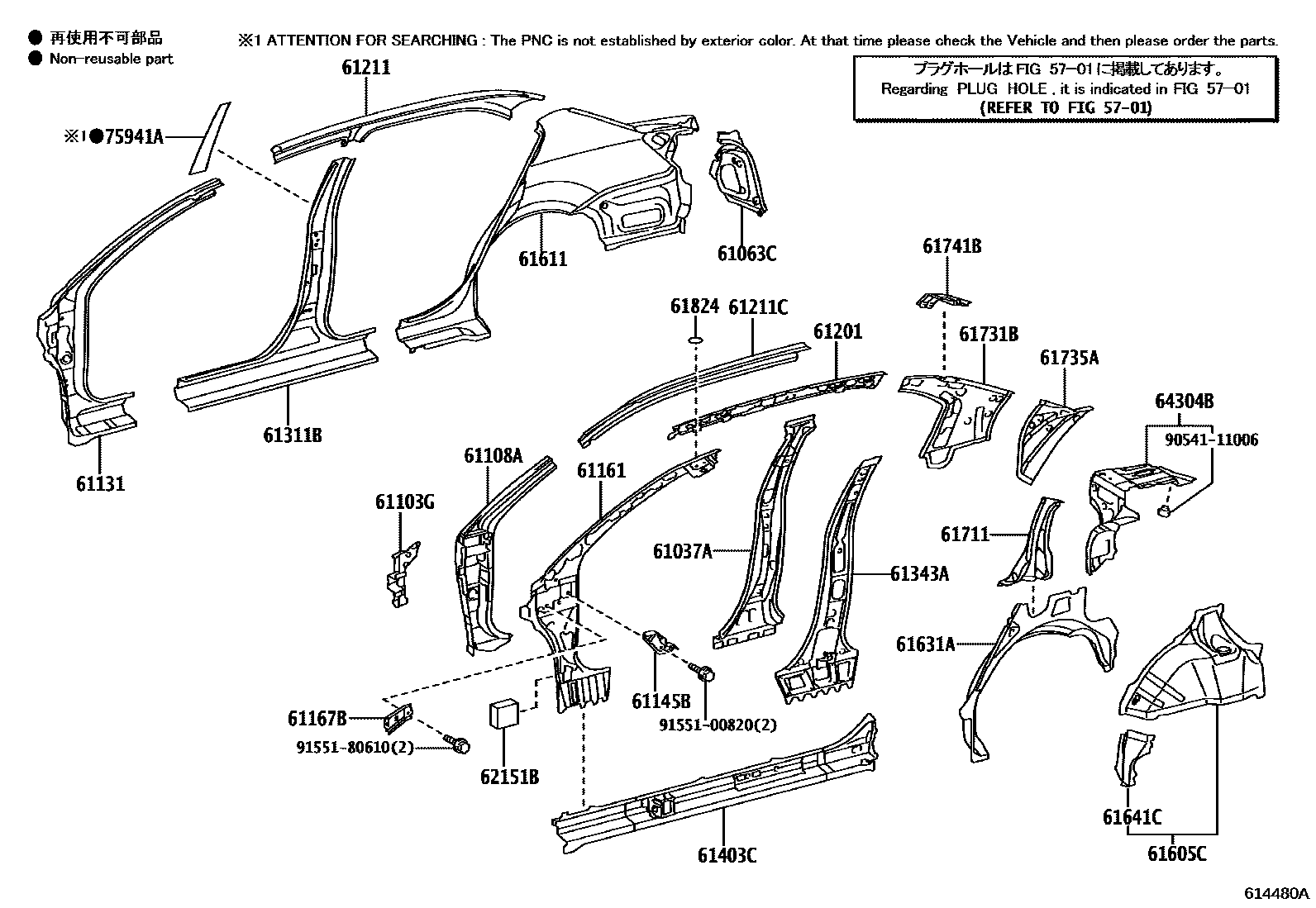

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 4 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61033A | Rear door opening side reinforcement sub-assembly | 61033-13050 · 61033-13060 |
| 61034 | Rear door opening left reinforcement sub-assembly | 61034-13050 · 61034-13070 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12330 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12330 |
| 61063C | Trunk door right front opening slot sub-assembly | 61063-12050 · 61063-12090 |
| 61064C | Trunk door left front opening slot sub-assembly | 61064-12040 · 61064-12090 |
| 61103G | Right body front pillar lower corner panel sub-assembly | 61103-12270 |
| 61104G | Left side body front pillar lower corner panel sub-assembly | 61104-12300 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12320 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12300 |
| 61131 | Right body outer front upper pillar | 61131-12800 |
| 61132 | Left body outer front upper pillar | 61132-12780 |
| 61145B | Right body front pillar lower corner panel | 61145-52070 |
| 61146B | Left body front pillar lower corner panel | 61146-52080 |
| 61161 | Right upper body inner front pillar | 61023-12420 |
| 61162 | Left side inner front upper pillar | 61024-12420 |
| 61167B | Body front pillar lower bracket | 61167-52020 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-12270 · 61201-13020 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-12260 · 61202-13020 |
| 61211 | Roof right outer longitudinal beam | 61213-12030 · 61213-13020 |
| 61211C | Roof right side rail | 61211-12530 · 61211-13130 |
| 61212 | Roof left outer longitudinal beam | 61214-12030 · 61214-13020 |
| 61212C | Roof left side rail | 61212-12530 · 61212-13130 |
| 61311B | Right body outer center pillar | 61311-12480 |
| 61312B | Left body outer center pillar | 61312-12520 |
| 61343A | Right body inner center pillar | 61032-12020 |
| 61344A | Left body inner center pillar | 61042-12020 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-12120 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-12130 |
| 61605C | Right rear side panel inner panel sub-assembly | 61605-52070 |
| 61606C | Left rear side panel inner panel sub-assembly | 61606-13080 · 61606-52070 |
| 61611 | Right side hoarding | 61601-12B20 · 61601-13700 |
| 61612 | left side panel | 61602-12B20 · 61602-13760 |
| 61631A | Right wheel cover outer panel | 61631-12510 |
| 61632A | Left side wheel cover outer panel | 61632-12520 |
| 61641C | Right front side wheel housing corner panel | 61641-52100 |
| 61642C | Left front side wheel housing corner panel | 61642-52100 |
| 61703F | Right front side panel inner panel sub-assembly | 61703-13050 |
| 61704F | Left front side panel inner panel sub-assembly | 61704-13060 |
| 61711 | Roof right side outer panel | 61711-12370 |
| 61712 | Roof left outer panel | 61712-12400 |
| 61731B | Roof right inner panel | 61731-12820 |
| 61732B | Roof left inner panel | 61732-12780 |
| 61735A | Right rear roof inner panel | 61735-12440 · 61735-13110 |
| 61736A | Left rear roof inner panel | 61736-12440 · 61736-13110 |
| 61741B | Rear window opening right reinforcement | 61741-12180 · 61741-13060 |
| 61742B | Rear window opening left reinforcement | 61742-12160 · 61742-13060 |
| 61824 | Noise Control Panel No. 1 | 61824-12050 · 61825-52030 |
| 62151B | Front cowl side silencer pads | 62151-52030 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-12150 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-12160 |
| 75941A | Right center pillar trim | 75941-12070 |
| 75942B | Left center pillar trim | 75942-12070 |
