Toyota COROLLA 中央扶手箱和支架 — Figure 5806

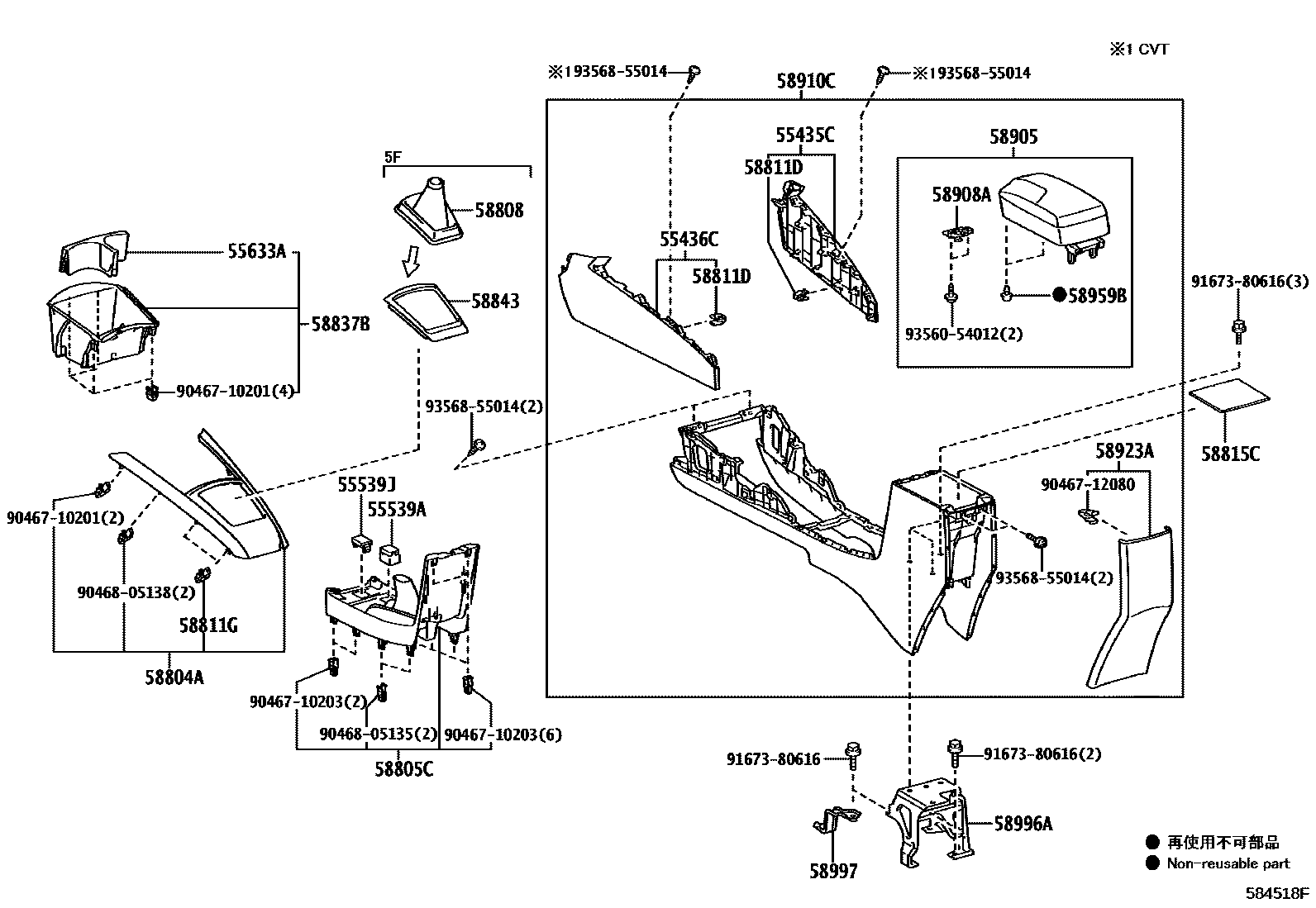

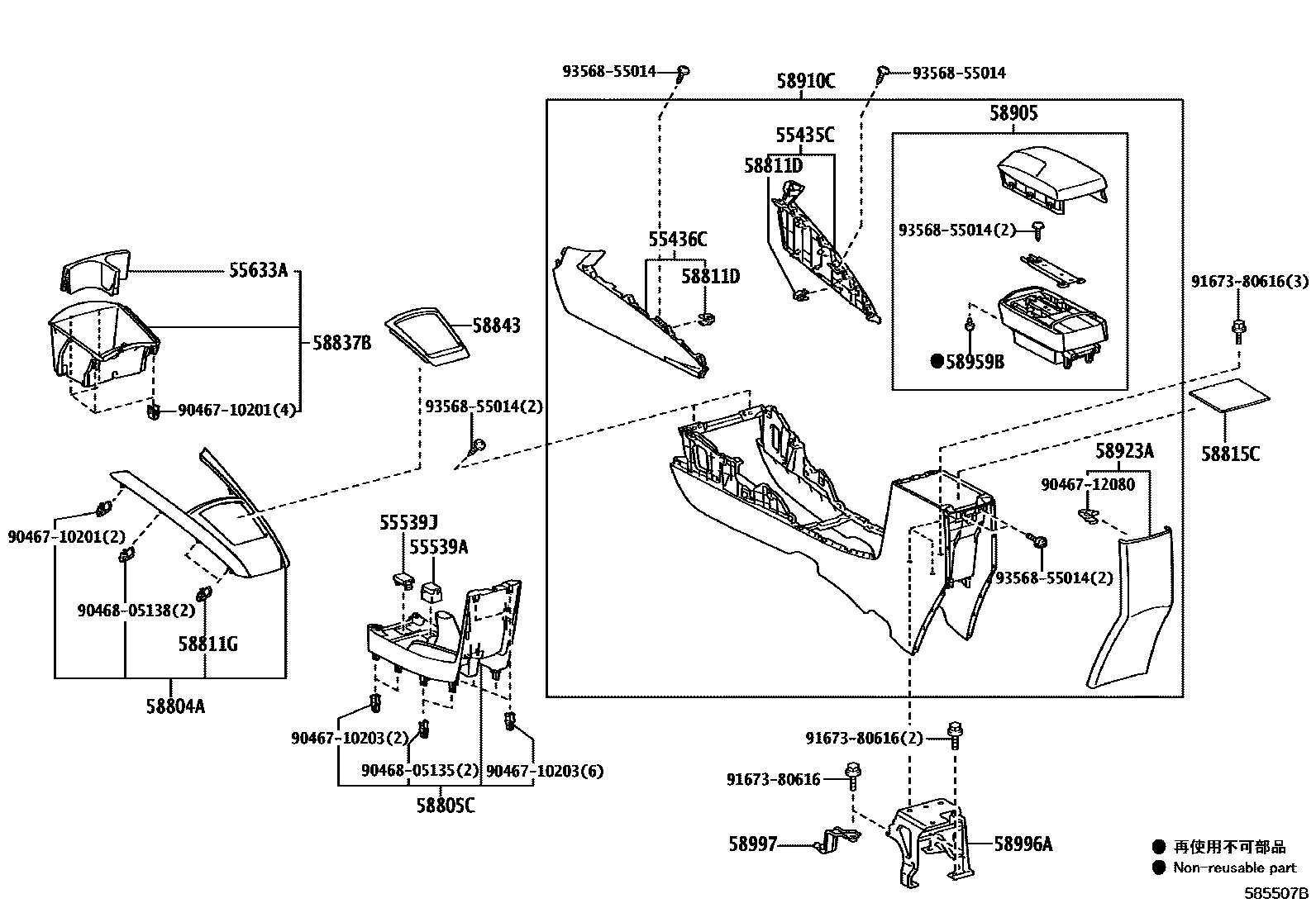

Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58811D | Clip (for armrest box) | 90467-10201 |
| 58811G | Clip (armrest box) | 90467-10201 |
| 58815C | Armrest box felt pad | 58815-12230 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-12250 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-52020 |
