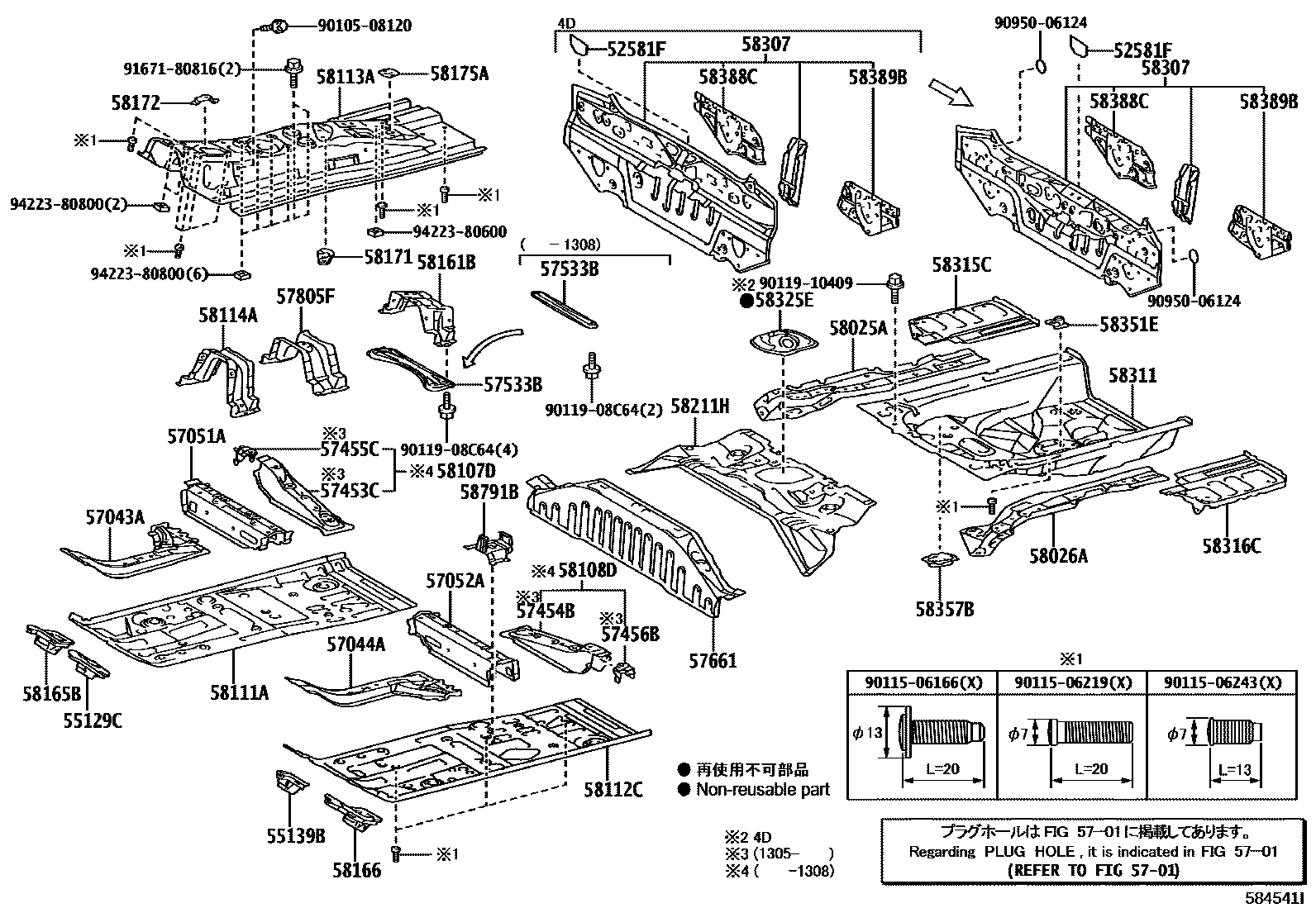

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52581F | rear bumper protector | 52581-12140 · 52581-13030 |
| 55129C | Front panel hole cover | 55129-52051 |
| 55139B | Left front panel hole cover | 55139-52021 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-52021 · 57043-52022 · 57043-52023 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-52041 · 57044-52042 · 57044-52043 |
| 57051A | Front floor right cross member sub-assembly | 57051-52010 |
| 57052A | Front floor left cross member sub-assembly | 57052-52010 |
| 57453C | Front floor right cross member | 57453-52022 |
| 57454B | Front floor left longitudinal beam | 57454-52012 |
| 57455C | Front right seat outer mounting bracket | 57455-52040 |
| 57456B | Front left seat outer mounting bracket | 57456-52040 |
| 57533B | Front floor center bracket | 57533-52011 · 57533-52030 |
| 57661 | Rear floor right front side panel | 57661-52110 |
| 57805F | No. 1 seat belt anchor reinforcement sub-assembly | 57805-52131 |
| 58025A | Front floor right longitudinal beam plate sub-assembly | 58025-12050 |
| 58026A | Front floor left longitudinal beam plate sub-assembly | 58026-12020 |
| 58107D | Front cross member to front panel right reinforcement sub-assembly | 58107-52050 · 58107-52051 |
| 58108D | Left front cross member to front panel reinforcement sub-assembly | 58108-52030 · 58108-52031 |
| 58111A | Front floor right bottom panel | 58111-52170 · 58111-52280 · 58111-52281 |
| 58112C | Front floor left bottom panel | 58112-52904 · 58112-52916 · 58112-52921 |
| 58113A | front floor center panel | 58113-52915 · 58113-52924 |
| 58114A | front floor reinforcement | 58114-52071 |
| 58161B | Seat belt anchor to floor pan reinforcement | 58161-52070 |
| 58165B | Front floor right cover | 58165-52011 |
| 58166 | Front floor left cover | 58166-52011 |
| 58171 | Parking brake base reinforcement | 58171-52090 |
| 58172 | No. 3 ECU mounting bracket | 58172-52020 |
| 58175A | No. 1 parking brake base reinforcement | 58175-52020 |
| 58211H | central floor base | 58211-52271 |
| 58307 | Body lower back panel sub-assembly | 58307-12B60 · 58307-12B61 · 58307-12B62 · 58307-12C60 · 58307-13200 · 58307-13201 · 58307-13202 · 58307-13220 |
| 58311 | rear floor pan | 58311-52210 |
| 58315C | Rear floor right side panel extension | 58315-52170 |
| 58316C | Rear floor left side panel extension | 58316-52190 |
| 58325E | Rear floor access hole cover | 58325-52050 |
| 58351E | Spare tire clip bracket | 58351-52070 |
| 58357B | No. 3 right actuator cover bracket | 58357-52041 |
| 58388C | Right body lower back panel reinforcement panel | 58304-12080 · 58388-12040 · 58388-12041 |
| 58389B | Left body lower back panel reinforcement panel | 58389-12030 |
| 58791B | jack bracket | 58791-52060 |
