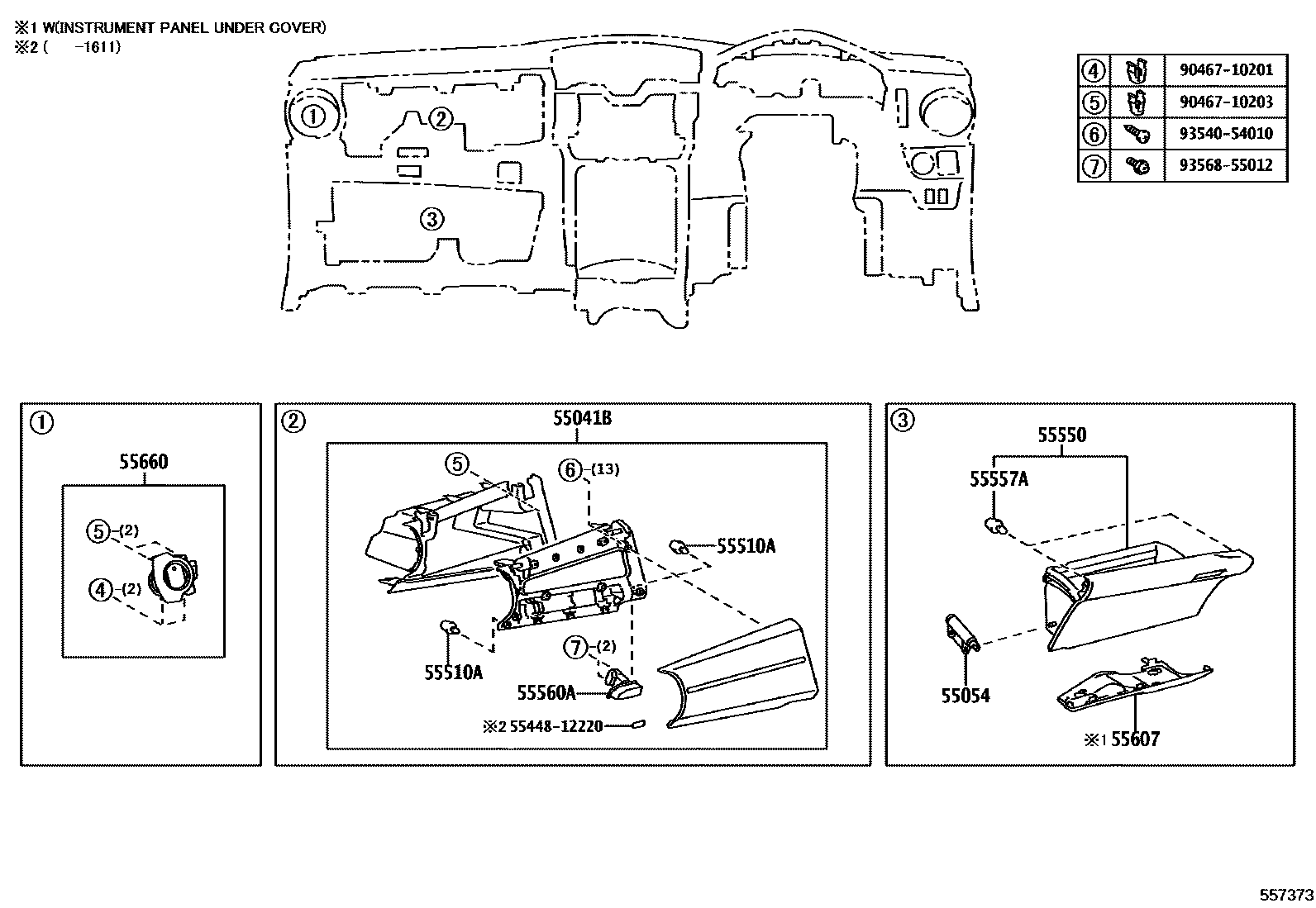

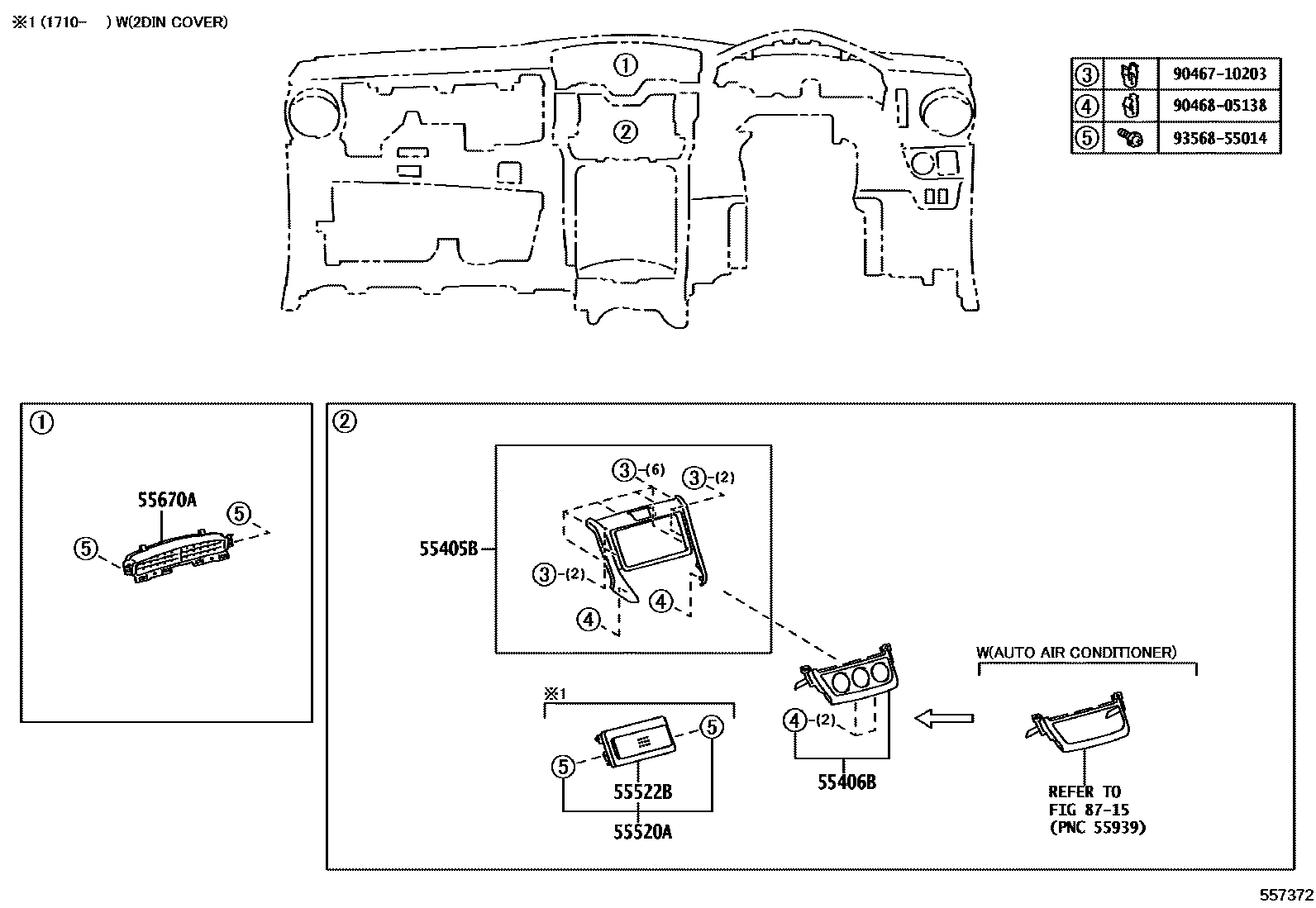

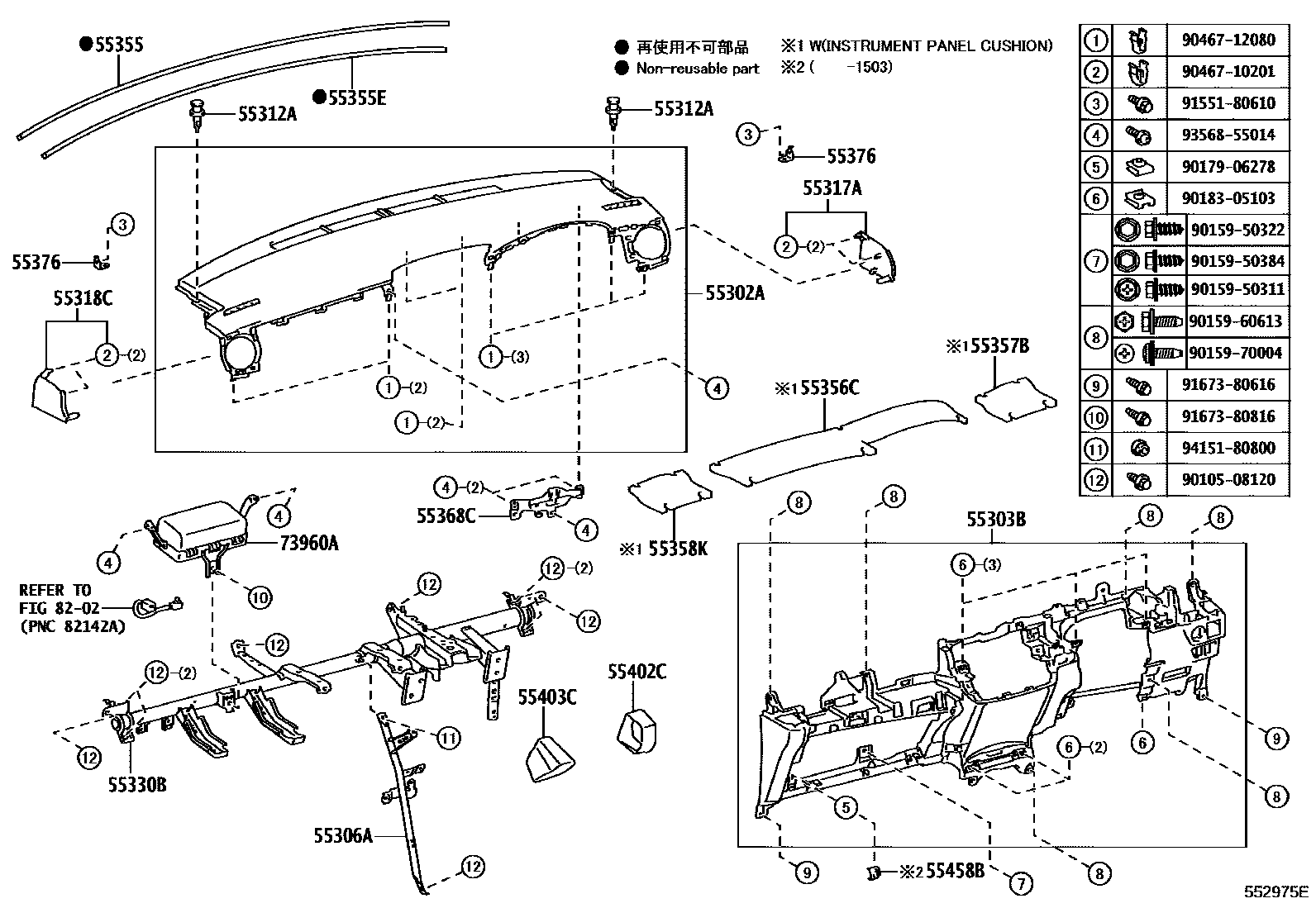

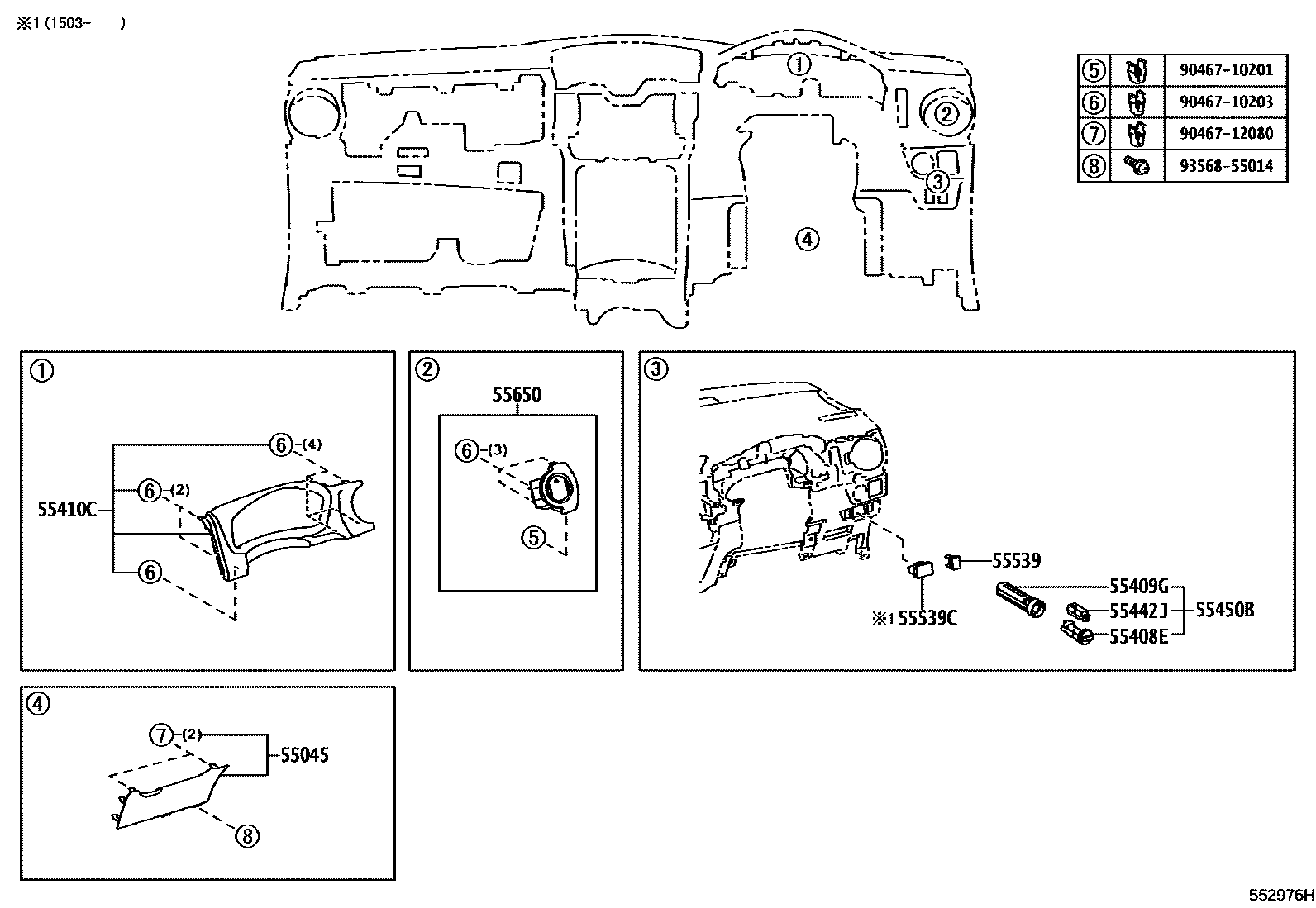

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-35020 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12520 |
| 55312A | Dashboard clip | 52161-16010 |
| 55330B | Instrument panel reinforcement assembly | 55330-12480 · 55330-12550 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-12090 · 55355-12240 |
| 55355E | Dashboard cushion | 55355-12190 · 55355-12250 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-12130 |
| 55357B | Dashboard No. 3 Cushion Pad | 55358-12120 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-12120 |
| 55368C | Instrument mounting bracket | 55368-12110 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-12160 |
| 55402C | Dashboard lower right pad sub-assembly | 55402-12060 |
| 55403C | Instrument panel lower left pad sub-assembly | 55403-12100 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-12600 · 55406-12620 |
| 55409G | Coin box fixing part sub-assembly | 55409-12010 |
| 55442J | Dashboard coin box frame | 55442-12500 |
| 55510A | Cushion (for glovebox lid) | 55557-53030 |
| 55520A | Stereo system hole cover assembly | 55520-47020 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-52060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-12190 · 73960-12191 · 73960-12460 |
