Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

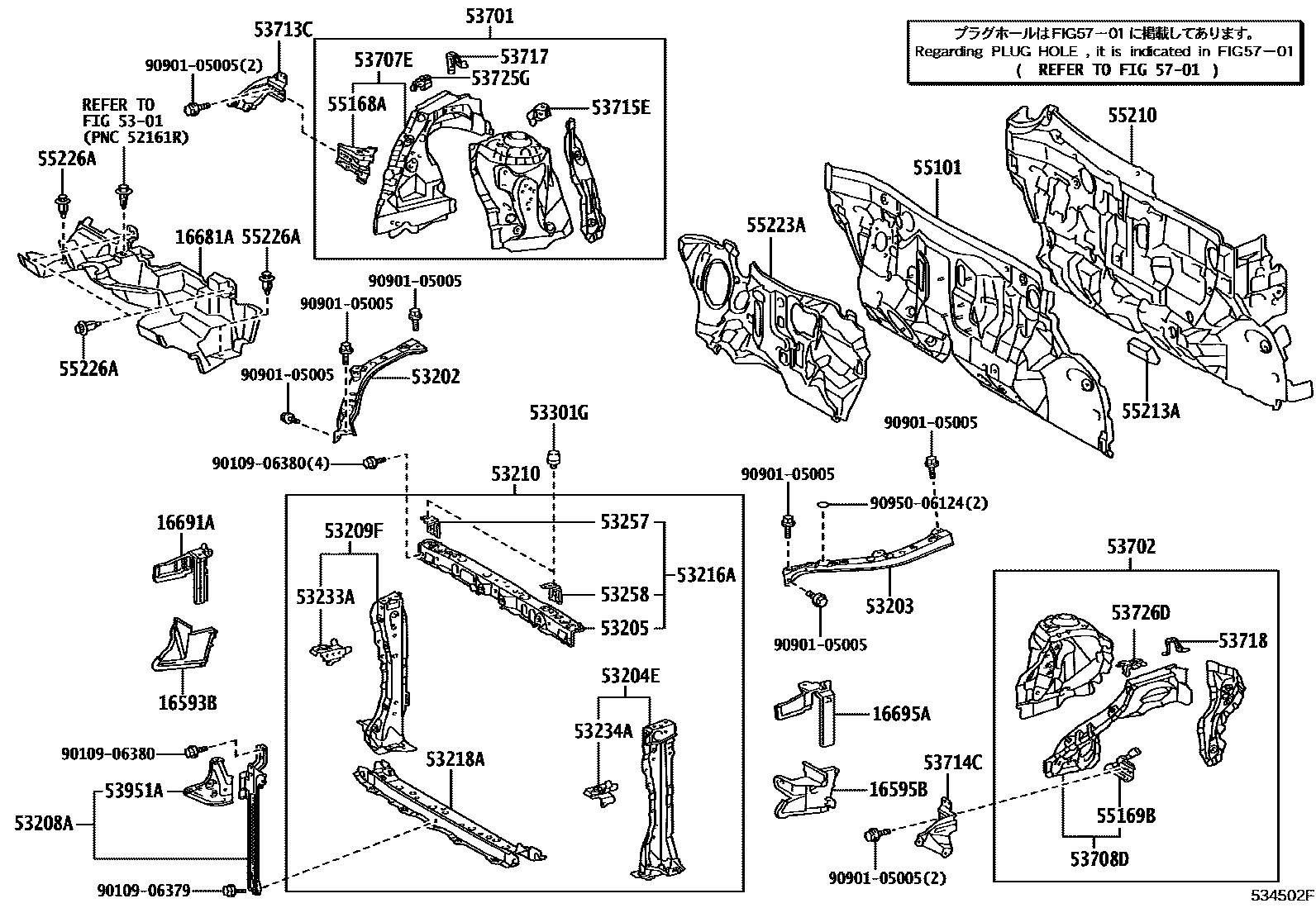

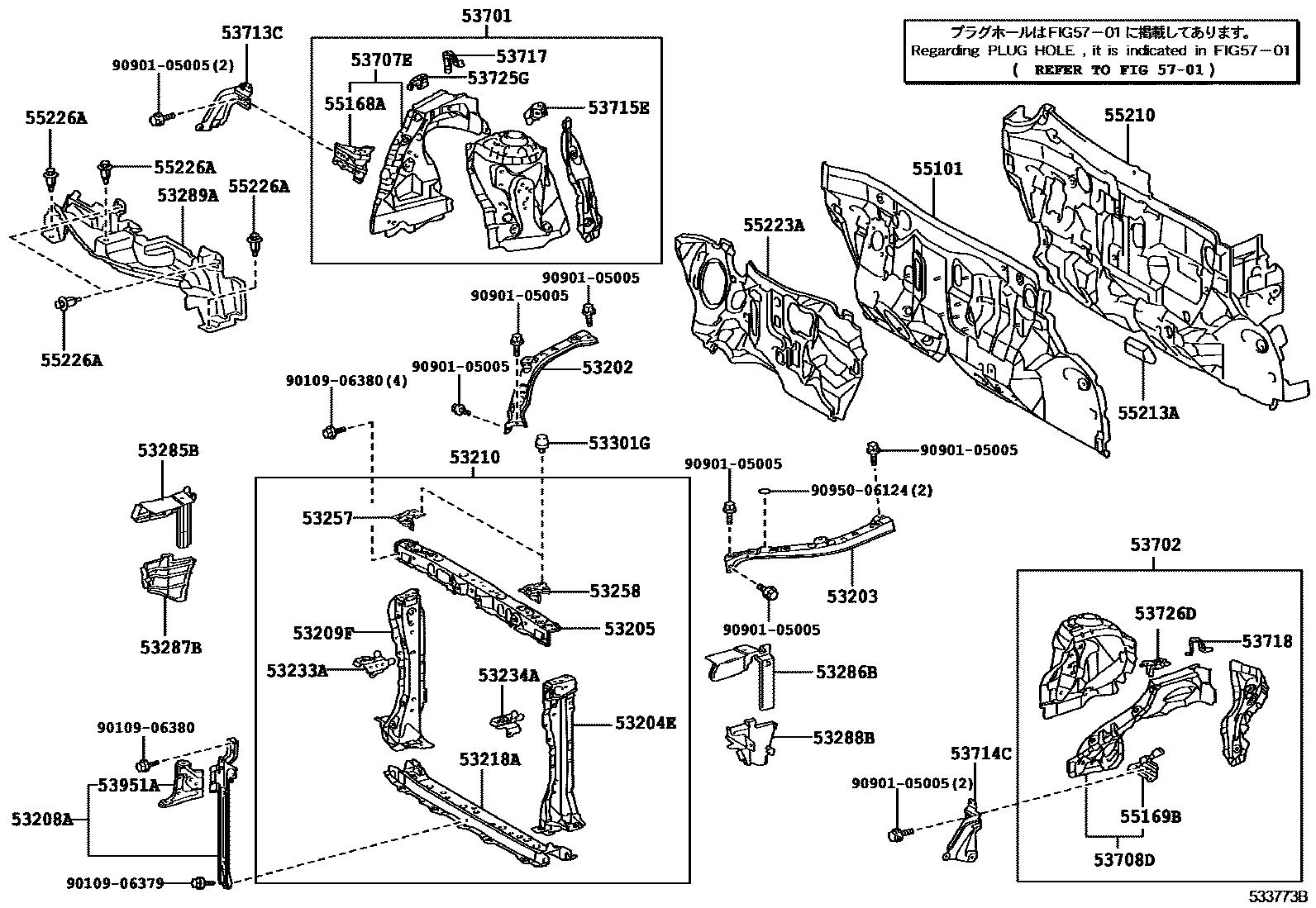

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16593B | No. 1 radiator right deflector | 16593-21030 · 16593-21080 |
| 16595B | No. 1 radiator left deflector | 16595-21030 · 16595-21080 |
| 16681A | Radiator upper deflector | 16681-21030 · 16681-21050 |
| 16691A | Radiator right front side deflector | 16691-21030 · 16691-21080 |
| 16695A | Radiator left front deflector | 16695-21030 · 16695-21060 |
| 53202 | Radiator right side bracket sub-assembly | 53202-12530 · 53202-12531 · 53202-12590 |
| 53203 | Radiator left bracket sub-assembly | 53203-12500 · 53203-12501 · 53203-12530 |
| 53204E | Radiator left bracket to cross beam bracket sub-assembly | 53204-52010 · 53204-52040 · 53204-52900 |
| 53205 | Radiator upper bracket sub-assembly | 53205-52160 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-52902 · 53208-52903 |
| 53209F | Radiator right side bracket to cross beam bracket sub-assembly | 53209-52010 · 53209-52900 |
| 53210 | Radiator bracket assembly | 53028-52901 · 53028-52903 · 53028-52904 |
| 53216A | Radiator upper bracket | 53205-52911 |
| 53218A | Radiator lower support | 53028-52091 |
| 53233A | No. 1 right headlight bracket | 53233-12080 · 53233-12090 |
| 53234A | No. 1 left headlight bracket | 53234-12050 · 53234-12060 |
| 53257 | Mounting bracket on the right side of the front end plate | 53035-12020 · 53238-12040 |
| 53258 | Front panel left mounting bracket | 53036-12020 · 53239-12040 |
| 53285B | Radiator side 1 air seal | 53285-12090 |
| 53286B | Radiator No. 2 side air seal | 53286-12060 |
| 53287B | Radiator right side bracket extension | 53287-12100 |
| 53288B | Radiator left bracket extension | 53288-12100 |
| 53289A | Radiator bracket opening cover | 53289-12040 |
| 53301G | engine cover cushion | 53384-12120 |
| 53701 | Right front fender fender sub-assembly | 53701-12A50 |
| 53702 | Left front fender fender sub-assembly | 53702-12A60 |
| 53707E | Fender right fender sub-assembly | 53707-52060 |
| 53708D | Fender left fender sub-assembly | 53708-52060 |
| 53713C | Right front fender fender front extension | 53713-12170 · 53713-12180 |
| 53714C | Left front fender fender front extension | 53714-12160 · 53714-12170 |
| 53715E | Right front fender fender rear extension | 53715-52030 |
| 53717 | Right fender fender side panel | 53717-12080 |
| 53718 | Left fender fender side panel | 53718-12070 |
| 53725G | No. 2 right front fender fender | 53725-52010 |
| 53726D | No. 2 left front fender fender | 53726-52010 |
| 53951A | Front panel bracket | 53951-12110 · 53951-12120 |
| 55101 | Front apron sub-assembly | 55101-52511 · 55101-52521 |
| 55168A | Right front fender mounting bracket | 55168-52130 |
| 55169B | Left front fender mounting bracket | 55169-52130 |
| 55210 | Front wall insulation pad assembly | 55210-12660 · 55210-12661 · 55210-12670 · 55210-12671 |
| 55213A | Front wall muffler pad | 55213-52190 |
| 55223A | Front wall outer heat insulation pad | 55223-52120 · 55223-52121 |
| 55226A | clip | 90467-07214 |
