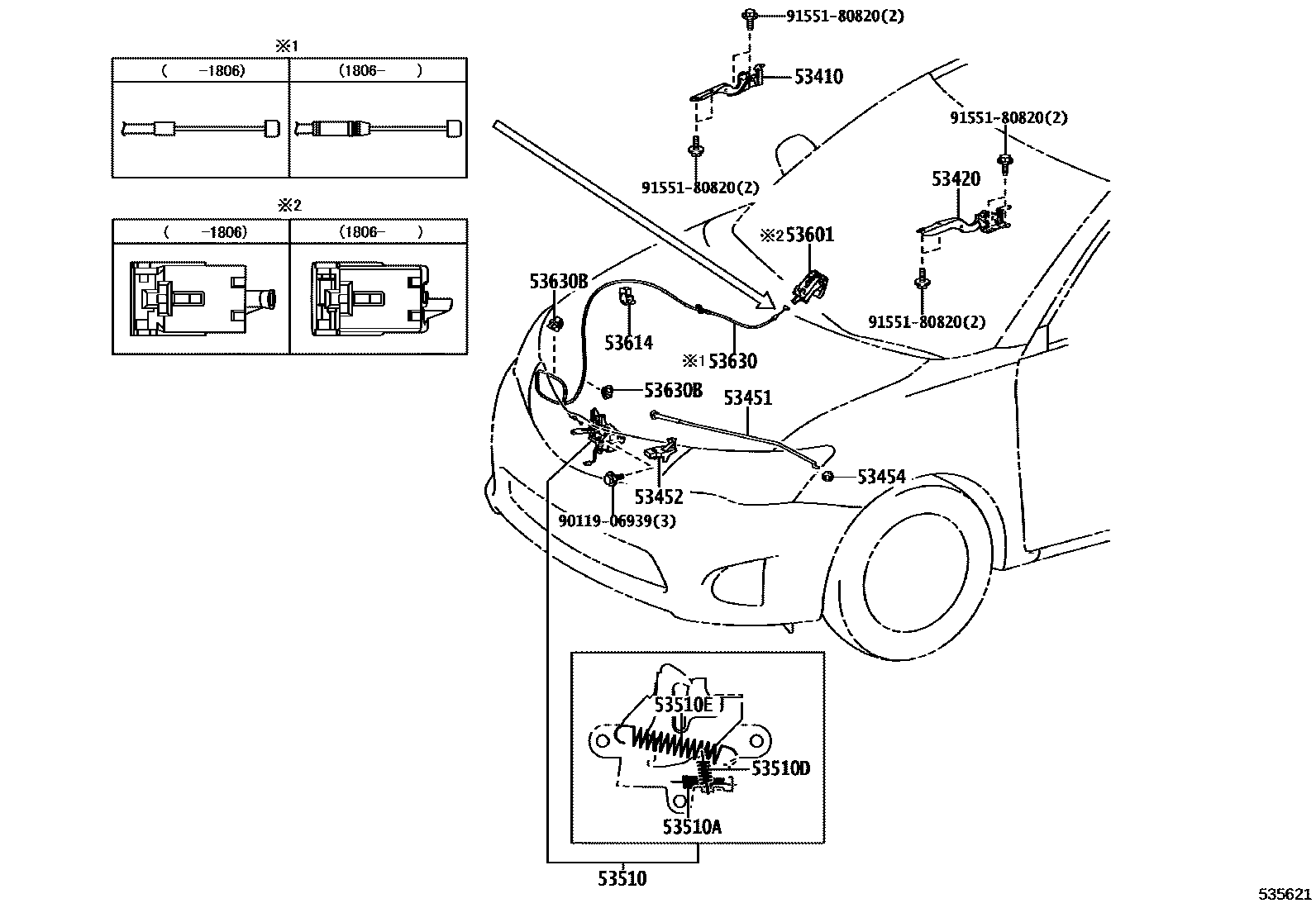

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-12620 |
| 53420 | Engine cover left hinge assembly | 53420-12610 |
| 53451 | Engine cover support rod | 53440-12200 · 53440-12210 |
| 53452 | Engine cover stay rod fixing | 53452-12110 |
| 53454 | Engine cover support rod clip | 53454-52040 |
| 53510 | Engine cover lock assembly | 53510-12B50 · 53510-12B70 · 53510-12B80 |
| 53510A | Tension spring (for hood lock) | 90506-09052 · 90506-09055 |
| 53510D | Tension spring (for hood lock) | 90506-12063 |
| 53510E | Tension spring (for hood lock) | 90506-16077 |
| 53614 | Engine hood lock control cable clip | 82711-1E370 |
| 53630 | Engine hood lock control cable assembly | 53630-52160 · 53630-52161 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 |
