Toyota COROLLA radiator grille — Figure 5301

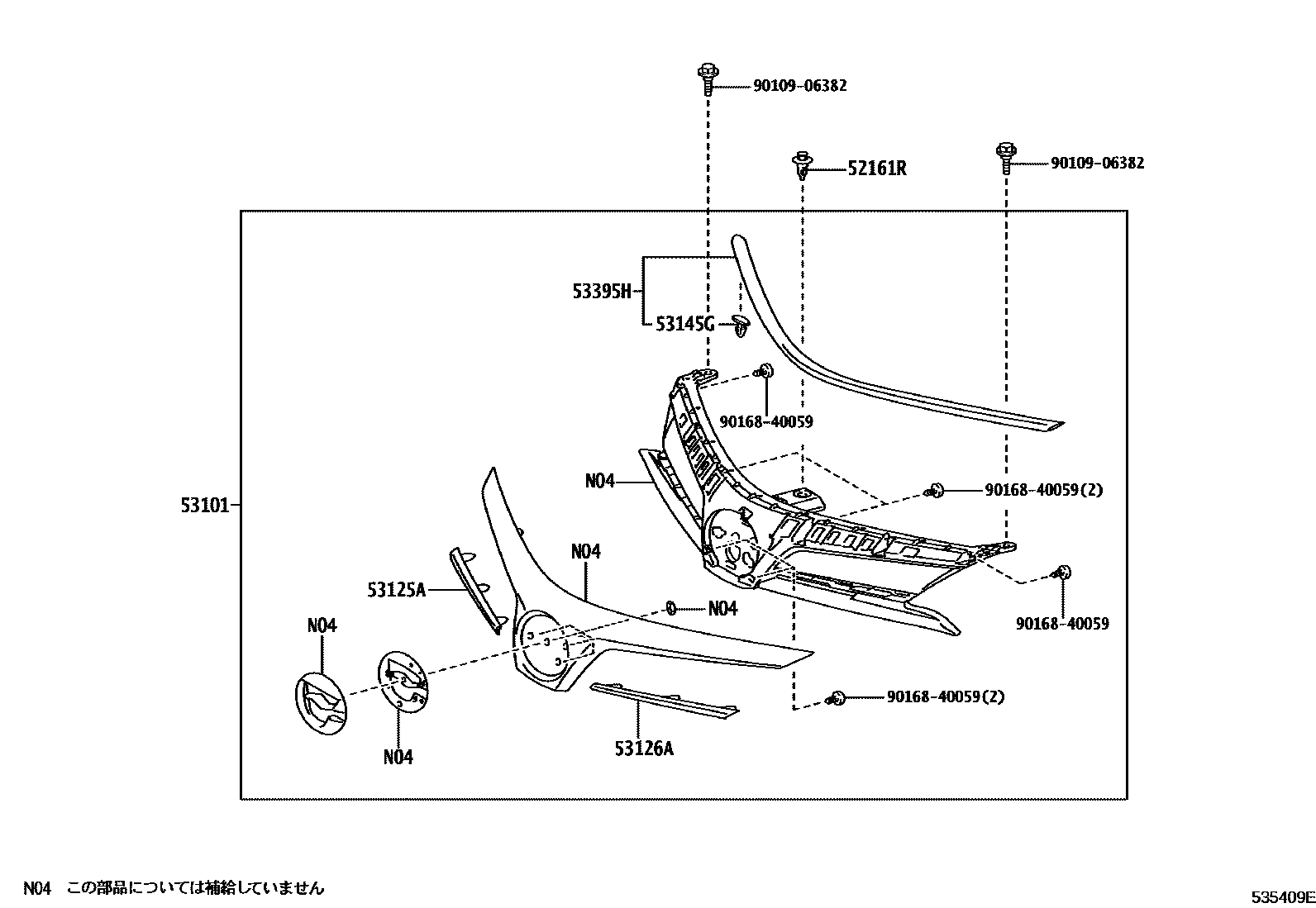

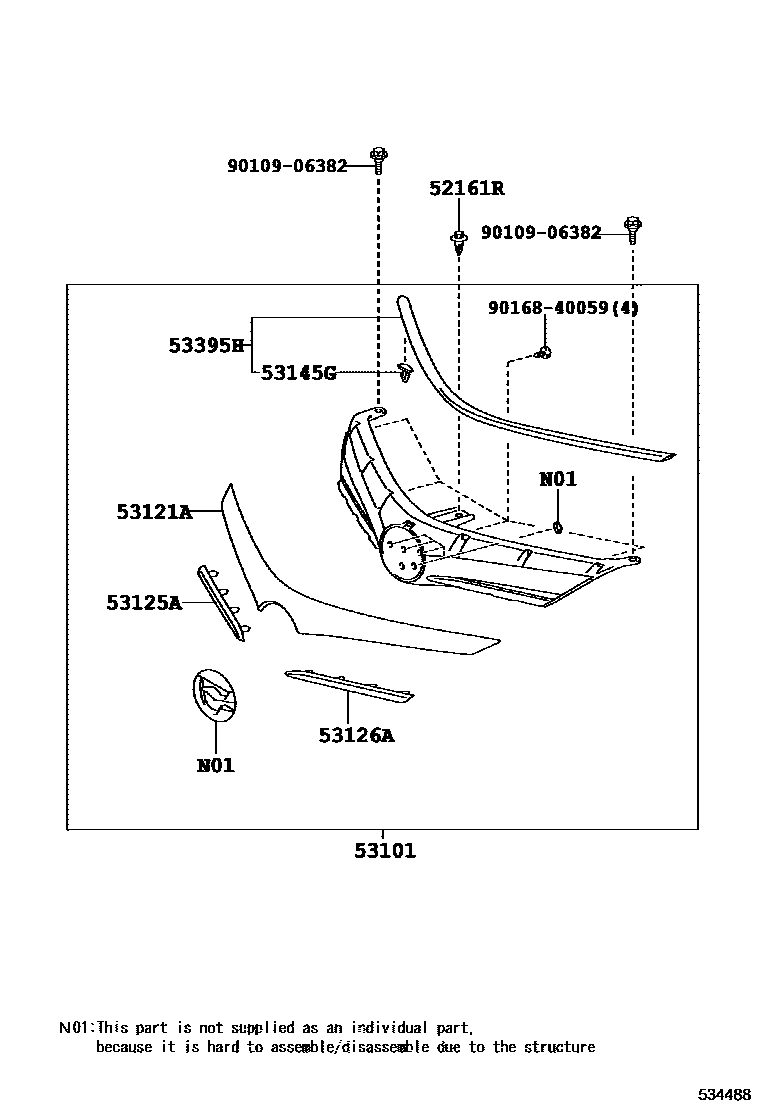

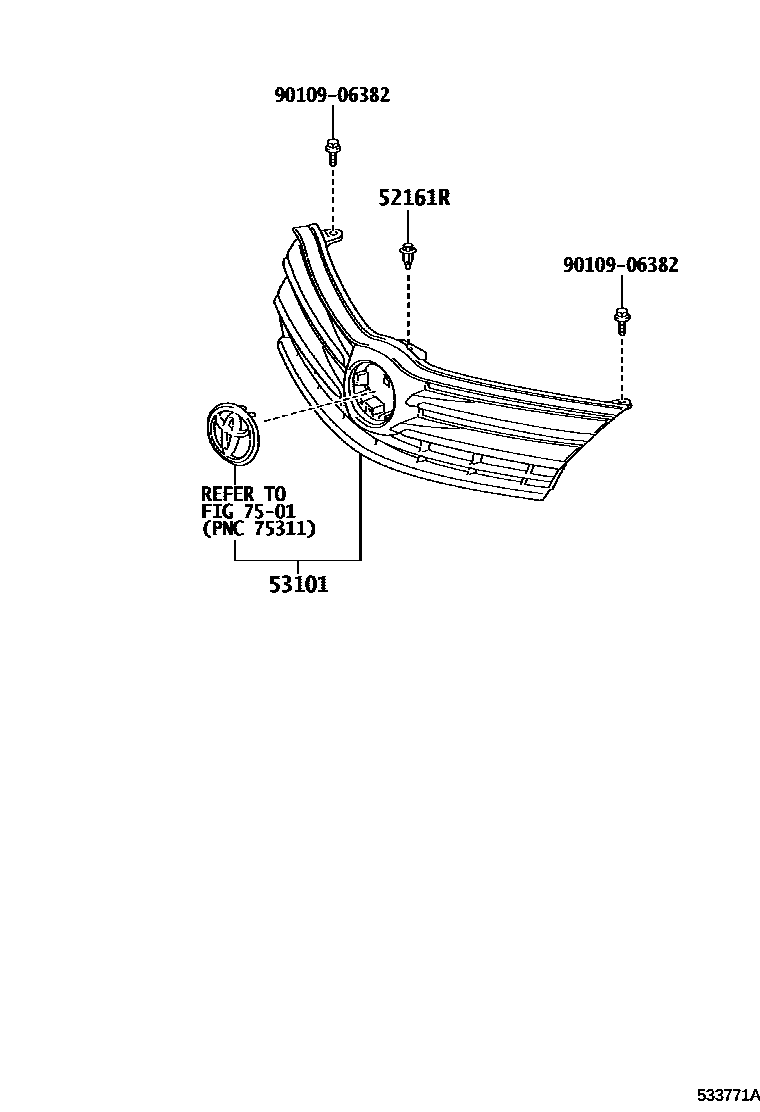

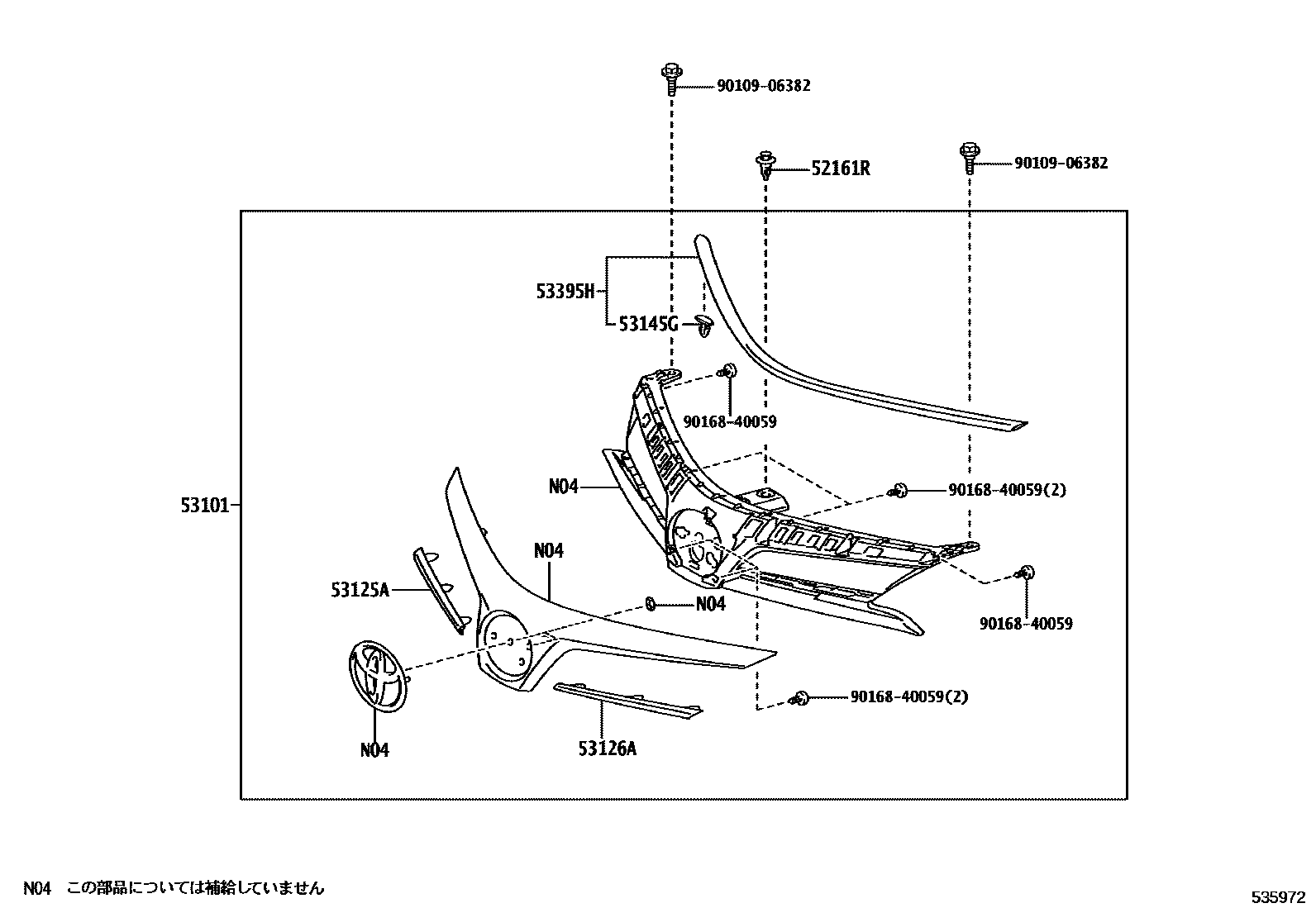

Toyota COROLLA EPC diagram 5301, radiator grille, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-16010 |
| 53101 | Radiator grille sub-assembly | 53101-12C30 · 53101-12C40 · 53101-12D00 · 53101-12D40 · 53101-12D60 · 53101-13270 · 53101-13370 |
| 53121A | Radiator grille protection strip | 53121-12300 |
| 53125A | Radiator grille right center protective strip | 53125-12020 · 53125-12030 |
| 53126A | Radiator grille left middle protective strip | 53126-12020 · 53126-12050 |
| 53145G | Radiator grille clip | 53145-60030 |
| 53395H | Engine cover to radiator grille seal | 53395-12130 |
